Description

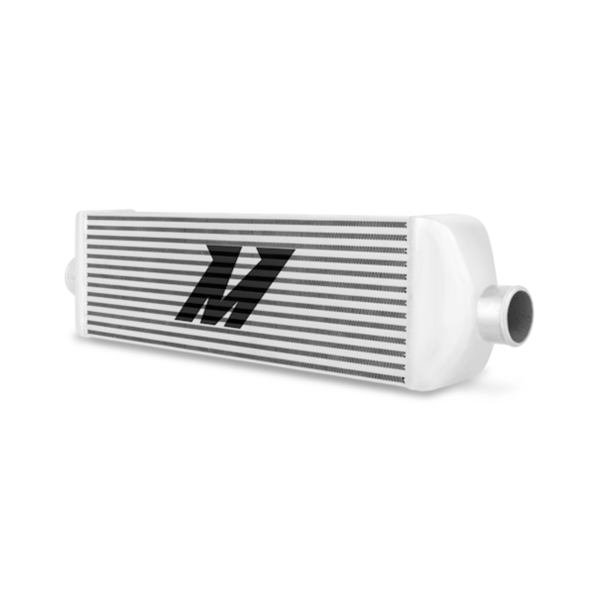

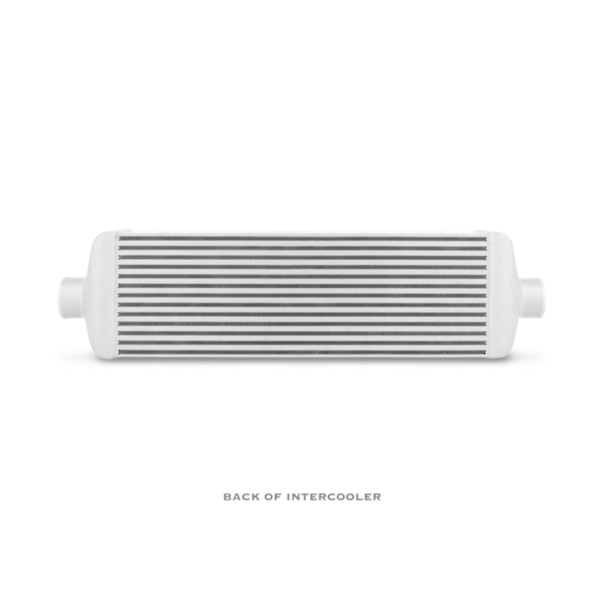

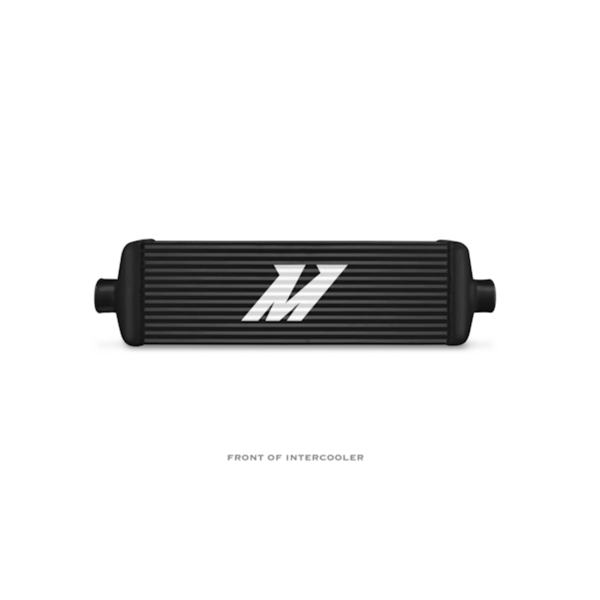

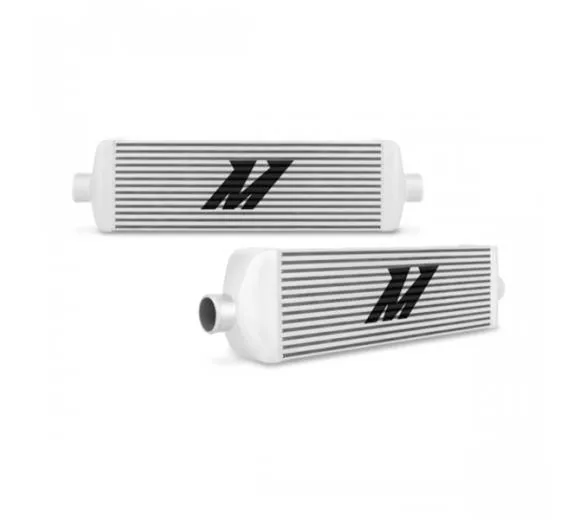

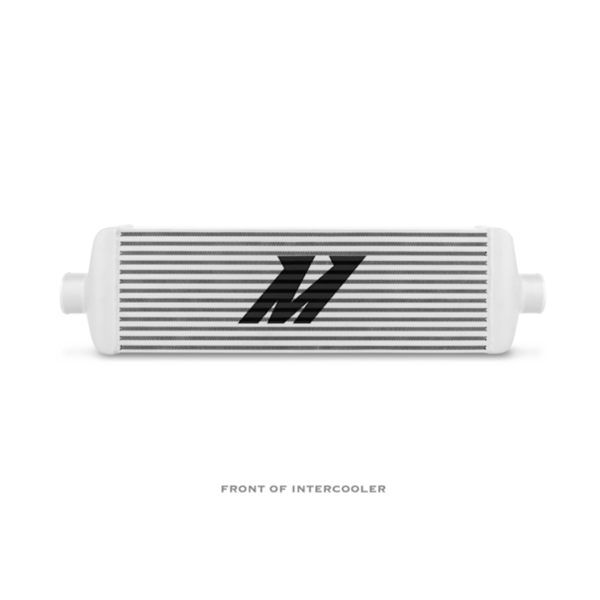

A small cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size. Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space. In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar. Like all Mishimoto intercoolers, the J-Line is constructed with 6061 aluminum and is TIG welded to perfection.

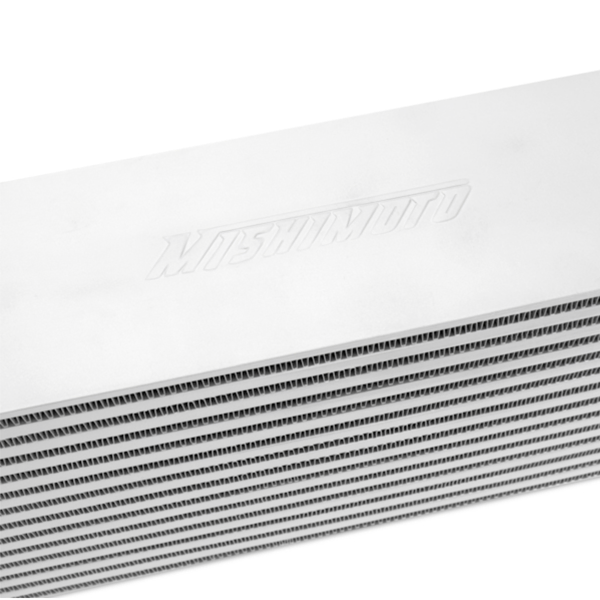

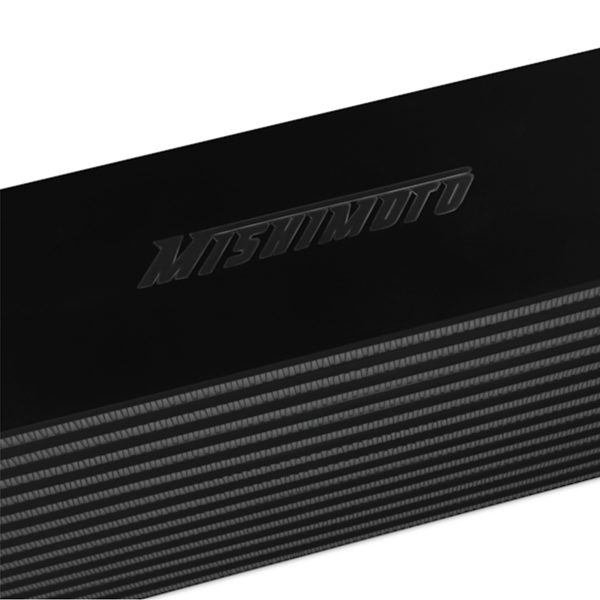

  • Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
  • Robust, one-piece cast aluminum end tanks withstand high boost pressures
  • Large 3.75" thick core and 2.5" inlet/outlet provides optimal flow and volume for high horsepower vehicles
  • constructed with 6061 aluminum

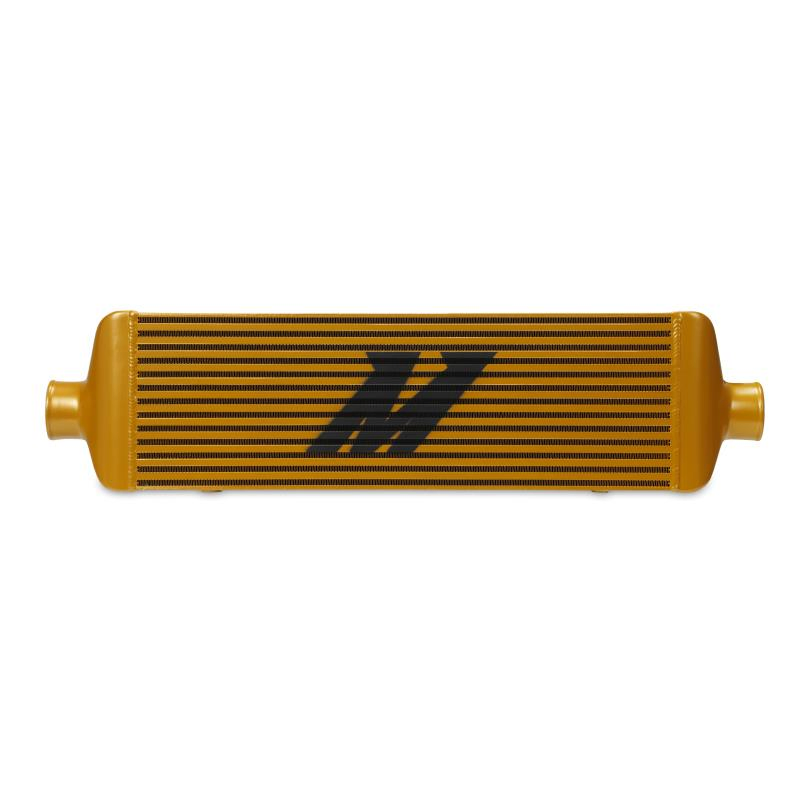

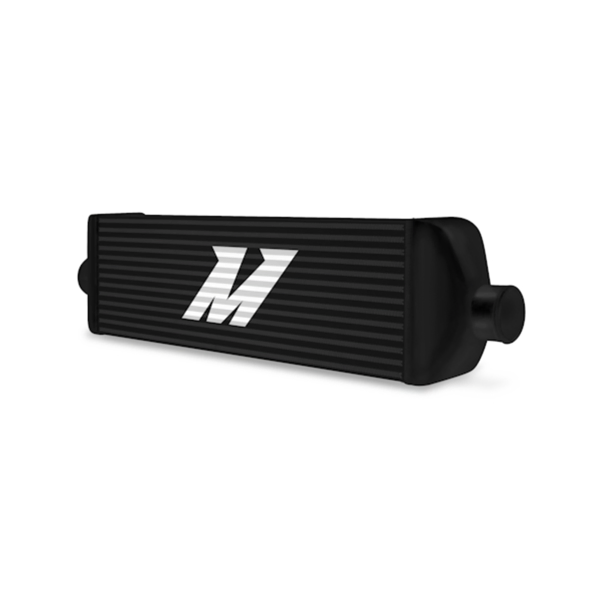

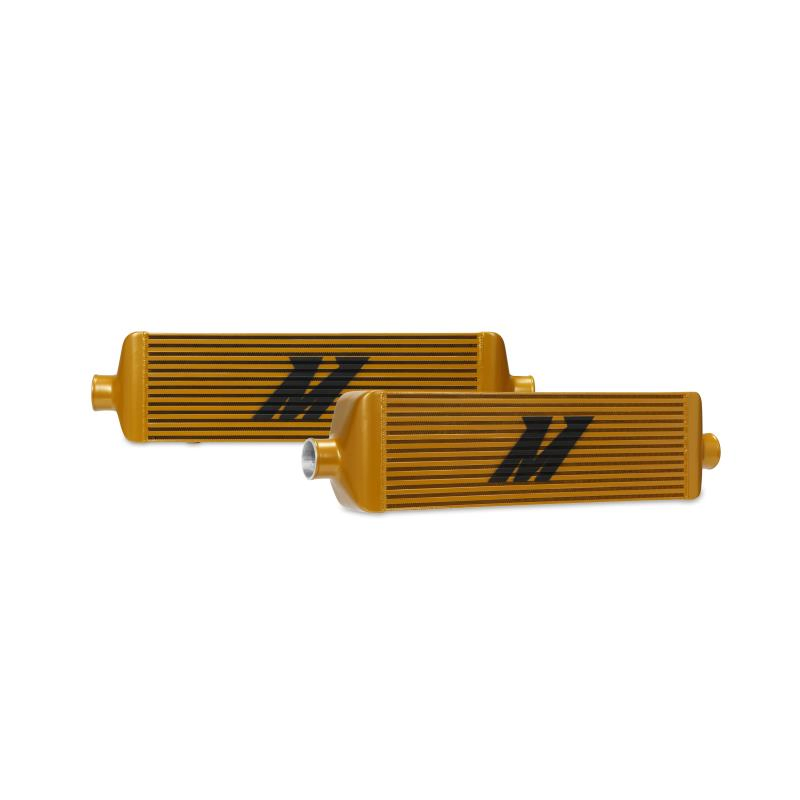

  • Available in Sleek Silver, Stealth Black, or Bold Gold
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Thread Size - M12 x 1.25
  • Core Thickness - 3.15"
  • Fits - Universal
  • Weight - 18.7 lbs
  • Coating - Powder Coated
  • Tank Wall Thickness - 4mm
  • Fin Pitch - 7 Fins/Inch
  • Max Rec. PSI - 40 psi
  • Outlet - 2.5"
  • Core Length - 22"
  • Core Height - 7.2"
  • Core Width - 3.75"
  • Inlet - 2.5"
  • Core Size - 22.0" x 7.2" x 3.75"
  • Overall Width - 3.75"
  • Overall Height - 7.5"
  • Overall Length - 29.5"
  • Construction - Bar-and-Plate



Purchase Includes:

  • Mishimoto Intercooler
  • (2) M12 x 1.25 Bolts
  • Mishimoto Lifetime Warranty

Compatibility

  • Universal
