Description

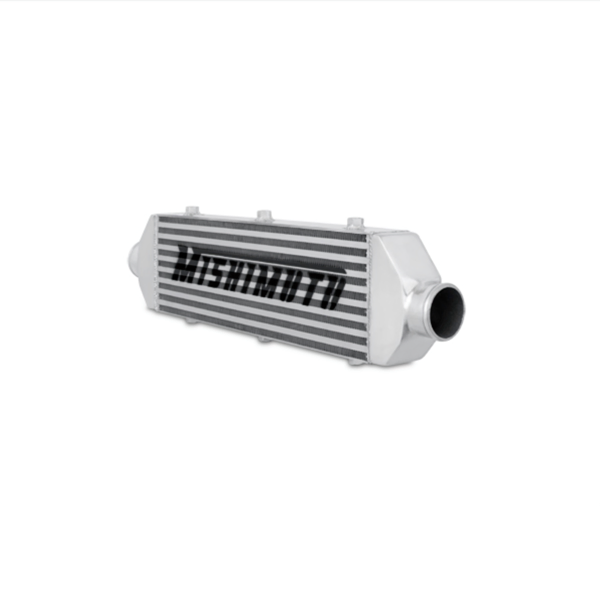

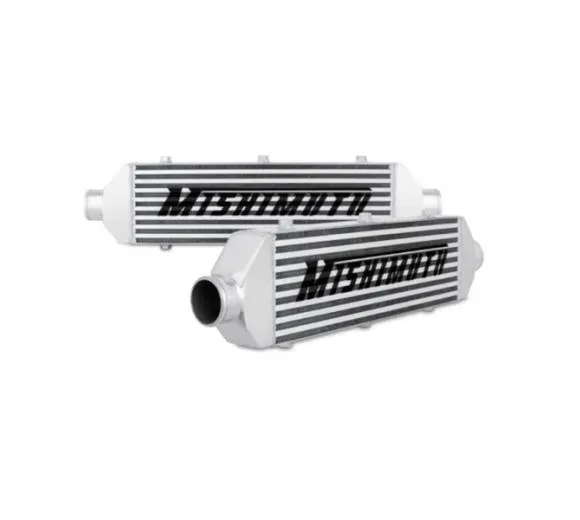

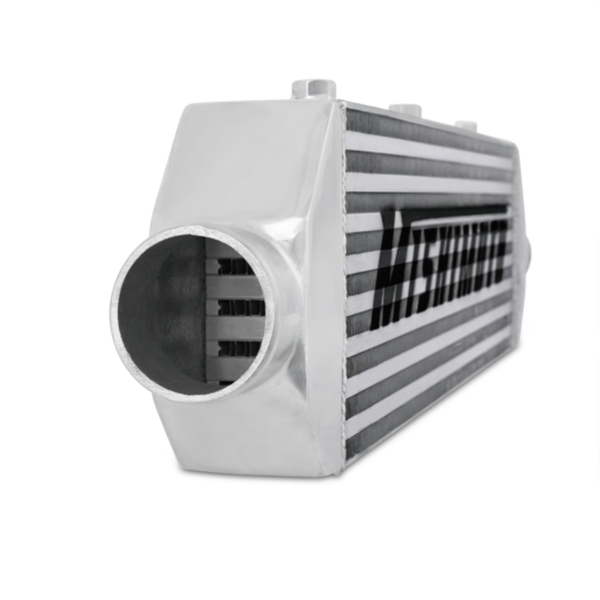

Sleek and stylish, this universal front-mount intercooler will provide the perfect cooling capacity needed for larger turbo applications. All Mishimoto intercoolers are constructed of 6061 aluminum and are TIG welded to perfection.

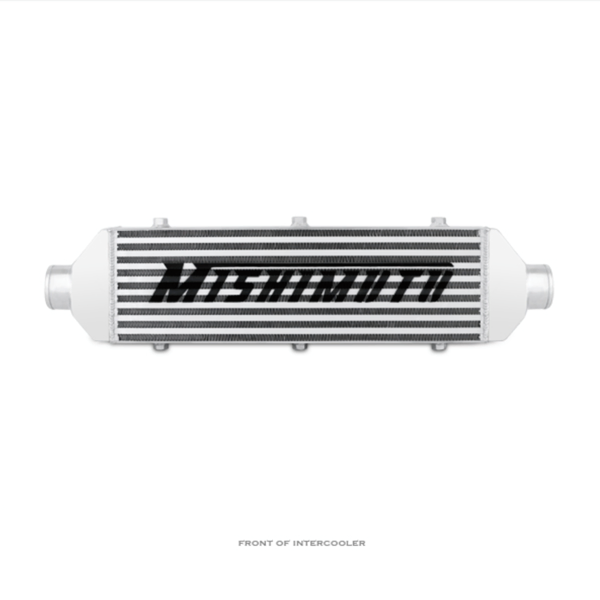

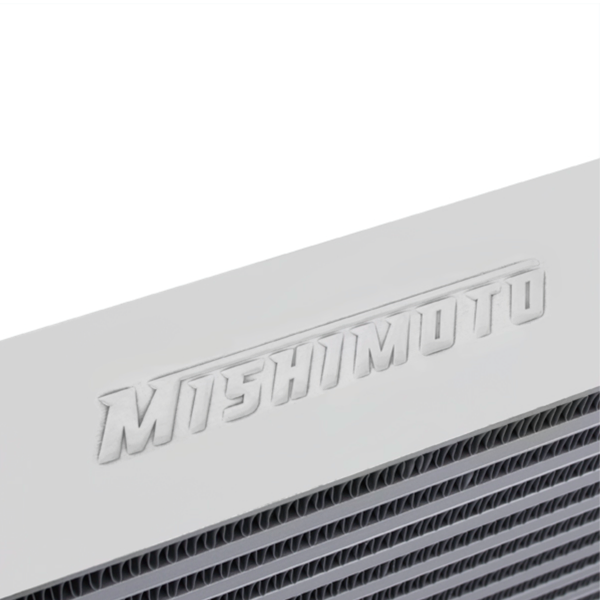

Note: For your taste, only one side of the intercooler has the Mishimoto logo.
  • All-aluminum construction with bar-and-plate core
  • TIG-welded end tanks for increased strength and durability
  • 6 threaded mounting points for universal fitment
  • Rated to 22 PSI

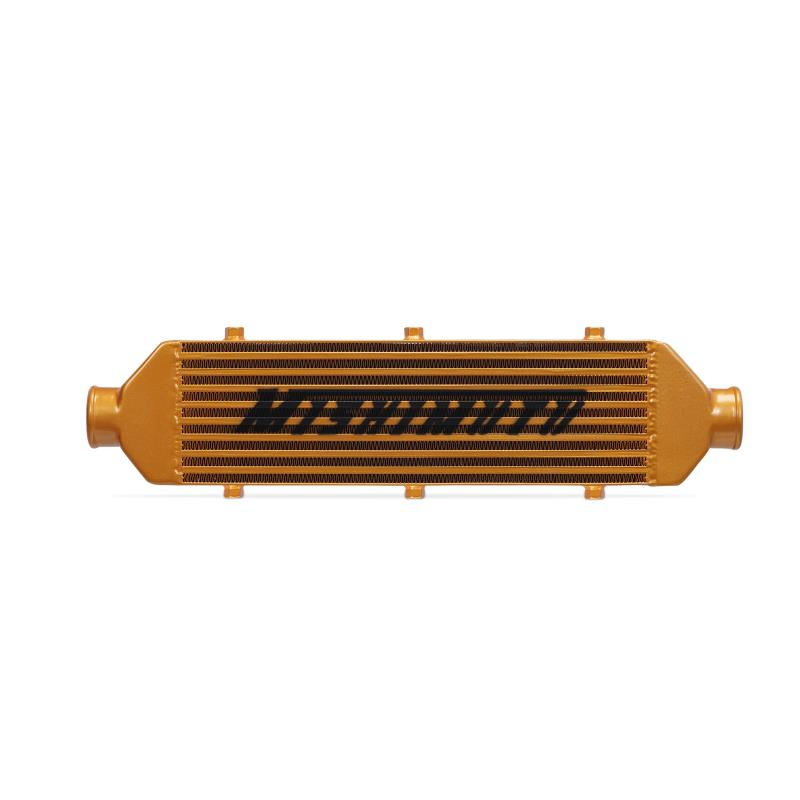

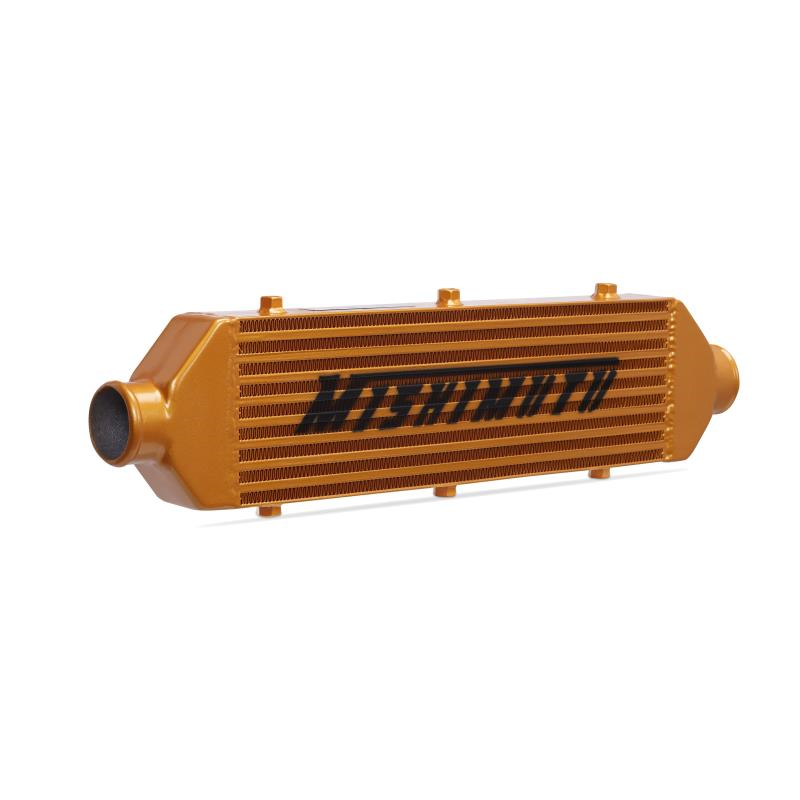

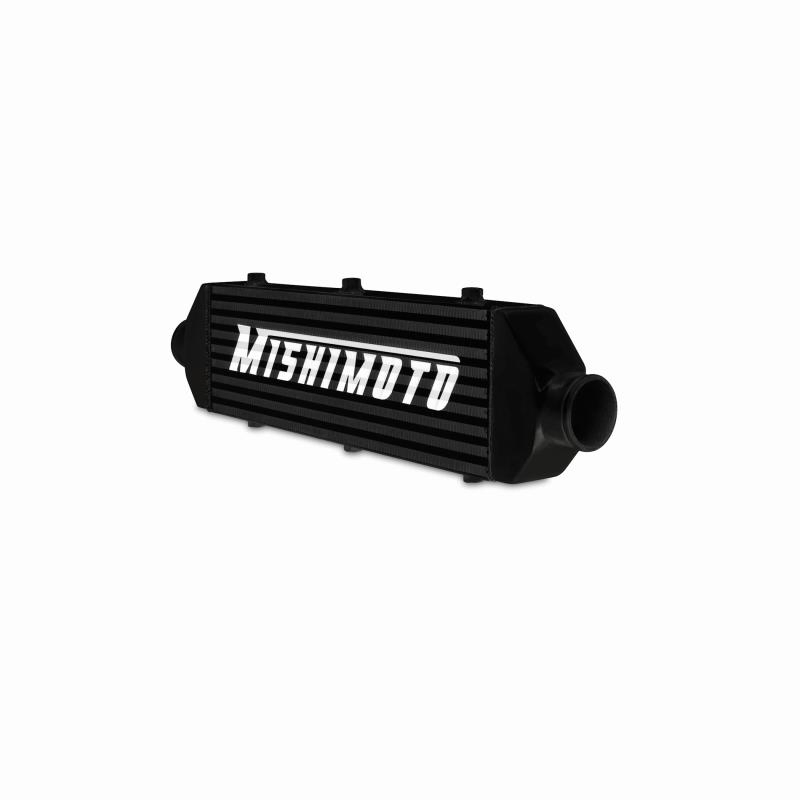

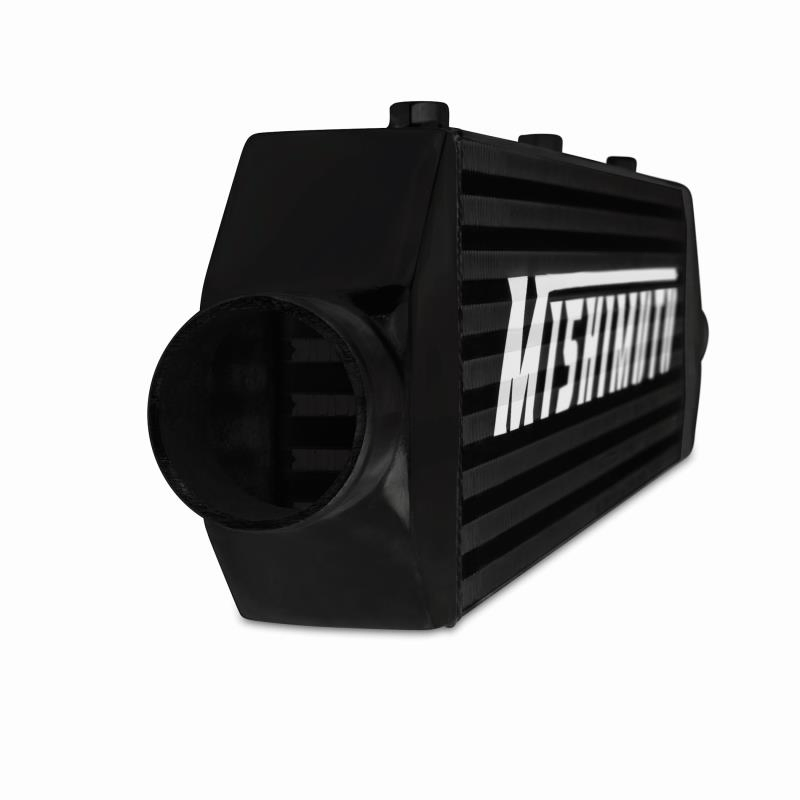

  • Available in Sleek Silver, Stealth Black, or Bold Gold
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Thread Size - M12 x 1.75
  • Fits - Universal
  • Coating - Powder Coated
  • Tank Wall Thickness - 5mm
  • Fin Pitch - 15 Fins/Inch
  • Max Rec. PSI - 22 psi
  • Outlet - 2.5"
  • Core Length - 20.5"
  • Core Height - 6.25"
  • Core Width - 2.5"
  • Inlet - 2.5"
  • Core Size - 20.5" x 6.25" x 2.5"
  • Overall Width - 2.5"
  • Overall Height - 7.5"
  • Overall Length - 28"
  • Construction - Bar-and-Plate



Purchase Includes:

  • Mishimoto Intercooler
  • Mishimoto Lifetime Warranty

Compatibility

  • Universal
