Description

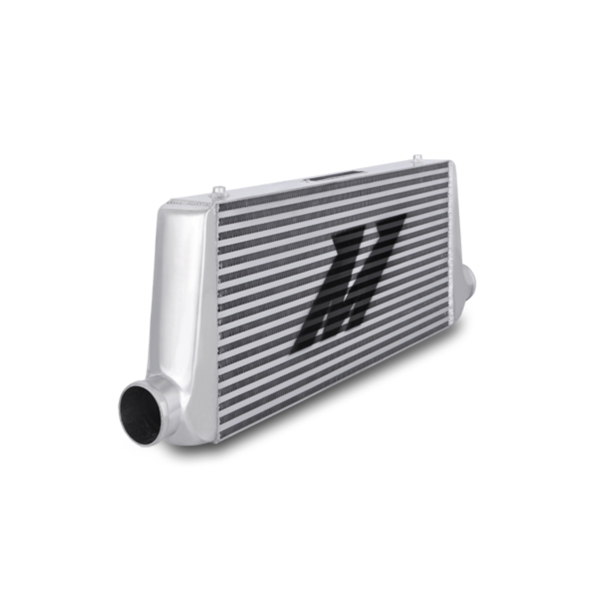

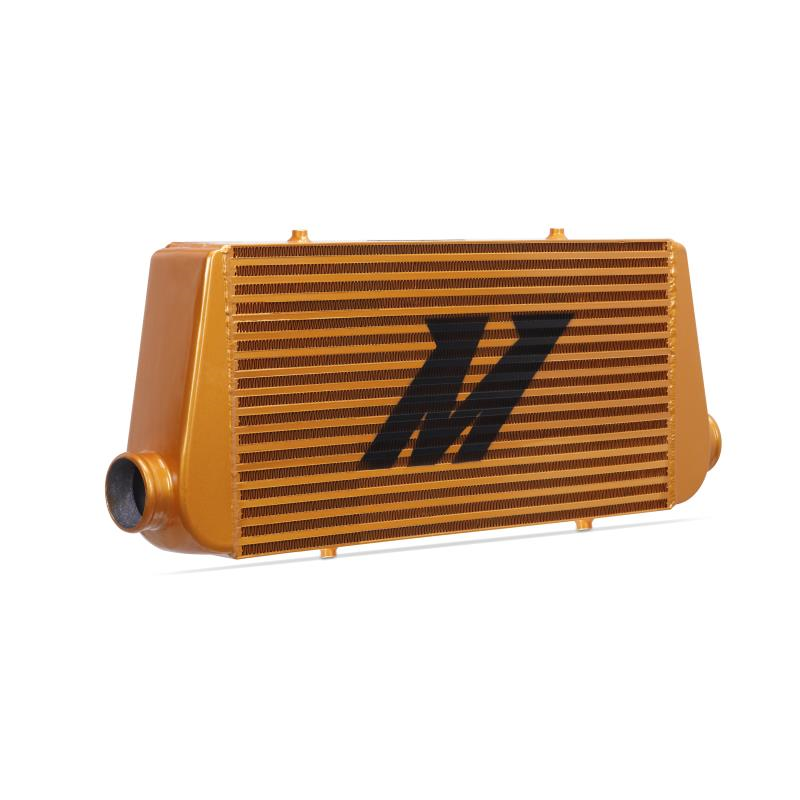

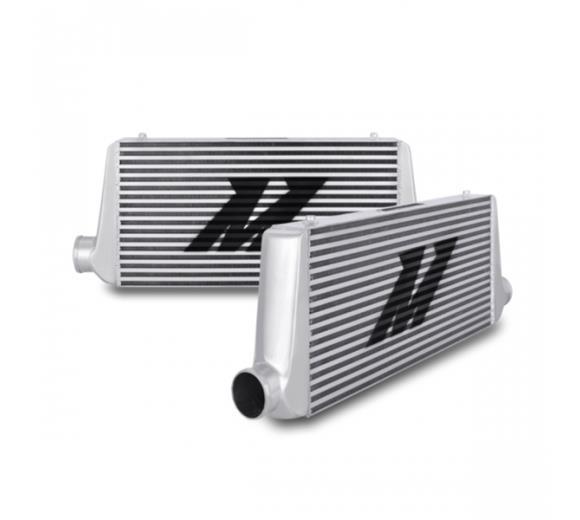

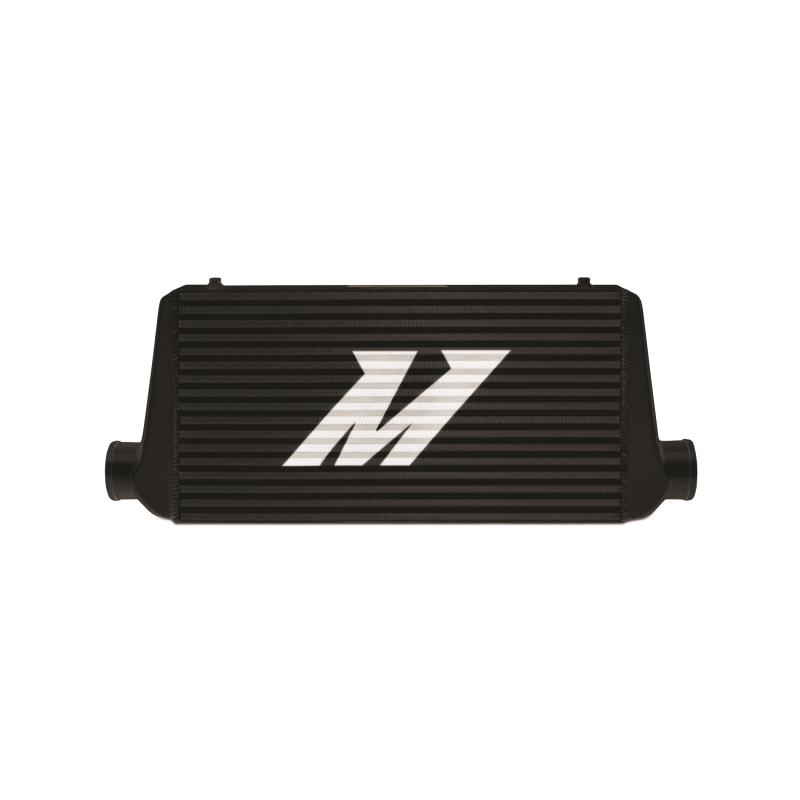

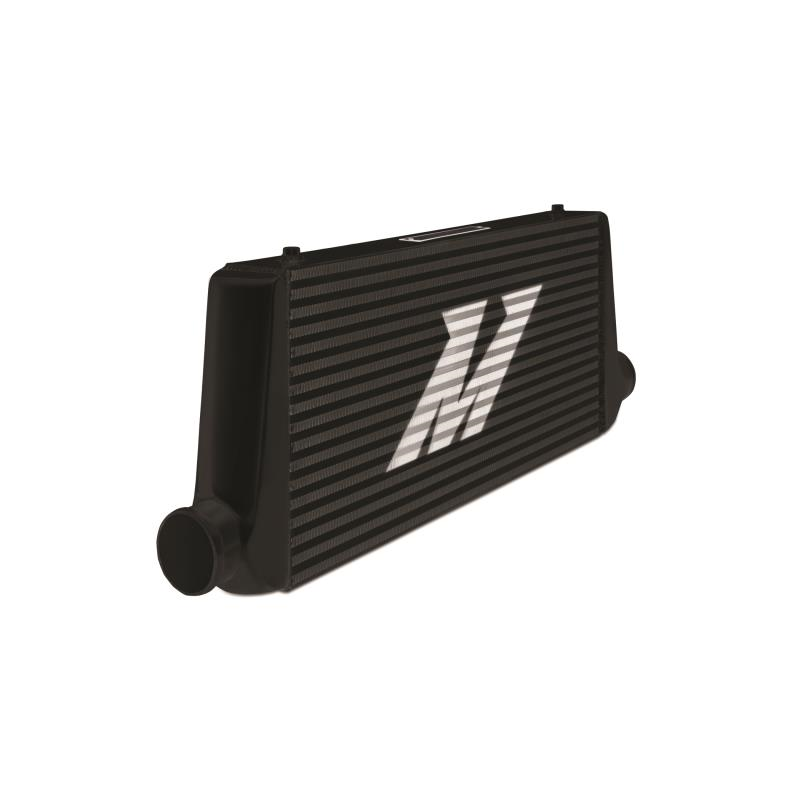

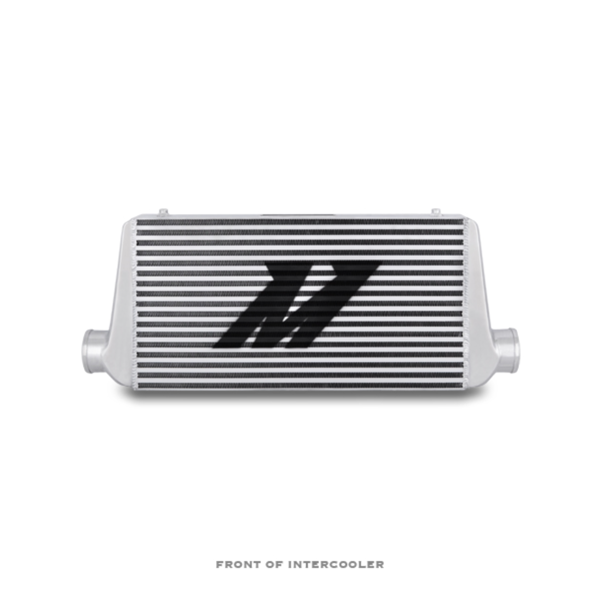

The Mishimoto R-Line intercooler provides the perfect cooling capacity needed for supercharged and turbo charged vehicles. Constructed of 6061 aircraft-quality aluminum for extreme durability, the Mishimoto R-Line intercooler will efficiently reduce induction air temperatures, while significantly improving engine output.

Mishimoto front-mount intercoolers are precision TIG welded, offering an enhanced level of performance. The R-Line intercooler will provide the ideal cooling capacity, while safely increasing horsepower and giving that extra boost that every driver appreciates.

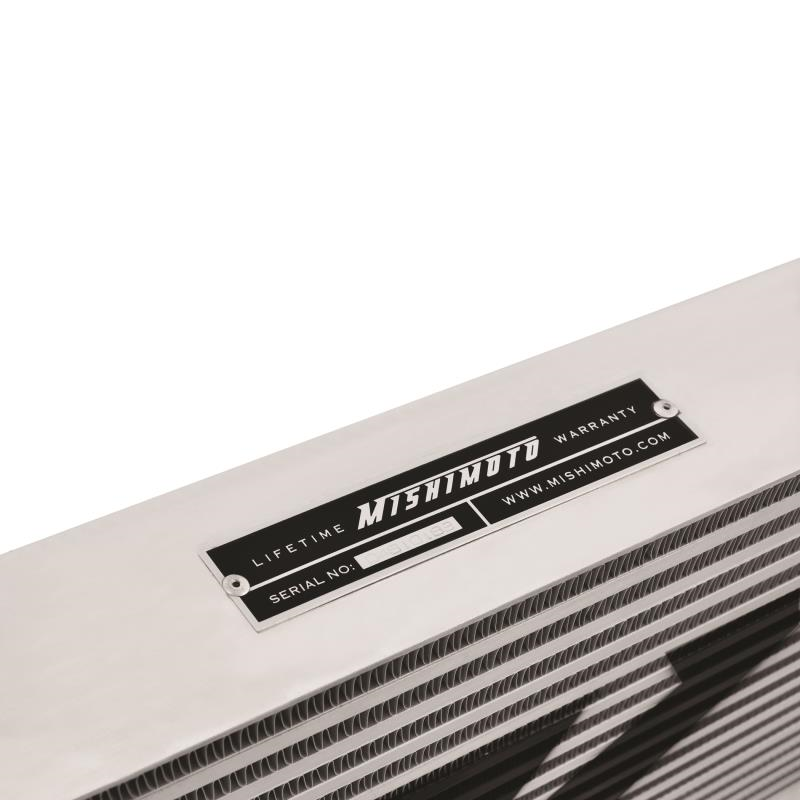

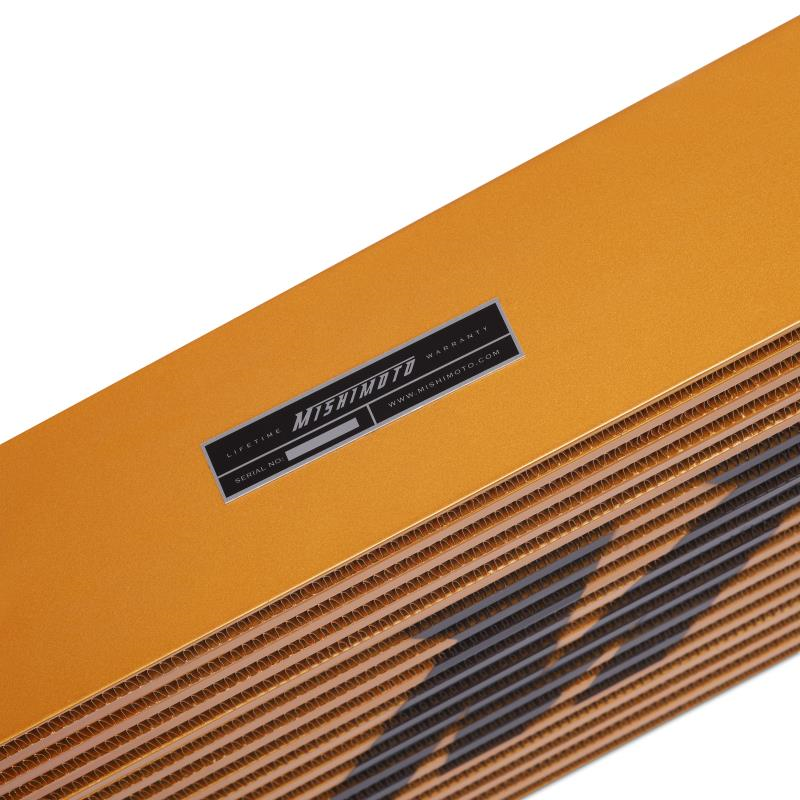

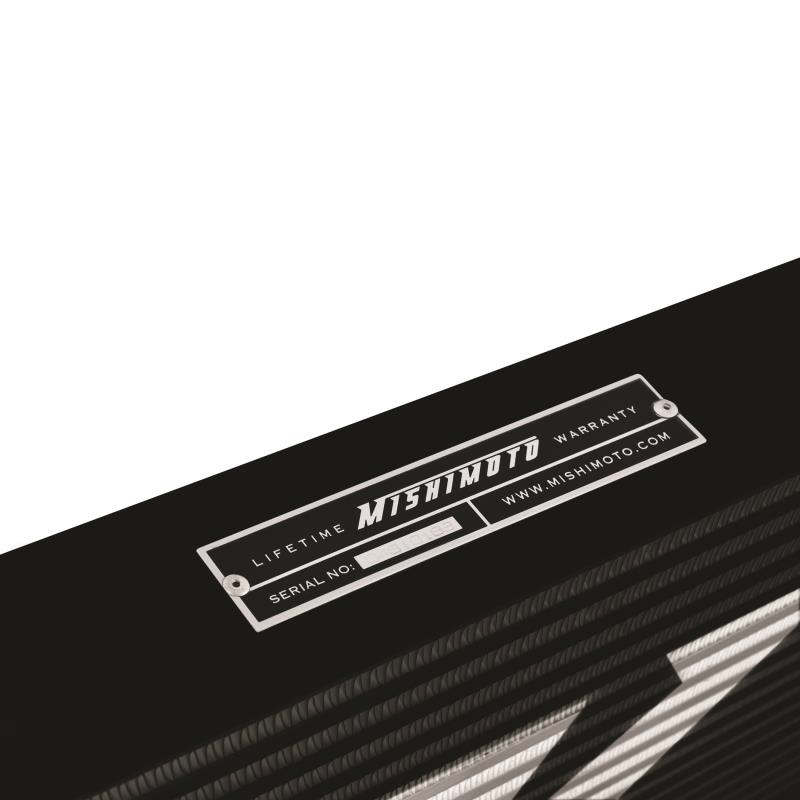

Note: For your taste, only one side of the intercooler has the Mishimoto logo.
  • Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
  • Robust, one-piece cast aluminum end tanks withstand high boost pressures
  • Massive 4" thick core and 3" inlet/outlet provides optimal flow and volume for high horsepower vehicles
  • Mishimoto Lifetime Warranty



TECH INFO:

  • Fits - Universal
  • Coating - Powder Coated
  • CFM - 1250
  • Tank Wall Thickness - 5mm
  • Fin Pitch - 15 Fins/Inch
  • Max Rec. PSI - 32 psi
  • Outlet - 3"
  • Core Length - 24"
  • Core Height - 12"
  • Core Width - 4"
  • Inlet - 3"
  • Core Size - 24" x 12" x 4"
  • Overall Width - 4"
  • Overall Height - 12"
  • Overall Length - 31"
  • Construction - Bar-and-Plate



Purchase Includes:

  • Mishimoto Intercooler
  • Mishimoto Lifetime Warranty

Compatibility

  • Universal
