Description

MICRO SIZE, MACRO PERFORMANCE

We’ve taken our popular Micro LED Lights to the next level. Integrating a beautiful 5700k white temperature, the Micro V2 24 LED is designed to punch above its own weight.

LIGHTWEIGHT CONVENIENCE

The power and brilliance of the Micro V2 24 LED are packed into a convenient size of 353mm (length) x 25mm (height) x 40.6mm (depth). Did we mention that it weighs 0.3kg?

LOW PROFILE FITMENT

The Micro V2 24 LED provides a huge amount of application options. With the ability to fit into the tightest of spaces, you will be kept occupied with opportunities for enhancement.

Specifications

OPERATING VOLTAGE DC 10-28V
POWER CONSUMPTION 24W
AMP DRAW 2.7A@12V/1.35A@24V
COLOUR TEMPERATURE 5700K
LED 24 x OSRAM GW PSLR 32. PM DRUISS
EFFECTIVE LUMEN 2600lm
BEAM ANGLE Height: 30° Width: 120°
ENVIRONMENT TEMP -40° to 60°C
IP RATING IP68
LENS Polycarbonate with Surface Hardening
FRAME/HOUSING Extruded Aluminium
DT CONNECTOR Included
MOUNTING BRACKET 304# Stainless Steel
LIFETIME 30, 000hrs
SIZE (mm) 353 x 25 x 40.6
WEIGHT 0.5kg
CABLE LENGTH 400mm
CERTIFICATION CISPR25

What's Included

  • 1 x 13.9 Inch Micro V2 24 LED Work Light (White)

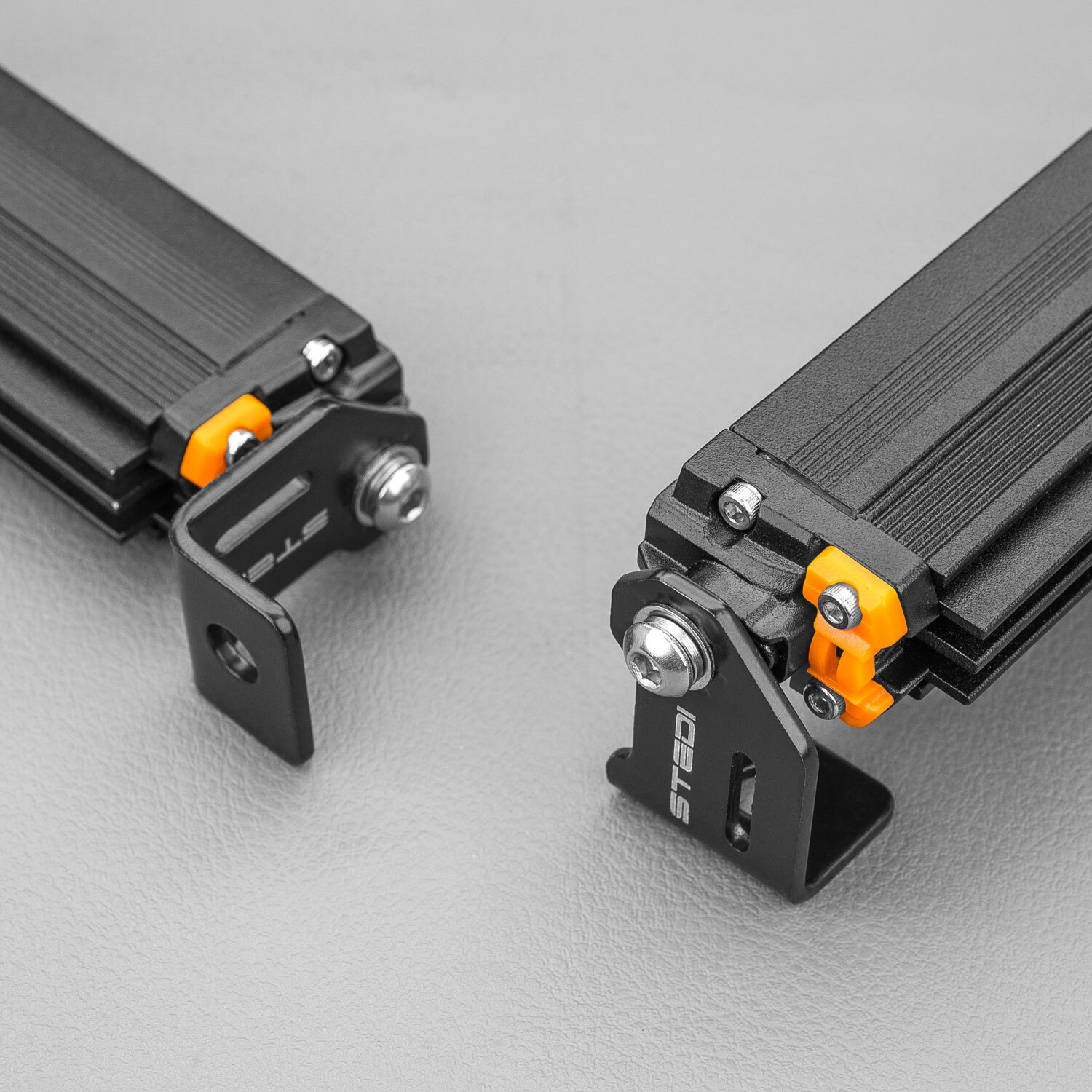

  • 2 x 46mm Side Brackets
  • 2 x M8 Bolts
  • 2 x M6 Bolts
  • 2 x Nuts
  • 4 x Flat Washer
  • 4 x Spring Washer

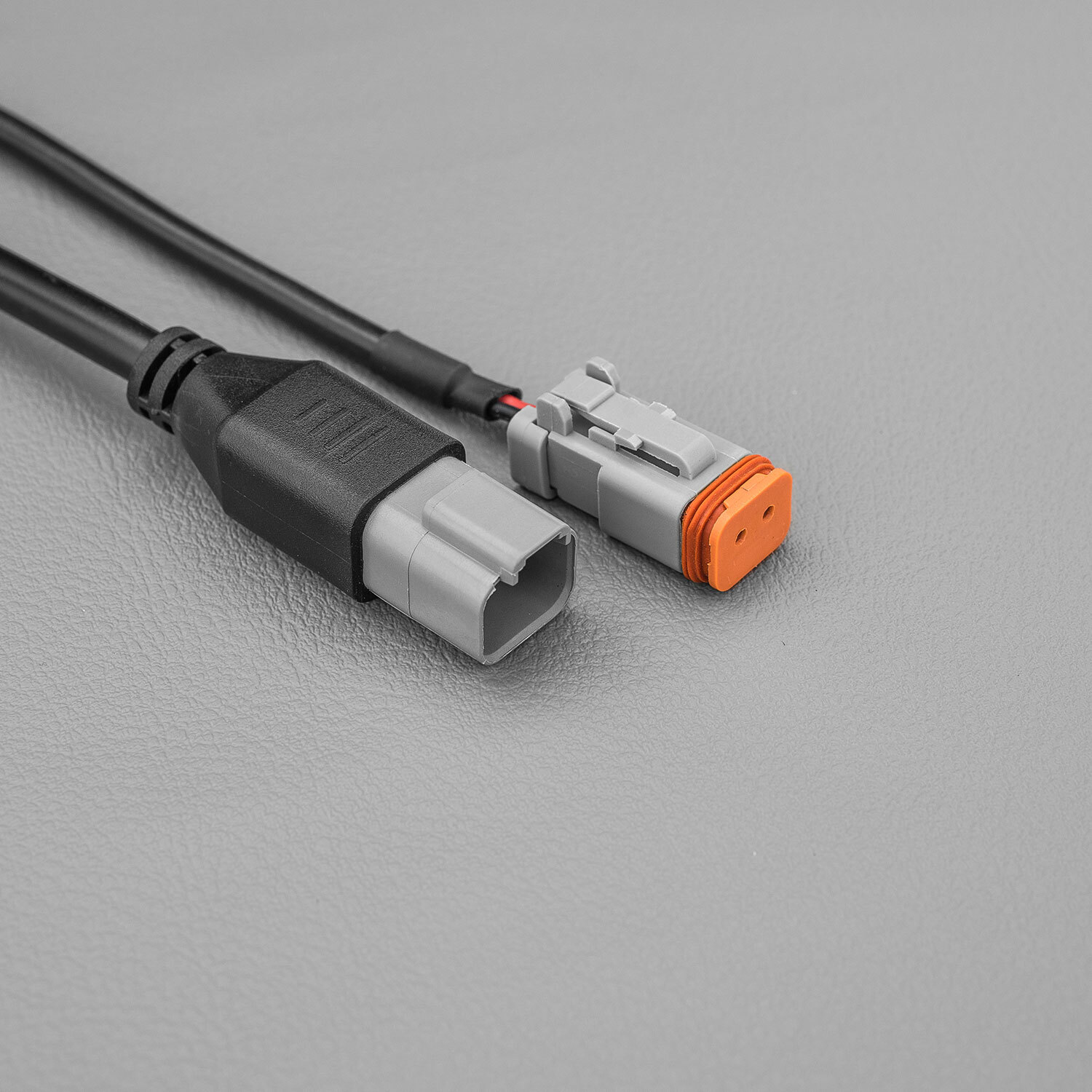

  • Male & Female Deutsch Connectors

Compatibility

  • Universal

MICRO SIZE, MACRO PERFORMANCE

We’ve taken our popular Micro LED Lights to the next level. Integrating a beautiful 5700k white temperature, the Micro V2 24 LED is designed to punch above its own weight.

LIGHTWEIGHT CONVENIENCE

The power and brilliance of the Micro V2 24 LED are packed into a convenient size of 353mm (length) x 25mm (height) x 40.6mm (depth). Did we mention that it weighs 0.3kg?

LOW PROFILE FITMENT

The Micro V2 24 LED provides a huge amount of application options. With the ability to fit into the tightest of spaces, you will be kept occupied with opportunities for enhancement.

OPERATING VOLTAGE DC 10-28V
POWER CONSUMPTION 24W
AMP DRAW 2.7A@12V/1.35A@24V
COLOUR TEMPERATURE 5700K
LED 24 x OSRAM GW PSLR 32. PM DRUISS
EFFECTIVE LUMEN 2600lm
BEAM ANGLE Height: 30° Width: 120°
ENVIRONMENT TEMP -40° to 60°C
IP RATING IP68
LENS Polycarbonate with Surface Hardening
FRAME/HOUSING Extruded Aluminium
DT CONNECTOR Included
MOUNTING BRACKET 304# Stainless Steel
LIFETIME 30, 000hrs
SIZE (mm) 353 x 25 x 40.6
WEIGHT 0.5kg
CABLE LENGTH 400mm
CERTIFICATION CISPR25
  • 1 x 13.9 Inch Micro V2 24 LED Work Light (White)
  • 2 x 46mm Side Brackets
  • 2 x M8 Bolts
  • 2 x M6 Bolts
  • 2 x Nuts
  • 4 x Flat Washer
  • 4 x Spring Washer
  • Male & Female Deutsch Connectors
  • Universal
