Description

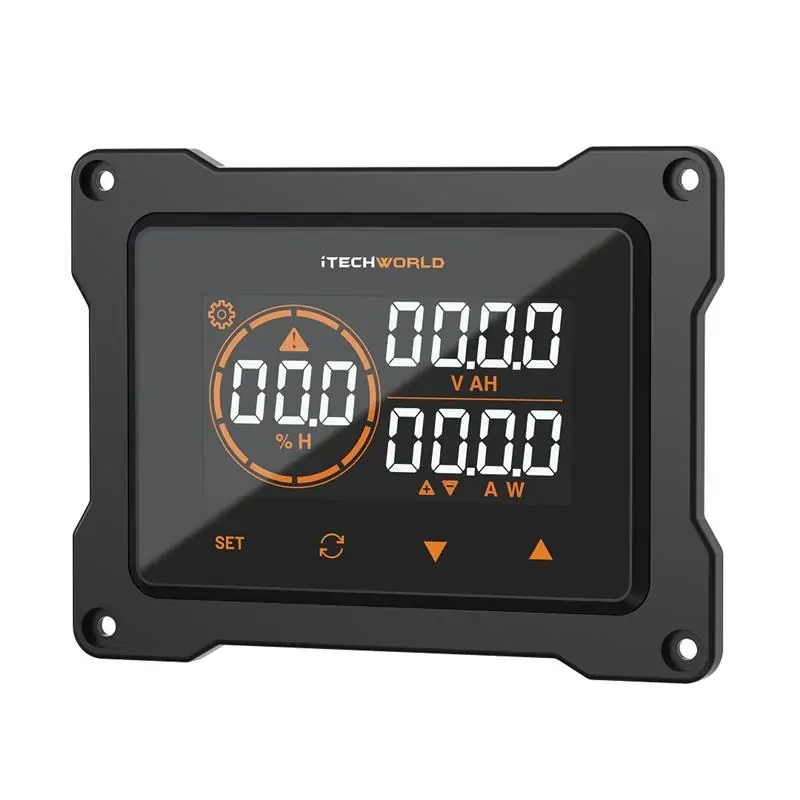

The iTECHBM500 Battery Monitor delivers real-time, high-precision insights into your battery’s performance. Using a 500A current shunt, it accurately tracks both charging and discharging currents, calculating Amp-hours (Ah) flowing in and out of the battery. A field-installed sense wire enables precise, live voltage readings. Designed for versatility, the iTECHBM500 is compatible with lithium, lead-acid, and nickel-metal hydride batteries.

Specifications

Supply voltage: 10-100V
Battery capacity: 10-999Ah
Maximum measured current: 500A
Power consumption (screen off): <2mA
Power consumption (screen brightness @ 10%): <20mA
Power consumption (screen brightness @ 100%): <60mA
Voltage accuracy: ±1%
Current accuracy: ±1%
Operating temperature: -20°C ~ 80°C
Exterior bracket dimensions (LxWxH): 106 x 81 x 18mm
Mounting bracket points (LxW): 95 x 70mm
Monitor backing dimensions (LxWxH): 80 x 59 x 16mm
IP rating: IP20

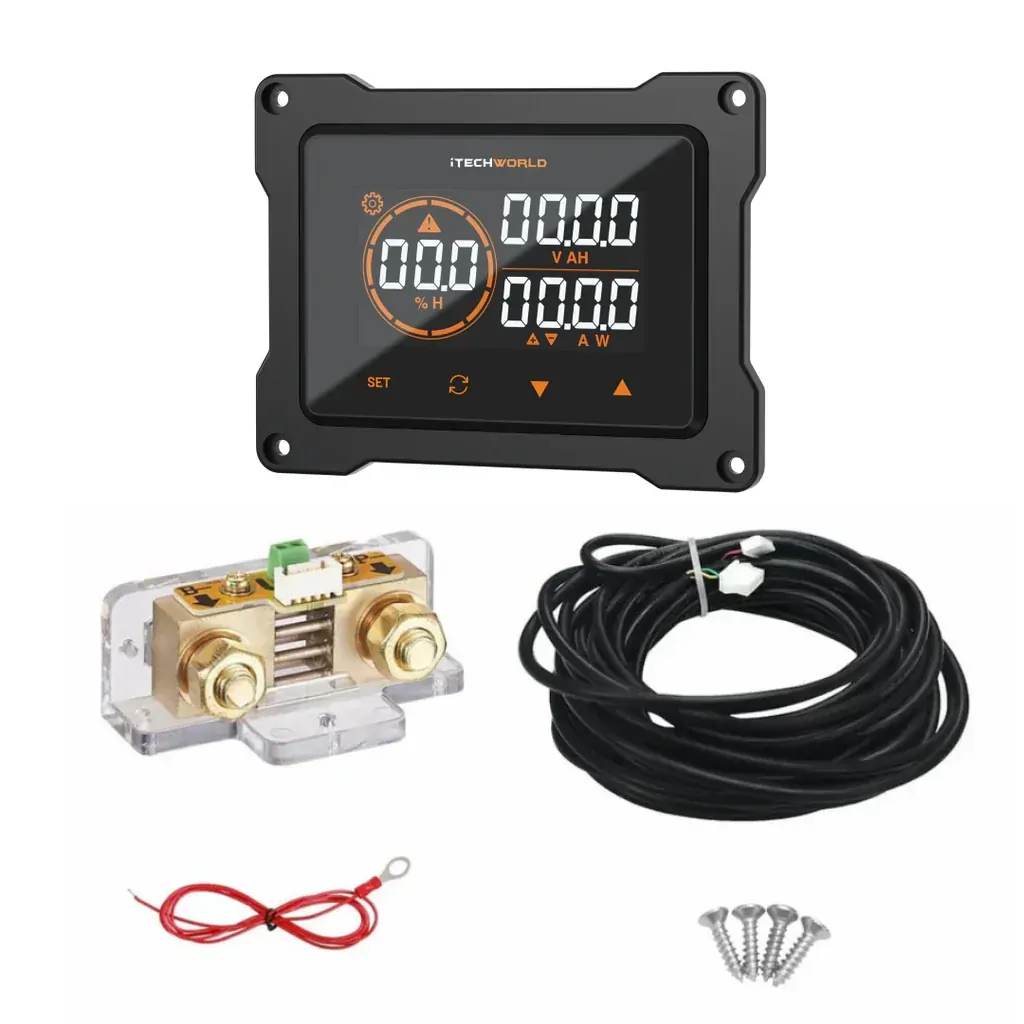

What's Included

  • 1 x iTECHBM500 Battery Monitor
  • 1 x Shielded wire (3m)
  • 1 x 500A shunt
  • 1 x Plastic bracket
  • 4 x Screws
  • 1 x Shunt holder
  • 1 x B+ Sense wire 22AWG (1m)
  • 1 x Instructions

Compatibility

  • Universal Part

The iTECHBM500 Battery Monitor delivers real-time, high-precision insights into your battery’s performance. Using a 500A current shunt, it accurately tracks both charging and discharging currents, calculating Amp-hours (Ah) flowing in and out of the battery. A field-installed sense wire enables precise, live voltage readings. Designed for versatility, the iTECHBM500 is compatible with lithium, lead-acid, and nickel-metal hydride batteries.

Supply voltage: 10-100V
Battery capacity: 10-999Ah
Maximum measured current: 500A
Power consumption (screen off): <2mA
Power consumption (screen brightness @ 10%): <20mA
Power consumption (screen brightness @ 100%): <60mA
Voltage accuracy: ±1%
Current accuracy: ±1%
Operating temperature: -20°C ~ 80°C
Exterior bracket dimensions (LxWxH): 106 x 81 x 18mm
Mounting bracket points (LxW): 95 x 70mm
Monitor backing dimensions (LxWxH): 80 x 59 x 16mm
IP rating: IP20
  • 1 x iTECHBM500 Battery Monitor
  • 1 x Shielded wire (3m)
  • 1 x 500A shunt
  • 1 x Plastic bracket
  • 4 x Screws
  • 1 x Shunt holder
  • 1 x B+ Sense wire 22AWG (1m)
  • 1 x Instructions
  • Universal Part
