Description

Specifications:Compressor Inducer - 54 mmCompressor Exducer - 76 mm / Trim: 50Turbine Inducer - 65 mmTurbine Exducer - 58 / Trim: 80 mmTurbine Housing: 12 cm2

Direct Replacement: This turbo manifold kit can be installed on 1998.5-2002 model years as a direct, bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection.

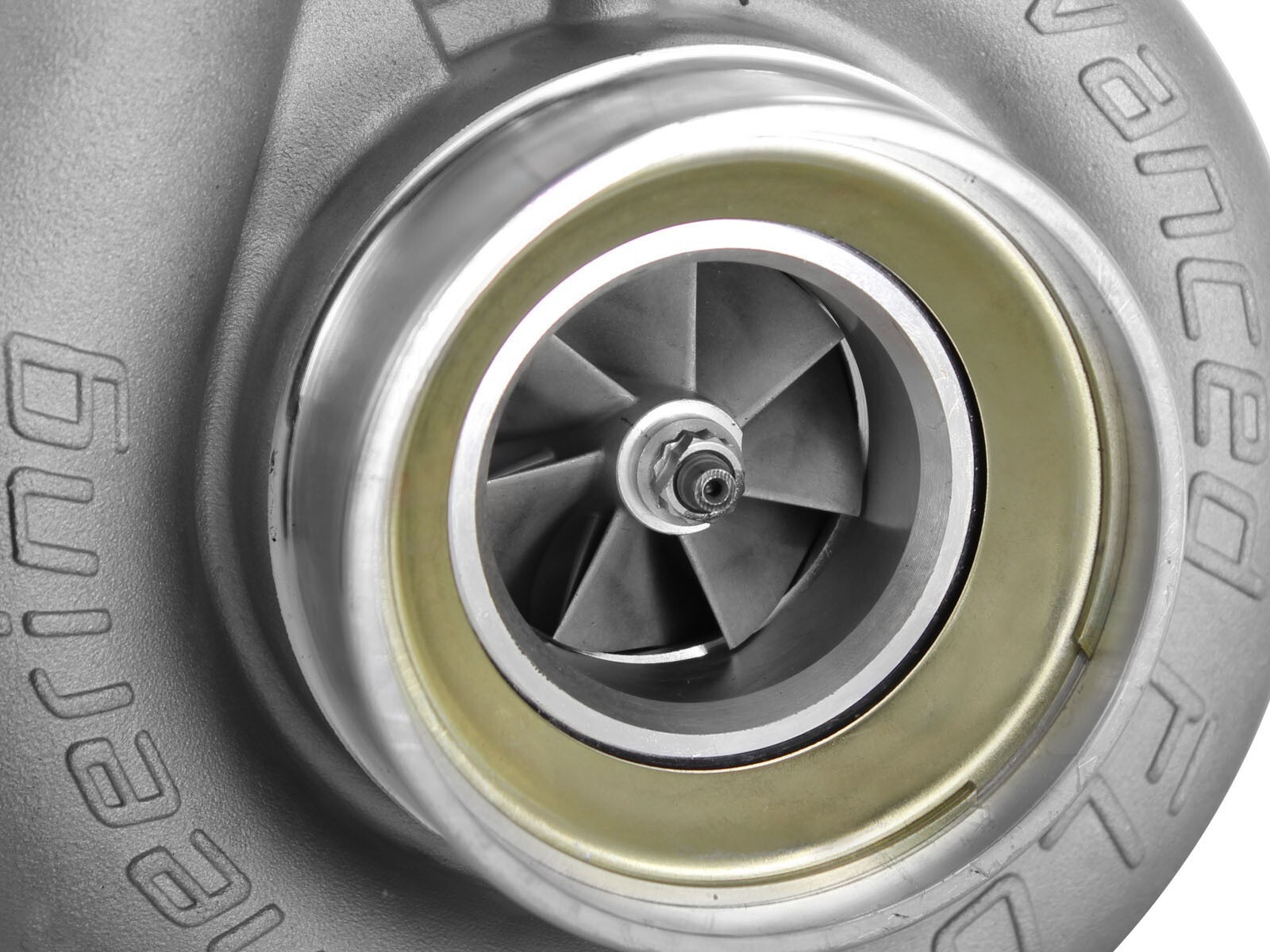

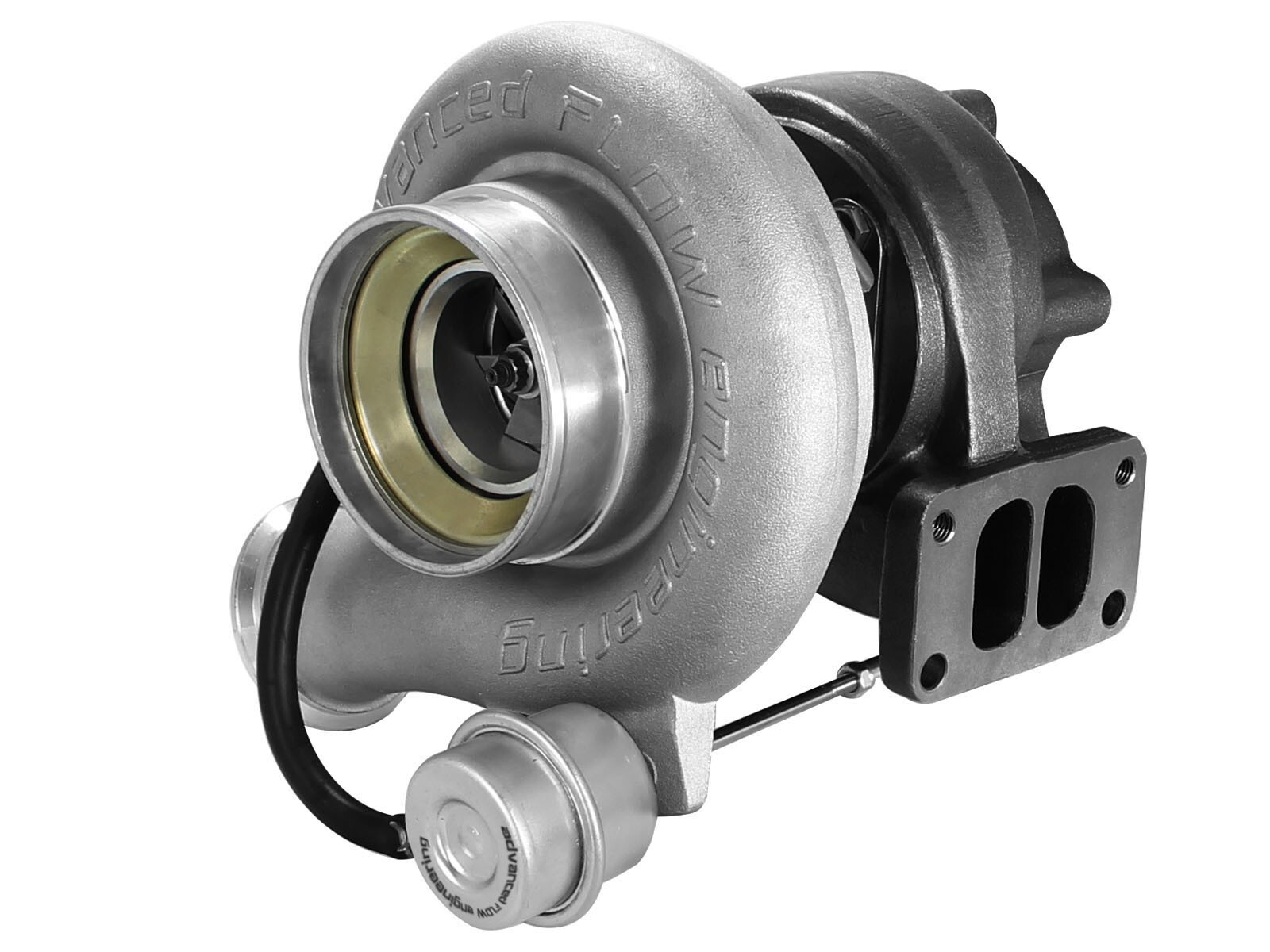

Compressor: The housing utilizes OE inlet and outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset to factory setting.

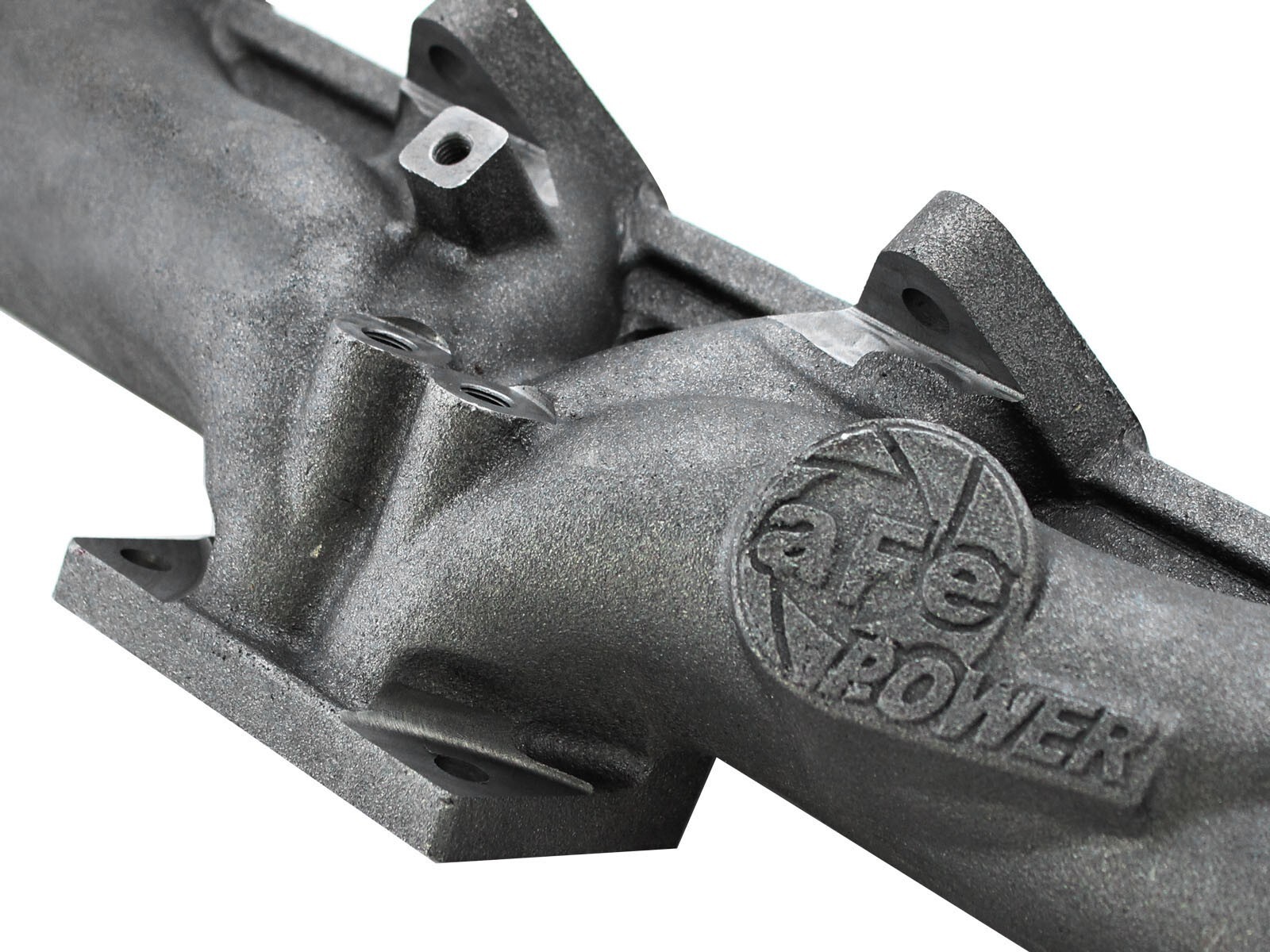

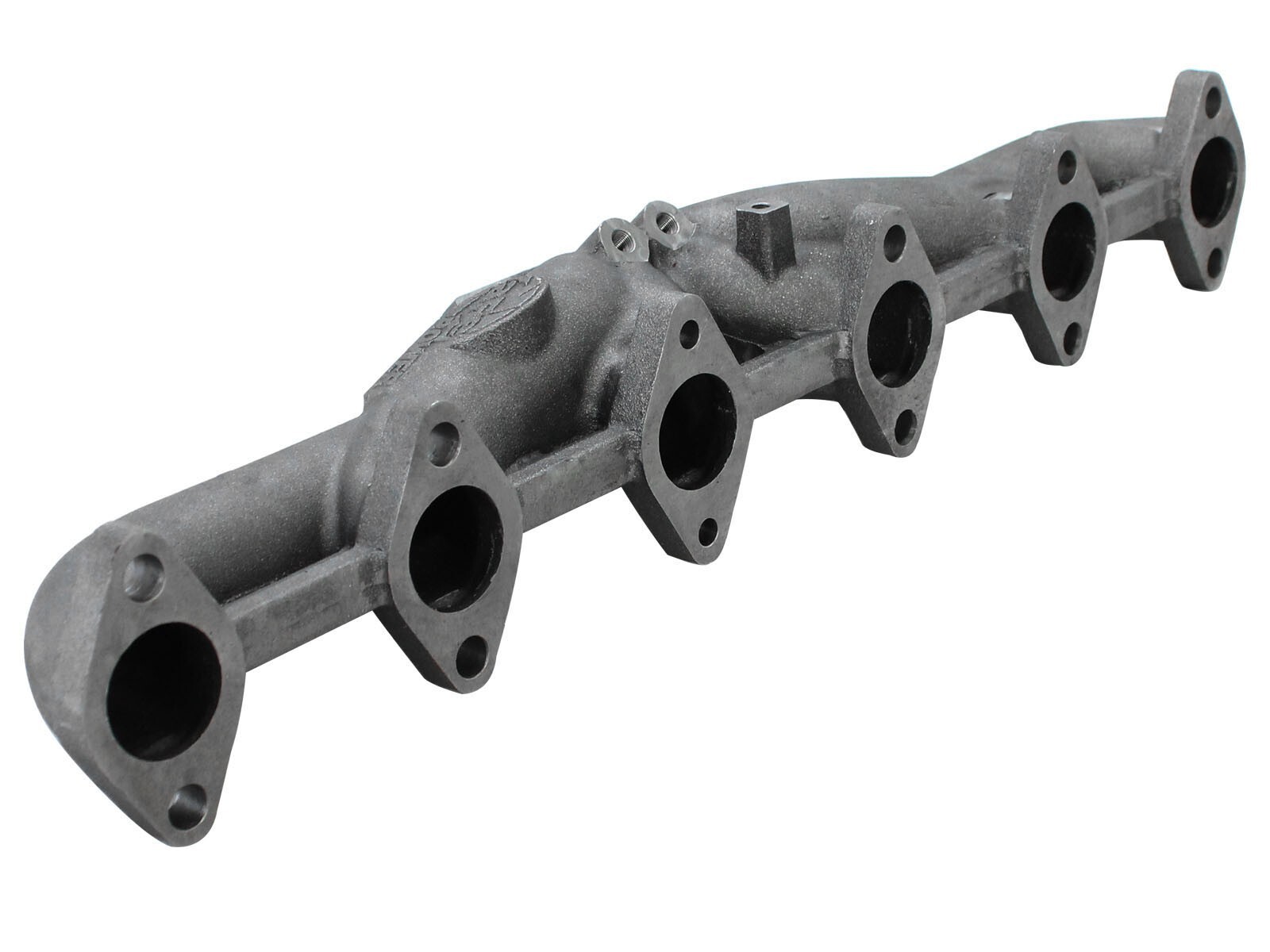

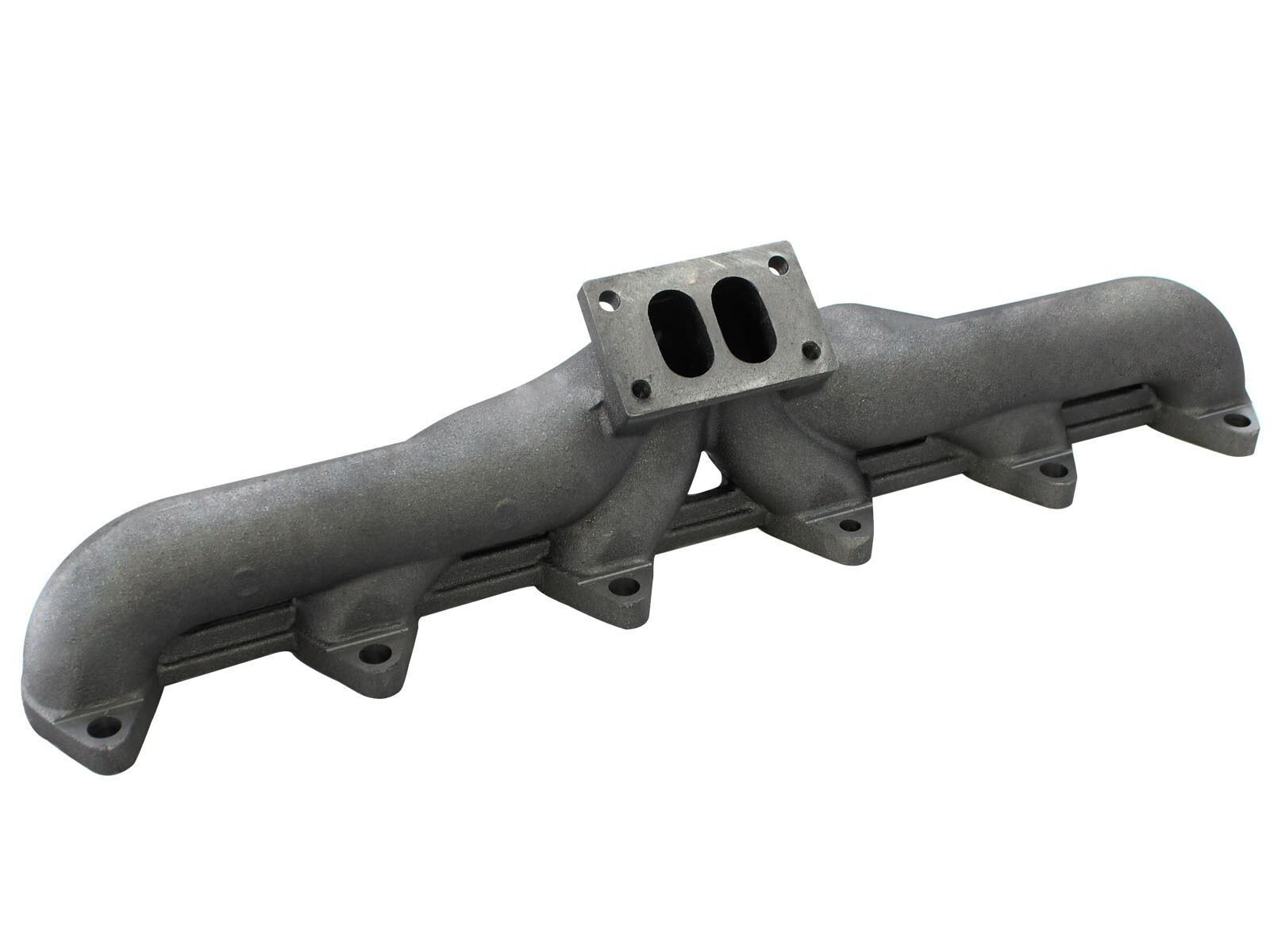

One-Piece Construction: This manifold is constructed of durable cast ductile iron with a reinforcing rib for maximum strength between the wall flanges at the ports.

Dual Auxiliary Ports: Two Exhaust Gas Temperature (EGT) probe ports are supplied for easy installation of gauges or testing equipment.

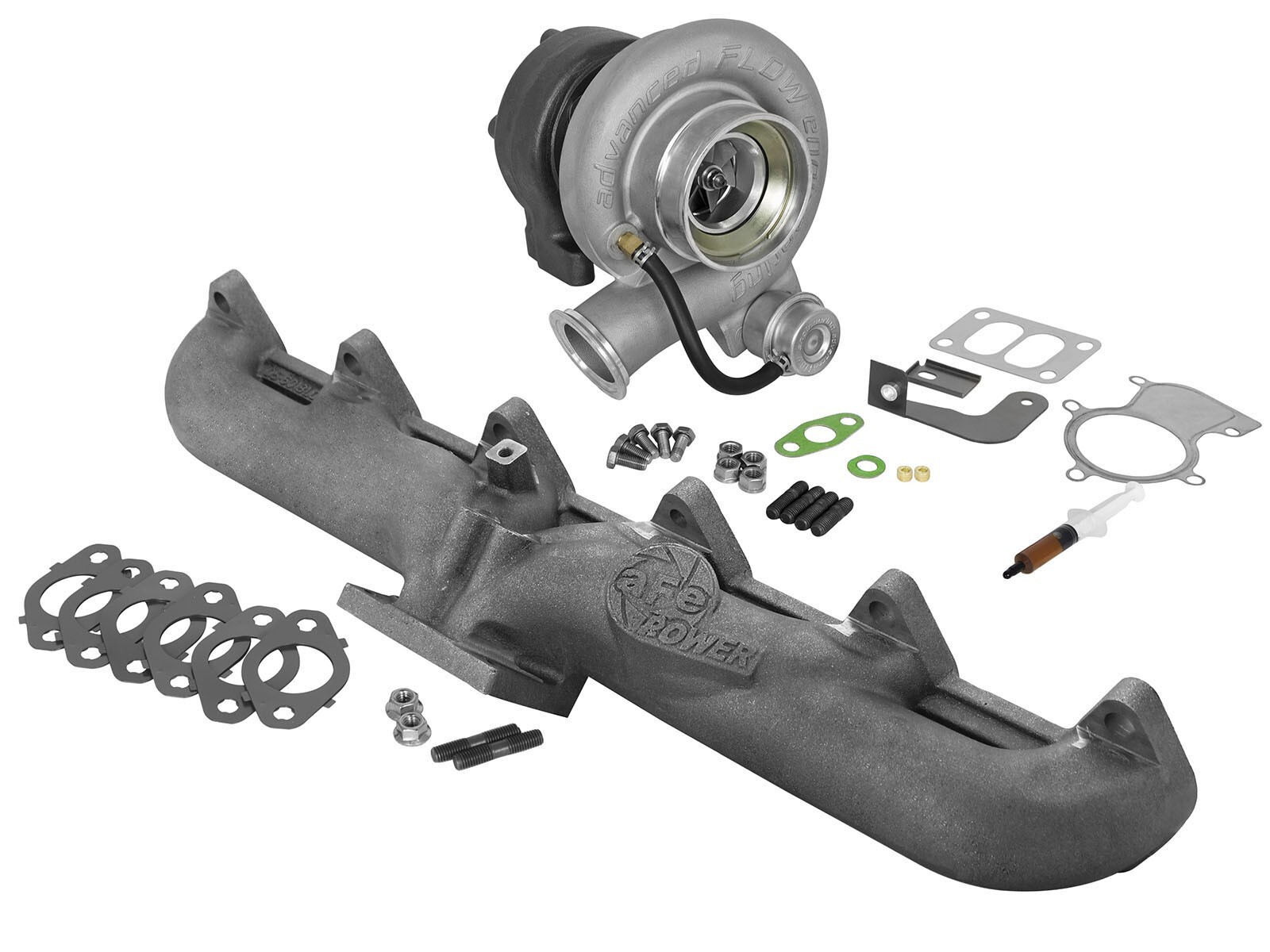

Hassle-Free Installation: Hardware and gaskets are included for a hassle-free installation.

Note: This device is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

Specifications

  • Turbocharger Features:
  • Stock Replacement with no core charge
  • A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
  • Additional fueling is not required
  • Wastegate actuator is included, comes preset to factory specifications
  • In house dyno testing produced a max gain of +4 horsepower and +12 lbs. x ft. of torque
  • 2-Year Warranty
  • Exhaust Manifold Features:
  • Outflows the factory exhaust manifold by 50%, improving performance and throttle response.
  • Cast ductile iron manifold as excellent stock replacement at competitive value.
  • The thick wall flange design increases strength, eliminating warping and cracking.
  • The matched ports and merged runner design reduces exhaust backpressure, maximizing exhaust flow.
  • Dual 1/8" NPT Exhaust Gas Temperature (EGT) ports are supplied for gauges or testing equipment.

Compatibility

  • 1998-2002 Dodge Ram 2500 Cummins Turbo Diesel L6 5.9L Diesel
  • 1998-2002 Dodge Ram 3500 Cummins Turbo Diesel L6 5.9L Diesel

Specifications:Compressor Inducer - 54 mmCompressor Exducer - 76 mm / Trim: 50Turbine Inducer - 65 mmTurbine Exducer - 58 / Trim: 80 mmTurbine Housing: 12 cm2

Direct Replacement: This turbo manifold kit can be installed on 1998.5-2002 model years as a direct, bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection.

Compressor: The housing utilizes OE inlet and outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset to factory setting.

One-Piece Construction: This manifold is constructed of durable cast ductile iron with a reinforcing rib for maximum strength between the wall flanges at the ports.

Dual Auxiliary Ports: Two Exhaust Gas Temperature (EGT) probe ports are supplied for easy installation of gauges or testing equipment.

Hassle-Free Installation: Hardware and gaskets are included for a hassle-free installation.

Note: This device is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

  • Turbocharger Features:
  • Stock Replacement with no core charge
  • A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
  • Additional fueling is not required
  • Wastegate actuator is included, comes preset to factory specifications
  • In house dyno testing produced a max gain of +4 horsepower and +12 lbs. x ft. of torque
  • 2-Year Warranty
  • Exhaust Manifold Features:
  • Outflows the factory exhaust manifold by 50%, improving performance and throttle response.
  • Cast ductile iron manifold as excellent stock replacement at competitive value.
  • The thick wall flange design increases strength, eliminating warping and cracking.
  • The matched ports and merged runner design reduces exhaust backpressure, maximizing exhaust flow.
  • Dual 1/8" NPT Exhaust Gas Temperature (EGT) ports are supplied for gauges or testing equipment.
  • 1998-2002 Dodge Ram 2500 Cummins Turbo Diesel L6 5.9L Diesel
  • 1998-2002 Dodge Ram 3500 Cummins Turbo Diesel L6 5.9L Diesel
