Description

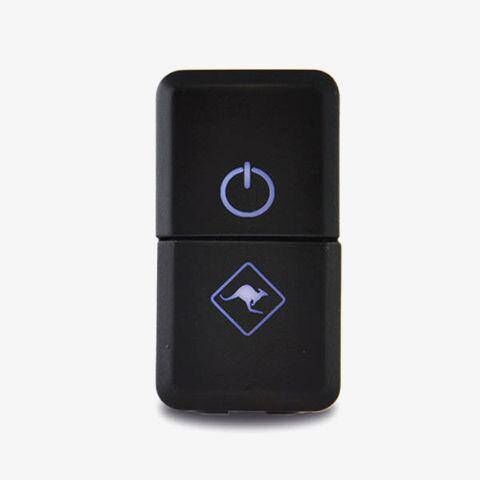

This OEM style switch feature the Lightforce Roo logo and on icon for universal applications available for the following vehicles without any modification to the original dashboard.

  • Single powered input feeding two independently switched outputs
  • Dual coloured illumination powered via existing dash light circuit
  • Suitable for both positive and negative switched vehicles
  • Harness included (300mm in length)
  • Current rating 3 amps @ 12v
  • Australian design patent
  • Size: 17mm x 35mm

Illumination is only activated when the vehicles dash lights are on, green illumination with switch in the off position with blue illumination when the switch is on.

The switches can function independent of the dash lights, however will not illuminate until the vehicles dash lights are activated.
A single input activates both the top and bottom switches, so if you have a series of dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power.

The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps

Specifications

Compatibility

  • 1998-2007 Toyota 100 Series Landcruiser
  • 2003-2009 Toyota 4Runner
  • 2007-2018 Toyota FJ Cruiser
  • 2005-2014 Toyota Fortuner
  • 2005-2013 Toyota HiAce
  • 2001-2007 Toyota Highlander
  • 2005-2014 Toyota Hilux
  • 2001-2007 Toyota Kluger
  • 1985-2023 Toyota Landcruiser 70 (Plastic Dash) Series
  • 1985-2020 Toyota Landcruiser 75 76 78 Series
  • 1985-2023 Toyota Landcruiser 79 (Plastic Dash) Series
  • 2003-2009 Toyota Prado 120
  • 2005-2011 Toyota Tacoma
  • 2012-2020 Toyota Tacoma (Left Side only)
  • 2005-2006 Toyota Tundra (centre console if equipped)
