Description

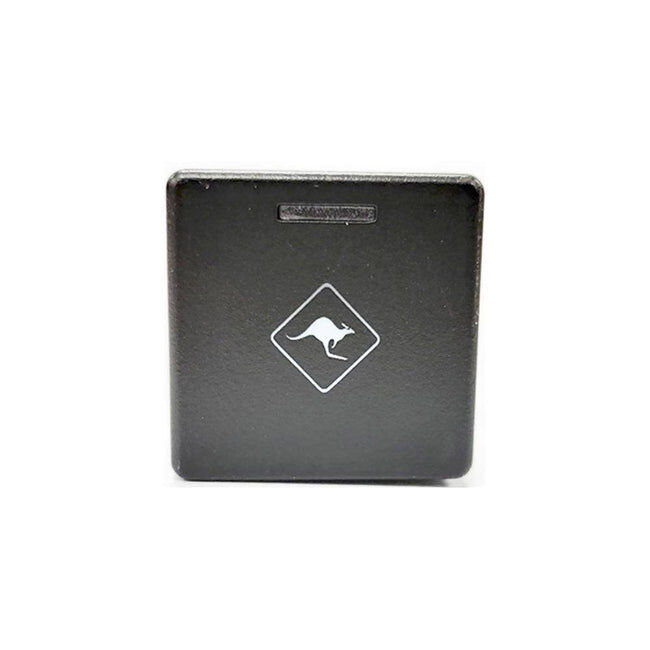

Ideally suited for those who wish to integrate an additional switch into the factory switch locations.

This single switch fits the 22mm x 22mm factory switch locations, near the vehicle’s transmission selector.

Fitment location: In front, either side of the gear selector.

This Lightforce single switch is moulded from a blend of ABS plastic and polycarbonate to ensure longevity. Its compact design will integrate with the vehicle seamlessly.


Illumination:

The LED illuminates white via the dash light circuit, once the switch is pushed on, the LED illuminates blue.

Lightforce Harness Integration:

Use Lightforce part number SWADP4 for integration to Lightforce Driving Light harness LFDLHSS.

NOTE: Suits low-mid spec vehicles only as top spec vehicles do not have any suitable switch blanks available due to heated seats

Specifications

Specifications Include:

  • Dual LED illumination (white/blue)
  • Suitable for positive switched vehicles only
  • RoHS compliant
  • Harness included (100mm in length)
  • 3 amps current rating @ 12v
  • Switch dimensions: 22mm (H) x 22mm (W)
  • Mounting dimensions: 17.5mm (H) x 19mm (W)
  • When switch is in the off position (up) the height of the switch top is the same as the existing factory switches
  • When the switch is in the on position (down) the difference in height is less than 2.00mm

    Electrical Specifications:

    • Blue – 12v input
    • Yellow – 12v switched output
    • Not used
    • Red – 12v dash light illumination
    • Black - negative
    • Positive switching only
    • Independent 12v circuit for dash illumination
    • Separate active LED is powered via the +ve switched output
    • Negative is common for dash illumination LED and switch active LED
    • LED illumination Colours – Dash lights on = white, active indicator colour = blue

    Compatibility

    • 2020-2022 Isuzu D-max
    • 2021-2022 Isuzu MU-X
    • 2020-2022 Mazda BT50

    Ideally suited for those who wish to integrate an additional switch into the factory switch locations.

    This single switch fits the 22mm x 22mm factory switch locations, near the vehicle’s transmission selector.

    Fitment location: In front, either side of the gear selector.

    This Lightforce single switch is moulded from a blend of ABS plastic and polycarbonate to ensure longevity. Its compact design will integrate with the vehicle seamlessly.


    Illumination:

    The LED illuminates white via the dash light circuit, once the switch is pushed on, the LED illuminates blue.

    Lightforce Harness Integration:

    Use Lightforce part number SWADP4 for integration to Lightforce Driving Light harness LFDLHSS.

    NOTE: Suits low-mid spec vehicles only as top spec vehicles do not have any suitable switch blanks available due to heated seats

    Specifications Include:

    • Dual LED illumination (white/blue)
    • Suitable for positive switched vehicles only
    • RoHS compliant
    • Harness included (100mm in length)
    • 3 amps current rating @ 12v
    • Switch dimensions: 22mm (H) x 22mm (W)
    • Mounting dimensions: 17.5mm (H) x 19mm (W)
    • When switch is in the off position (up) the height of the switch top is the same as the existing factory switches
    • When the switch is in the on position (down) the difference in height is less than 2.00mm

      Electrical Specifications:

      • Blue – 12v input
      • Yellow – 12v switched output
      • Not used
      • Red – 12v dash light illumination
      • Black - negative
      • Positive switching only
      • Independent 12v circuit for dash illumination
      • Separate active LED is powered via the +ve switched output
      • Negative is common for dash illumination LED and switch active LED
      • LED illumination Colours – Dash lights on = white, active indicator colour = blue
      • 2020-2022 Isuzu D-max
      • 2021-2022 Isuzu MU-X
      • 2020-2022 Mazda BT50
