Description

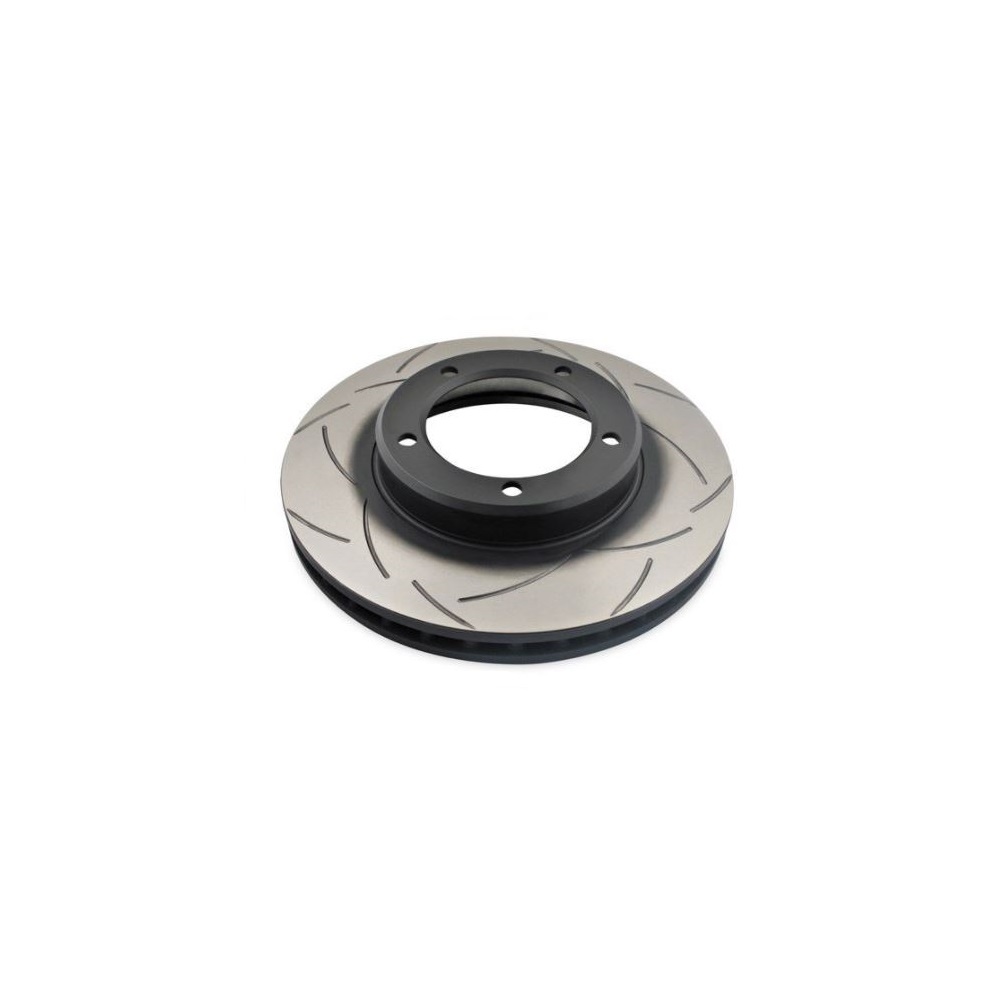

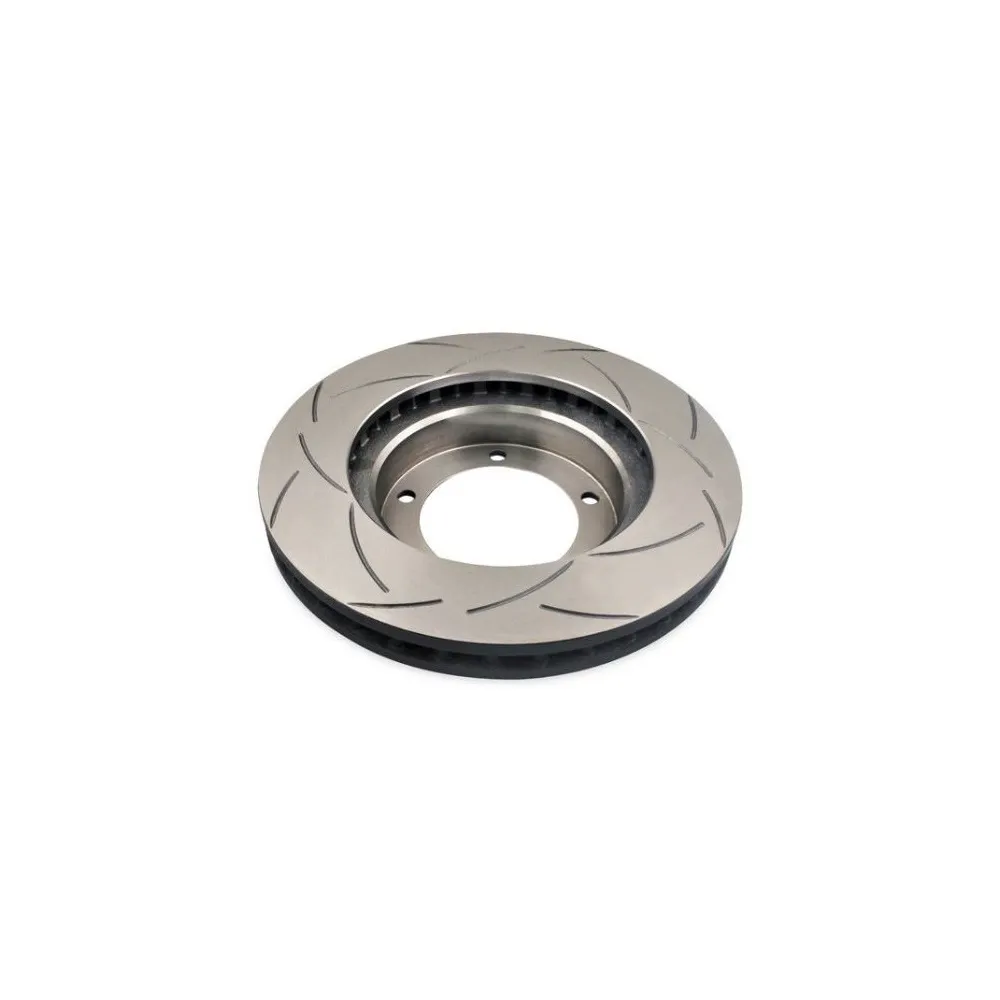

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

Specifications

  • Diameter (mm) : 322
  • Height (mm) : 65
  • Thickness (mm) : 32
  • Minimum Thickness (mm) : 30
  • Centre Hole (mm) : 115
  • Stud Holes : 5
  • Weight (kg) : 9.15
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details

Compatibility

  • 1998-2002 Toyota LandCruiser FZJ105R (4 Door SUV) 4 5 litre, 1FZFE 16 24V DOHC
  • 1999-2007 Toyota LandCruiser FZJ78R (3 Door Troop Carrier) 4 5 litre, 1FZFE 16 24V DOHC
  • 1999-2007 Toyota LandCruiser FZJ79R (2 Door Cab Chassis) 4.5 litre, 1FZFE 16 24V DOHC
  • 2007-On Toyota LandCruiser GRJ79R (2 Door Cab Chassis) 4.0 litre, 1GRFE V6 24V DOHC WT
  • 2001-2007 Toyota LandCruiser HDJ78R (3 Door Troop Carrier) 4.2 litre, 1HDFTE 16 24V SOHC
  • 2001-2007 Toyota LandCruiser HDJ79R (2 Door Cab Chassis) 4.2 litre, 1HDFTE 16 24 SOHC
  • 1998-2007 Toyota LandCruiser HZJ105R (4 Door SUV) 4.2 litre, 1HZ 16 12V SOHC
  • 1999-2004 Toyota LandCruiser HZJ74R (4 Door SUV) 4.2 litre, 1HZ 16 12V SOHC
  • 2007-On Toyota LandCruiser HZJ76L (4 Door SUV) 4.2 litre, 1HZ 16 12V SOHC
  • 1999-2007 Toyota LandCruiser HZJ78R (3 Door Troop Carrier) 4.2 litre, 1HZ 16 12V SOHC
  • 1999-2007 Toyota LandCruiser HZJ79R (2 Door Cab Chassis) 4.2 litre, 1HZ 16 12V SOHC
  • 2007-On Toyota LandCruiser VDJ76R (4 Door SUV) 4 5 litre, 1VDFTV V8 32V DOHC
  • 2007-On Toyota LandCruiser VDJ78R (3 Door Troop Carrier) 4 5 litre, WWDFTV V8 32V DOHC
  • 2007-On Toyota LandCruiser VDJ79R (2 Door Cab Chassis) 4.5 litre, WOFTV V8 32V DOHC
  • 2012-On Toyota LandCruiser Workmate VDJ79R (4 Door Cab Chassis) 4.5 litre, 1VDFTV V8 32V DOHC

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

  • Diameter (mm) : 322
  • Height (mm) : 65
  • Thickness (mm) : 32
  • Minimum Thickness (mm) : 30
  • Centre Hole (mm) : 115
  • Stud Holes : 5
  • Weight (kg) : 9.15
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details
  • 1998-2002 Toyota LandCruiser FZJ105R (4 Door SUV) 4 5 litre, 1FZFE 16 24V DOHC
  • 1999-2007 Toyota LandCruiser FZJ78R (3 Door Troop Carrier) 4 5 litre, 1FZFE 16 24V DOHC
  • 1999-2007 Toyota LandCruiser FZJ79R (2 Door Cab Chassis) 4.5 litre, 1FZFE 16 24V DOHC
  • 2007-On Toyota LandCruiser GRJ79R (2 Door Cab Chassis) 4.0 litre, 1GRFE V6 24V DOHC WT
  • 2001-2007 Toyota LandCruiser HDJ78R (3 Door Troop Carrier) 4.2 litre, 1HDFTE 16 24V SOHC
  • 2001-2007 Toyota LandCruiser HDJ79R (2 Door Cab Chassis) 4.2 litre, 1HDFTE 16 24 SOHC
  • 1998-2007 Toyota LandCruiser HZJ105R (4 Door SUV) 4.2 litre, 1HZ 16 12V SOHC
  • 1999-2004 Toyota LandCruiser HZJ74R (4 Door SUV) 4.2 litre, 1HZ 16 12V SOHC
  • 2007-On Toyota LandCruiser HZJ76L (4 Door SUV) 4.2 litre, 1HZ 16 12V SOHC
  • 1999-2007 Toyota LandCruiser HZJ78R (3 Door Troop Carrier) 4.2 litre, 1HZ 16 12V SOHC
  • 1999-2007 Toyota LandCruiser HZJ79R (2 Door Cab Chassis) 4.2 litre, 1HZ 16 12V SOHC
  • 2007-On Toyota LandCruiser VDJ76R (4 Door SUV) 4 5 litre, 1VDFTV V8 32V DOHC
  • 2007-On Toyota LandCruiser VDJ78R (3 Door Troop Carrier) 4 5 litre, WWDFTV V8 32V DOHC
  • 2007-On Toyota LandCruiser VDJ79R (2 Door Cab Chassis) 4.5 litre, WOFTV V8 32V DOHC
  • 2012-On Toyota LandCruiser Workmate VDJ79R (4 Door Cab Chassis) 4.5 litre, 1VDFTV V8 32V DOHC
