Description

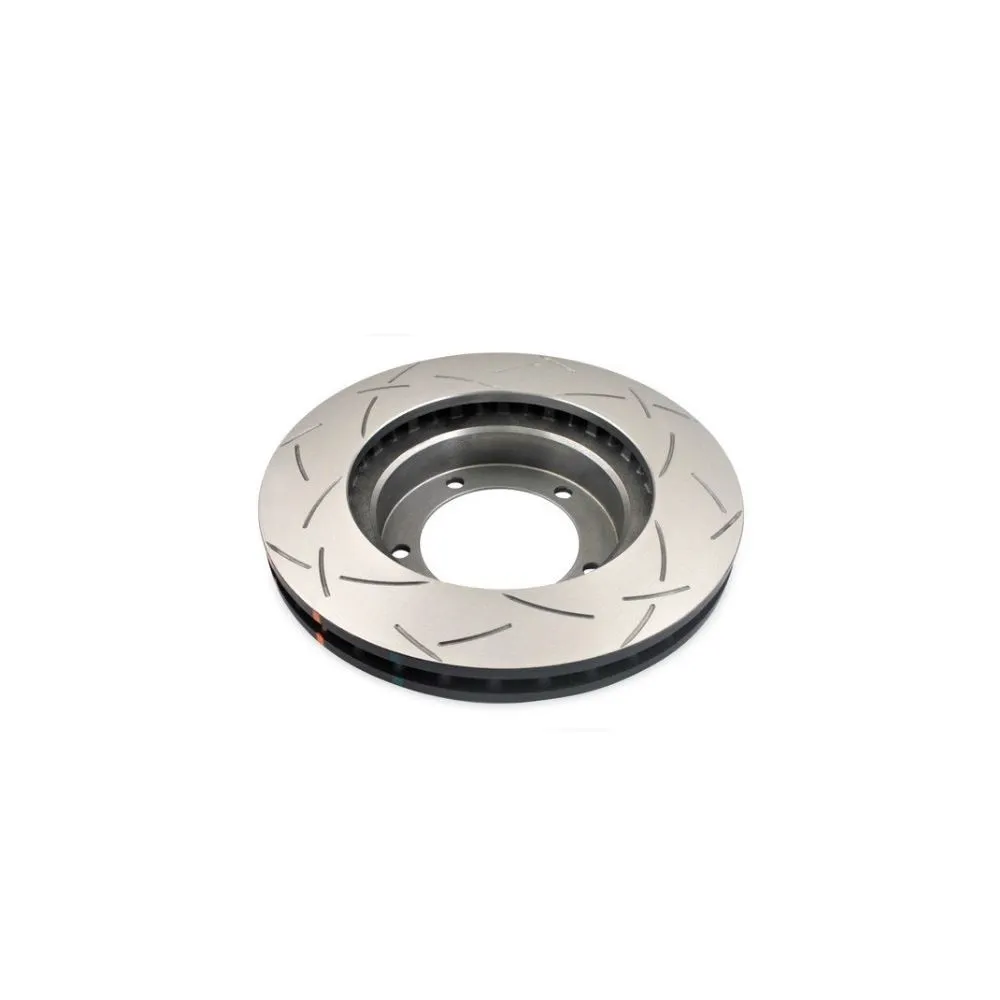

DBA’s 4000 Series T3 is the ultimate in direct replacement single-piece performance brake rotor. Featuring all the benefits of the 4000 Series plus DBA’s patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA’s T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA’s revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA’s 4000 Series T3 rotors are recommended for all performance applications from street driving, 4×4 and SUV, light utility vehicles, track days, rally cars and armoured vehicles.

T3 rotors are denoted by the suffix (S) in 4000 Series part numbers.

Specifications

  • Diameter (mm) : 322
  • Height (mm) : 65
  • Thickness (mm) : 32
  • Minimum Thickness (mm) : 30
  • Centre Hole (mm) : 115
  • Stud Holes : 5
  • Weight (kg) : 9.12
  • XG-150 High Carbon Alloyed Iron
  • TSP (Thermal Stability Profiling)
  • Thermo-graphic paint markings (THGP)
  • Direct replacement suitability
  • Moisture proof corrosion protection packaging

Compatibility

  • 1998-2002 Toyota LandCruiser FZJ105R (4 Door SUV) 4.5 litre, 1FZFE 16 24V DOHC
  • 1999-2001 Toyota LandCruiser FZJ78R (3 Door Troop Carrier) 4.5 litre, 1FZFE 16 24V DOHC
  • 1999-2007 Toyota LandCruiser FZJ79R (2 Door Cab Chassis) 4.5 litre, TFZFE 16 24V DOHC
  • 2007-On Toyota LandCruiser GRJ79R (2 Door Cab Chassis) 4.0 litre, 1GRFE V6 24V DOHC WT
  • 2001-2007 Toyota LandCruiser HDJ78R (3 Door Troop Carrier) 4.2 litre, JHDFTE 16 24V SOHC
  • 2001-2007 Toyota LandCruiser HDJ79R (2 Door Cab Chassis) 4.2 litre, IHDFTE 16 24V SOHC
  • 1999-2007 Toyota LandCruiser HZ478R (3 Door Troop Carrier) 4.2 litre, 1HZ 16 12V SOHC
  • 1998-2007 Toyota LandCruiser HZJ105R (4 Door SUV) 4.2 litre, 1HZ 16 12V SOHC
  • 1999-2004 Toyota LandCruiser HZJ71R (4 Door SUV) 4.2 litre, 1HZ I 12V SOHC
  • 2007-On Toyota LandCruiser HZJ76L (4 Door SUV) 4.2 litre, 1HZ 16 12VSOHC
  • 1999-2007 Toyota LandCruiser HZJ79R (2 Door Cab Chassis) 4.2 litre, 1HZ 16 12V SOHC
  • 2007-On Toyota LandCruiser VDJ76R (4 Door SUV) 4 5 litre, IVDFTV V8 32V DOHC
  • 2007-On Toyota LandCruiser VDJ78R (3 Door Troop Carrier) 4 5 litre, WWDFTV V8 32V DOHC
  • 2007-On Toyota LandCruiser VDJ79R (2 Door Cab Chassis) 4.5 litre, WOFTY V8 32V DOHC
  • 2012-On Toyota LandCruiser Workmate VD379R (4 Door Cab Chassis) 4.5 litre, 1VDFTV V8 32V DOHC

DBA’s 4000 Series T3 is the ultimate in direct replacement single-piece performance brake rotor. Featuring all the benefits of the 4000 Series plus DBA’s patented world renowned T3 bi-directional slot design.

Built on the foundations of DBA’s T2 slot, the T3 slot design features additional, precise, CNC machined tri-symmetrical slots, resulting in an even quieter, more responsive and smoother brake pedal feel. The T3 slot increases the number of exit points for brake pad friction dust and gases to escape through, further increasing the consistency and effectiveness of every brake stop.

DBA’s revolutionary universal slot design eliminates the need for separate left and right slot designs seen in traditional rotor designs.

DBA’s 4000 Series T3 rotors are recommended for all performance applications from street driving, 4×4 and SUV, light utility vehicles, track days, rally cars and armoured vehicles.

T3 rotors are denoted by the suffix (S) in 4000 Series part numbers.

  • Diameter (mm) : 322
  • Height (mm) : 65
  • Thickness (mm) : 32
  • Minimum Thickness (mm) : 30
  • Centre Hole (mm) : 115
  • Stud Holes : 5
  • Weight (kg) : 9.12
  • XG-150 High Carbon Alloyed Iron
  • TSP (Thermal Stability Profiling)
  • Thermo-graphic paint markings (THGP)
  • Direct replacement suitability
  • Moisture proof corrosion protection packaging
  • 1998-2002 Toyota LandCruiser FZJ105R (4 Door SUV) 4.5 litre, 1FZFE 16 24V DOHC
  • 1999-2001 Toyota LandCruiser FZJ78R (3 Door Troop Carrier) 4.5 litre, 1FZFE 16 24V DOHC
  • 1999-2007 Toyota LandCruiser FZJ79R (2 Door Cab Chassis) 4.5 litre, TFZFE 16 24V DOHC
  • 2007-On Toyota LandCruiser GRJ79R (2 Door Cab Chassis) 4.0 litre, 1GRFE V6 24V DOHC WT
  • 2001-2007 Toyota LandCruiser HDJ78R (3 Door Troop Carrier) 4.2 litre, JHDFTE 16 24V SOHC
  • 2001-2007 Toyota LandCruiser HDJ79R (2 Door Cab Chassis) 4.2 litre, IHDFTE 16 24V SOHC
  • 1999-2007 Toyota LandCruiser HZ478R (3 Door Troop Carrier) 4.2 litre, 1HZ 16 12V SOHC
  • 1998-2007 Toyota LandCruiser HZJ105R (4 Door SUV) 4.2 litre, 1HZ 16 12V SOHC
  • 1999-2004 Toyota LandCruiser HZJ71R (4 Door SUV) 4.2 litre, 1HZ I 12V SOHC
  • 2007-On Toyota LandCruiser HZJ76L (4 Door SUV) 4.2 litre, 1HZ 16 12VSOHC
  • 1999-2007 Toyota LandCruiser HZJ79R (2 Door Cab Chassis) 4.2 litre, 1HZ 16 12V SOHC
  • 2007-On Toyota LandCruiser VDJ76R (4 Door SUV) 4 5 litre, IVDFTV V8 32V DOHC
  • 2007-On Toyota LandCruiser VDJ78R (3 Door Troop Carrier) 4 5 litre, WWDFTV V8 32V DOHC
  • 2007-On Toyota LandCruiser VDJ79R (2 Door Cab Chassis) 4.5 litre, WOFTY V8 32V DOHC
  • 2012-On Toyota LandCruiser Workmate VD379R (4 Door Cab Chassis) 4.5 litre, 1VDFTV V8 32V DOHC
