Description

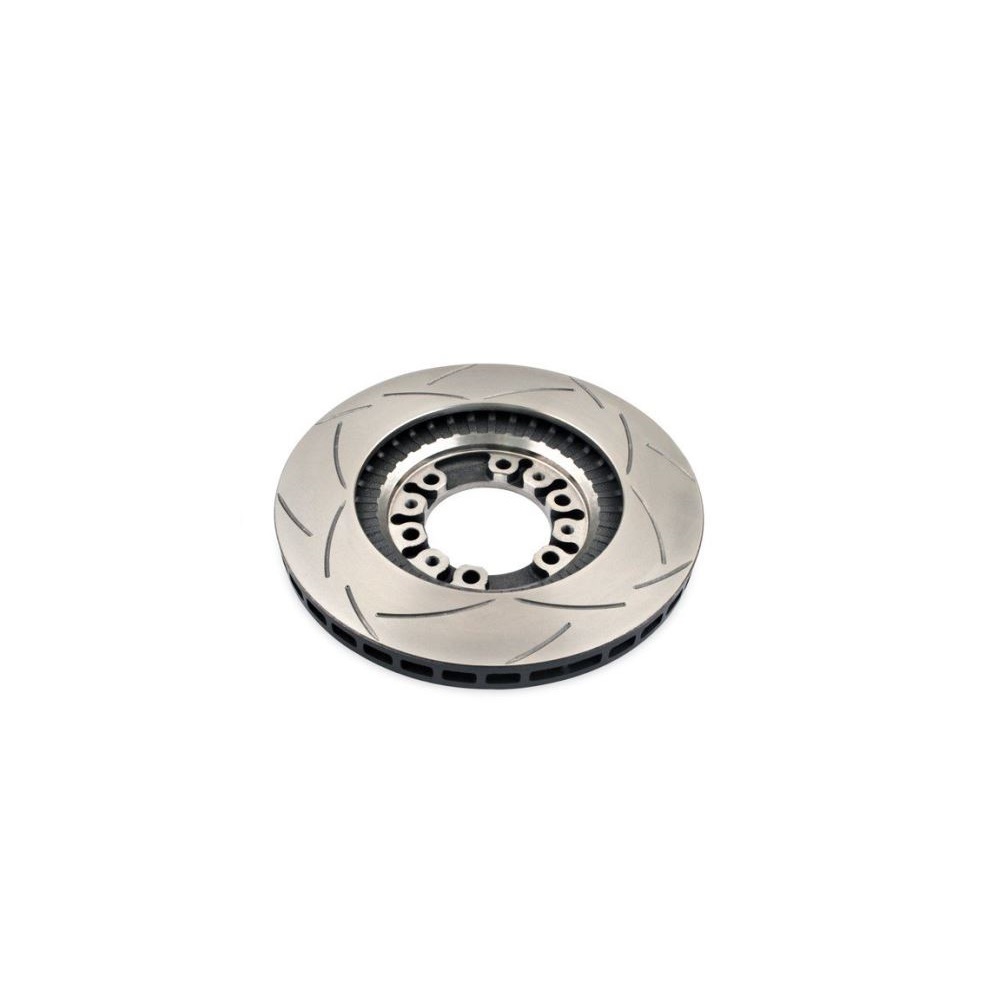

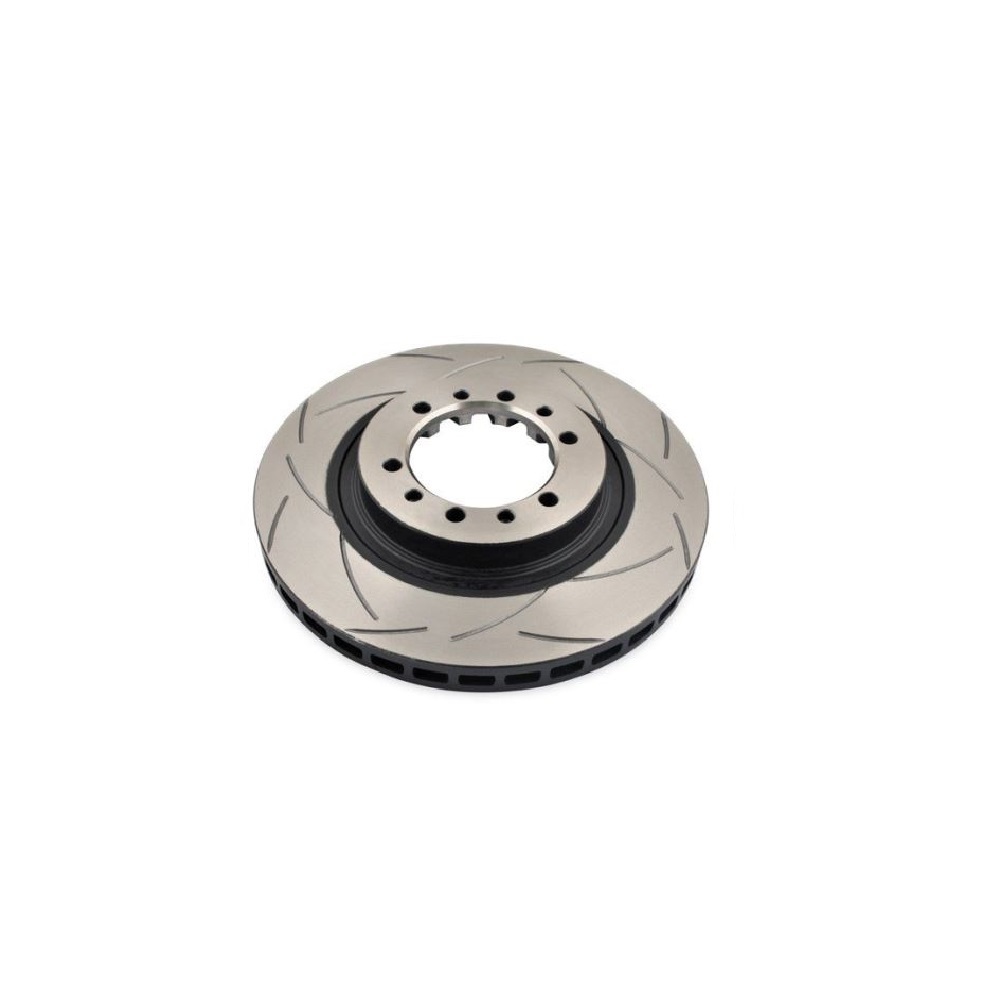

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

Specifications

  • Diameter (mm) : 276
  • Height (mm) : 45.3
  • Thickness (mm) : 24
  • Minimum Thickness (mm) : 22.4
  • Centre Hole (mm) : 87
  • Stud Holes : 6
  • Weight (kg) : 6.19
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details

Compatibility

  • 1997-2007 Mitsubishi Challenger 4 Door SUV 2.8 litre, 4M40T 14 8V SOHC
  • 1996-1999 Mitsubishi Strada 4 Door Utility 2.5 litre, 4056 4 8V SOHC
  • 1996-2000 Mitsubishi Triton GT GLX MK 2 Door Cab Chassis 2.4 litre, 4G64 14 16V SOHC
  • 1996-2006 Mitsubishi Triton GLX MK 4 Door Wellside 2.4 litre, 4G64 14 16V SOHC
  • 1997-2002 Mitsubishi L200 4 Door Wellside 2.4 litre, 4G64 14 16V SOHC
  • 1997-2002 Mitsubishi L200 2 Door Cab Chassis 2.4 litre, 4G64 14 16V SOHC
  • 2000-2006 Mitsubishi Triton GL MK 2 Door Wellside 2.4 litre, 4G64 16 16V SOHC
  • 1997-2002 Mitsubishi L200 2 Door Wellside 2.4 litre, 4G64 14 16V SOHC
  • 1996-2006 Mitsubishi Triton GLX GLS MI 4 Door Wellside 2.8 litre, 4M40 14 8V SOHC
  • 1997-2006 Mitsubishi L200 2 Door Utility 2.8 litre, 4M40 14 8V SOHC
  • 1996-2006 Mitsubishi Triton GLX MK 2 Door Cab Chassis 2.8 litre, 4M40 14 8V SOHC
  • 1997-1998 Mitsubishi L200 KM 4 Door Utility 3 litre, 6672 V6 12V SOHC
  • 1996-2007 Mitsubishi L200 4 Door Utility 3 litre, 6672 V6 24V SOHC
  • 1997-2007 Mitsubishi Challenger PA 4 Door Wagon 3 litre, 6672 V8 24V SOHC
  • 1996-2006 Mitsubishi Triton GLX GLAR, GLS MK 4 Door Wellside 3 litre, 6672 V6 24V SOHC
  • 1996-2001 Mitsubishi Challenger 4 Door Wagon 3.5 litre, 6674 V6 24V DOHC
  • 1996-2006 Mitsubishi Triton GLX MK 2 Door Weliside 3 litre, 6G72 V6 24V SOHC

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

  • Diameter (mm) : 276
  • Height (mm) : 45.3
  • Thickness (mm) : 24
  • Minimum Thickness (mm) : 22.4
  • Centre Hole (mm) : 87
  • Stud Holes : 6
  • Weight (kg) : 6.19
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details
  • 1997-2007 Mitsubishi Challenger 4 Door SUV 2.8 litre, 4M40T 14 8V SOHC
  • 1996-1999 Mitsubishi Strada 4 Door Utility 2.5 litre, 4056 4 8V SOHC
  • 1996-2000 Mitsubishi Triton GT GLX MK 2 Door Cab Chassis 2.4 litre, 4G64 14 16V SOHC
  • 1996-2006 Mitsubishi Triton GLX MK 4 Door Wellside 2.4 litre, 4G64 14 16V SOHC
  • 1997-2002 Mitsubishi L200 4 Door Wellside 2.4 litre, 4G64 14 16V SOHC
  • 1997-2002 Mitsubishi L200 2 Door Cab Chassis 2.4 litre, 4G64 14 16V SOHC
  • 2000-2006 Mitsubishi Triton GL MK 2 Door Wellside 2.4 litre, 4G64 16 16V SOHC
  • 1997-2002 Mitsubishi L200 2 Door Wellside 2.4 litre, 4G64 14 16V SOHC
  • 1996-2006 Mitsubishi Triton GLX GLS MI 4 Door Wellside 2.8 litre, 4M40 14 8V SOHC
  • 1997-2006 Mitsubishi L200 2 Door Utility 2.8 litre, 4M40 14 8V SOHC
  • 1996-2006 Mitsubishi Triton GLX MK 2 Door Cab Chassis 2.8 litre, 4M40 14 8V SOHC
  • 1997-1998 Mitsubishi L200 KM 4 Door Utility 3 litre, 6672 V6 12V SOHC
  • 1996-2007 Mitsubishi L200 4 Door Utility 3 litre, 6672 V6 24V SOHC
  • 1997-2007 Mitsubishi Challenger PA 4 Door Wagon 3 litre, 6672 V8 24V SOHC
  • 1996-2006 Mitsubishi Triton GLX GLAR, GLS MK 4 Door Wellside 3 litre, 6672 V6 24V SOHC
  • 1996-2001 Mitsubishi Challenger 4 Door Wagon 3.5 litre, 6674 V6 24V DOHC
  • 1996-2006 Mitsubishi Triton GLX MK 2 Door Weliside 3 litre, 6G72 V6 24V SOHC
