Description

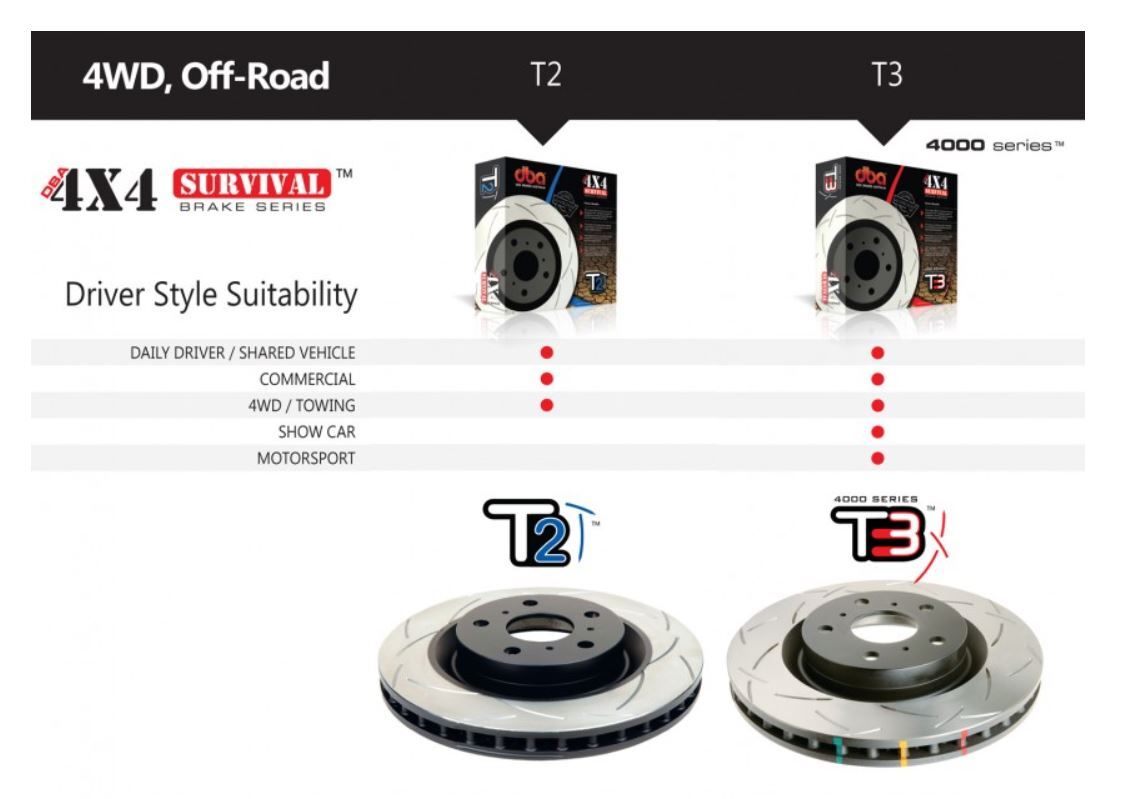

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

Specifications

  • Diameter (mm) : 277
  • Height (mm) : 39
  • Thickness (mm) : 26
  • Minimum Thickness (mm) : 24
  • Centre Hole (mm) : 100
  • Stud Holes : 6
  • Weight (kg) : 7.54
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details

Compatibility

  • 1988-1992 Nissan Navara DX D21 2 Door Cab Chassis 2.4 litre, KA24E 14 12V SOHC
  • 1992-1997 Nissan Navara D21 2 Door Utility 2.4 litre, KA24E 14 12V SOHC
  • 1995-1998 Nissan Navara D21 4 Door Utility 2.4 litre, KA24E 14 12V SOHC
  • 1997-1999 Nissan Navara DX D22 4 Door Utility 2.4 litre, KA24E 14 12V SOHC
  • 1997-2000 Nissan Navara DX D22 2 Door Cab Chassis 2.4 litre, KA24E 14 12V SOHC
  • 1997-2001 Nissan Navara DX STD D22 4 Door Utility 3.2 litre, QD32E 14 8V OHV
  • 1997-2001 Nissan Navara DX STD D22 2 Door Cab Chassis 3.2 litre, QD32E 14 8V OHV
  • 1988-1997 Nissan Navara DX D21 4 Door Utility 2.7 litre, TD27 14 8V OHV
  • 1994-1996 Nissan Mistral Type S X R20 4 Door SUV 2.7 litre, TD27B 14 8V OHV
  • 1997-1999 Nissan Mistral Type X R20 4 Door SUV 2.7 litre, TD27BETI 14 8V OHV
  • 1997-2000 Nissan Terrano II R20 4 Door SUV 2.7 litre, TD27TI 14 8V OHV
  • 1992-1995 Nissan Pathfinder ST T1 R51 4 Door SUV 3 litre, VG3I0E V6 12V SOHC
