Description

With over four decades of innovation under their belt, backed by intensive research and development, DBA has positioned itself as a world leader in the extremely competitive marketplace of OE and aftermarket disc brake rotor solutions. Whether you are after some basic replacement rotors for your standard passenger vehicle, 4x4 offroad or commercial vehicle, weekend toy or a hard-tuned track car, DBA has a set of rotors to enhance your vehicle's braking performance at a price and performance level to meet your unique requirements.

DBA's Heavy Duty range represents a solid upgrade over the OE Direct Replacement range. Made to the same exacting standards, but improved through additional post-production treatments, these HD models provide an even greater replacement for the original equipment, enhancing the reliability, safety and performance of your car.

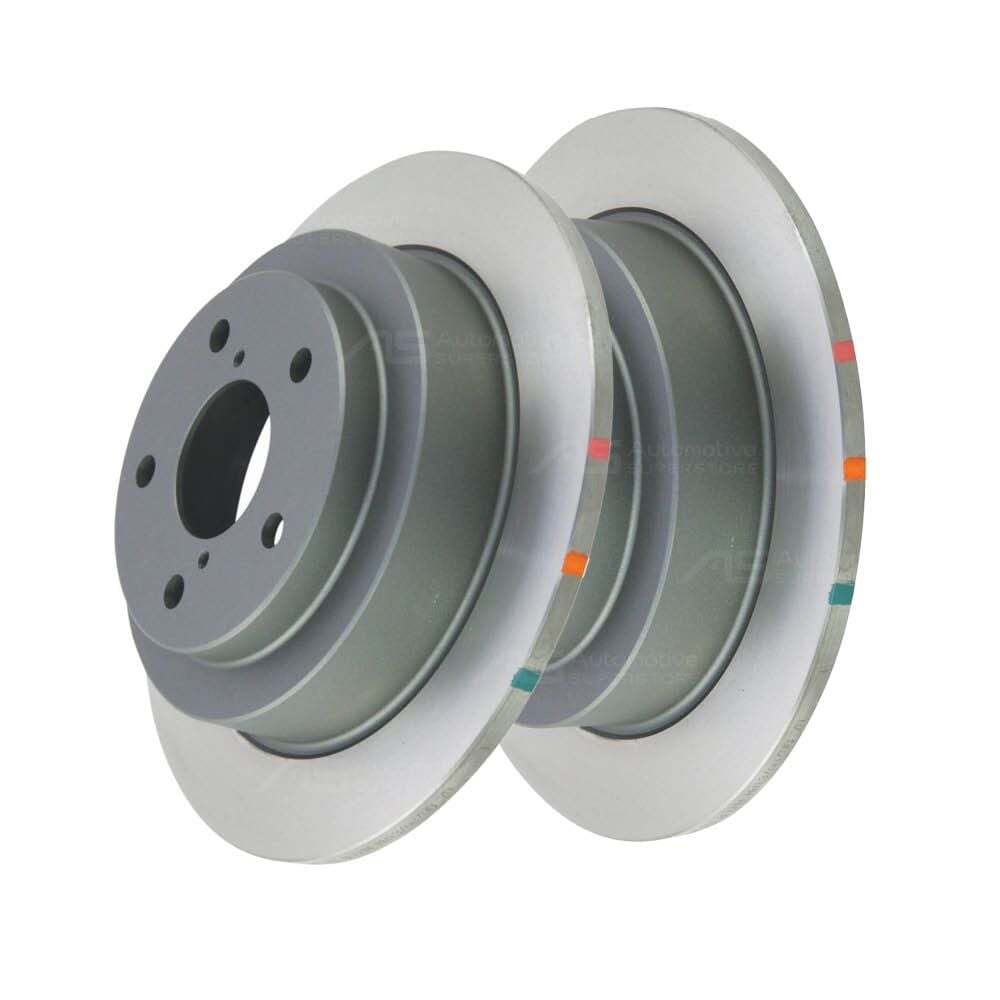

The 4000 Series take the same excellent XG-150 cast iron alloy used in the Street Series, and are further enhanced with TSP - Thermal Stability Profiling. This additional heat treatment process takes detail down to the atomic level, aligning the grain structure the compound to produce a uniform material. The result of this is the 4000 Series HD, a superior quality rotor able to withstand greater levels of heat, for a longer service life considerable resistance to warping from excessive heat events. Standard on every 4000 Series rotor is the inclusion of Thermographic Heat Paint Markings, allowing the user to identify peak braking temperatures in extreme conditions. 4000 Series rotors are recommended for performance street cars, heavily laden ute's or 4WD's, and for towing.

Drive Style Suitability

  • Family Cars
  • 4WD and SUV
  • Utes and Vans
  • Commercial vehicles
  • Offroad and Towing
  • Entry level track Days
  • Rally Sprint

Selecting the Right Brake Pads for your Application

Street Performance (Green) suitable for performance cars, heavier SUV's and 4WD's, and where performance rotors are fitted. Street Performance brake pads have been developed to provide greater than OE levels of performance, having improved initial bite and temperature resistance. DBA have developed a scorching process that removes leftover resins from the production process, minimising the bedding in process and preventing brake fade from pad contamination. This is achieved while maintaining a low level of brake dust emission and noise.

Specifications

Outer Diameter [mm]:266
Height [mm]:67,5
Brake Disc Thickness [mm]:10
Minimum Thickness [mm]:8,5
Centering Diameter [mm]:58
Weight [kg]:4,5
Number of Holes:5
Class:standard
Disc Vent:standard
Brake Disc Type:solid

Compatibility

  • SUBARU
  • LIBERTY
  • 1990 - 1994 Petrol Engine GS Rally, Heritage 4WD (BC7) BC Sedan 100KW
  • 1989 - 1994 Petrol Engine i GX 4WD (BF7) BC,BF,BJ Wagon 100KW
  • 1994 - 1999 Petrol Engine 2.2 i GX, LX, Heritage 4WD (BD7) BD Sedan 94KW
  • 1994 - 1996 Petrol Engine 2.2 i 4WD (BG7) BG Wagon 94KW
  • 1989 - 1994 Petrol Engine 2.2 i DX, GX, LX (BF7) BC,BF,BJ Wagon 100KW
  • 1994 - 1995 Petrol Engine 2.2 i GX, LX, Heritage (BD6) BD Sedan 94KW
  • 1996 - 1998 Petrol Engine 2.5 i RX Heritage 4WD (BD9) BD Sedan 115KW
  • 1996 - 1998 Petrol Engine 2.5 i 4WD (BG9) BG Wagon 115KW
  • 1994 - 1996 Petrol Engine 2.2 i (BG7) BG Wagon 94KW
  • 1994 - 1998 Petrol Engine 2.2 GX, LX 4WD (BD6, BD7) BD Sedan 98KW
  • 1989 - 1994 Petrol Engine 2.2 (BC7) BC Sedan 100KW
  • IMPREZA
  • 1993 - 1996 Petrol Engine 1.8 i AWD (GC6) GC Sedan 76KW
  • 1993 - 1996 Petrol Engine 1.8 i AWD (GF6) GF Wagon 76KW
  • 1992 - 1998 Petrol Engine 2.0 i WRX AWD (GC8) GC Sedan 155KW
  • 1994 - 1998 Petrol Engine 2.0 i WRX AWD (GF8) GF Wagon 155KW
  • 1996 - 1998 Petrol Engine 2.0 i AWD (GC8) GC Sedan 85KW
  • 1993 - 1998 Petrol Engine 1.6 i (GC3) GC Sedan 66KW
  • 2005 - 2007 Petrol Engine 2.0 i R AWD (GD9) GD Sedan 118KW
  • 2005 - 2007 Petrol Engine 2.5 i WRX AWD (GDG) GD Sedan 169KW
  • 2005 - 2007 Petrol Engine 2.0 i AWD (GG9) GG Wagon 118KW
  • 2005 - 2008 Petrol Engine 2.5 WRX AWD (GGG) GG Wagon 169KW
  • 1995 - 1996 Petrol Engine 1.8 i (GC5) GC Sedan 76KW
  • 1998 - 2000 Petrol Engine 2.0 i (GC7) GC Sedan 92KW
  • 1997 - 2000 Petrol Engine 1.6 i (GF3) GF Wagon 70KW
  • 1999 - 2000 Petrol Engine 2.0 i AWD (GC8) GC Sedan 92KW
  • 1998 - 2000 Petrol Engine 2.0 i 16V AWD (GF8) GF Wagon 92KW
  • 1996 - 1998 Petrol Engine 2.0 i AWD (GF8) GF Wagon 85KW
  • 2000 - 2007 Petrol Engine 2.0 i AWD (GG9) GG Wagon 92KW
  • 1999 - 2007 Petrol Engine 2.0 i AWD (GD9) GD Sedan 92KW
  • 1995 - 1996 Petrol Engine 1.8 i (GF5) GF Wagon 76KW
  • 1996 - 1998 Petrol Engine 2.0 i (GC7) GC Sedan 85KW
  • 2001 - 2005 Petrol Engine 2.5 i AWD (GDE) GD Sedan 112KW
  • 2002 - 2005 Petrol Engine 2.0 i WRX AWD (GDA) GD Sedan 168KW
  • 2002 - 2005 Petrol Engine 2.5 i AWD (GGE) GDA,GGA Wagon 112KW
  • 2008 - 2016 Petrol Engine 2.0 i AWD (GE7) GR,GE7 Sedan 110KW
  • 1998 - 1999 Petrol Engine 2.5 AWD GFC Coupe 123KW
  • 2005 - 2006 Petrol Engine 2.0 WRX AWD (GGA) GG Wagon 169KW
  • 1998 - 1998 Petrol Engine 1.6 (GC7) GC Sedan 88KW
  • FORESTER
  • 1997 - 2000 Petrol Engine 2.0 AWD (SF5) SF_ SUV 90KW
  • 1998 - 2000 Petrol Engine 2.0 S Turbo AWD (SF5) SF_ SUV 125KW
  • 2000 - 2002 Petrol Engine 2.0 AWD (SF5) SF_ SUV 92KW
  • 2003 - 2005 Petrol Engine 2.5 AWD (SG9) SG_ SUV 155KW
  • 2005 - 2008 Petrol Engine 2.5 AWD (SG9) SG_ SUV 169KW
  • 2000 - 2002 Petrol Engine 2.0 S Turbo AWD (SF5) SF_ SUV 130KW
  • 2005 - 2008 Petrol Engine 2.5 AWD (SG9) SG_ SUV 121KW
  • OUTBACK
  • 1996 - 1999 Petrol Engine 2.5 (BG9) BG Wagon 110KW
