Description

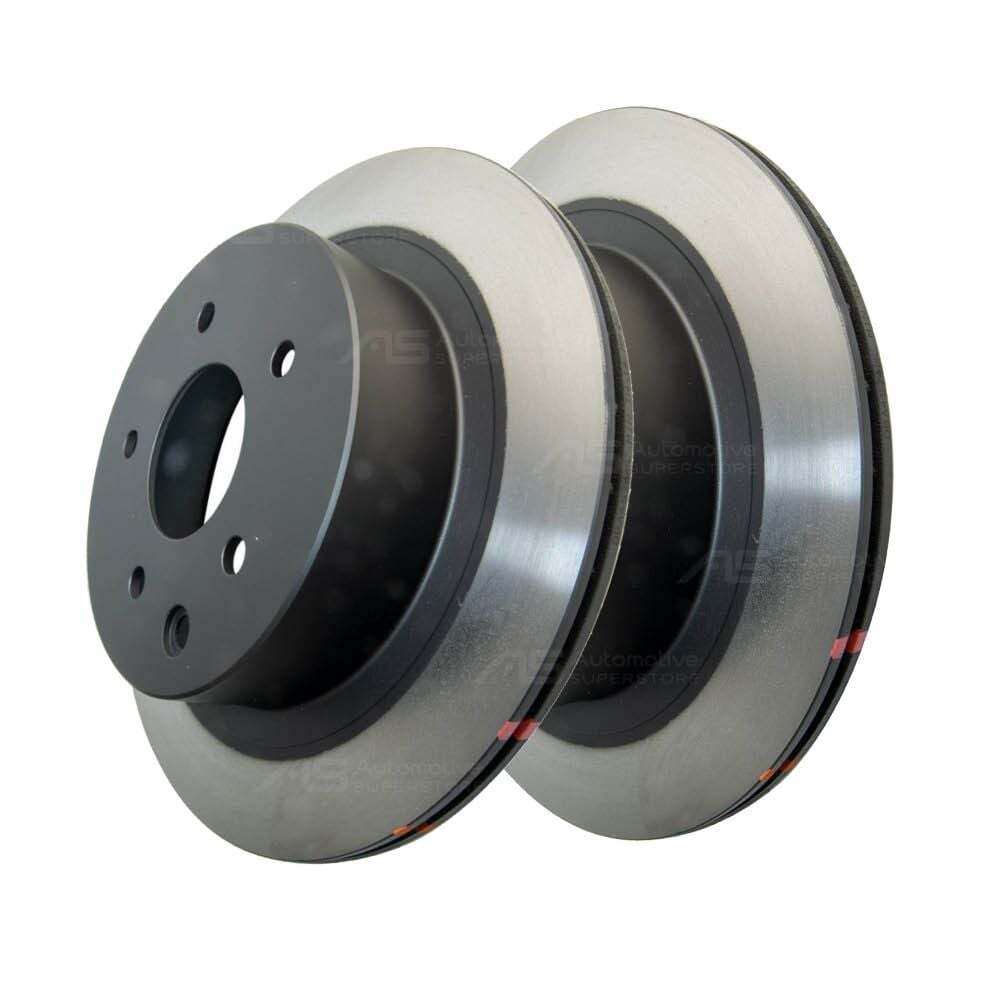

With over four decades of innovation under their belt, backed by intensive research and development, DBA has positioned itself as a world leader in the extremely competitive marketplace of OE and aftermarket disc brake rotor solutions. Whether you are after some basic replacement rotors for your standard passenger vehicle, 4x4 offroad or commercial vehicle, weekend toy or a hard-tuned track car, DBA has a set of rotors to enhance your vehicle's braking performance at a price and performance level to meet your unique requirements.

DBA's Heavy Duty range represents a solid upgrade over the OE Direct Replacement range. Made to the same exacting standards, but improved through additional post-production treatments, these HD models provide an even greater replacement for the original equipment, enhancing the reliability, safety and performance of your car.

The 4000 Series take the same excellent XG-150 cast iron alloy used in the Street Series, and are further enhanced with TSP - Thermal Stability Profiling. This additional heat treatment process takes detail down to the atomic level, aligning the grain structure the compound to produce a uniform material. The result of this is the 4000 Series HD, a superior quality rotor able to withstand greater levels of heat, for a longer service life considerable resistance to warping from excessive heat events. Standard on every 4000 Series rotor is the inclusion of Thermographic Heat Paint Markings, allowing the user to identify peak braking temperatures in extreme conditions. 4000 Series rotors are recommended for performance street cars, heavily laden ute's or 4WD's, and for towing.

Drive Style Suitability

  • Family Cars
  • 4WD and SUV
  • Utes and Vans
  • Commercial vehicles
  • Offroad and Towing
  • Entry level track Days
  • Rally Sprint

Selecting the Right Brake Pads for your Application

Street Performance (Green) suitable for performance cars, heavier SUV's and 4WD's, and where performance rotors are fitted. Street Performance brake pads have been developed to provide greater than OE levels of performance, having improved initial bite and temperature resistance. DBA have developed a scorching process that removes leftover resins from the production process, minimising the bedding in process and preventing brake fade from pad contamination. This is achieved while maintaining a low level of brake dust emission and noise.

Specifications

Outer Diameter [mm]:292
Brake Disc Thickness [mm]:16
Height [mm]:62
Minimum Thickness [mm]:14
Centering Diameter [mm]:68
Weight [kg]:5,5
Number of Holes:5
Class:standard
Disc Vent:standard
Brake Disc Type:Vented

Compatibility

  • NISSAN
  • LEAF
  • 2010 - 2014 Electric Motor Electric ZE0 Hatchback 80KW
  • 2017 - 2024 Electric Motor Electric ZE1 Hatchback 110KW
  • 2019 - 2024 Electric Motor Electric ZE1 Hatchback 160KW
  • 350Z
  • 2003 - 2009 Petrol Engine 3.5 Z33 Convertible 206KW
  • 2003 - 2009 Petrol Engine 3.5 Z33 Coupe 206KW
  • X-TRAIL
  • 2001 - 2006 Petrol Engine 2.5 4x4 T30 SUV 132KW
  • 2008 - 2014 Diesel 2.0 dCi 4x4 T31 SUV 127KW
  • 2008 - 2014 Diesel 2.0 dCi 4x4 T31 SUV 110KW
  • 2007 - 2014 Petrol Engine 2.5 4x4 T31 SUV 124KW
  • 2006 - 2007 Petrol Engine 2.5 4x4 T30 SUV 121KW
  • 2008 - 2014 Petrol Engine 2.0 FWD T31 SUV 103KW
  • 2014 - 2017 Diesel 1.6 dCi (T32) T32_,T32R,T32RR SUV 96KW
  • 2013 - 2022 Petrol Engine 2.5 (T32) T32_,T32R,T32RR SUV 126KW
  • 2013 - 2022 Petrol Engine 2.5 ALL MODE 4x4-i (NT32) T32_,T32R,T32RR SUV 126KW
  • 2014 - 2022 Petrol Engine 2.0 (T32) T32_,T32R,T32RR SUV 106KW
  • 2008 - 2014 Petrol Engine 2.0 T31 SUV 102KW
  • SKYLINE
  • 2001 - 2007 Petrol Engine 3.5 4x4 V35 Coupe 206KW
  • 2006 - 2007 Petrol Engine 2.5 V35 Coupe 158KW
  • 2006 - 2007 Petrol Engine 2.5 4x4 V35 Sedan 158KW
  • 2001 - 2007 Petrol Engine 3.0 V35 Sedan 191KW
  • 2001 - 2007 Petrol Engine 3.5 V35 Sedan 200KW
  • STAGEA
  • 2001 - 2003 Petrol Engine 2.5 Turbo AWD M35 Wagon 206KW
  • 2001 - 2003 Petrol Engine 3.0 M35 Wagon 191KW
  • 2006 - 2007 Petrol Engine 3.5 M35 Wagon 200KW
  • 2006 - 2007 Petrol Engine 3.5 AWD M35 Wagon 200KW
  • DUALIS/DUALIS + 2
  • 2009 - 2013 Petrol Engine 2.0 J10,NJ10,JJ10E SUV 102KW
  • 2007 - 2013 Petrol Engine 2.0 J10,NJ10,JJ10E SUV 102KW
  • RENAULT
  • KOLEOS
  • 2008 - 2013 Diesel 2.0 dCi (HY0K) H45 SUV 110KW
  • 2008 - 2013 Diesel 2.0 dCi 4x4 (HY0K) H45 SUV 110KW
  • 2008 - 2016 Diesel 2.0 dCi 4x4 (HY0B) H45 SUV 127KW
  • 2008 - 2016 Petrol Engine 2.5 (HY0C, HY0N) H45 SUV 126KW
  • 2008 - 2016 Petrol Engine 2.5 4x4 (HY0C, HY0N) H45 SUV 126KW

With over four decades of innovation under their belt, backed by intensive research and development, DBA has positioned itself as a world leader in the extremely competitive marketplace of OE and aftermarket disc brake rotor solutions. Whether you are after some basic replacement rotors for your standard passenger vehicle, 4x4 offroad or commercial vehicle, weekend toy or a hard-tuned track car, DBA has a set of rotors to enhance your vehicle's braking performance at a price and performance level to meet your unique requirements.

DBA's Heavy Duty range represents a solid upgrade over the OE Direct Replacement range. Made to the same exacting standards, but improved through additional post-production treatments, these HD models provide an even greater replacement for the original equipment, enhancing the reliability, safety and performance of your car.

The 4000 Series take the same excellent XG-150 cast iron alloy used in the Street Series, and are further enhanced with TSP - Thermal Stability Profiling. This additional heat treatment process takes detail down to the atomic level, aligning the grain structure the compound to produce a uniform material. The result of this is the 4000 Series HD, a superior quality rotor able to withstand greater levels of heat, for a longer service life considerable resistance to warping from excessive heat events. Standard on every 4000 Series rotor is the inclusion of Thermographic Heat Paint Markings, allowing the user to identify peak braking temperatures in extreme conditions. 4000 Series rotors are recommended for performance street cars, heavily laden ute's or 4WD's, and for towing.

Drive Style Suitability

  • Family Cars
  • 4WD and SUV
  • Utes and Vans
  • Commercial vehicles
  • Offroad and Towing
  • Entry level track Days
  • Rally Sprint

Selecting the Right Brake Pads for your Application

Street Performance (Green) suitable for performance cars, heavier SUV's and 4WD's, and where performance rotors are fitted. Street Performance brake pads have been developed to provide greater than OE levels of performance, having improved initial bite and temperature resistance. DBA have developed a scorching process that removes leftover resins from the production process, minimising the bedding in process and preventing brake fade from pad contamination. This is achieved while maintaining a low level of brake dust emission and noise.

Outer Diameter [mm]:292
Brake Disc Thickness [mm]:16
Height [mm]:62
Minimum Thickness [mm]:14
Centering Diameter [mm]:68
Weight [kg]:5,5
Number of Holes:5
Class:standard
Disc Vent:standard
Brake Disc Type:Vented
  • NISSAN
  • LEAF
  • 2010 - 2014 Electric Motor Electric ZE0 Hatchback 80KW
  • 2017 - 2024 Electric Motor Electric ZE1 Hatchback 110KW
  • 2019 - 2024 Electric Motor Electric ZE1 Hatchback 160KW
  • 350Z
  • 2003 - 2009 Petrol Engine 3.5 Z33 Convertible 206KW
  • 2003 - 2009 Petrol Engine 3.5 Z33 Coupe 206KW
  • X-TRAIL
  • 2001 - 2006 Petrol Engine 2.5 4x4 T30 SUV 132KW
  • 2008 - 2014 Diesel 2.0 dCi 4x4 T31 SUV 127KW
  • 2008 - 2014 Diesel 2.0 dCi 4x4 T31 SUV 110KW
  • 2007 - 2014 Petrol Engine 2.5 4x4 T31 SUV 124KW
  • 2006 - 2007 Petrol Engine 2.5 4x4 T30 SUV 121KW
  • 2008 - 2014 Petrol Engine 2.0 FWD T31 SUV 103KW
  • 2014 - 2017 Diesel 1.6 dCi (T32) T32_,T32R,T32RR SUV 96KW
  • 2013 - 2022 Petrol Engine 2.5 (T32) T32_,T32R,T32RR SUV 126KW
  • 2013 - 2022 Petrol Engine 2.5 ALL MODE 4x4-i (NT32) T32_,T32R,T32RR SUV 126KW
  • 2014 - 2022 Petrol Engine 2.0 (T32) T32_,T32R,T32RR SUV 106KW
  • 2008 - 2014 Petrol Engine 2.0 T31 SUV 102KW
  • SKYLINE
  • 2001 - 2007 Petrol Engine 3.5 4x4 V35 Coupe 206KW
  • 2006 - 2007 Petrol Engine 2.5 V35 Coupe 158KW
  • 2006 - 2007 Petrol Engine 2.5 4x4 V35 Sedan 158KW
  • 2001 - 2007 Petrol Engine 3.0 V35 Sedan 191KW
  • 2001 - 2007 Petrol Engine 3.5 V35 Sedan 200KW
  • STAGEA
  • 2001 - 2003 Petrol Engine 2.5 Turbo AWD M35 Wagon 206KW
  • 2001 - 2003 Petrol Engine 3.0 M35 Wagon 191KW
  • 2006 - 2007 Petrol Engine 3.5 M35 Wagon 200KW
  • 2006 - 2007 Petrol Engine 3.5 AWD M35 Wagon 200KW
  • DUALIS/DUALIS + 2
  • 2009 - 2013 Petrol Engine 2.0 J10,NJ10,JJ10E SUV 102KW
  • 2007 - 2013 Petrol Engine 2.0 J10,NJ10,JJ10E SUV 102KW
  • RENAULT
  • KOLEOS
  • 2008 - 2013 Diesel 2.0 dCi (HY0K) H45 SUV 110KW
  • 2008 - 2013 Diesel 2.0 dCi 4x4 (HY0K) H45 SUV 110KW
  • 2008 - 2016 Diesel 2.0 dCi 4x4 (HY0B) H45 SUV 127KW
  • 2008 - 2016 Petrol Engine 2.5 (HY0C, HY0N) H45 SUV 126KW
  • 2008 - 2016 Petrol Engine 2.5 4x4 (HY0C, HY0N) H45 SUV 126KW
