Description

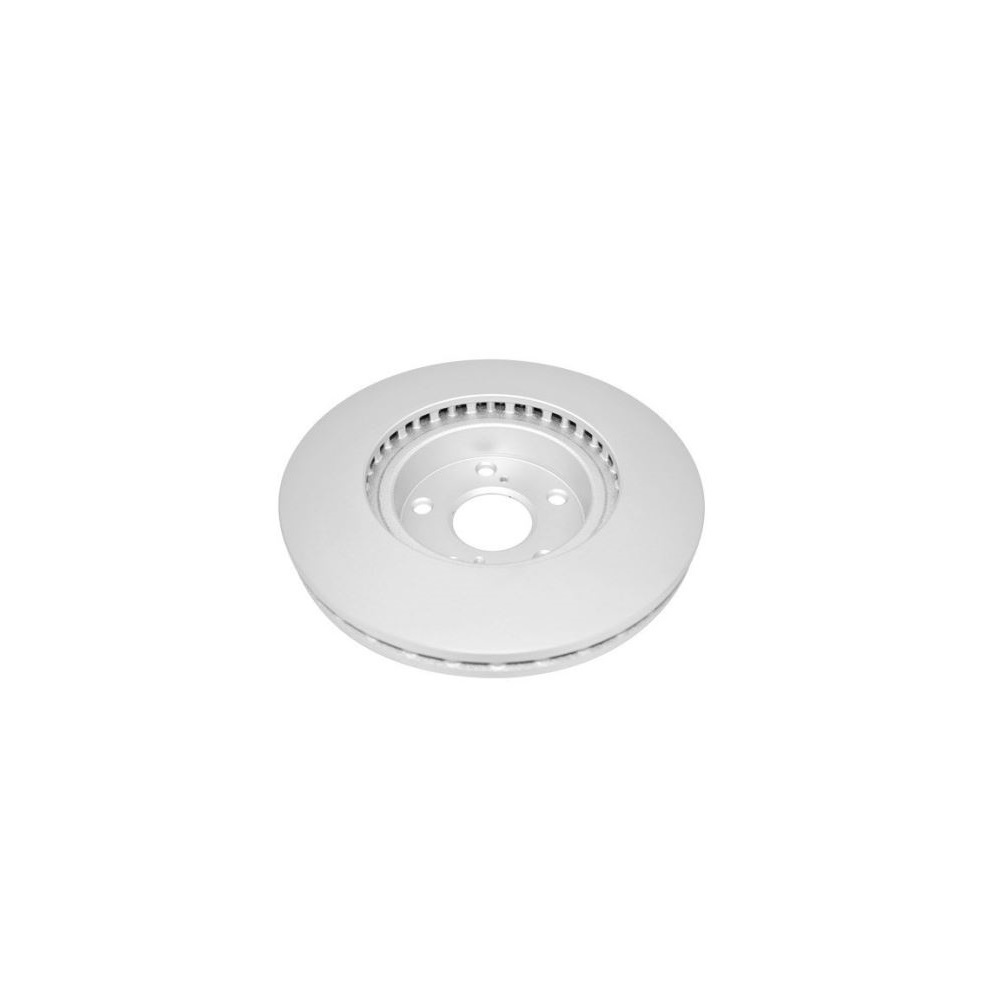

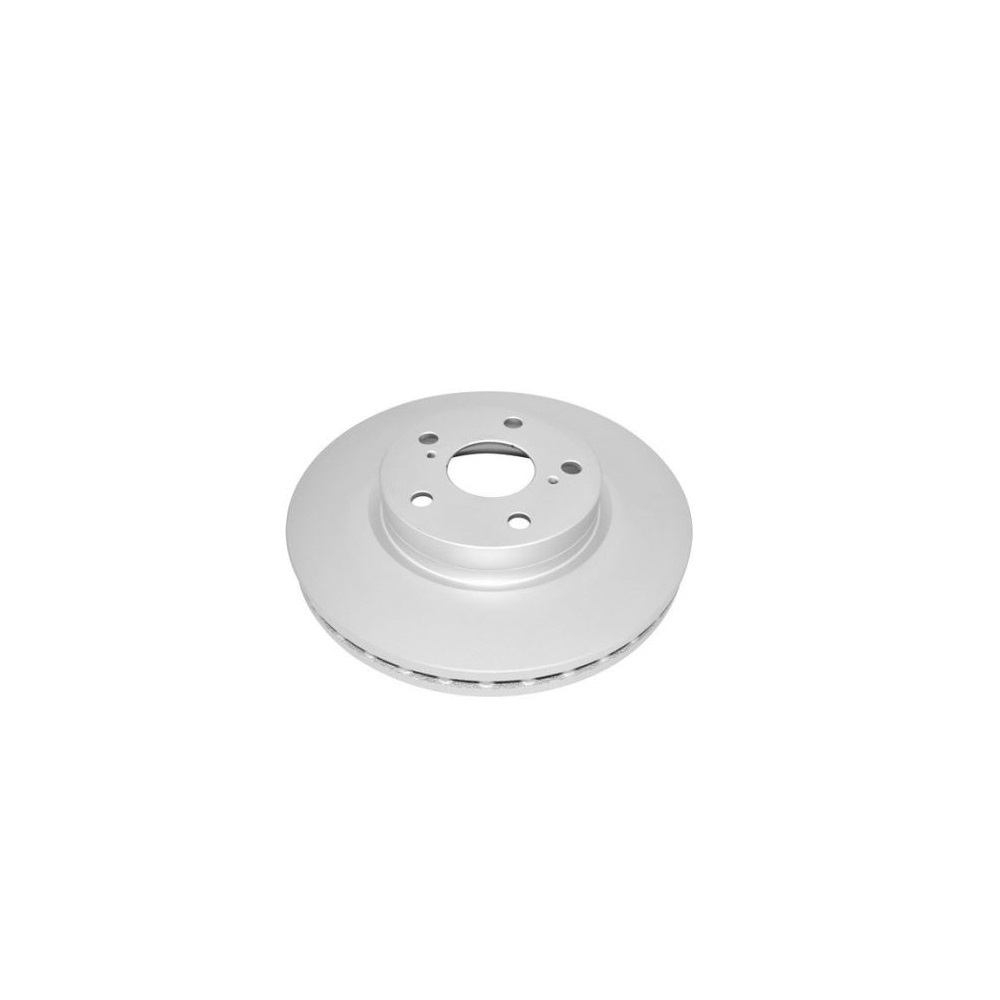

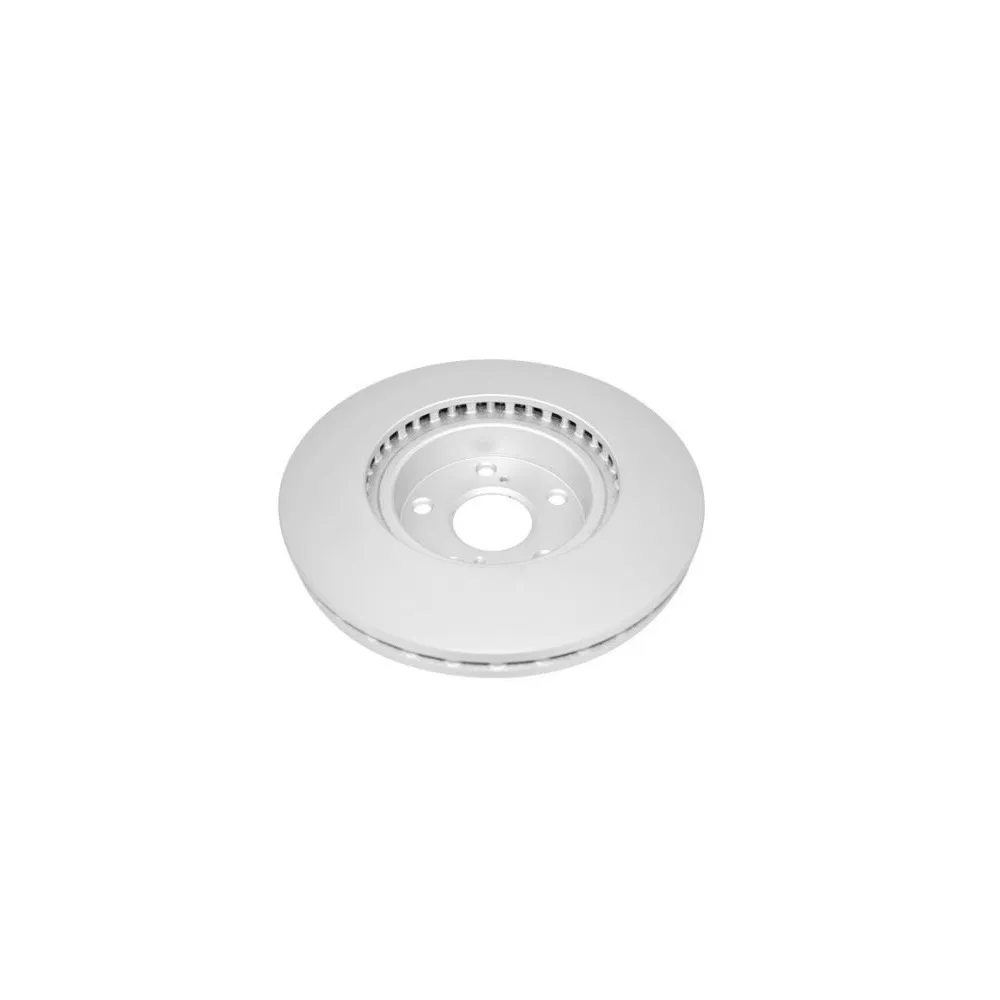

DBA’s EnShield technology has been introduced to the Street Series range to provide rust free rotors. The EnShield process begins with a DBA Street Series Direct Replacement rotor, where a zinc/aluminium water-based coating is applied to the entire rotor surface and is then baked on. The result protects the rotor from corrosion and keeps it looking good during its service life.

EnShield alleviates the need to clean rotors prior to installation, saving fitment time and preventing rust!

EnShield rotors are denoted by the suffix (E) in Street Series part numbers.

Specifications

  • Diameter (mm) : 296
  • Height (mm) : 58.7
  • Thickness (mm) : 30
  • Minimum Thickness (mm) : 27
  • Centre Hole (mm) : 62
  • Stud Holes : 5
  • Weight (kg) : 9.56
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details

Compatibility

  • 2016-On Toyota Innova GUN143R 4 Door Wagon 2.8 litre, 1GDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo TGNITIR 2 Door Utility 2 litre, 1TRFE I6 16V DOHC WT
  • 2015-On Toyota Hilux Revo GUN122R 2 Door Utility 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo GUN122R 2 Door Utility 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo GUN122R 4 Door Utility 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-2017 Toyota Innova GUNT42R 4 Door Wagon 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-2019 Toyota Hilux Workmate GUN122R 4 Door Utility 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-2019 Toyota Hilux Workmate GUN22R 2 Door Cab Chassis 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-On Toyota Hilux KUNTI2ZR 2 Door Utility 2.5 litre, 2KDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo TGN121R 2 Door Cab Chassis 2.7 litre, 2TRFE 14 16V DOHC WT
  • 2015-On Toyota Hilux Revo TGNI21R 4 Door Wellside 2.7 litre, 2TRFE 14 16V DOHC WT
  • 2015-On Toyota Hilux Workmate TGNI21R 2 Door Cab Chassis 2.7 litre, 2TRFE 14 16V DOHC WT
  • 2015-2017 Toyota Hilux SR GUN123R 2 Door Cab Chassis 2.8 litre, AGDFTV 14 16V DOHC
  • 2015-2017 Toyota Hilux S GUNI23R 4 Door Utility 2.8 litre, IGDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo GUN123R 2 Door Utility 2.8 litre, IGDFTV 14 16V DOHC
  • 2015-2017 Toyota Hilux SR GGN120R 4 Door Wellside 4 litre, IGRFE V6 24V DOHC
  • 2015-2017 Toyota Hilux SR Extra Cab GUN1Z5R 4 Door Utility 2.8 litre, TGDFTV 14 16V DOHC
  • 2015-On Toyota Innova TGN140R 4 Door Wagon 2 litre, TTRFE 14 16V DOHC WT
  • 2015-On Toyota Hilux Workmate TGNI21R 4 Door Wellside 2.7 litre, ZTRFE 14 16V DOHC WT

DBA’s EnShield technology has been introduced to the Street Series range to provide rust free rotors. The EnShield process begins with a DBA Street Series Direct Replacement rotor, where a zinc/aluminium water-based coating is applied to the entire rotor surface and is then baked on. The result protects the rotor from corrosion and keeps it looking good during its service life.

EnShield alleviates the need to clean rotors prior to installation, saving fitment time and preventing rust!

EnShield rotors are denoted by the suffix (E) in Street Series part numbers.

  • Diameter (mm) : 296
  • Height (mm) : 58.7
  • Thickness (mm) : 30
  • Minimum Thickness (mm) : 27
  • Centre Hole (mm) : 62
  • Stud Holes : 5
  • Weight (kg) : 9.56
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details
  • 2016-On Toyota Innova GUN143R 4 Door Wagon 2.8 litre, 1GDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo TGNITIR 2 Door Utility 2 litre, 1TRFE I6 16V DOHC WT
  • 2015-On Toyota Hilux Revo GUN122R 2 Door Utility 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo GUN122R 2 Door Utility 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo GUN122R 4 Door Utility 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-2017 Toyota Innova GUNT42R 4 Door Wagon 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-2019 Toyota Hilux Workmate GUN122R 4 Door Utility 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-2019 Toyota Hilux Workmate GUN22R 2 Door Cab Chassis 2.4 litre, 2GDFTV 14 16V DOHC
  • 2015-On Toyota Hilux KUNTI2ZR 2 Door Utility 2.5 litre, 2KDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo TGN121R 2 Door Cab Chassis 2.7 litre, 2TRFE 14 16V DOHC WT
  • 2015-On Toyota Hilux Revo TGNI21R 4 Door Wellside 2.7 litre, 2TRFE 14 16V DOHC WT
  • 2015-On Toyota Hilux Workmate TGNI21R 2 Door Cab Chassis 2.7 litre, 2TRFE 14 16V DOHC WT
  • 2015-2017 Toyota Hilux SR GUN123R 2 Door Cab Chassis 2.8 litre, AGDFTV 14 16V DOHC
  • 2015-2017 Toyota Hilux S GUNI23R 4 Door Utility 2.8 litre, IGDFTV 14 16V DOHC
  • 2015-On Toyota Hilux Revo GUN123R 2 Door Utility 2.8 litre, IGDFTV 14 16V DOHC
  • 2015-2017 Toyota Hilux SR GGN120R 4 Door Wellside 4 litre, IGRFE V6 24V DOHC
  • 2015-2017 Toyota Hilux SR Extra Cab GUN1Z5R 4 Door Utility 2.8 litre, TGDFTV 14 16V DOHC
  • 2015-On Toyota Innova TGN140R 4 Door Wagon 2 litre, TTRFE 14 16V DOHC WT
  • 2015-On Toyota Hilux Workmate TGNI21R 4 Door Wellside 2.7 litre, ZTRFE 14 16V DOHC WT
