Description

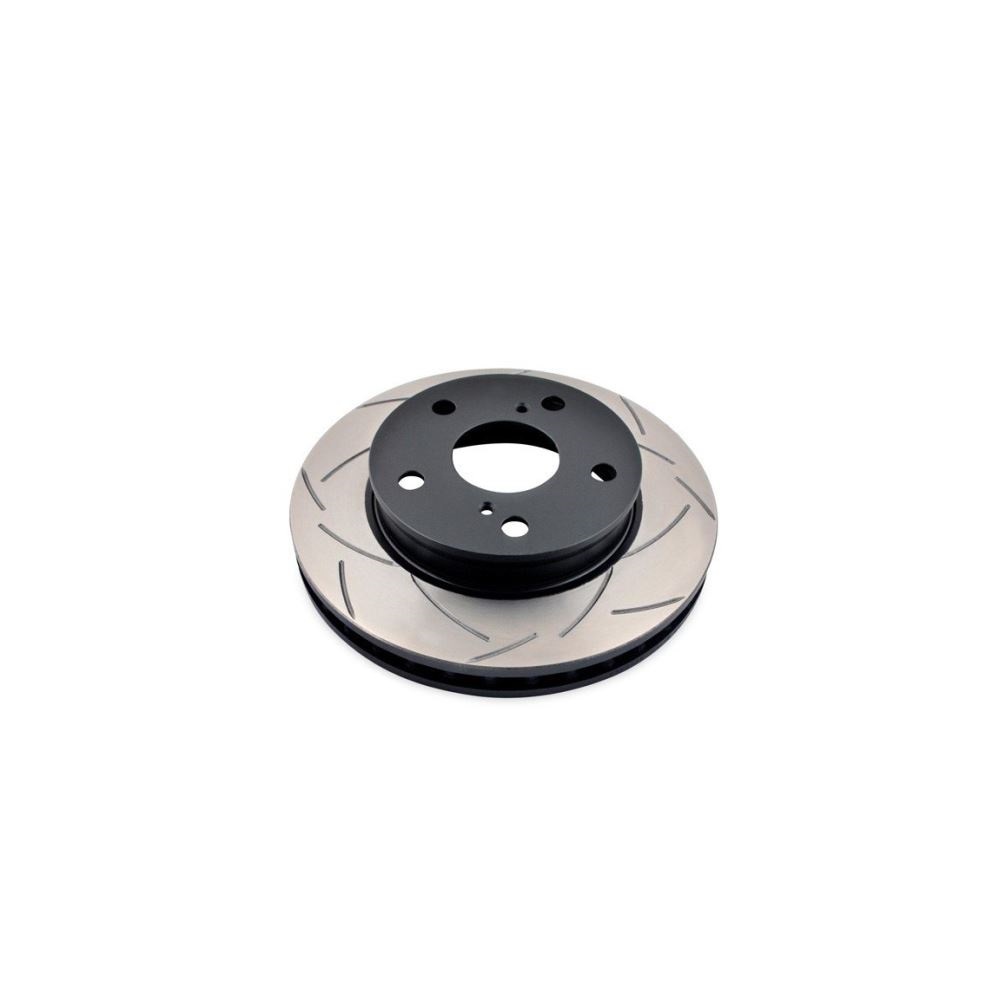

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

Specifications

  • Diameter (mm) : 255
  • Height (mm) : 58.6
  • Thickness (mm) : 28
  • Minimum Thickness (mm) : 26
  • Centre Hole (mm) : 62
  • Stud Holes : 5
  • Weight (kg) : 6.11
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details

Compatibility

  • 2005-2013 Toyota Hilux SR5 Extra Cab GGNI5R 2 Door Wellside 4 litre, 1GRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux SR KUN15R 4 Door Wellside 3 litre, 1KDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Vigo KUNI5R 2 Door Utility 2.5 litre, 2KDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Vigo KUNI5R 4 Door Utility 2.5 litre, 2KDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Workmate TGNI5R 4 Door Utility 2.7 litre, 2TRFE 14 16Y DOHC WT
  • 2005-2015 Toyota Hilux Vigo TGNI5R 2 Door Cab Chassis 2.7 litre, 2TRFE 18 16V DOHC WT
  • 2005-2015 Toyota Hilux iGO TGNIER 4 Door Wellside litre, 2TRFE 14 16V DOHC WT
  • 2008-2013 Toyota Hilux SR GGNI5R 2 Door Cab Chassis 4.6 litre, IGRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux SR GGNI5R 2 Door Weliside 4 litre, IGRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux SRE GGNI5R 4 Door Wellside 4 litre, IGRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux SR GGNI5R 4 Door Wellside 4 litre, IGRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux Vigo KUN16R 2 Door Cab Chassis 3 litre, IKBFTV 14 16V DOHC
  • 2005-2006 Toyota Hilux SR KUNI5R 2 Door Cab Chassis 3 litre, IKDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Vigo KUNI6R 4 Door Wellside 3 litre, IKDFTV 18 16V DOHC
  • 2006-2015 Toyota Hilux SR, Workmate KUN15R 2 Door Cab Chassis 3 litre, TKDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Workmate TGN16R 2 Door Cab Chassis 2.7 litre, ZTRFE 14 16V DOHC WT

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

  • Diameter (mm) : 255
  • Height (mm) : 58.6
  • Thickness (mm) : 28
  • Minimum Thickness (mm) : 26
  • Centre Hole (mm) : 62
  • Stud Holes : 5
  • Weight (kg) : 6.11
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details
  • 2005-2013 Toyota Hilux SR5 Extra Cab GGNI5R 2 Door Wellside 4 litre, 1GRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux SR KUN15R 4 Door Wellside 3 litre, 1KDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Vigo KUNI5R 2 Door Utility 2.5 litre, 2KDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Vigo KUNI5R 4 Door Utility 2.5 litre, 2KDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Workmate TGNI5R 4 Door Utility 2.7 litre, 2TRFE 14 16Y DOHC WT
  • 2005-2015 Toyota Hilux Vigo TGNI5R 2 Door Cab Chassis 2.7 litre, 2TRFE 18 16V DOHC WT
  • 2005-2015 Toyota Hilux iGO TGNIER 4 Door Wellside litre, 2TRFE 14 16V DOHC WT
  • 2008-2013 Toyota Hilux SR GGNI5R 2 Door Cab Chassis 4.6 litre, IGRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux SR GGNI5R 2 Door Weliside 4 litre, IGRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux SRE GGNI5R 4 Door Wellside 4 litre, IGRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux SR GGNI5R 4 Door Wellside 4 litre, IGRFE V6 24V DOHC
  • 2005-2015 Toyota Hilux Vigo KUN16R 2 Door Cab Chassis 3 litre, IKBFTV 14 16V DOHC
  • 2005-2006 Toyota Hilux SR KUNI5R 2 Door Cab Chassis 3 litre, IKDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Vigo KUNI6R 4 Door Wellside 3 litre, IKDFTV 18 16V DOHC
  • 2006-2015 Toyota Hilux SR, Workmate KUN15R 2 Door Cab Chassis 3 litre, TKDFTV 14 16V DOHC
  • 2005-2015 Toyota Hilux Workmate TGN16R 2 Door Cab Chassis 2.7 litre, ZTRFE 14 16V DOHC WT
