Description

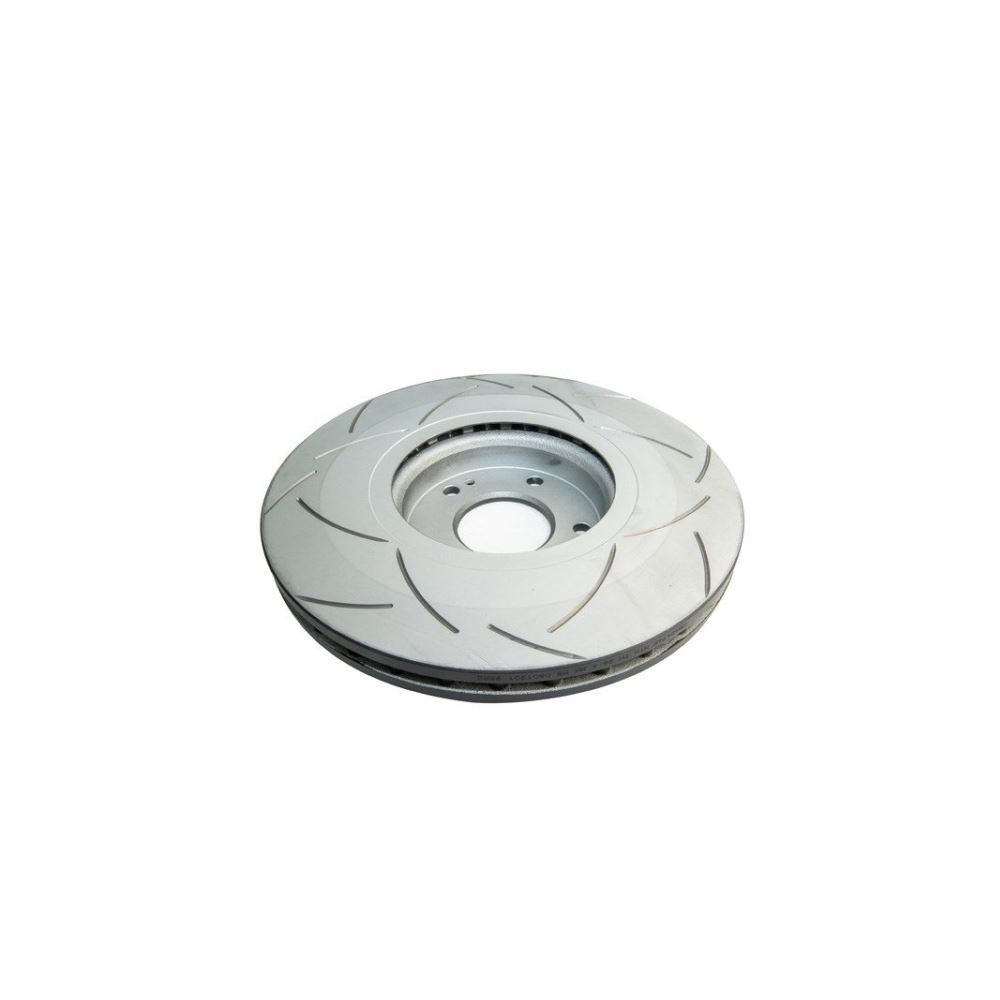

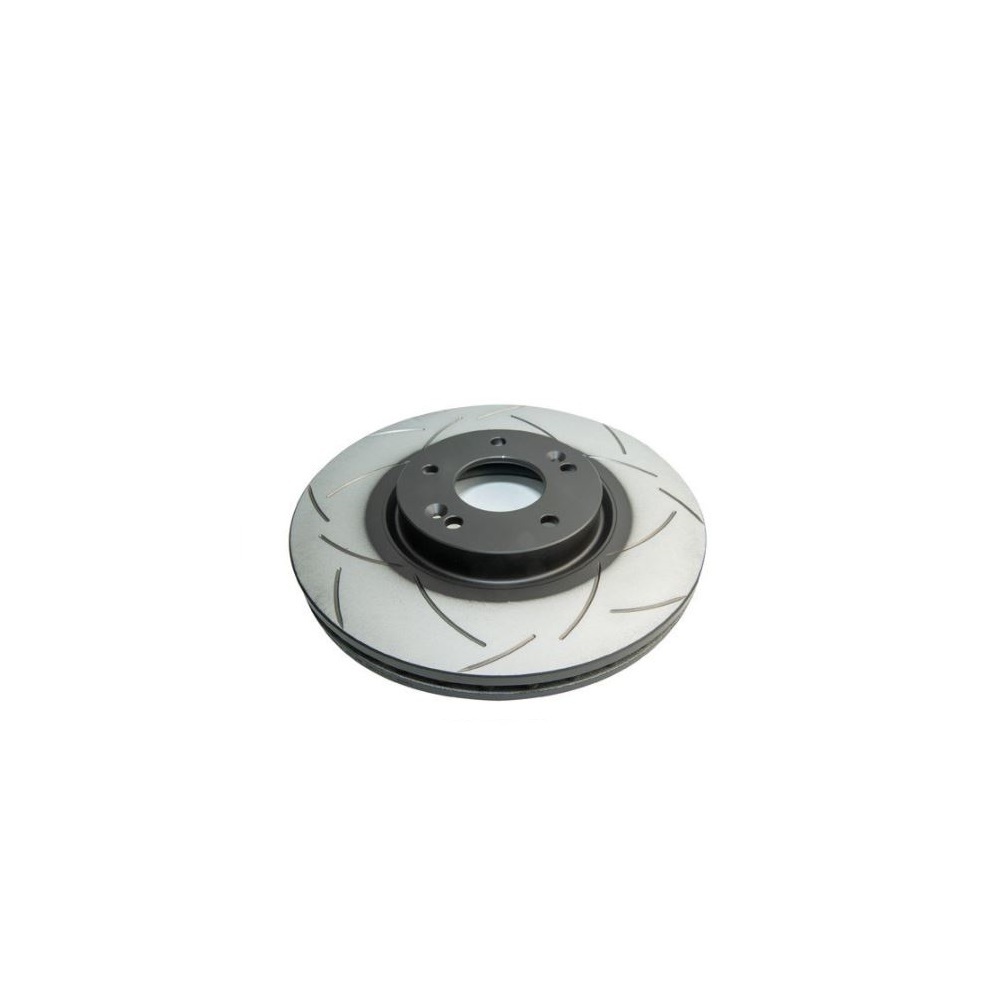

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

Specifications

  • Diameter (mm) : 320
  • Height (mm) : 49.1
  • Thickness (mm) : 28
  • Minimum Thickness (mm) : 26.4
  • Centre Hole (mm) : 69
  • Stud Holes : 5
  • Weight (kg) : 10.68
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details

Compatibility

  • 2012-2018 Hyundai Santa Fe Active CRDI DM (4 Door SUV) 2.2 litre, D4HB 14 16V DOHC WT
  • 2012-2018 Hyundai Santa Fe Active DM (4 Door SUV) 2.4 litre, G4KJ 14 16V DOHC WT
  • 2017-2018 Hyundai Santa Fe Active X DM (4 Door SUV) 3.3 litre, G6EDF V6 24V DOHC WT
  • 2012-2018 Hyundai Santa Fe CROIDM (4 Door SUV) 2.2 litre, D4HB 14 16V DOHC WT
  • 2013-2018 Hyundai Santa Fe DM (4 Door SUV) 3.3 litre, GEDF V6 24V DOHC WT
  • 2012-2018 Hyundai Santa Fe Elitre DM (4 Door SUV) 2.4 litre, G4Ku 14 16V DOHC VVT
  • 2009-2015 Kia Sorento LX XM (4 Door SUV) 2.2 litre, D4HB 14 16V DOHC WT
  • 2011-2015 Kia Sorento SI SLI XM (4 Door SUV) 3.5 litre, GDC V6 24V DOHC WT
  • 2015-2017 Kia Sorento Si, SLi UM (4 Door SUV) 3.3 litre, GEDF V6 24V DOHC WT
  • 2009-2015 Kia Sorento SI, SLL Platinum XM (4 Door SUV) 2.2 litre, D4HB 14 16V DOHC WT
  • 2015-2020 Kia Sorento UM (4 Door SUV) 2.2 litre, DAHB 14 16V DOHC WT

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

  • Diameter (mm) : 320
  • Height (mm) : 49.1
  • Thickness (mm) : 28
  • Minimum Thickness (mm) : 26.4
  • Centre Hole (mm) : 69
  • Stud Holes : 5
  • Weight (kg) : 10.68
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details
  • 2012-2018 Hyundai Santa Fe Active CRDI DM (4 Door SUV) 2.2 litre, D4HB 14 16V DOHC WT
  • 2012-2018 Hyundai Santa Fe Active DM (4 Door SUV) 2.4 litre, G4KJ 14 16V DOHC WT
  • 2017-2018 Hyundai Santa Fe Active X DM (4 Door SUV) 3.3 litre, G6EDF V6 24V DOHC WT
  • 2012-2018 Hyundai Santa Fe CROIDM (4 Door SUV) 2.2 litre, D4HB 14 16V DOHC WT
  • 2013-2018 Hyundai Santa Fe DM (4 Door SUV) 3.3 litre, GEDF V6 24V DOHC WT
  • 2012-2018 Hyundai Santa Fe Elitre DM (4 Door SUV) 2.4 litre, G4Ku 14 16V DOHC VVT
  • 2009-2015 Kia Sorento LX XM (4 Door SUV) 2.2 litre, D4HB 14 16V DOHC WT
  • 2011-2015 Kia Sorento SI SLI XM (4 Door SUV) 3.5 litre, GDC V6 24V DOHC WT
  • 2015-2017 Kia Sorento Si, SLi UM (4 Door SUV) 3.3 litre, GEDF V6 24V DOHC WT
  • 2009-2015 Kia Sorento SI, SLL Platinum XM (4 Door SUV) 2.2 litre, D4HB 14 16V DOHC WT
  • 2015-2020 Kia Sorento UM (4 Door SUV) 2.2 litre, DAHB 14 16V DOHC WT
