Description

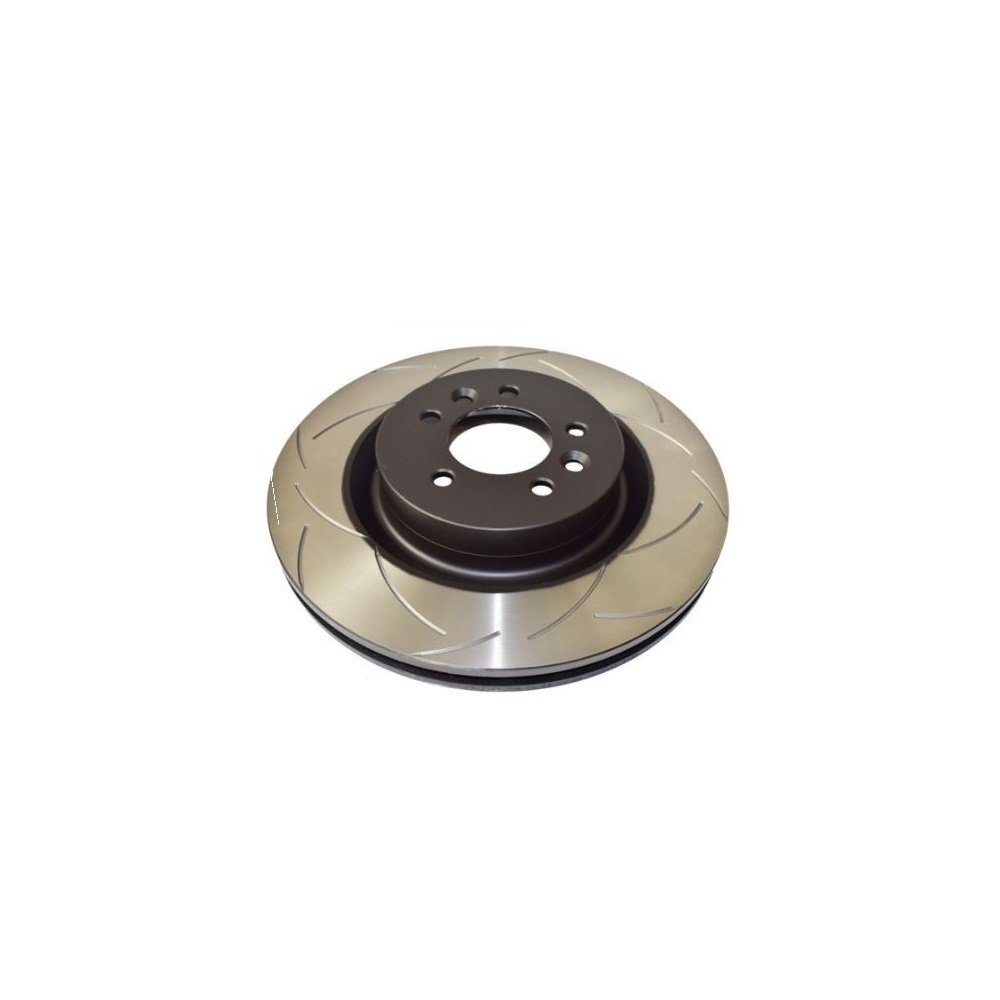

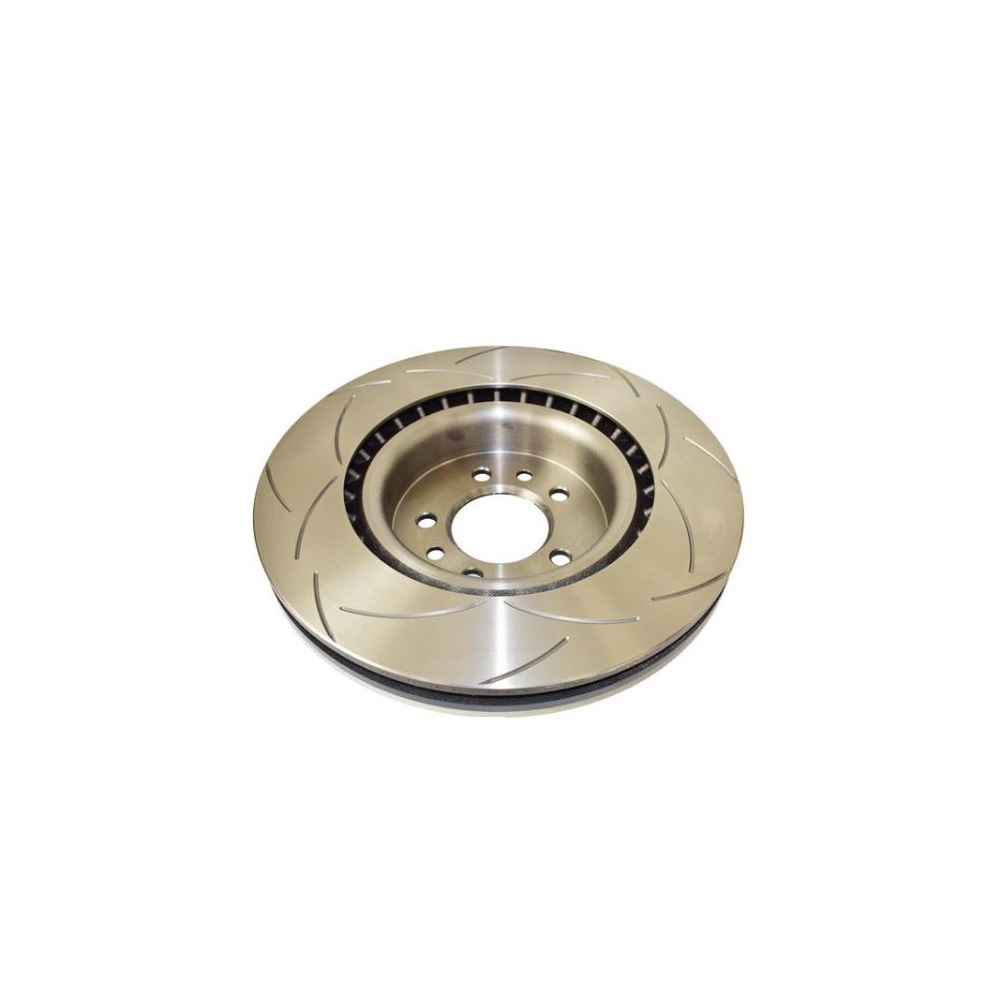

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

Specifications

  • Diameter (mm) : 360
  • Height (mm) : 62.2
  • Thickness (mm) : 30
  • Minimum Thickness (mm) : 27
  • Centre Hole (mm) : 79
  • Stud Holes : 5
  • Weight (kg) : 12.54
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details

Compatibility

  • 2014-2015 Land Rover Discovery 4 3 0 SCVG Series 4 (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2009-2017 Land Rover Discovery 4 3.0 SDV6 HSE Series 4 (4 Door SUV) 3.0 litre, 3O6EDT VE 24V DOHC
  • 2009-2017 Land Rover Discovery 4 3.0 SDV6 HSE Series 4 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2012-2017 Land Rover Discovery 4 3.0 TDV6 Series 4 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2009-2015 Land Rover Discovery 4 5.0 V8 Series 4 (4 Door SUV) 5.0 litre, S08PN V832V DOHC WT
  • 2017-2020 Land Rover Discovery S16 Series 5 (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2016-2020 Land Rover Discovery SD4 Series 5 (4 Door SUV) 2.0 litre, AJ200D 14 16V DOHC
  • 2016-2018 Land Rover Discovery TD4 Series 5 (4 Door SUV) 2.0 litre, 204DTD 14 16V DOHC
  • 2016-2018 Land Rover Discovery TD6 Series 5 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2013-On Land Rover Range Rover HSE V6 SC, Vogue V6 SC LG (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2015-2019 Land Rover Range Rover Vogue V6 SC LG (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2005-2009 Land Rover Range Rover Sport (4 Door SUV) 4.2 litre, 428PS V8 32V DOHC
  • 2005-2009 Land Rover Range Rover Sport 2.7 TOV6 (4 Door SUV) 2.7 litre, ELD17 V6 24V DOHC
  • 2013-2015 Land Rover Range Rover Sport 3.0 SDV6 LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2009-2011 Land Rover Range Rover Sport 3.0 TDV6 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2009-2013 Land Rover Range Rover Sport 3.0 TDV6, 3.0 SDV6 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2013-2019 Land Rover Range Rover Sport 3.0 V6 SC LW (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2007-2010 Land Rover Range Rover Sport 3.6 TDV8 (4 Door SUV) 3.6 litre, 368DT V8 32V SOHC
  • 2005-2009 Land Rover Range Rover Sport 4.4 V8 (4 Door SUV) 4 4 litre, 44BPN V8 32V DOHC
  • 2009-2013 Land Rover Range Rover Sport 5.0 V8 (4 Door SUV) 5.0 litre, 508PN V8 32V DOHC WT
  • 2009-2013 Land Rover Range Rover Sport 5.0 V8 Supercharged (4 Door SUV) 5.0 litre, 508PS V8-32V DOHC WT
  • 2016-2018 Land Rover Range Rover Sport SD4 LW (4 Door SUV) 2.0 litre, 204DTA 14 16V DOHC
  • 2015-2017 Land Rover Range Rover Sport SDV6 HEV Hybrid LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC WT
  • 2015-2020 Land Rover Range Rover Sport SDV6 LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2019-2020 Land Rover Range Rover Sport SDV6 SE LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2017-On Land Rover Range Rover Sport Sid LW (4 Door SUV) 2.0 litre, PT204 14 16V DOHC
  • 2013-2016 Land Rover Range Rover Sport TDV6 LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2016-2018 Land Rover Range Rover Sport TDV6 SE LW (4 Door SUV) 3.0 litre, 3060T V6 24V DOHC

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

  • Diameter (mm) : 360
  • Height (mm) : 62.2
  • Thickness (mm) : 30
  • Minimum Thickness (mm) : 27
  • Centre Hole (mm) : 79
  • Stud Holes : 5
  • Weight (kg) : 12.54
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details
  • 2014-2015 Land Rover Discovery 4 3 0 SCVG Series 4 (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2009-2017 Land Rover Discovery 4 3.0 SDV6 HSE Series 4 (4 Door SUV) 3.0 litre, 3O6EDT VE 24V DOHC
  • 2009-2017 Land Rover Discovery 4 3.0 SDV6 HSE Series 4 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2012-2017 Land Rover Discovery 4 3.0 TDV6 Series 4 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2009-2015 Land Rover Discovery 4 5.0 V8 Series 4 (4 Door SUV) 5.0 litre, S08PN V832V DOHC WT
  • 2017-2020 Land Rover Discovery S16 Series 5 (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2016-2020 Land Rover Discovery SD4 Series 5 (4 Door SUV) 2.0 litre, AJ200D 14 16V DOHC
  • 2016-2018 Land Rover Discovery TD4 Series 5 (4 Door SUV) 2.0 litre, 204DTD 14 16V DOHC
  • 2016-2018 Land Rover Discovery TD6 Series 5 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2013-On Land Rover Range Rover HSE V6 SC, Vogue V6 SC LG (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2015-2019 Land Rover Range Rover Vogue V6 SC LG (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2005-2009 Land Rover Range Rover Sport (4 Door SUV) 4.2 litre, 428PS V8 32V DOHC
  • 2005-2009 Land Rover Range Rover Sport 2.7 TOV6 (4 Door SUV) 2.7 litre, ELD17 V6 24V DOHC
  • 2013-2015 Land Rover Range Rover Sport 3.0 SDV6 LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2009-2011 Land Rover Range Rover Sport 3.0 TDV6 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2009-2013 Land Rover Range Rover Sport 3.0 TDV6, 3.0 SDV6 (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2013-2019 Land Rover Range Rover Sport 3.0 V6 SC LW (4 Door SUV) 3.0 litre, 306PS V6 24V DOHC WT
  • 2007-2010 Land Rover Range Rover Sport 3.6 TDV8 (4 Door SUV) 3.6 litre, 368DT V8 32V SOHC
  • 2005-2009 Land Rover Range Rover Sport 4.4 V8 (4 Door SUV) 4 4 litre, 44BPN V8 32V DOHC
  • 2009-2013 Land Rover Range Rover Sport 5.0 V8 (4 Door SUV) 5.0 litre, 508PN V8 32V DOHC WT
  • 2009-2013 Land Rover Range Rover Sport 5.0 V8 Supercharged (4 Door SUV) 5.0 litre, 508PS V8-32V DOHC WT
  • 2016-2018 Land Rover Range Rover Sport SD4 LW (4 Door SUV) 2.0 litre, 204DTA 14 16V DOHC
  • 2015-2017 Land Rover Range Rover Sport SDV6 HEV Hybrid LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC WT
  • 2015-2020 Land Rover Range Rover Sport SDV6 LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2019-2020 Land Rover Range Rover Sport SDV6 SE LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2017-On Land Rover Range Rover Sport Sid LW (4 Door SUV) 2.0 litre, PT204 14 16V DOHC
  • 2013-2016 Land Rover Range Rover Sport TDV6 LW (4 Door SUV) 3.0 litre, 306DT V6 24V DOHC
  • 2016-2018 Land Rover Range Rover Sport TDV6 SE LW (4 Door SUV) 3.0 litre, 3060T V6 24V DOHC
