Description

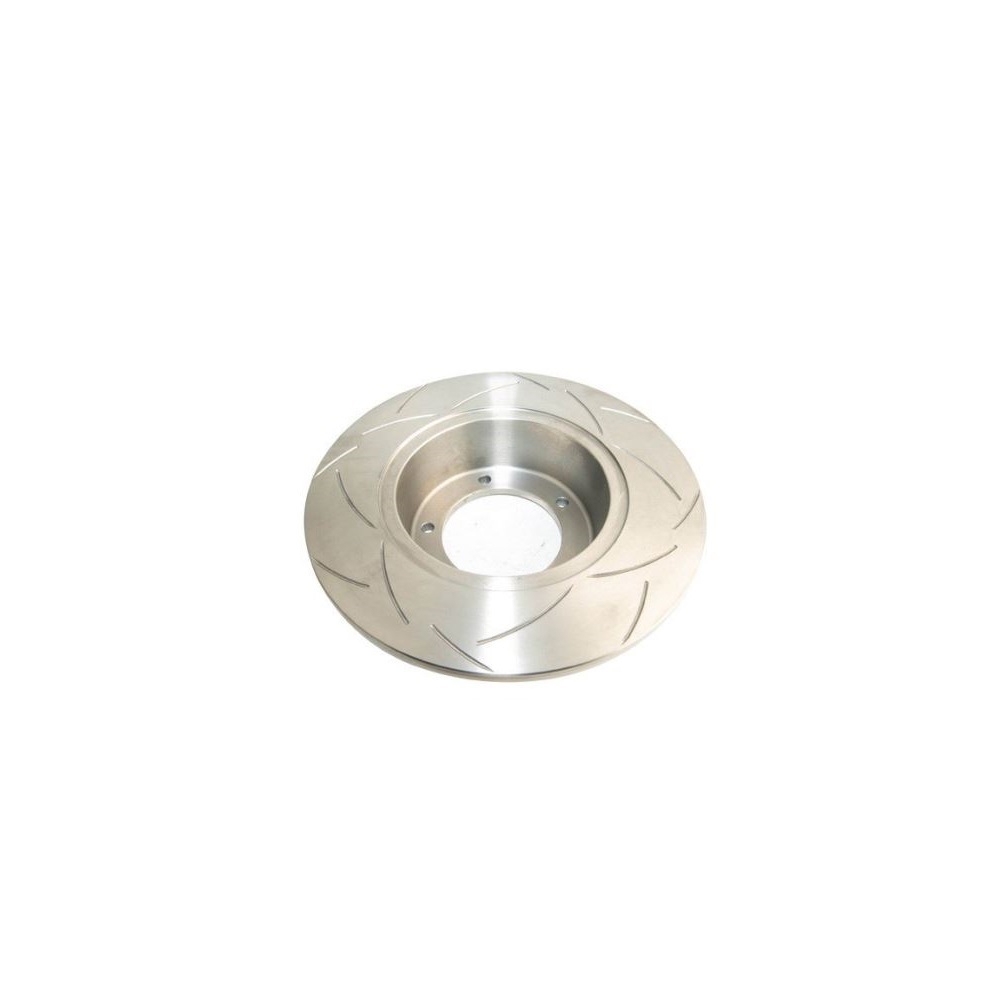

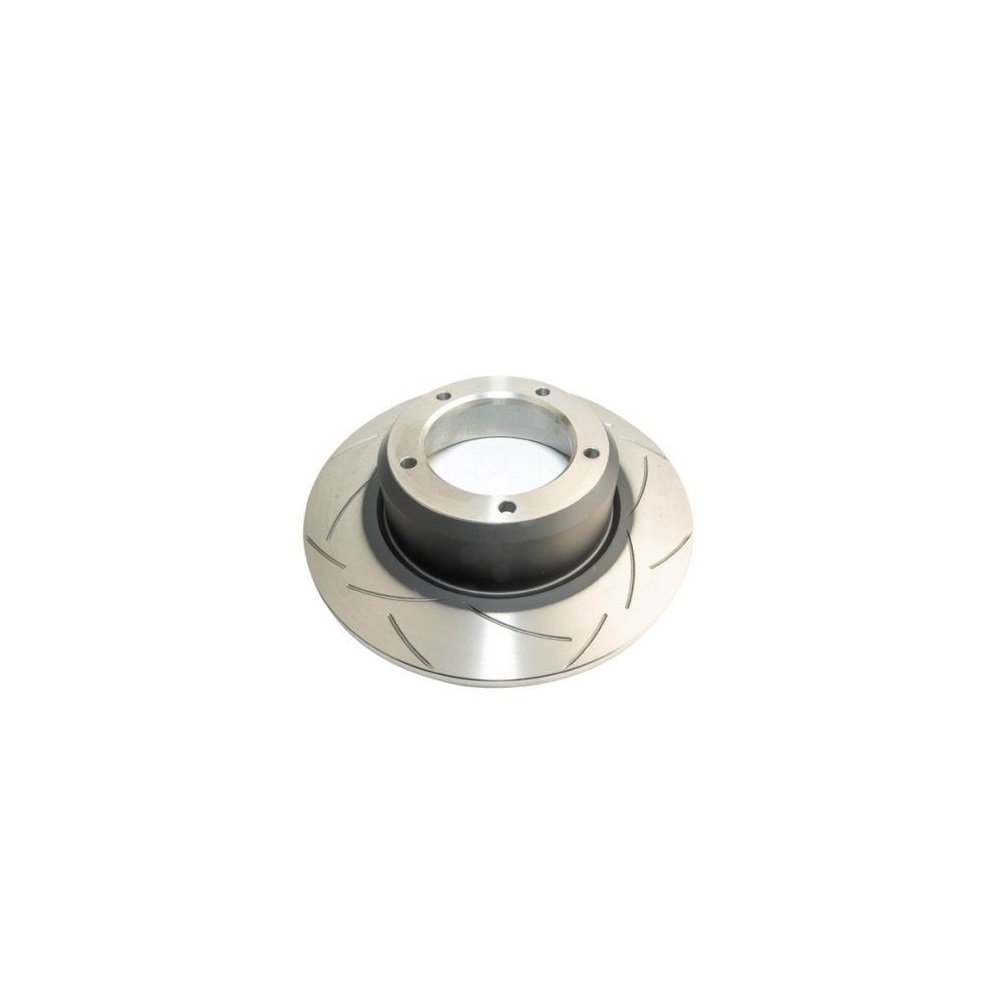

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

Specifications

  • Diameter (mm) : 298
  • Height (mm) : 70
  • Thickness (mm) : 14
  • Minimum Thickness (mm) : 13
  • Centre Hole (mm) : 101
  • Stud Holes : 5
  • Weight (kg) : 7.29
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details

Compatibility

  • 2012-2016 Land Rover Defender 130 4 Door Cab Chassis 2.2 litre, 01224 14 8V SOHC
  • 1992-2016 Land Rover Defender 110 4 Door SUV 2.5 litre, 10P 15 10V SOHC
  • 1994-2016 Land Rover Defender 130 4 Door Wellside 2.5 litre, 10P 15 10V SOHC
  • 1999-2002 Land Rover Defender 119 4 Door Cab Chassis 2.5 litre, 10P 15 19V SOHC
  • 1988-1994 Land Rover Range Rover Turbo 4 Door SUV 2.4 litre, 114 14 8V OHV
  • 1984-2007 Land Rover 110 2 Door Cab Chassis 2.3 litre, 114 14 8V OHV
  • 1991-1994 Land Rover Discovery TDI Series 1 4 Door SUV 2.5 litre, 12L 14 8V OHV
  • 1990-1996 Land Rover Discovery TDI Series 1 2 Door SUV 2.5 litre, 12L 14 8V OHV
  • 1992-2012 Land Rover Defender 130 2 Door Cab Chassis 2.5 litre, 161 14 8V OHV
  • 1972-1984 Land Rover Range Rover 2 Door SUV 3.5 litre, 16D V8 16V OHV
  • 1972-1984 Land Rover Range Rover 2 Door SUV 3.5 litre, 16D V8 16V OHV
  • 1994-2014 Land Rover Defender 130 2 Door Cab Chassis 2.5 litre, 16L 14 8V OHV
  • 1988-1994 Land Rover Range Rover Turbo 4 Door SUV 2.4 litre, 17A 14 8V OHV
  • 1984-1988 Land Rover 110 County 110 4 Door SUV 3.5 litre, 17G V8 18V OHV
  • 1994-2016 Land Rover Defender 90 2 Door SUV 2.5 litre, 18P 15 30V SOHC
  • 1995-1999 Land Rover Discovery Country Series 1 4 Door SUV 2.5 litre, 20L 14 8V OHV
  • 1994-1999 Land Rover Discovery S, SE, SE7, ES, ROSSIGNOL Series 1 4 Door SUV 2.5 litre, 20L 14 8V OHV
  • 1991-1993 Land Rover Discovery V8I Series 4 2 Door SUV 3.5 litre, 220 V8 16V OHV
  • 1991-1993 Land Rover Discovery V8I, HL Series 1 4 Door SUV 3.5 litre, 22D V8 16V OHV
  • 1982-1994 Land Rover Range Rover 4 Door SUV 3.5 litre, 230 V8 16V OHV
  • 1992-1996 Land Rover Discovery V8I Series 1 4 Door SUV 3.5 litre, 230 V8 16V OHV
  • 1982-1994 Land Rover Range Rover 4 Door SUV 3.5 litre, 230 V8 16V OHV
  • 2009-2014 Land Rover Defender 110 2 Door Wellside 2.4 litre, 244DT 14 16V DORE
  • 2009-2014 Land Rover Defender 110 4 Door Wellside 2.4 litre, 244DT 14 16V DOHC
  • 1980-1985 Land Rover 90 2 Door Utility 3.5 litre, 3.5 V8 16V OHV
  • 1993-1999 Land Rover Discovery Series 1 4 Door SUV 3.9 litre, 36D V8 16V OHV
  • 1993-1996 Land Rover Discovery V8I ROSSIGNOL Series 1 2 Door SUV 3.9 litre, 37D V8 16V OHV
  • 1993-1999 Land Rover Discovery S SE, SE7, V8ISeries 1 4 Door SUV 3.9 litre, 38D V8 16V OHV
  • 1981-1983 Land Rover 90 4 Door SUV 3.9 litre, 4BD1 14 8V OHV
  • 1987-1991 Land Rover 110 Perentie 110 2 Door Cab Chassis 3.9 litre, 4BD1 14 8V OHV

DBA’s Street Series T2 rotor provides all the benefits of DBA’s Street Series direct replacement rotors with the added benefit of performance braking through the introduction of DBA’s patented T2 slot design.

The T2 slot design features precise CNC machined bi-symmetrical slots, resulting in a quieter, more responsive and smoother brake pedal feel. The T2 slot increases the number of exit points, allowing friction dust and gases to escape and enhancing the pad bite.

DBA’s revolutionary universal slot design also eliminates the need for separate left and right slot designs seen in traditional rotor designs.

We recommend the T2 slot design for more intensive braking applications.

T2 is denoted by the suffix (S) in Street Series part numbers.

  • Diameter (mm) : 298
  • Height (mm) : 70
  • Thickness (mm) : 14
  • Minimum Thickness (mm) : 13
  • Centre Hole (mm) : 101
  • Stud Holes : 5
  • Weight (kg) : 7.29
  • “Kangaroo Paw – 144 diamond and tear drop pillar ventilation system”
  • Minimises brake fade and increases braking effectiveness
  • Increased surface area resulting in greater heat dissipation
  • CBN (Cubic Boron Nitride) machine turned
  • Reduced DTV (Disc thickness variation) and parallelism
  • Less occurrence of brake shudder or brake pedal ‘judder’
  • *Kangaroo Paw is not available on all part numbers, ask your supplier for details
  • 2012-2016 Land Rover Defender 130 4 Door Cab Chassis 2.2 litre, 01224 14 8V SOHC
  • 1992-2016 Land Rover Defender 110 4 Door SUV 2.5 litre, 10P 15 10V SOHC
  • 1994-2016 Land Rover Defender 130 4 Door Wellside 2.5 litre, 10P 15 10V SOHC
  • 1999-2002 Land Rover Defender 119 4 Door Cab Chassis 2.5 litre, 10P 15 19V SOHC
  • 1988-1994 Land Rover Range Rover Turbo 4 Door SUV 2.4 litre, 114 14 8V OHV
  • 1984-2007 Land Rover 110 2 Door Cab Chassis 2.3 litre, 114 14 8V OHV
  • 1991-1994 Land Rover Discovery TDI Series 1 4 Door SUV 2.5 litre, 12L 14 8V OHV
  • 1990-1996 Land Rover Discovery TDI Series 1 2 Door SUV 2.5 litre, 12L 14 8V OHV
  • 1992-2012 Land Rover Defender 130 2 Door Cab Chassis 2.5 litre, 161 14 8V OHV
  • 1972-1984 Land Rover Range Rover 2 Door SUV 3.5 litre, 16D V8 16V OHV
  • 1972-1984 Land Rover Range Rover 2 Door SUV 3.5 litre, 16D V8 16V OHV
  • 1994-2014 Land Rover Defender 130 2 Door Cab Chassis 2.5 litre, 16L 14 8V OHV
  • 1988-1994 Land Rover Range Rover Turbo 4 Door SUV 2.4 litre, 17A 14 8V OHV
  • 1984-1988 Land Rover 110 County 110 4 Door SUV 3.5 litre, 17G V8 18V OHV
  • 1994-2016 Land Rover Defender 90 2 Door SUV 2.5 litre, 18P 15 30V SOHC
  • 1995-1999 Land Rover Discovery Country Series 1 4 Door SUV 2.5 litre, 20L 14 8V OHV
  • 1994-1999 Land Rover Discovery S, SE, SE7, ES, ROSSIGNOL Series 1 4 Door SUV 2.5 litre, 20L 14 8V OHV
  • 1991-1993 Land Rover Discovery V8I Series 4 2 Door SUV 3.5 litre, 220 V8 16V OHV
  • 1991-1993 Land Rover Discovery V8I, HL Series 1 4 Door SUV 3.5 litre, 22D V8 16V OHV
  • 1982-1994 Land Rover Range Rover 4 Door SUV 3.5 litre, 230 V8 16V OHV
  • 1992-1996 Land Rover Discovery V8I Series 1 4 Door SUV 3.5 litre, 230 V8 16V OHV
  • 1982-1994 Land Rover Range Rover 4 Door SUV 3.5 litre, 230 V8 16V OHV
  • 2009-2014 Land Rover Defender 110 2 Door Wellside 2.4 litre, 244DT 14 16V DORE
  • 2009-2014 Land Rover Defender 110 4 Door Wellside 2.4 litre, 244DT 14 16V DOHC
  • 1980-1985 Land Rover 90 2 Door Utility 3.5 litre, 3.5 V8 16V OHV
  • 1993-1999 Land Rover Discovery Series 1 4 Door SUV 3.9 litre, 36D V8 16V OHV
  • 1993-1996 Land Rover Discovery V8I ROSSIGNOL Series 1 2 Door SUV 3.9 litre, 37D V8 16V OHV
  • 1993-1999 Land Rover Discovery S SE, SE7, V8ISeries 1 4 Door SUV 3.9 litre, 38D V8 16V OHV
  • 1981-1983 Land Rover 90 4 Door SUV 3.9 litre, 4BD1 14 8V OHV
  • 1987-1991 Land Rover 110 Perentie 110 2 Door Cab Chassis 3.9 litre, 4BD1 14 8V OHV
