Description

This product is designed specifically to reduce excessive transmission heat caused by towing, carrying loads and driving in sand, snow, off-road or hot conditions.

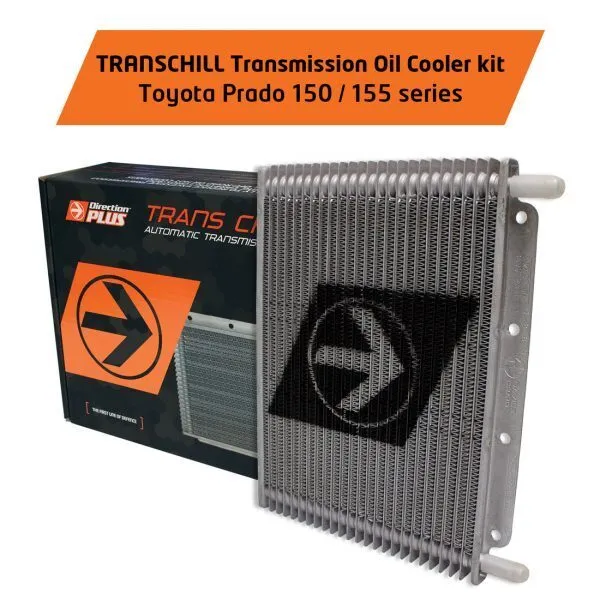

The TransChill Arctic Black Transmission cooler is an effective & economical way to keep the transmission at its optimum operating temperature. High efficiency turbulators in each tube direct the fluid for superior heat transfer. The unique 32mm plate & fin design allows for extreme cooling whilst the compact design is perfect for our vehicle specific mounting.

WHY DO YOU NEED ONE?

Due to the extreme heat generated in an automatic transmission, an auxiliary oil cooler is an economical and efficient way to help protect against costly transmission repairs.
Automatic Transmission Fluid (ATF) cools, lubricates and cleans internal transmission components. When transmission components exceed 93°C (200°F) the performance of ATF is seriously compromised.

Subsequently the life span of the ATF, seals and internal components of the transmission are significantly reduced. Higher internal temperatures also increase the wear rate of the friction and clutch plates.

HOW IT WORKS

The Direction-Plus™ Transmission Cooler can reduce the temperature of the ATF by as much as 33°C which can double the life expectancy of the transmission, ATF and all internal components.

Specifications

  • New & Improved model
  • Designed and engineered in Australia
  • 32mm, 14 row fin & plate design allows for extreme cooling
  • Durable Black powder coat resists oxidisation
  • 100% pressure tested at 150psi for quality assurance
  • Internal tubulation for efficient heat transfer
  • Up to 50% more efficient (*heat transfer rate – BTU/hr)
  • Pre-drilled mounting plates for easy installation
  • Inlet & Outlet size: M16 fittings

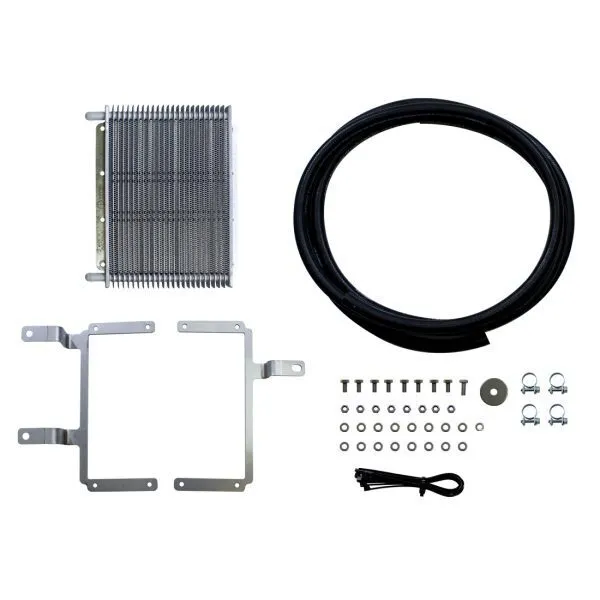

What's Included

  • Vehicle specific mounting brackets
  • Stainless steel fixing hardware
  • ATF Hose (400psi J1019)
  • 23 row oil cooler

Compatibility

  • 2009 - 2015 Toyota Prado 150 series 1KD-FTV (3.0L 4cyl)
  • 2015 - 2023 Toyota Prado 150 series 1GD-FTV (2.8L 4cyl)
  • 2015 - 2023 Toyota Prado 155 series 1GD-FTV (2.8L 4cyl)

This product is designed specifically to reduce excessive transmission heat caused by towing, carrying loads and driving in sand, snow, off-road or hot conditions.

The TransChill Arctic Black Transmission cooler is an effective & economical way to keep the transmission at its optimum operating temperature. High efficiency turbulators in each tube direct the fluid for superior heat transfer. The unique 32mm plate & fin design allows for extreme cooling whilst the compact design is perfect for our vehicle specific mounting.

WHY DO YOU NEED ONE?

Due to the extreme heat generated in an automatic transmission, an auxiliary oil cooler is an economical and efficient way to help protect against costly transmission repairs.
Automatic Transmission Fluid (ATF) cools, lubricates and cleans internal transmission components. When transmission components exceed 93°C (200°F) the performance of ATF is seriously compromised.

Subsequently the life span of the ATF, seals and internal components of the transmission are significantly reduced. Higher internal temperatures also increase the wear rate of the friction and clutch plates.

HOW IT WORKS

The Direction-Plus™ Transmission Cooler can reduce the temperature of the ATF by as much as 33°C which can double the life expectancy of the transmission, ATF and all internal components.

  • New & Improved model
  • Designed and engineered in Australia
  • 32mm, 14 row fin & plate design allows for extreme cooling
  • Durable Black powder coat resists oxidisation
  • 100% pressure tested at 150psi for quality assurance
  • Internal tubulation for efficient heat transfer
  • Up to 50% more efficient (*heat transfer rate – BTU/hr)
  • Pre-drilled mounting plates for easy installation
  • Inlet & Outlet size: M16 fittings
  • Vehicle specific mounting brackets
  • Stainless steel fixing hardware
  • ATF Hose (400psi J1019)
  • 23 row oil cooler
  • 2009 - 2015 Toyota Prado 150 series 1KD-FTV (3.0L 4cyl)
  • 2015 - 2023 Toyota Prado 150 series 1GD-FTV (2.8L 4cyl)
  • 2015 - 2023 Toyota Prado 155 series 1GD-FTV (2.8L 4cyl)
