Description

*SCRATCH AND DENT CLEARANCE ITEM* - please choose carefully when selecting any items in scratch and dent clearance as these items are blemished or opened items that are being sold as is where is at a discounted price. Most have minor cosmetic issues or could be missing basic hardware for installation which would need to be sourced. Scratch and dent items are not eligible for return once purchased so choose carefully before purchase.

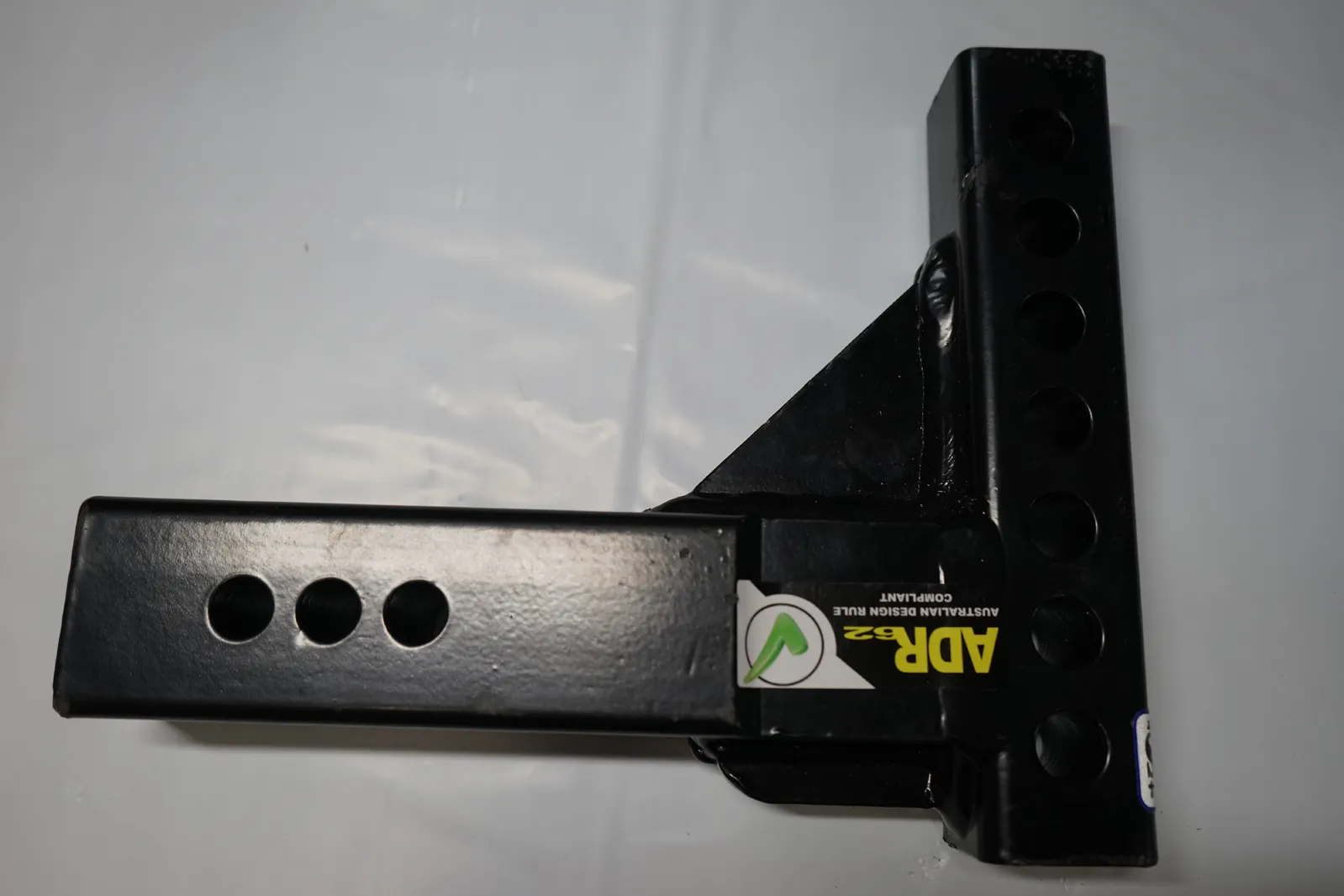

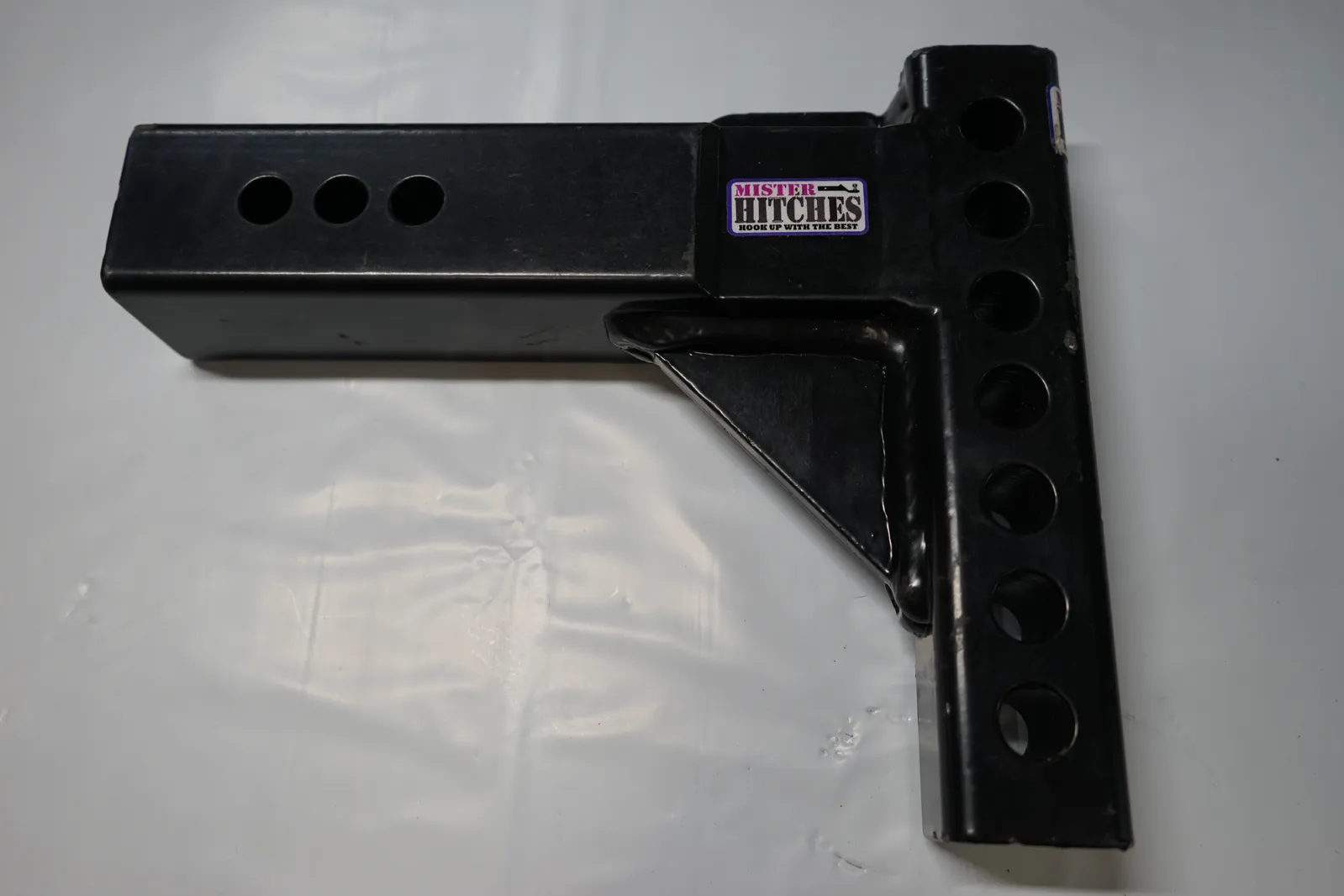

Shank only. Minor cosmetic scratches.

  • 4500 kg Max Tow Capacity - 450kg Max T.W.
  • Tested and Compliant with ADR62/02
  • Tested up to 6750kg (Longitudinal Tension)
  • Solid Steel shank with dual gussets for superior strength
  • Suits 50mm or 70mm Tow Balls (sold separatly)
  • Reversible Shank & Ball Platform give greater drop or rise height
  • 16 Stage adjustments - Max Rise 188mm, Max Drop 210mm (32mm Increments)
  • Optional Shanks can give a drop of 370mm and rise up to 350mm
  • Multi-Pin holes give 3 length adjustments - 315-340-365mm
  • H.T. 3/4" bolts, Nyloc locking nuts and toothed conical washers give superior strength
  • Powder Coated Enamel Finish gives greater protection from the elements
  • Manufactured to Mister Hitches strict quality and specificaitons.



***NOTE***: This product only fit a 70mm receiver

Specifications

Compatibility

Suits 70mm Hitch Receivers ONLY

  • Compatible with Hitchmaster D035 & D045, Treg, McHitch, Hitch-Ezy, Alko, Oz Hitch 4.5T & Ark Couplings.
  • Also Suitable for the Ford Ranger Short Shank Tow Bar.

*SCRATCH AND DENT CLEARANCE ITEM* - please choose carefully when selecting any items in scratch and dent clearance as these items are blemished or opened items that are being sold as is where is at a discounted price. Most have minor cosmetic issues or could be missing basic hardware for installation which would need to be sourced. Scratch and dent items are not eligible for return once purchased so choose carefully before purchase.

Shank only. Minor cosmetic scratches.

  • 4500 kg Max Tow Capacity - 450kg Max T.W.
  • Tested and Compliant with ADR62/02
  • Tested up to 6750kg (Longitudinal Tension)
  • Solid Steel shank with dual gussets for superior strength
  • Suits 50mm or 70mm Tow Balls (sold separatly)
  • Reversible Shank & Ball Platform give greater drop or rise height
  • 16 Stage adjustments - Max Rise 188mm, Max Drop 210mm (32mm Increments)
  • Optional Shanks can give a drop of 370mm and rise up to 350mm
  • Multi-Pin holes give 3 length adjustments - 315-340-365mm
  • H.T. 3/4" bolts, Nyloc locking nuts and toothed conical washers give superior strength
  • Powder Coated Enamel Finish gives greater protection from the elements
  • Manufactured to Mister Hitches strict quality and specificaitons.



***NOTE***: This product only fit a 70mm receiver

Suits 70mm Hitch Receivers ONLY

  • Compatible with Hitchmaster D035 & D045, Treg, McHitch, Hitch-Ezy, Alko, Oz Hitch 4.5T & Ark Couplings.
  • Also Suitable for the Ford Ranger Short Shank Tow Bar.
