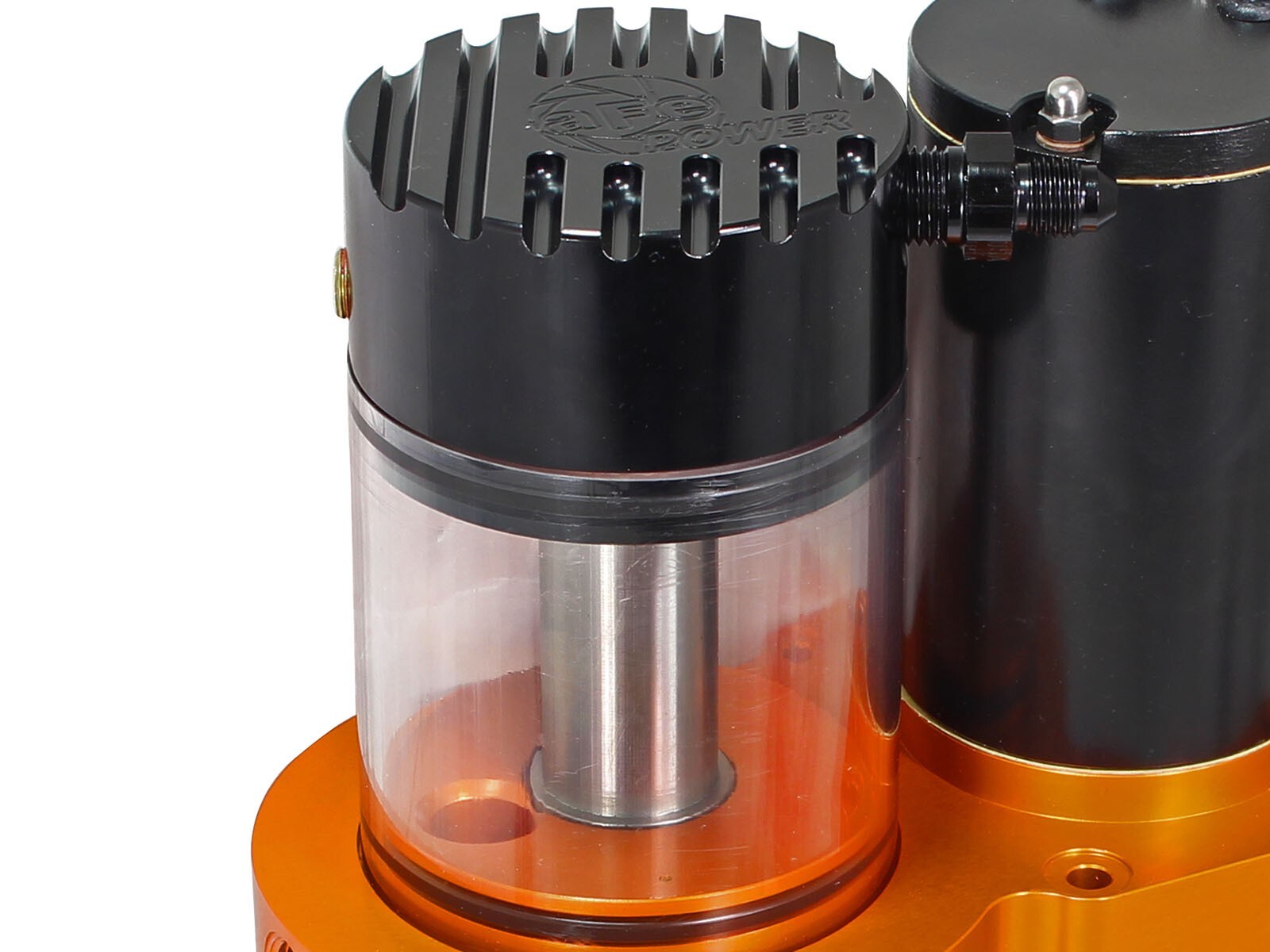

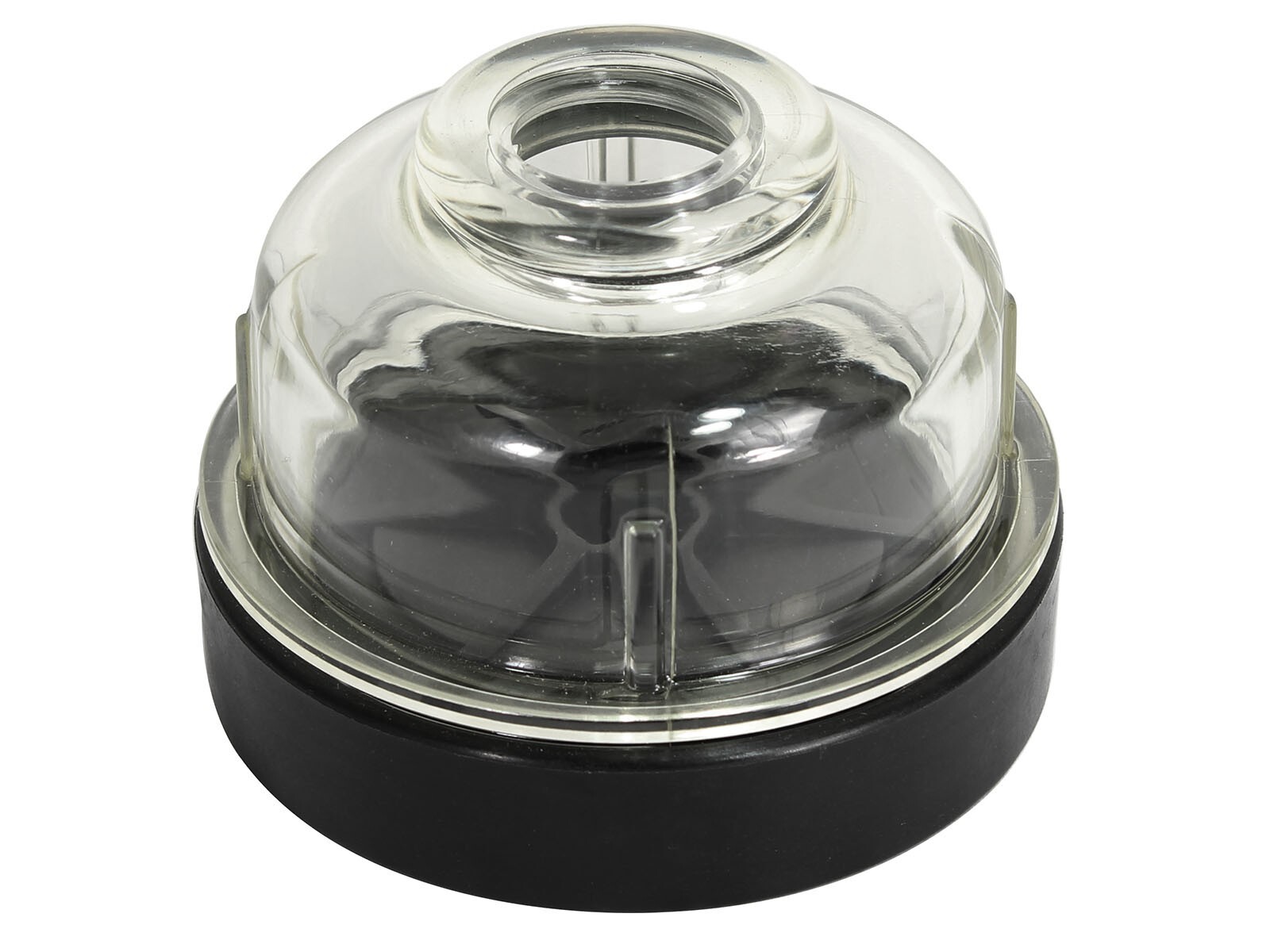

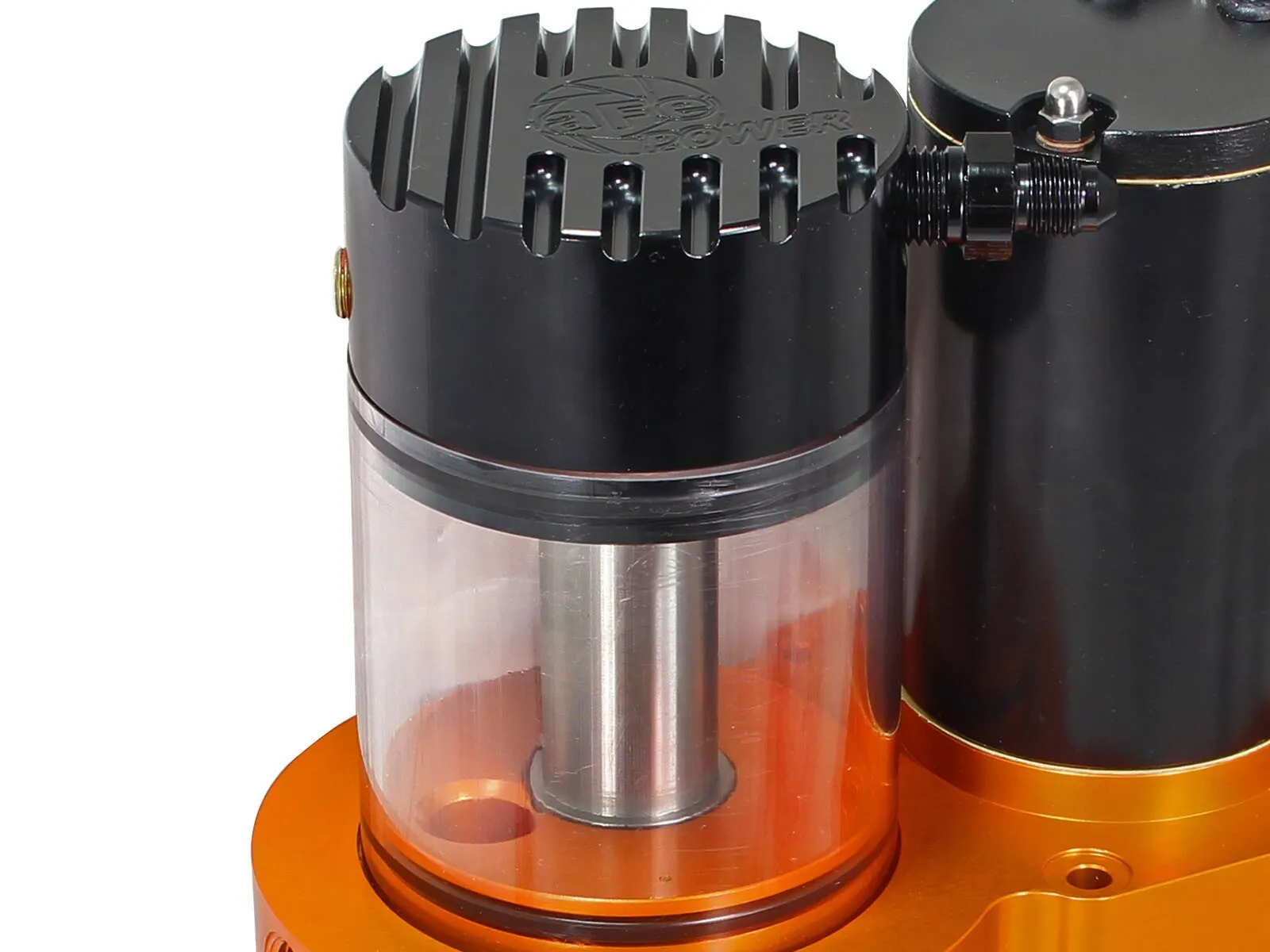

Clear High-Impact Polycarbonate Sight Glass:

Allows visual inspection of fuel.

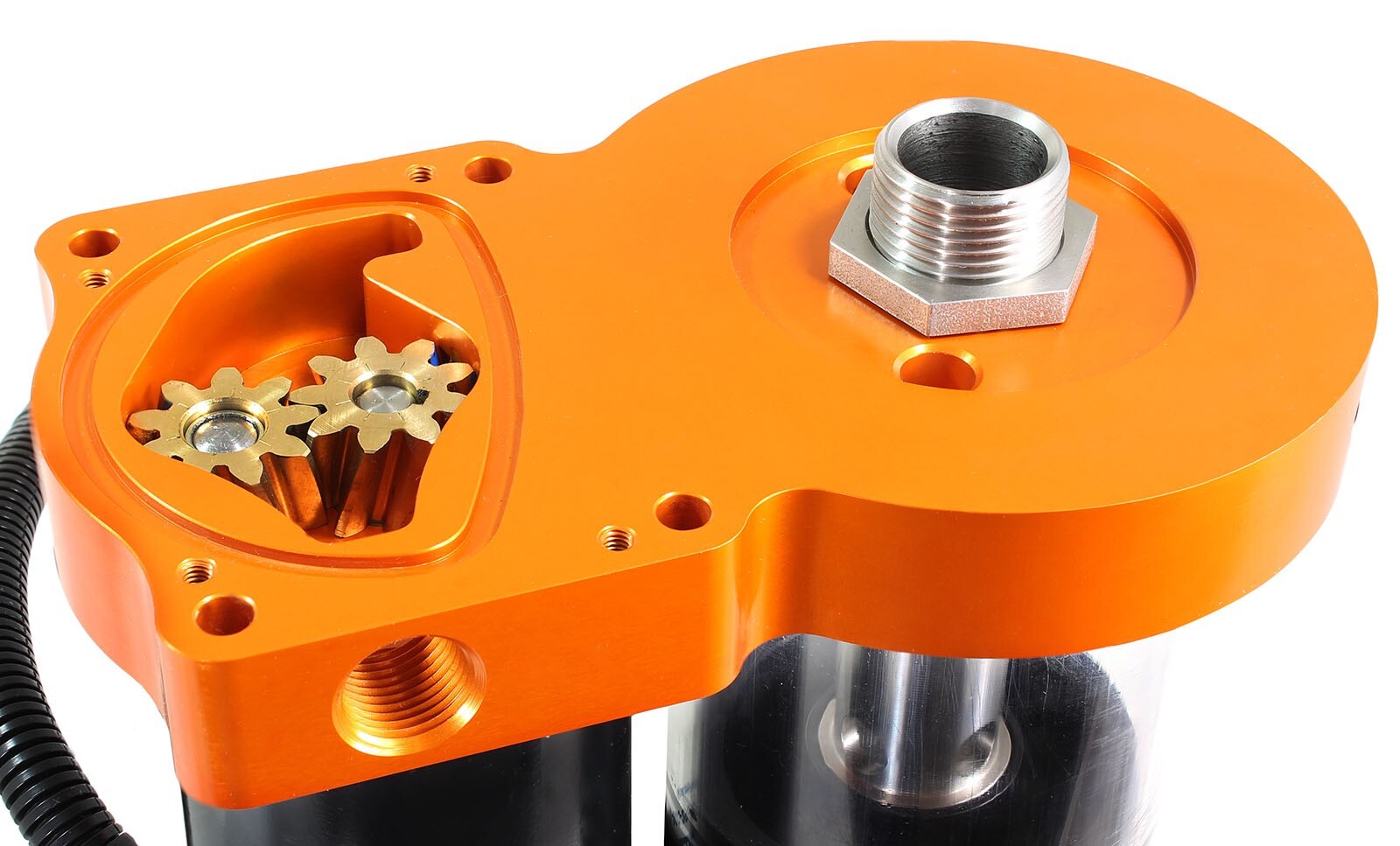

Helical Bronze Spur Gears:

Bronze gears more forgiving of contaminants than steel gears. The helical spur gear design runs quieter than straight cut gears.

Billet 6061-T6 Aluminum Manifold:

Eliminates porosity concerns with cast aluminum.

"Marine Grade" Motor:

Protected against dust intrusion and powerful water jets.

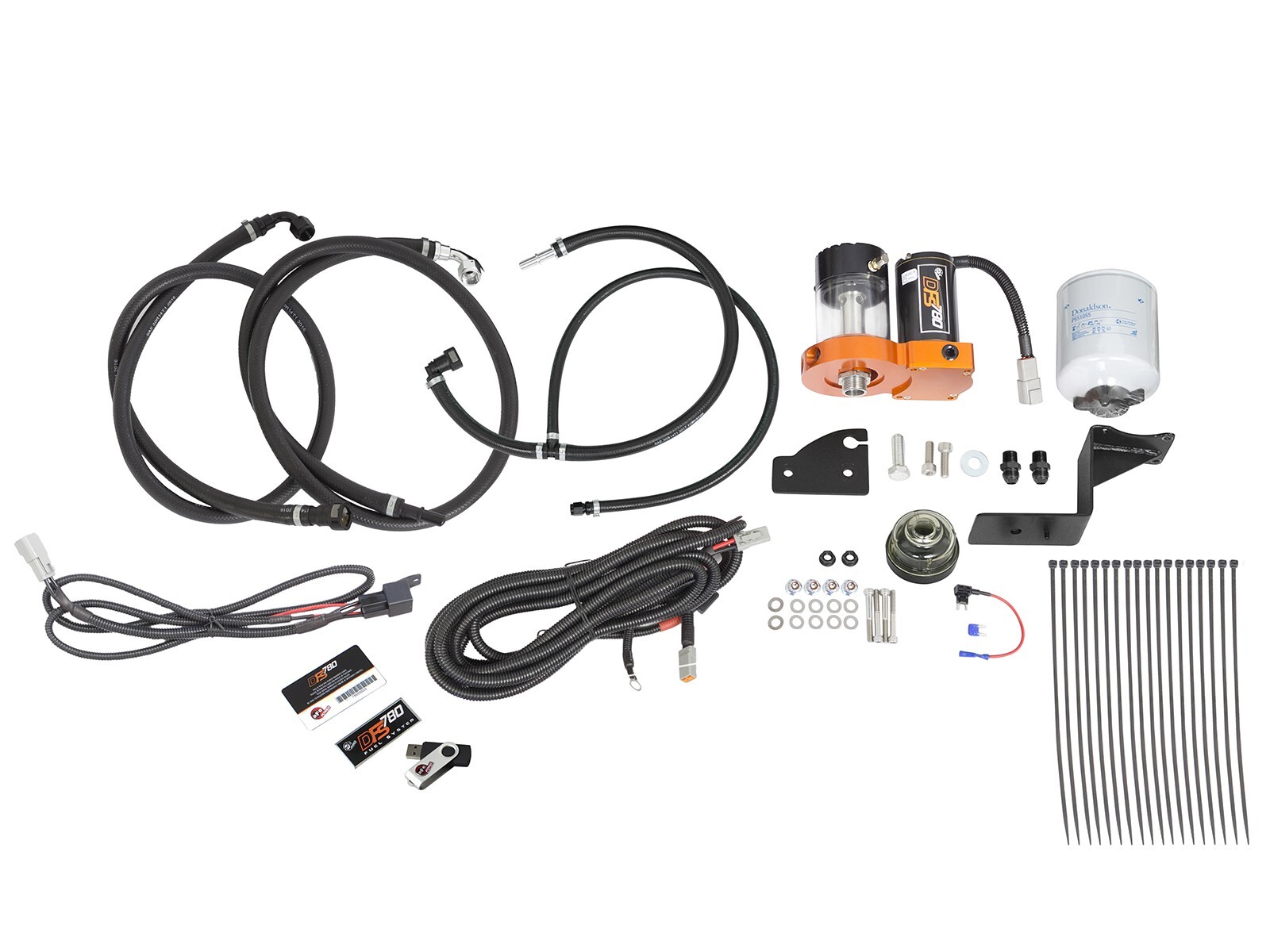

Plug & Play Installation:

Supplied harness attaches directly to battery and utilizes Deutsch weather-proof connectors. No cutting or modifications of the stock fuel lines required. Vehicle can easily be returned to stock.

Relay Controlled:

The DFS780 is powered by your ignition and can be run in parallel with the stock fuel transfer pump.

PEEK Bearing Wear Surfaces:

The DFS780 spur gears ride on PEEK (Polyether Ether Ketone) bearing surfaces to reduce both noise and wear.

Contoured CNC Machining Of Manifold Passages:

Enhances flow through the manifold to reduce pressure drop due to flow restrictions.

Direct Bolt-on Steel Mounting Bracket:

Heavy duty bracket mounts to the frame and utilizes existing hole to secure.

Fuel Pressure Gauge Port:

1/8 IN� NPT port allows customer to attach an external pressure gauge to monitor fuel pressure.

O.E Quality Viton Seals:

Compatible with diesel and biodiesel fuels.

Emissions Disclaimer:

Some or all of the applications listed are 50-state exempt, please see CARB EO# D-550-46 for details.
