Description

The Extra Heavy Duty range of upgrades from Xtreme Outback are designed to offer the highest levels of performance for heavily modified street and off-road vehicles. These kits offer a significant increase in clamping force (30-60% above the factory clutch) over the stage 1 equivalents and are designed specifically for vehicles that have had significant aftermarketing tuning and performance upgrades. Originally designed as an upgrade for the 4.5L V8 TD 70 Series LandCruiser, these kits have quickly become one of the most popular upgrades in the Xtreme Outback range and are now available for the Nissan Patrol and Toyota Hilux. Each kit is carefully developed in-house at Xtreme Outback and tested extensively around the world.

These kits still integrate the sprung organic friction disc as seen in the stage 1 kits, making them extremely driveable. The kits are also designed to provide significant increases in clamping force without significantly increasing the pedal effort required to operate the clutch.

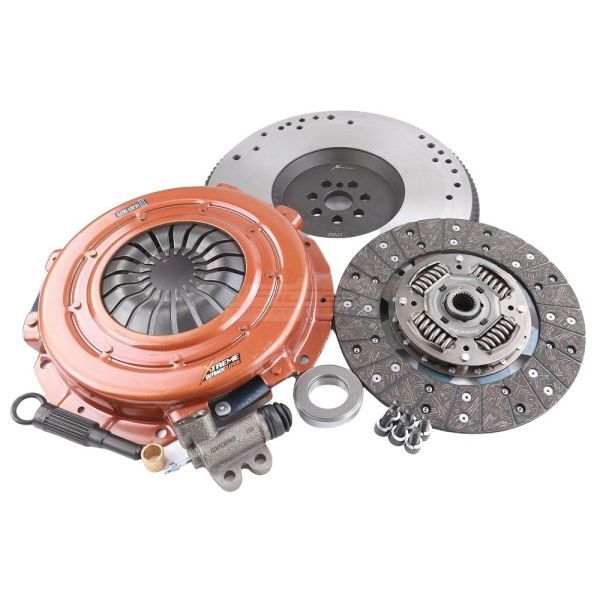

This kit includes: (see specifications tab for full list of inclusions)

  • Clutch Disc
  • Pressure Plate
  • Flywheel

This kit does not include:

  • Concentric Slave Cylinder

Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

Specifications

  • Number of Teeth:

    24

  • Hub Profile:

    25,4x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    0,2

  • Max. transferable engine torque [Nm]:

    760

  • Friction Lining Outer Diameter [mm]:

    280

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Organic

  • Compatibility

    • 1988 - 1997 > NISSAN > PATROL > Diesel 4.2 D All-wheel Drive (Y60GR) Y60,GR,GQ,260L Closed Off-Road Vehicle 85KW

    The Extra Heavy Duty range of upgrades from Xtreme Outback are designed to offer the highest levels of performance for heavily modified street and off-road vehicles. These kits offer a significant increase in clamping force (30-60% above the factory clutch) over the stage 1 equivalents and are designed specifically for vehicles that have had significant aftermarketing tuning and performance upgrades. Originally designed as an upgrade for the 4.5L V8 TD 70 Series LandCruiser, these kits have quickly become one of the most popular upgrades in the Xtreme Outback range and are now available for the Nissan Patrol and Toyota Hilux. Each kit is carefully developed in-house at Xtreme Outback and tested extensively around the world.

    These kits still integrate the sprung organic friction disc as seen in the stage 1 kits, making them extremely driveable. The kits are also designed to provide significant increases in clamping force without significantly increasing the pedal effort required to operate the clutch.

    This kit includes: (see specifications tab for full list of inclusions)

    • Clutch Disc
    • Pressure Plate
    • Flywheel

    This kit does not include:

    • Concentric Slave Cylinder

    Note: for vehicles using a conventional external slave cylinder, a release or throw-out bearing is included in kits. For cars using a concentric slave cylinder (CSC), the release bearing is part of the CSC. Changing CSC is recommended when replacing the clutch as it involves removing the gearbox to install.

    Where a replacement flywheel or CSC is required, consider an alternate kit listed with our Parts Finder that includes these options.

  • Number of Teeth:

    24

  • Hub Profile:

    25,4x24T

  • Supplementary Article/Supplementary Info:

    with pilot bearing

  • Supplementary Article/Supplementary Info:

    with single-mass flywheel

  • Supplementary Article/Supplementary Info:

    with synthetic grease

  • for flywheel depth [mm]:

    0,2

  • Max. transferable engine torque [Nm]:

    760

  • Friction Lining Outer Diameter [mm]:

    280

  • Flywheel Profile:

    elevated flywheel

  • Friction lining material:

    Organic

    • 1988 - 1997 > NISSAN > PATROL > Diesel 4.2 D All-wheel Drive (Y60GR) Y60,GR,GQ,260L Closed Off-Road Vehicle 85KW
