Description

Notes: Important

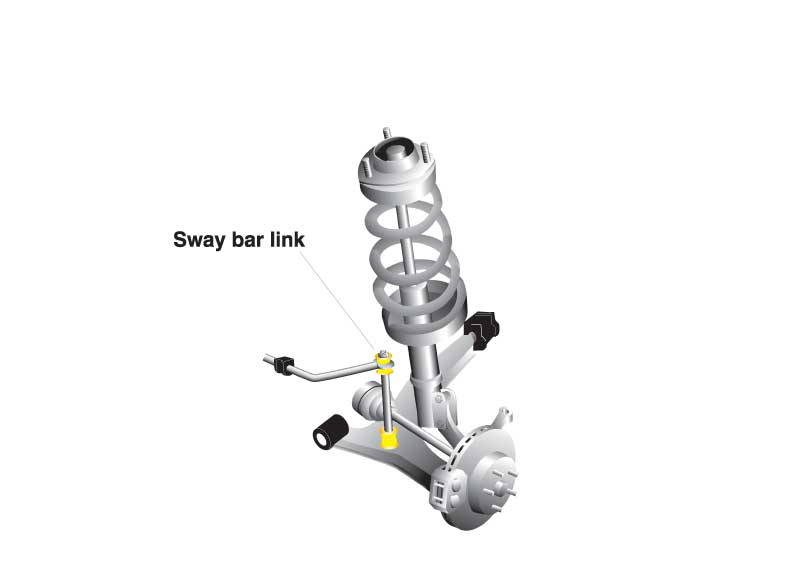

Replaces OEM ball link and OEM bar only
Kits Required: 1

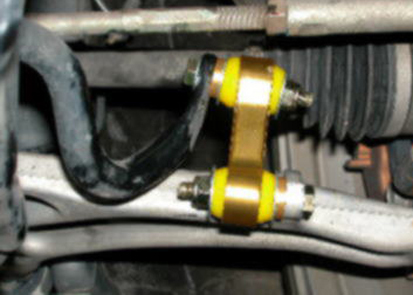

The kit utilises a high tensile extruded alloy link fitted with ultra low compliance synthetic elastomer bushings. Critical hardware is replaced with high tensile components to match the higher loads. The result is much more precise and direct roll control with up to 25% more effective bar rate available at lower wheel deflection points. This does NOT mean an outright increase in your bar rate but rather a quickening of its effect allowing more bar rate earlier. Link shape and bush mounts are designed to allow maximum sway bar articulation to ensure full suspension travel while acting more directly under vertical load. Standard length maintains correct sway bar operation.
Kit Specifications

Bush
Type
Bush
Qty
OD
AA/AB
ID
B
L
C
FL
D
FL
OD
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size

Link Type Adjustable On Car Adjustable Adjustment Bolt Diameter Overall Length Configuration
Bushing Fixed N/A   10mm 65mm Horizontal
Notes

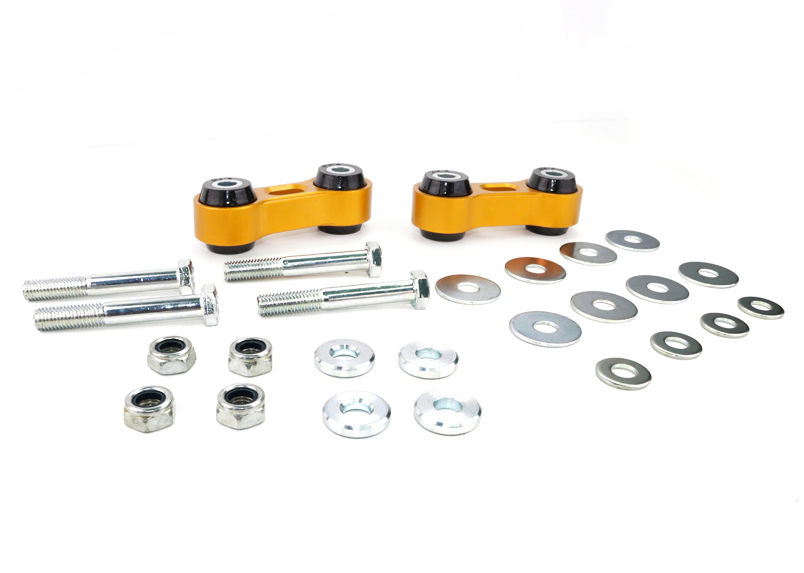

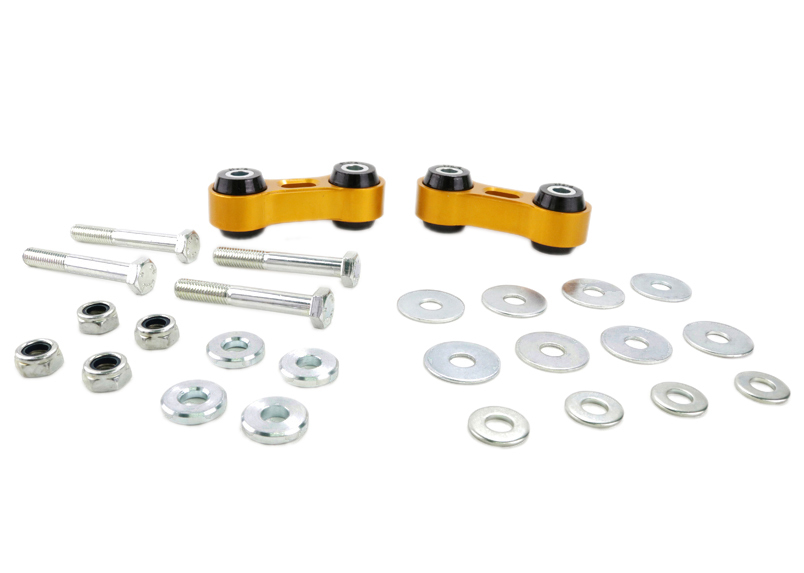

Alloy Link Inc Hardware



Service Kit: W0008

Compatibility

  • 2002-2008 Subaru Forester SG
  • 1993-2000 Subaru Impreza GC, GF
  • 2000-2007 Subaru Impreza GD Sedan
  • 2007-2011 Subaru Impreza GE, GH
  • 2011-2016 Subaru Impreza GJ, GP
  • 1993-2000 Subaru WRX GC, GF
  • 2000-2007 Subaru WRX GD Sedan
  • 1993-2000 Subaru STi GC, GF
  • 2001-2007 Subaru STi GD
  • 2007-2014 Subaru STi GV, GR
  • 1998-2003 Subaru Liberty BE Sedan
  • 1998-2003 Subaru Liberty BH Wagon
  • 2003-2009 Subaru Liberty BL, BP
  • 2003-2009 Subaru Outback BP
  • 2011-2017 Subaru XV GP7
  • 2017-On Subaru XV GT
