Description

Notes: Important
Kits Required: 1

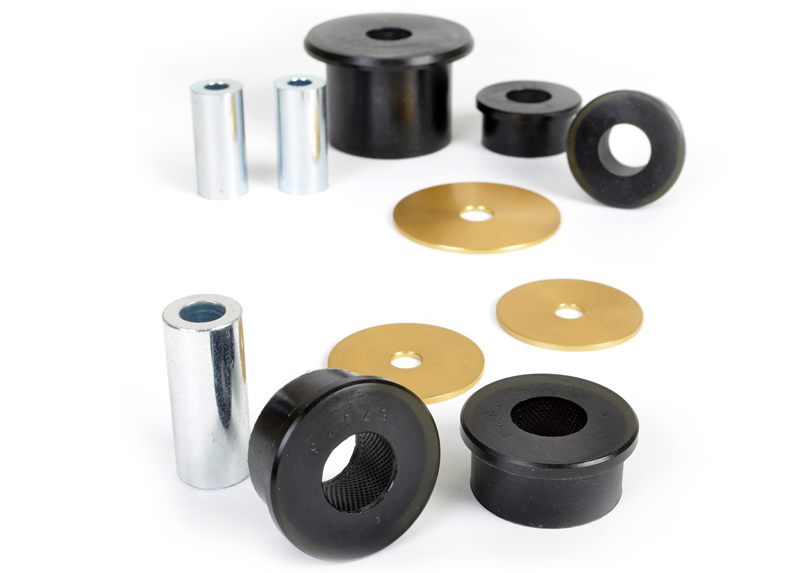

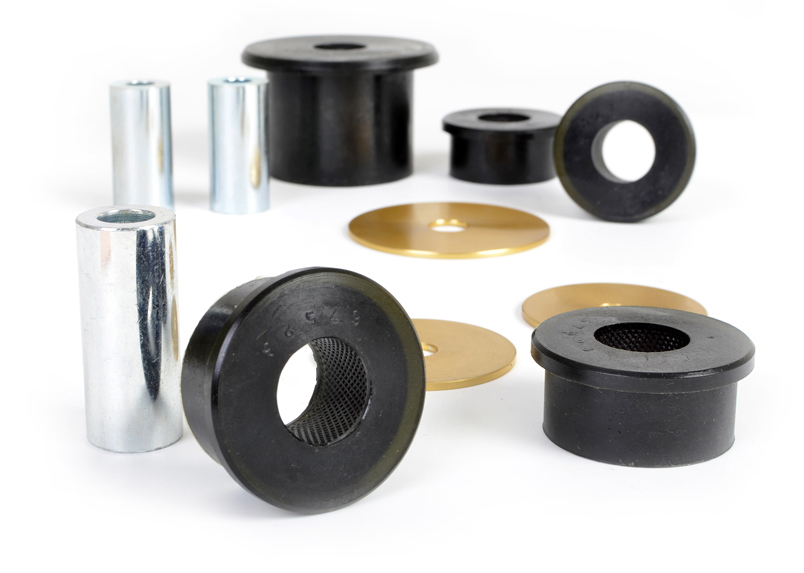

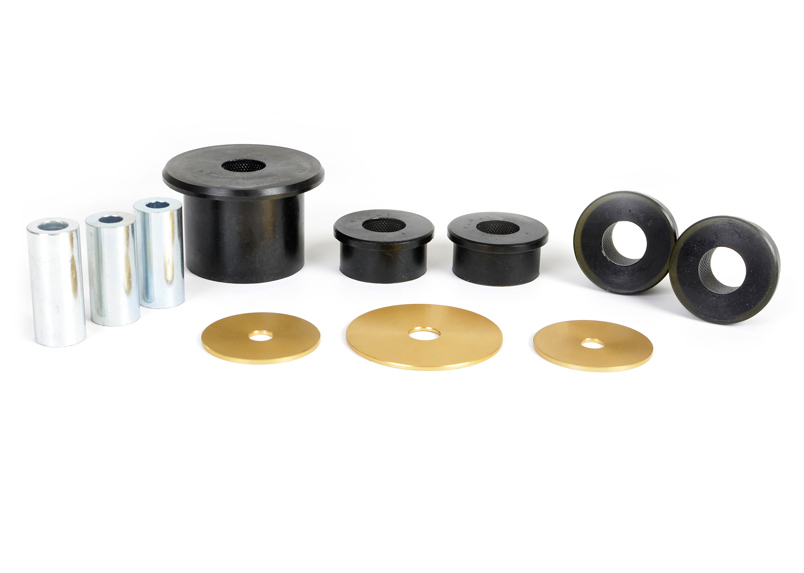

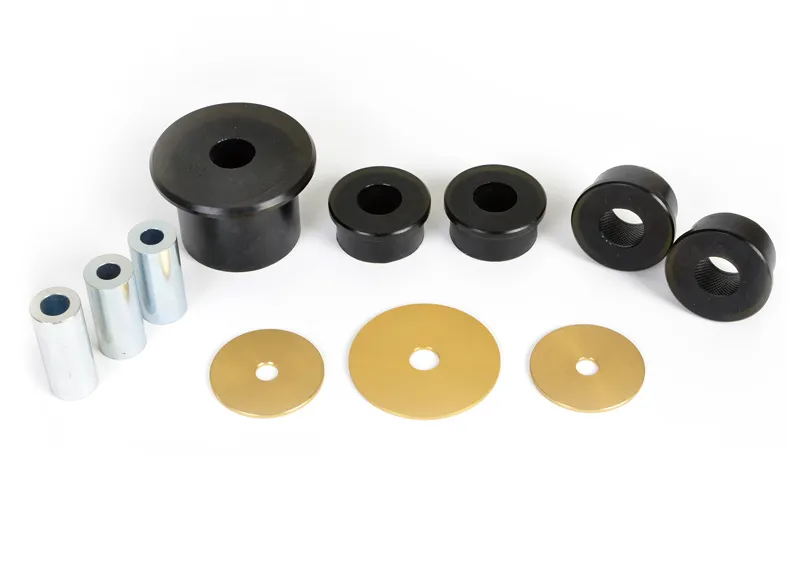

Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.
Kit Specifications

}
Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
FLOD
E
C/Tube
QTY
C/Tube
Size
1 4 49.3 mm 24.8 mm 26.3 mm 5 mm 57 mm 2/1 25.4x12.2x54 / 25.4x14.3x60 mm
1 1 67.8 mm 25.1 mm 59 mm 6 mm 89.5 mm 2/1 25.4x12.2x54 / 25.4x14.3x60 mm

Compatibility

  • BMW 1 SERIES E81, E82, E87, E88 EXCL M SERIES (2004-2013)
  • BMW 1 SERIES F20, F21 (8/2011-ON)
  • BMW 2 SERIES F22, F23 (10/2013-ON)
  • BMW 3 SERIES E90, E91, E92, E93 EXCL M3 (3/2005-10/2011)
  • BMW 3 SERIES F30, F31, F34, F80 (3/2011-ON)
  • BMW X1 E84 (9/2010-9/2015)
Notes: Important
Kits Required: 1
Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.
Kit Specifications

}
Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
FLOD
E
C/Tube
QTY
C/Tube
Size
1 4 49.3 mm 24.8 mm 26.3 mm 5 mm 57 mm 2/1 25.4x12.2x54 / 25.4x14.3x60 mm
1 1 67.8 mm 25.1 mm 59 mm 6 mm 89.5 mm 2/1 25.4x12.2x54 / 25.4x14.3x60 mm
  • BMW 1 SERIES E81, E82, E87, E88 EXCL M SERIES (2004-2013)
  • BMW 1 SERIES F20, F21 (8/2011-ON)
  • BMW 2 SERIES F22, F23 (10/2013-ON)
  • BMW 3 SERIES E90, E91, E92, E93 EXCL M3 (3/2005-10/2011)
  • BMW 3 SERIES F30, F31, F34, F80 (3/2011-ON)
  • BMW X1 E84 (9/2010-9/2015)
