Description

Notes: Important
Reduces axle tramp
Kits Required: 1

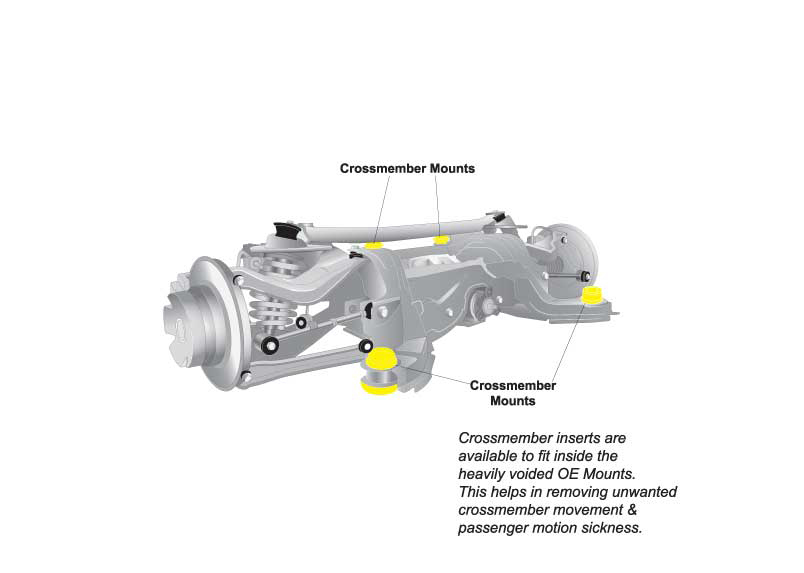

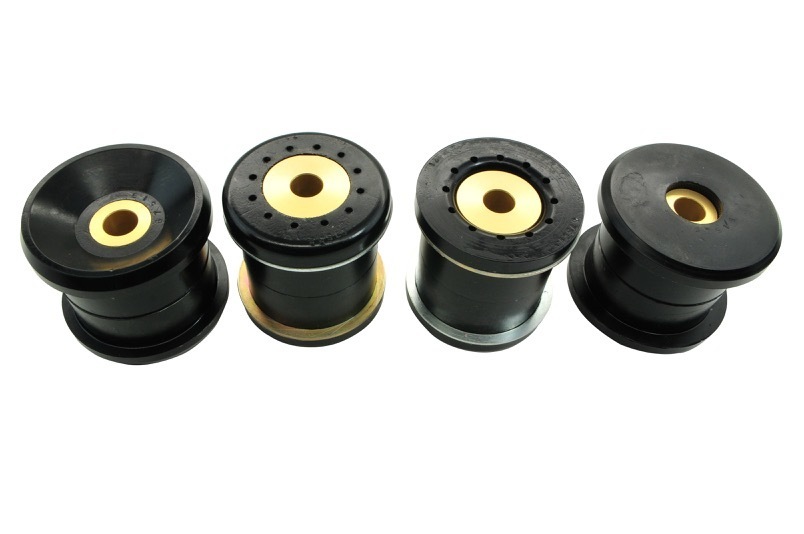

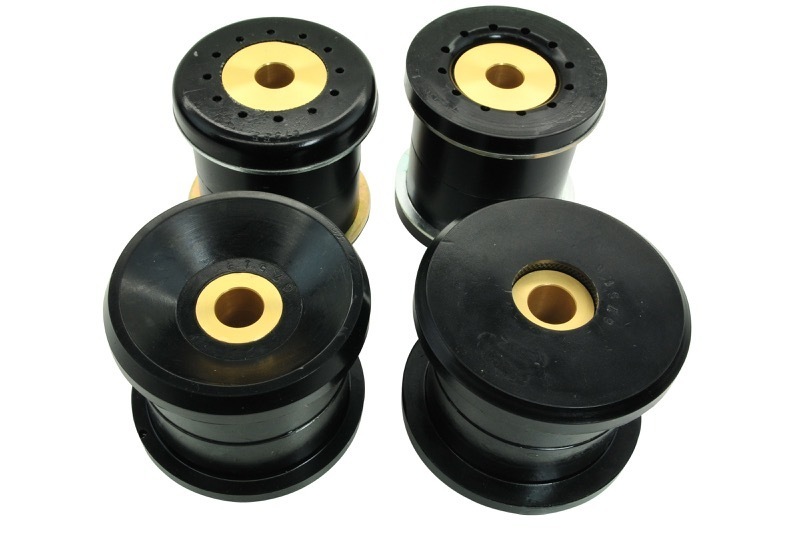

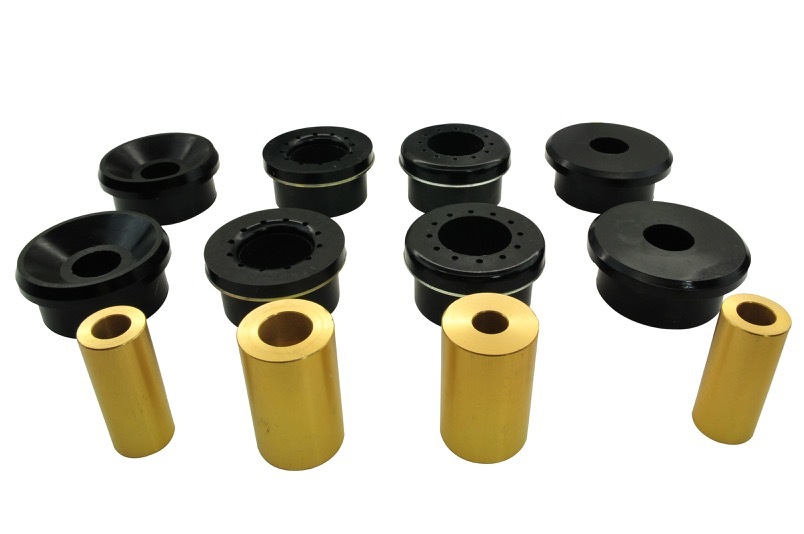

The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Kit Specifications

}
Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
FLOD
E
C/Tube
QTY
C/Tube
Size
1 2 80 mm 31.2 mm 39.7 mm 11.2 mm 99.5 mm 2/2 31.5x17.5x71.3 / 44.3x16.2x70.5 mm
1 2 80 mm 31.2 mm 40 mm 13.7 mm 93.5 mm 2/2 31.5x17.5x71.3 / 44.3x16.2x70.5 mm
1 2 74.8 mm 43.9 mm 42 mm 11.2 mm 86 mm 2/2 31.5x17.5x71.3 / 44.3x16.2x70.5 mm
1 2 74.8 mm 43.9 mm 45.6 mm 15.3 mm 86 mm 2/2 31.5x17.5x71.3 / 44.3x16.2x70.5 mm

Compatibility

  • BMW 1 SERIES E81, E82, E87, E88 EXCL M SERIES (2004-2013)
  • BMW 1 SERIES F20, F21 (8/2011-ON)
  • BMW 2 SERIES F22, F23 (10/2013-ON)
  • BMW 3 SERIES E90, E91, E92, E93 EXCL M3 (3/2005-10/2011)
  • BMW 3 SERIES F30, F31, F34, F80 (3/2011-ON)
  • BMW X1 E84 (9/2010-9/2015)
Notes: Important
Reduces axle tramp
Kits Required: 1
The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Kit Specifications

}
Bush
Type
Bush
Qty
OD
A
ID
B
L
C
FL
D
FLOD
E
C/Tube
QTY
C/Tube
Size
1 2 80 mm 31.2 mm 39.7 mm 11.2 mm 99.5 mm 2/2 31.5x17.5x71.3 / 44.3x16.2x70.5 mm
1 2 80 mm 31.2 mm 40 mm 13.7 mm 93.5 mm 2/2 31.5x17.5x71.3 / 44.3x16.2x70.5 mm
1 2 74.8 mm 43.9 mm 42 mm 11.2 mm 86 mm 2/2 31.5x17.5x71.3 / 44.3x16.2x70.5 mm
1 2 74.8 mm 43.9 mm 45.6 mm 15.3 mm 86 mm 2/2 31.5x17.5x71.3 / 44.3x16.2x70.5 mm
  • BMW 1 SERIES E81, E82, E87, E88 EXCL M SERIES (2004-2013)
  • BMW 1 SERIES F20, F21 (8/2011-ON)
  • BMW 2 SERIES F22, F23 (10/2013-ON)
  • BMW 3 SERIES E90, E91, E92, E93 EXCL M3 (3/2005-10/2011)
  • BMW 3 SERIES F30, F31, F34, F80 (3/2011-ON)
  • BMW X1 E84 (9/2010-9/2015)
