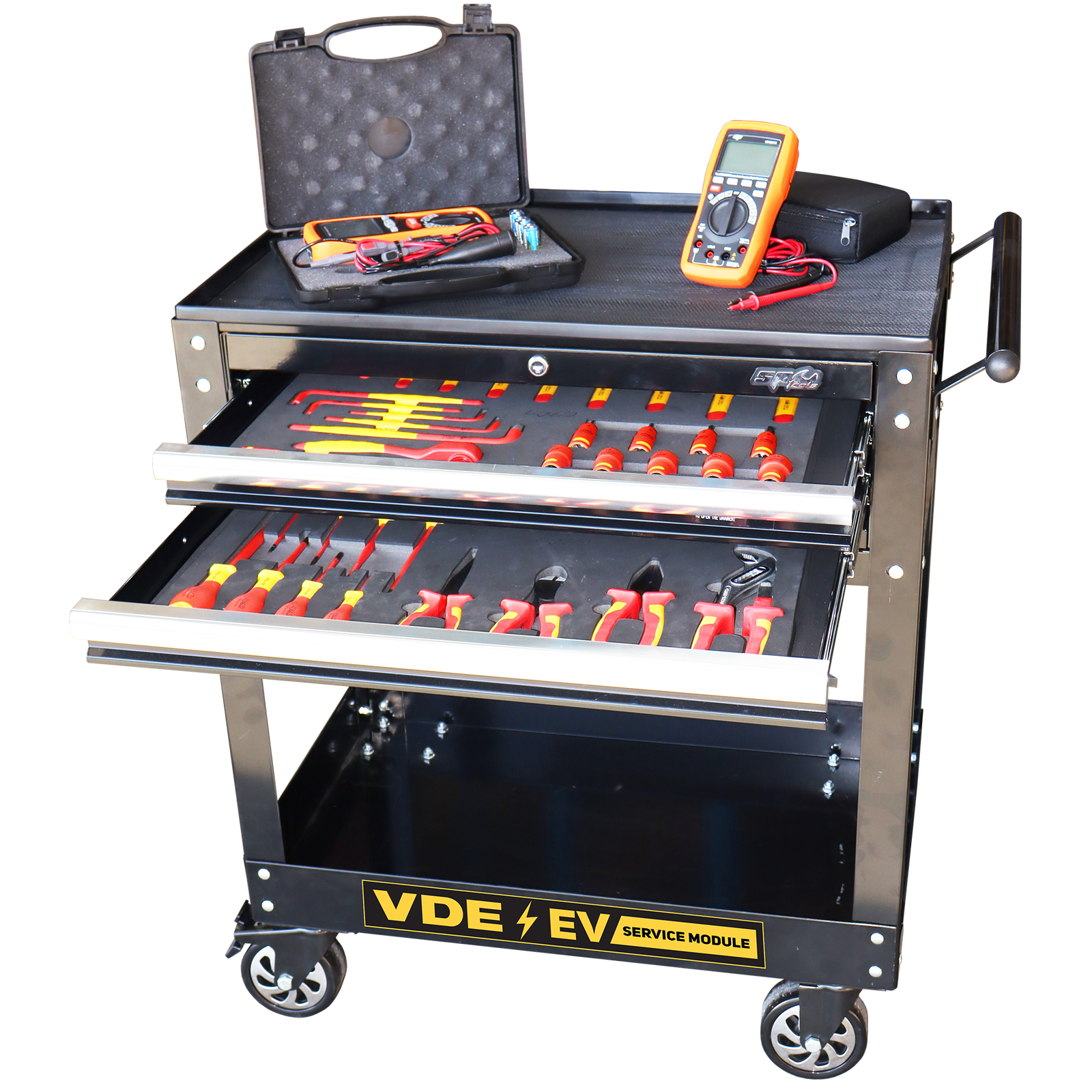

PART NO: SP40107

• Heavy-duty, high-quality steel box frame and drawer construction
• Steel work top with heavy duty rubberised textured mat
• Screwdriver slots on both external sides of the trolley
• Heavy duty 28 ball bearing drawer slides with full drawer extension
• Internal locking system keeps your tools secure with one turn of the key
• SP Cliklok drawer locking system ensures drawers stay closed and secure while the trolly drawers are unlocked
• Heavy duty castors - 4x swivel (2x lockable)
• UV stabilised double powder coating - resists scratching and fading

TROLLEY DIMENSIONS (mm)

• 900w x 490d x 890h

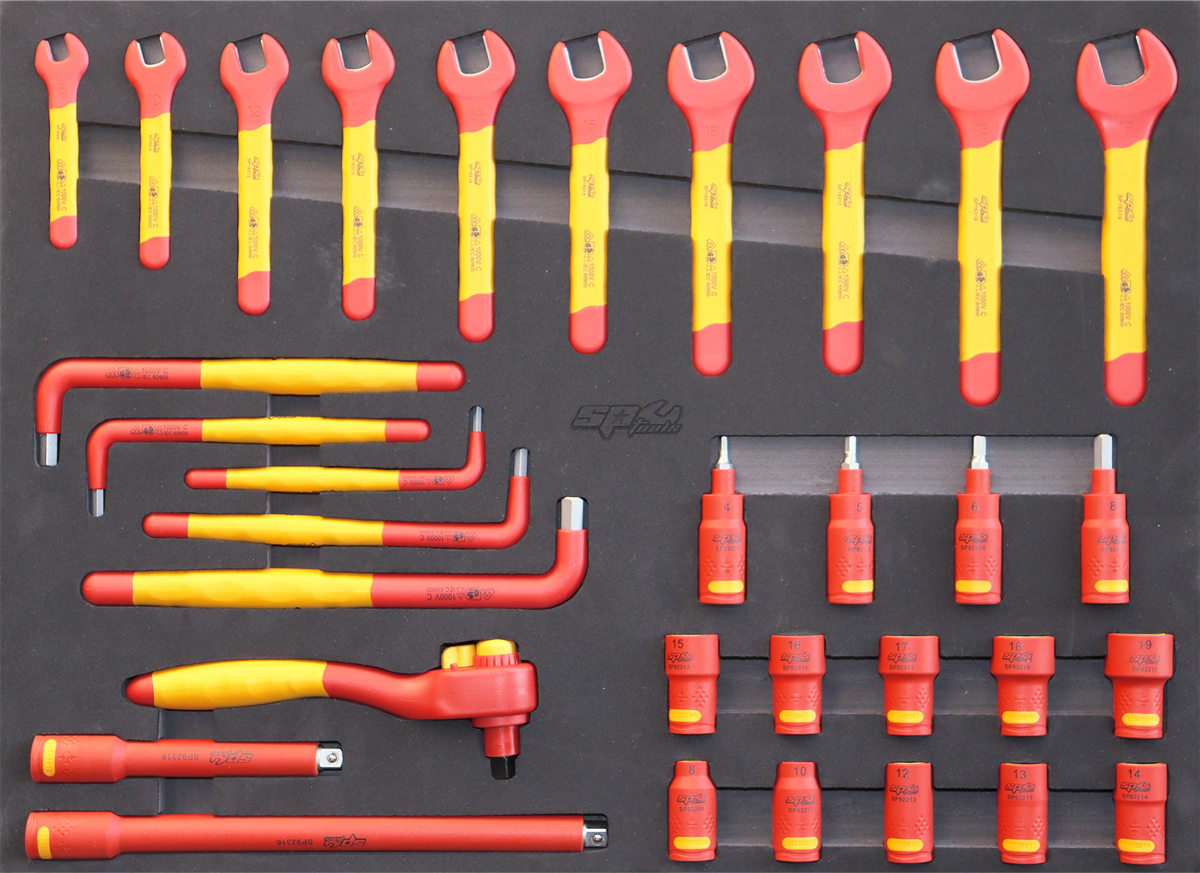

PART NO: SP55900

32PC - VDE INSULATED - SPANNERS, SOCKETS, HEX KEYS, HEX SOCKETS, RATCHET & EXTENSION BARS IN EVA FOAM TRAY

• Heavy-duty plastic sheath running the length of the tools protects the user from live current
• VDE certified and tested to 1000 volts AC & 1500 volts DC for safety and peace of mind in energised applications
• Premium quality tools manufactured using high quality, durable Chrome Vanadium Steel (Cr-V)

TOOLS INCLUDED IN THIS TRAY

• 10pc Spanners Set - 8, 10, 12, 13, 14, 15, 17, 18 & 19mm
• 10pc Socket Set - 8, 10, 12, 13, 14, 15, 16, 17, 18 & 19mm
• 4pc Hex Sockets - 4, 5, 6 & 8mm
• 5pc Hex Keys
• Ratchet Driver
• 2x Extension Bars

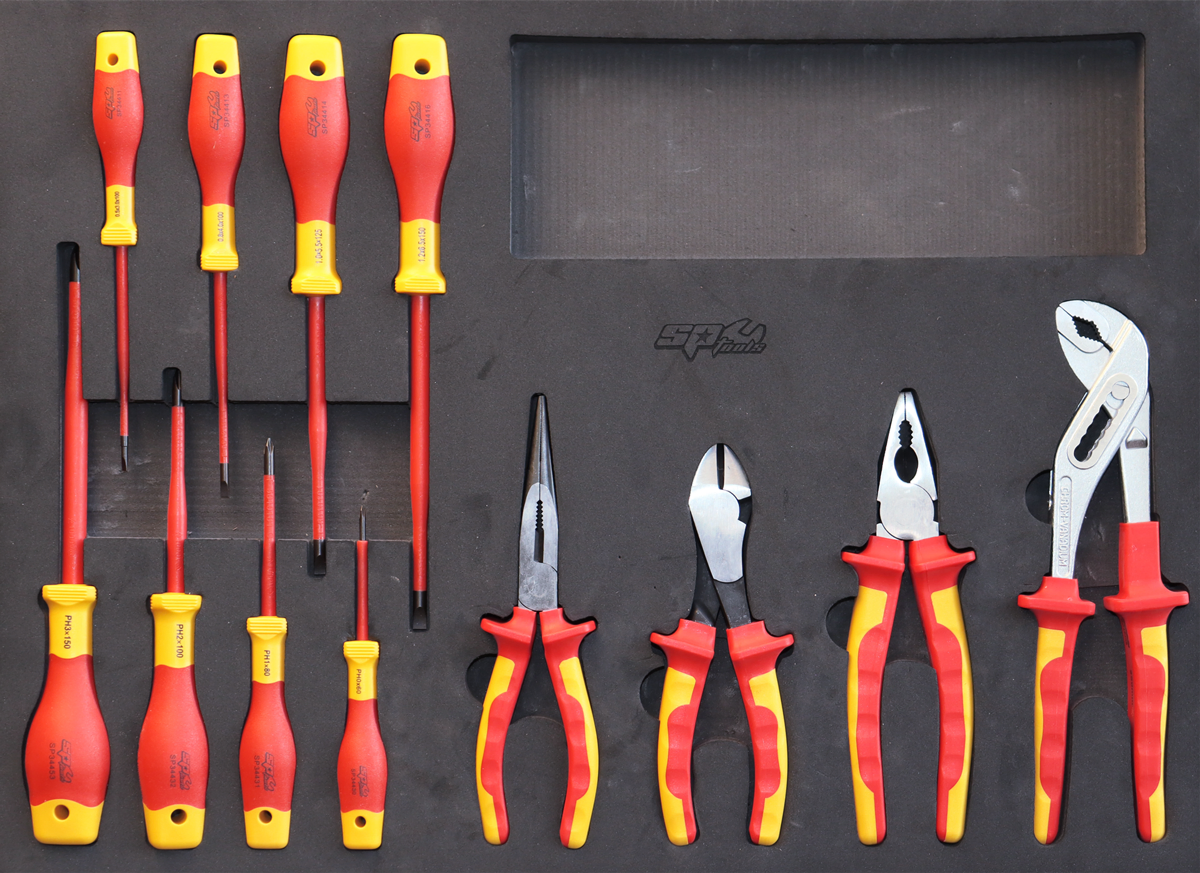

PART NO: SP55910

12PC - VDE INSULATED - SCREWDRIVERS & PLIERS IN EVA FOAM TRAY

• Heavy-duty plastic sheath running the length of the tools protects the user from live current
• VDE certified and tested to 1000 volts AC & 1500 volts DC for safety and peace of mind in energised applications
• Premium quality tools manufactured using high quality, durable Chrome Vanadium Steel (Cr-V)
• Screwdrivers feature ergonomic handles with anti-slip grip
• Pliers and cutters feature induction hardened cutting edges and anti-slip guards for added safety
• EVA foam tray features a large cut out tray, ideal for storing additional tools or equipment such as multimeters and circuit testers

TOOLS INCLUDED IN THIS TRAY

• 4pc Slotted Screwdriver Set - 3.0 x 100, 4.0 x 100, 5.5 x 125 & 6.5x150mm
• 4pc Phillips Screwdriver Set - #0 x 60, #1 x 80, #2 x 100 & #3 x 150mm
• Combination Pliers - 200mm (8")
• Long Nose Pliers - 200mm (8")
• Diagonal Cutters - 180mm (7")
• Multigrip Pliers - 250mm (10")

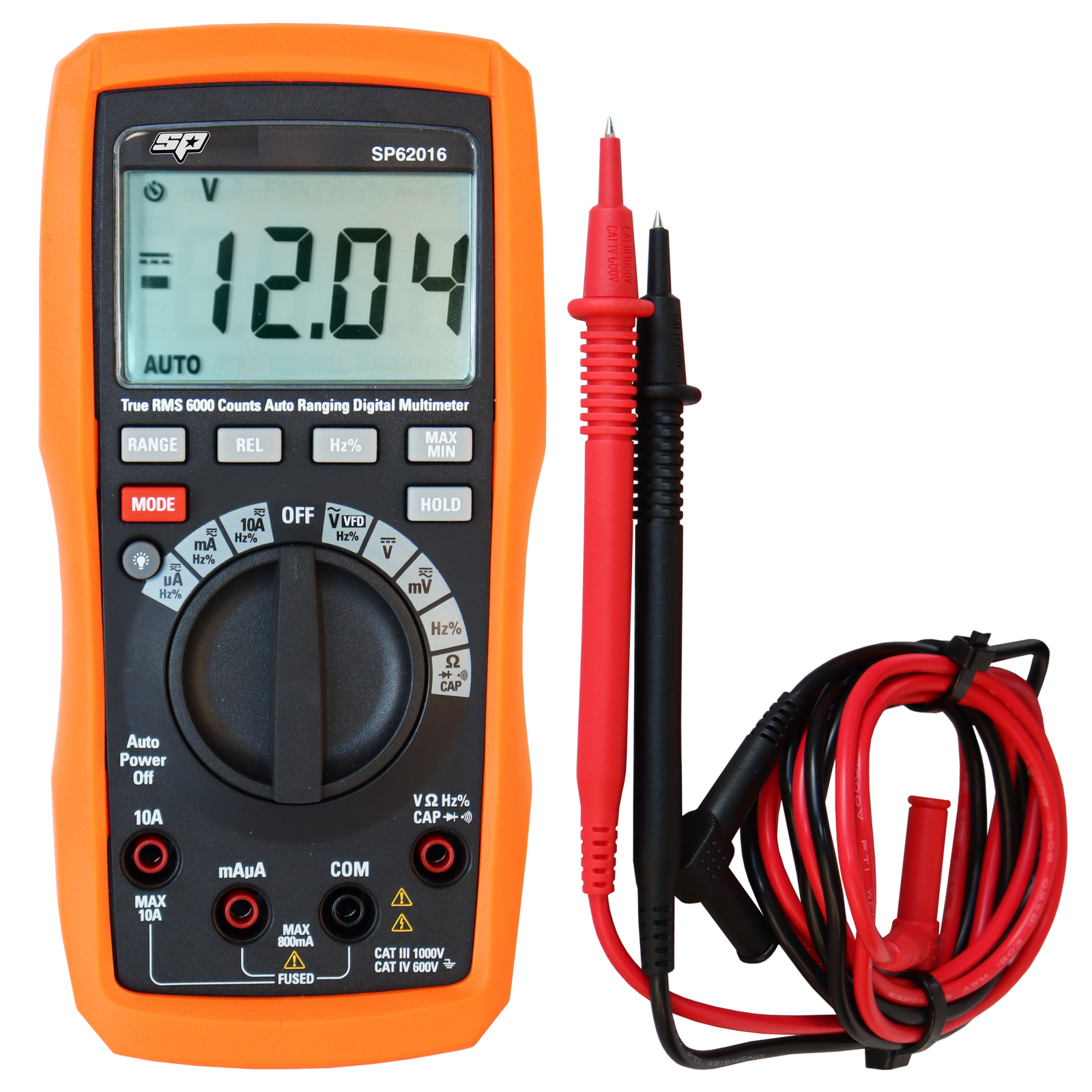

PART NO: SP62016

DELUXE AUTOMOTIVE DIGITAL MULTIMETER - 0.8 TO 100V DC

• Measures DC/AC voltage, DC/AC current (max 10A), resistance, capacitance, frequency (electrial & electronic), continuity & diode check
• True-RMS measurements
• Large 6000 count digital LCD display with backlight
• Rugged design for heavy duty use
• Auto power off
• Auto ranging
• Hold function
• Includes probe test leads
• Cat III 1000V

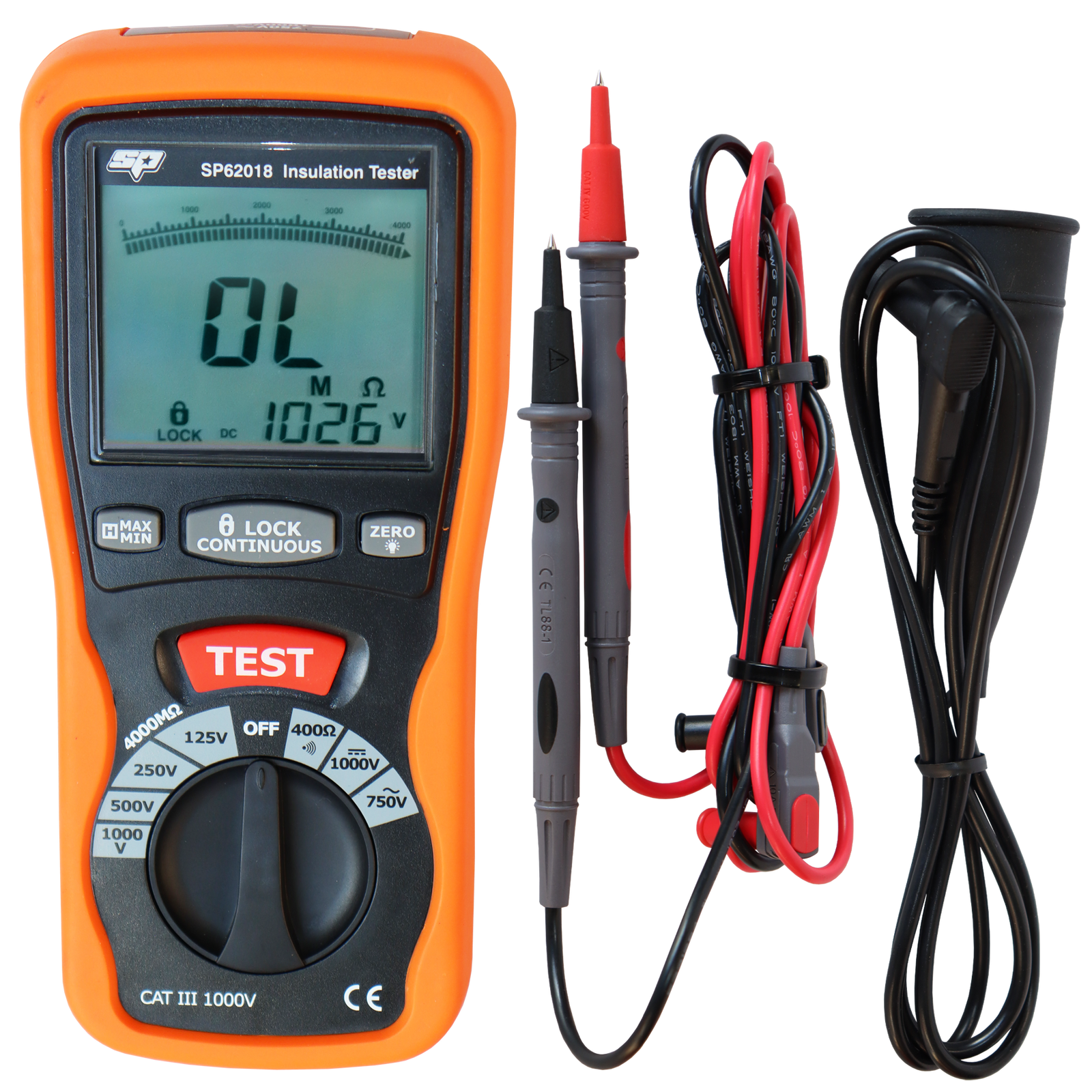

PART NO: SP62018

DIGITAL INSULATION TESTER

Uses a high voltage, low current DC charge to measure the resistance within wires and motor windings to identify current leakage and faulty or damaged insulation

• Test voltage ranges: 125V, 250V, 500V, 1000V
• Measures: Voltage up to 1000V DC, 750V AC and resistance up to 4000M?
• Min/Max record mode
• Live circuit detection prevents insulation tests if voltage >30V
• Auto null of test lead resistance
• 1mA output current on insulation test
• 200mA short circuit on continuity range
• Large digital LCD dual display with backlight
• Rugged design for heavy duty use
• Lock down test button for hands free use
• Auto power off
• Hold function
• CAT III 1000V
