Description

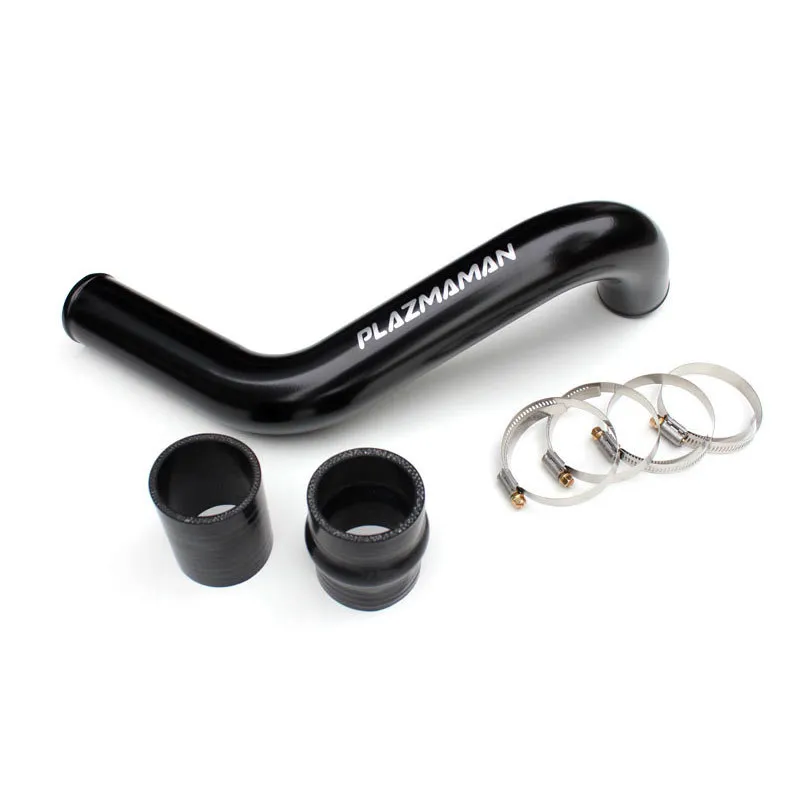

This hot side piping kit is to suit the early model Nissan Navara/Pathfinder 2.5L D40 (2005-2006) Standard Riding Height. This piping kit replaces the factory rubber hose that runs from the primary intercooler inlet pipe, to the turbocharger compressor housing outlet. Completely constructed from CNC aluminium mandrel bent piping, this kit prevents any flex or compression under high RPM and boost levels. Another advantage of running an internally smooth hard pipe is that it encourages earlier turbo spool up, better turbo note, and better throttle response throughout the rev range.

These kits are available for standard height vehicles, or for vehicles with 2.0in body lift.

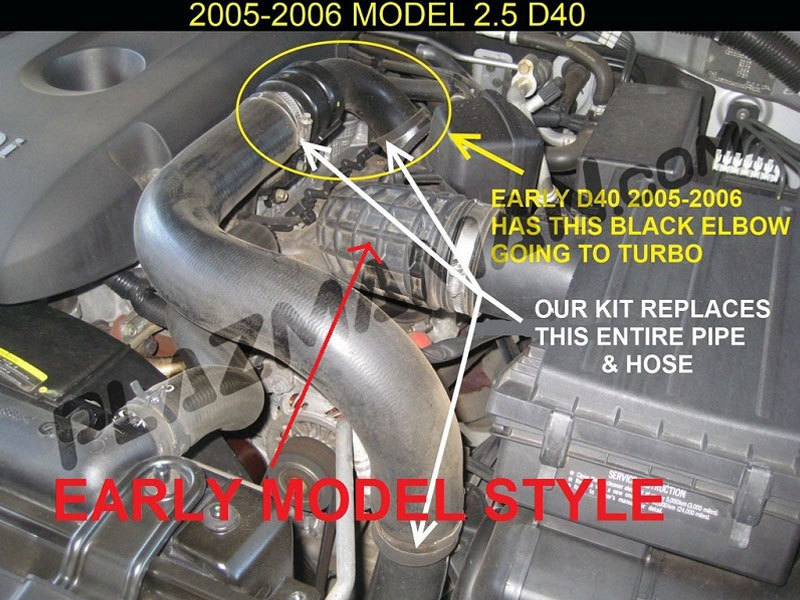

NOTE – This Hot Piping Kit is to suit early model Navara, with the black metal elbow coming out of the turbocharger compressor housing. Please see the engine bay image for reference. The mid model (2007-2011) Navara’s have a an extended aluminium cast elbow from the turbocharger, and the later models (2011 Onwards) have a short cast aluminium elbow.

The piping kit is available in stealth black only.

Specifications

  • Weight 1.7 kg
  • Dimensions 40 x 20 x 20 cm

Compatibility

  • 2005-2006 Nissan Navara D40 2.5L
  • 2005-2006 Nissan Pathfinder R51 2.5L
