PDI High Performance Airbox

Unlock the full potential of your 105 series engine with the PDI High Performance Airbox, designed to deliver superior airflow, improved turbo response and ultimate filtration for demanding conditions. Built for performance and durability, this airbox is engineered to outperform factory systems in both power and protection.

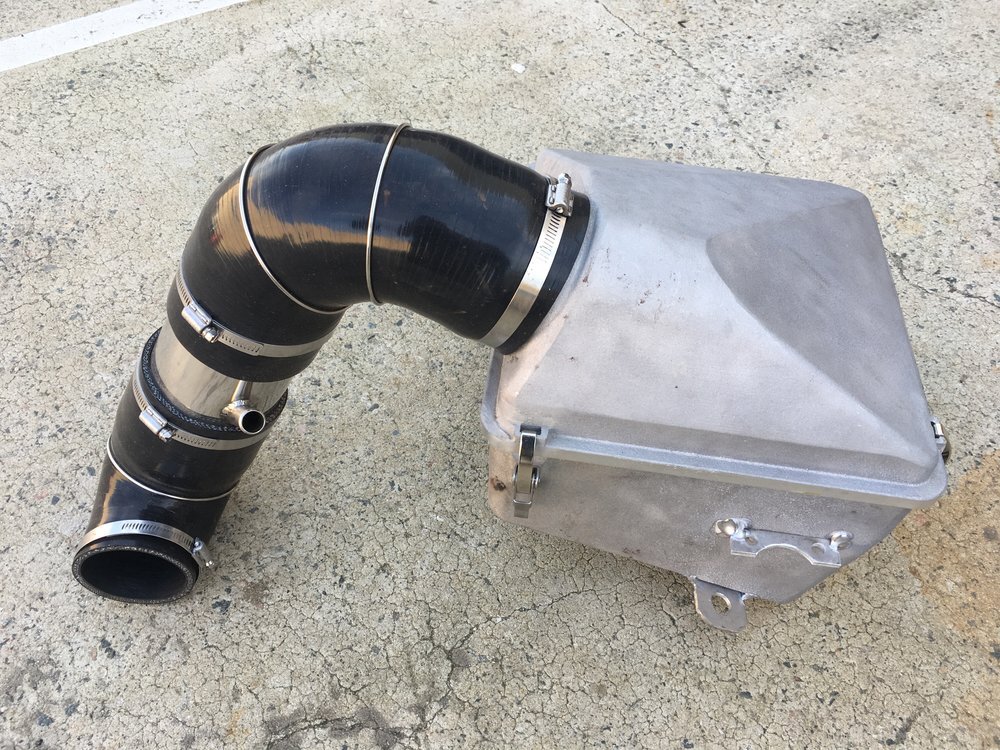

Optimised Cast Alloy Construction

The airbox features a cast alloy lid and housing, precision moulded for optimal internal airflow and resistance to distortion under heat and load. The sealing surface is CNC machined to ensure a perfect, dust proof seal critical for harsh off road environments.

High Flow 4" Inlet & Outlet

Equipped with a 4 inch inlet and 4 inch outlet, this system maximises air delivery to the turbo. Increased airflow reduces turbo scavenging, improving boost response and helping maintain optimal air fuel ratios (AFR) for better performance and efficiency.

Largest Panel Filter Capacity

Designed using a 200 Series Land Cruiser panel filter, this airbox supports both OEM and aftermarket options. By utilising the larger 200 Series filter design, it delivers increased filtration surface area compared to smaller factory setups, improving airflow and extending service intervals.

• 20% larger than a VDJ79 factory panel filter
• 25% larger than a Duramax panel filter

This increased surface area improves airflow while extending service intervals.

Integrated Water Drain System

A built in water drain outlet prevents water accumulation during heavy rain or water crossings. It utilises the factory style dust seal drain found in 100 Series and VDJ79 airboxes, and mirrors the original design used in 80 Series inner guard ducting. Each unit is supplied with a foam block and is also compatible with a genuine Toyota dust cover (Part No. 17743-50010) for added protection.

Quick Access Latch System (No Bolts)

Forget tools and lost hardware this airbox uses stainless steel over centre latches to provide consistent sealing pressure and allow rapid inspection. No spanners or sockets required and no risk of over tightening or damaging the seal.

Additional Information

Safari ARMax compatible - If you have the ARMax, which is a very good high flow snorkel, the rubber joiner supplied with the snorkel kit for the side of the airbox can be cut down to stick out 30-40mm on the engine side of the inner guard panel.  This allows the PDI airbox to slip into it.

Regarding fitting around intercooler piping, more information is given after to add to cart and selection of your setup. You can check that information without completing the purchase.

If you are running the factory turbo (CT20B) with the bolt on outlet and inlet, we have found that the factory inlet is quite small and restrictive. This should be increased to 3".  If you do that we can connect to the inlet.
