Description

*Rear Suspension
*
Excludes Ranger Raptor
*Possible driveline vibration may occur due to increased ride height, use 1223K to reduce vibration to satisfactory level

Quantity Required: 2
Warranty: 3 Years / 60,000km
Estimated Lift: 45mm

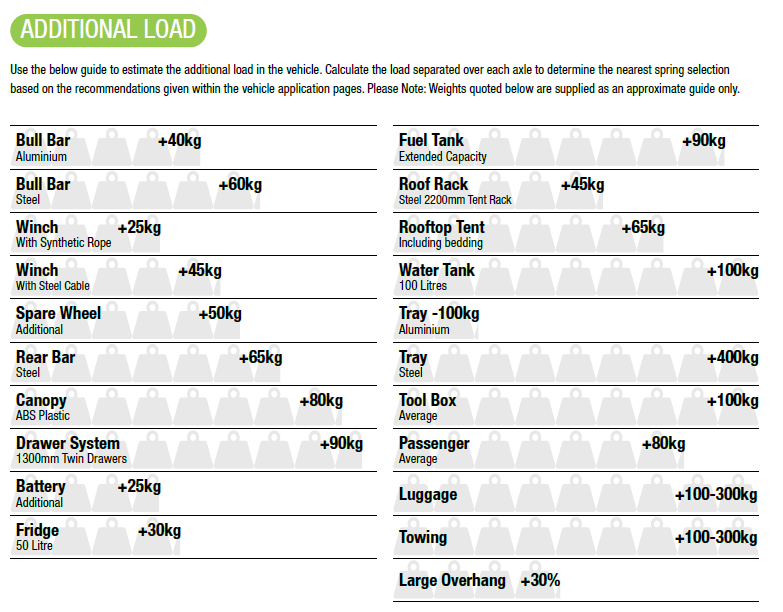

Additional Load: 300 - 600kg

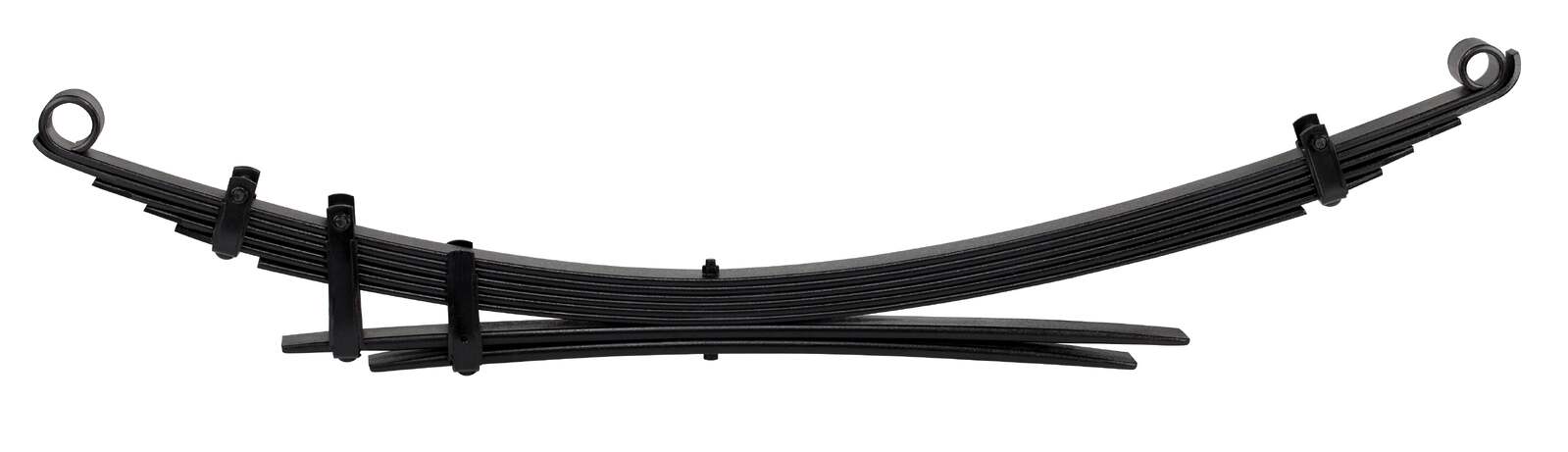

INTER LEAF LINERS - Used in some applications to lower friction between leaves reducing noise and improving - Comfort.

LINED BOLT CLAMPS - All Ironman springs feature bolted guide clamps for greater flex, the addition of anti-friction liners ensures noise free smooth operation.

SHOT PEENED - Manipulates tension side of material to reduce stress, greatly enhances spring life.

DIAMOND CUT LEAVES - Distributes load at the leaf tip and reduces interleaf friction.

MILITARY WRAP - Where applicable, an additional wrap around the leaf eye protects from failure in case of damage.

Specifications

Compatibility

  • 2022-2025 Ford Ranger, Next Gen, PY
  • 2022-2025 Ford Ranger, Next Gen, PY, 2d, XL
  • 2022-2025 Ford Ranger, Next Gen, PY, 4d, XL & XLS
  • 2022-2025 Ford Ranger, Next Gen, PY, 4d, XLT
  • 2022-2025 Ford Ranger, Next Gen, PY, Sport
  • 2022-2025 Ford Ranger, Next Gen, PY, Wildtrak & Wildtrak-X
  • 2023-2025 Volkswagen Amarok, NF, 2nd Gen (23+)
  • 2023-2025 Volkswagen Amarok, NF, 2nd Gen (23+), Core, Life & Style
  • 2023-2025 Volkswagen Amarok, NF, 2nd Gen (23+), Aventura
  • 2023-2025 Volkswagen Amarok, NF, 2nd Gen (23+), Panamericana
  • 2022-2025 Ford Ranger, Next Gen, PY, Platinum
  • *Rear Suspension
    *
    Excludes Ranger Raptor
    *Possible driveline vibration may occur due to increased ride height, use 1223K to reduce vibration to satisfactory level

    Quantity Required: 2
    Warranty: 3 Years / 60,000km
    Estimated Lift: 45mm
    Additional Load: 300 - 600kg

    INTER LEAF LINERS - Used in some applications to lower friction between leaves reducing noise and improving - Comfort.

    LINED BOLT CLAMPS - All Ironman springs feature bolted guide clamps for greater flex, the addition of anti-friction liners ensures noise free smooth operation.

    SHOT PEENED - Manipulates tension side of material to reduce stress, greatly enhances spring life.

    DIAMOND CUT LEAVES - Distributes load at the leaf tip and reduces interleaf friction.

    MILITARY WRAP - Where applicable, an additional wrap around the leaf eye protects from failure in case of damage.

  • 2022-2025 Ford Ranger, Next Gen, PY
  • 2022-2025 Ford Ranger, Next Gen, PY, 2d, XL
  • 2022-2025 Ford Ranger, Next Gen, PY, 4d, XL & XLS
  • 2022-2025 Ford Ranger, Next Gen, PY, 4d, XLT
  • 2022-2025 Ford Ranger, Next Gen, PY, Sport
  • 2022-2025 Ford Ranger, Next Gen, PY, Wildtrak & Wildtrak-X
  • 2023-2025 Volkswagen Amarok, NF, 2nd Gen (23+)
  • 2023-2025 Volkswagen Amarok, NF, 2nd Gen (23+), Core, Life & Style
  • 2023-2025 Volkswagen Amarok, NF, 2nd Gen (23+), Aventura
  • 2023-2025 Volkswagen Amarok, NF, 2nd Gen (23+), Panamericana
  • 2022-2025 Ford Ranger, Next Gen, PY, Platinum
