Description

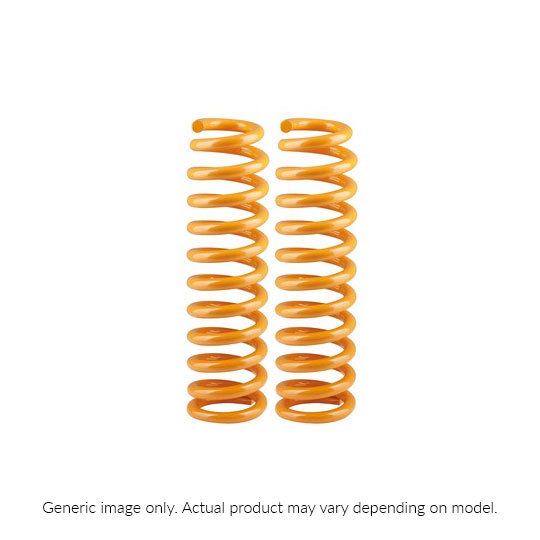

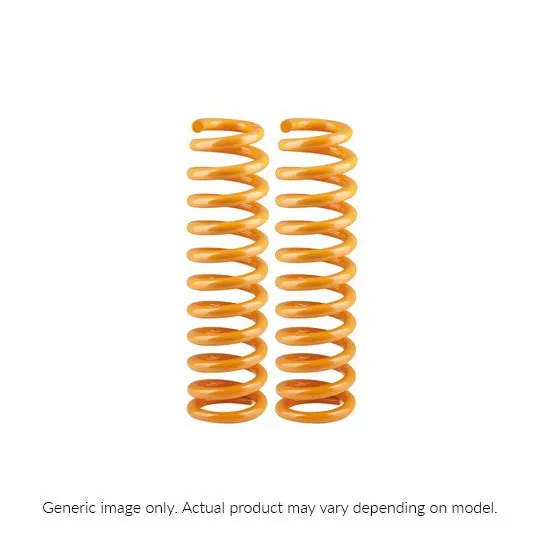

All Ironman coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance.

Ironman 4x4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag.

All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4x4 Shock Absorbers.

Specifications

  • Quantity Required: 1
  • Estimated Lift: Prado 90/95/4runner 45mm, Fortuner 0mm
  • Additional Load: 0-50kg
  • Package Details: Pair
  • Additional Notes: Vehicles with independent suspension must maintain a minimum of 60mm downward suspension travel.
  • When Ordering: Select springs in accordance with your vehicles additional load.

Compatibility

  • 2012-2016 Isuzu D-MAX, TF II, 2d, 2WD Low Ride, Auto
  • 2012-2016 Isuzu D-MAX, TF II, 2d, 2WD Low Ride, Manual
  • 2012-2016 Isuzu D-MAX, TF II, 4d, 2WD Low Ride, Auto
  • 2012-2016 Isuzu D-MAX, TF II, 4d, 2WD Low Ride, Manual
  • 1996-2002 Toyota 4Runner, N180, 3rd Gen, All Variants
  • 2004-2015 Toyota Fortuner, AN50, All Variants
  • 1996-2002 Toyota Prado, 90 & 95 Series (96-02)
  • 1996-2002 Toyota Prado, 90 & 95 Series (96-02), SWB, Petrol
  • 1996-2002 Toyota Prado, 90 & 95 Series (96-02), LWB, Petrol, 2.7L
  • 1996-2002 Toyota Prado, 90 & 95 Series (96-02), LWB, Petrol, 3.4L V6
  • 2012-2016 Holden Colorado, RG, 2WD Low Ride
  • All Ironman coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance.

    Ironman 4x4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag.

    All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4x4 Shock Absorbers.

    • Quantity Required: 1
    • Estimated Lift: Prado 90/95/4runner 45mm, Fortuner 0mm
    • Additional Load: 0-50kg
    • Package Details: Pair
    • Additional Notes: Vehicles with independent suspension must maintain a minimum of 60mm downward suspension travel.
    • When Ordering: Select springs in accordance with your vehicles additional load.
  • 2012-2016 Isuzu D-MAX, TF II, 2d, 2WD Low Ride, Auto
  • 2012-2016 Isuzu D-MAX, TF II, 2d, 2WD Low Ride, Manual
  • 2012-2016 Isuzu D-MAX, TF II, 4d, 2WD Low Ride, Auto
  • 2012-2016 Isuzu D-MAX, TF II, 4d, 2WD Low Ride, Manual
  • 1996-2002 Toyota 4Runner, N180, 3rd Gen, All Variants
  • 2004-2015 Toyota Fortuner, AN50, All Variants
  • 1996-2002 Toyota Prado, 90 & 95 Series (96-02)
  • 1996-2002 Toyota Prado, 90 & 95 Series (96-02), SWB, Petrol
  • 1996-2002 Toyota Prado, 90 & 95 Series (96-02), LWB, Petrol, 2.7L
  • 1996-2002 Toyota Prado, 90 & 95 Series (96-02), LWB, Petrol, 3.4L V6
  • 2012-2016 Holden Colorado, RG, 2WD Low Ride
