Description

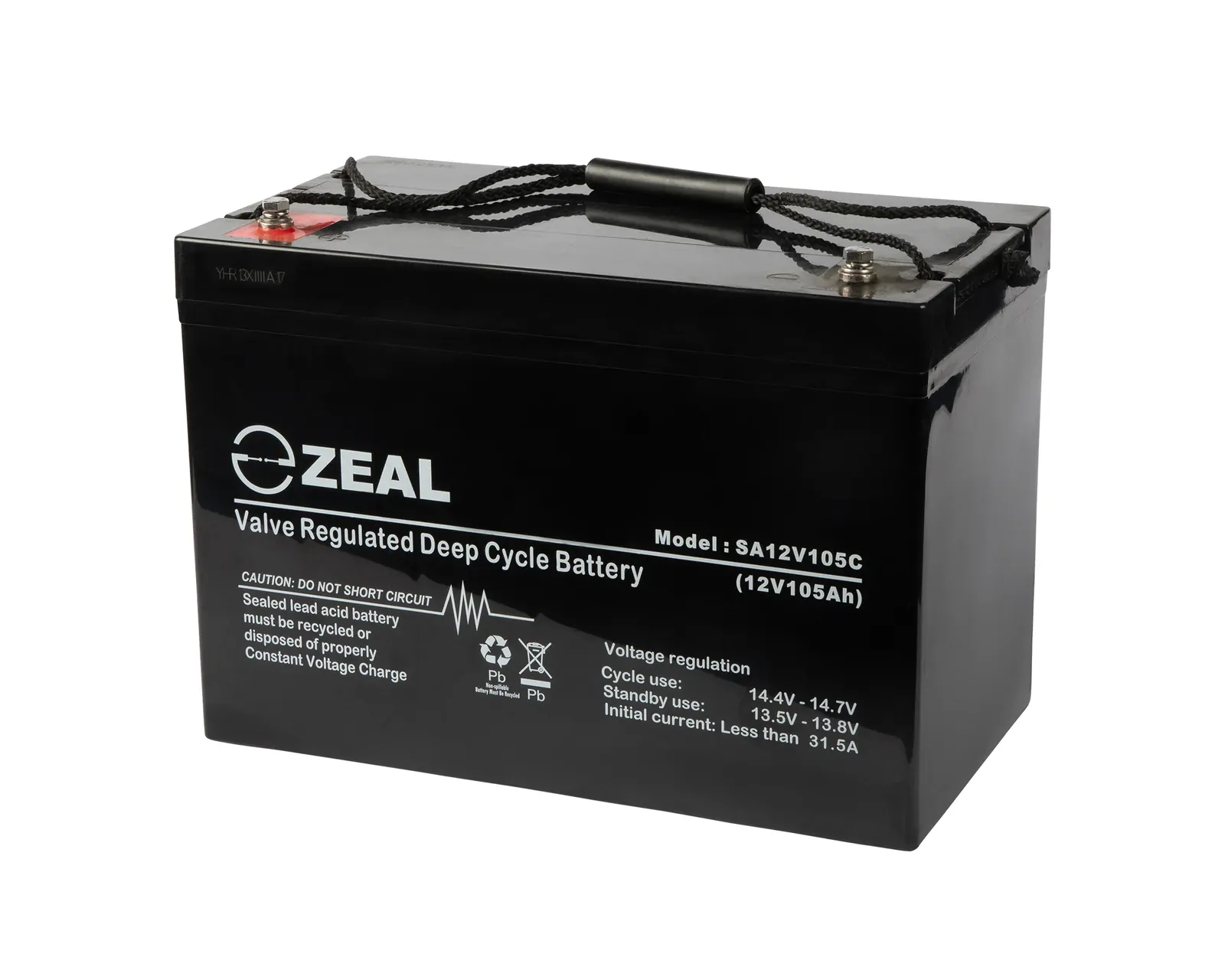

The Zeal 12V105Ah Deep Cycle AGM battery provides reliable performance with a 105Ah capacity at a 10-hour rate. Featuring an M6 terminal type and low internal resistance, it operates in temperatures from -15°C to 60°C, making it ideal for a range of applications like RVs, UPS systems, and medical equipment. With a 10-year floating life and a self-discharge rate that retains 91% capacity after 3 months, it ensures long-term reliability. The battery supports up to 900A of discharge current for short bursts and can handle a maximum charging current of 31.5A.

Specifications

Storage Temperature

-15 - 60°C

Cut Off Voltage

10 v

Nominal Voltage

12V

Width (mm)

169mm

custrecord_pkfd_relveh_spectable_ah

105AH

Max. Charge Voltage (V)

5.25A/105AH

Height - incl. terminal (mm)

215mm

Length (mm)

306mm

Max. Discharge Current

900A

Operating Temp – Charge

0 - 60°C

Nominal Capacity (25°C, 0.33C)

105 AH

custrecord_pkfd_relveh_spectable_batt

AGM

Operating Temp – Discharge

-15 - 60°C

Material

Container Material ABS Plastic

Lead Material Purity Lead 99.995%

Weight (Kg)

26.5 kg

The Zeal 12V105Ah Deep Cycle AGM battery provides reliable performance with a 105Ah capacity at a 10-hour rate. Featuring an M6 terminal type and low internal resistance, it operates in temperatures from -15°C to 60°C, making it ideal for a range of applications like RVs, UPS systems, and medical equipment. With a 10-year floating life and a self-discharge rate that retains 91% capacity after 3 months, it ensures long-term reliability. The battery supports up to 900A of discharge current for short bursts and can handle a maximum charging current of 31.5A.

Storage Temperature

-15 - 60°C

Cut Off Voltage

10 v

Nominal Voltage

12V

Width (mm)

169mm

custrecord_pkfd_relveh_spectable_ah

105AH

Max. Charge Voltage (V)

5.25A/105AH

Height - incl. terminal (mm)

215mm

Length (mm)

306mm

Max. Discharge Current

900A

Operating Temp – Charge

0 - 60°C

Nominal Capacity (25°C, 0.33C)

105 AH

custrecord_pkfd_relveh_spectable_batt

AGM

Operating Temp – Discharge

-15 - 60°C

Material

Container Material ABS Plastic

Lead Material Purity Lead 99.995%

Weight (Kg)

26.5 kg
