Description

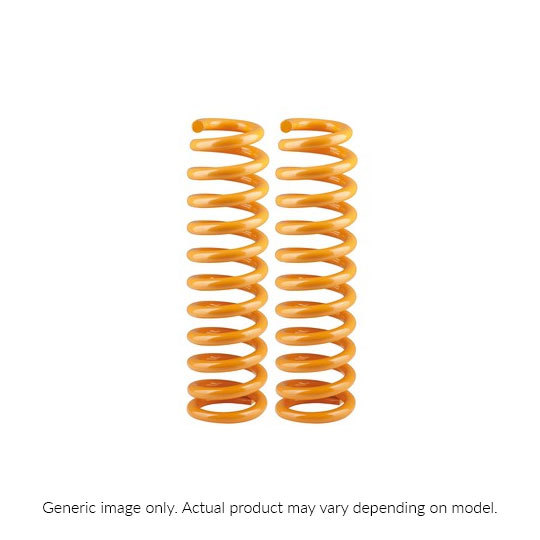

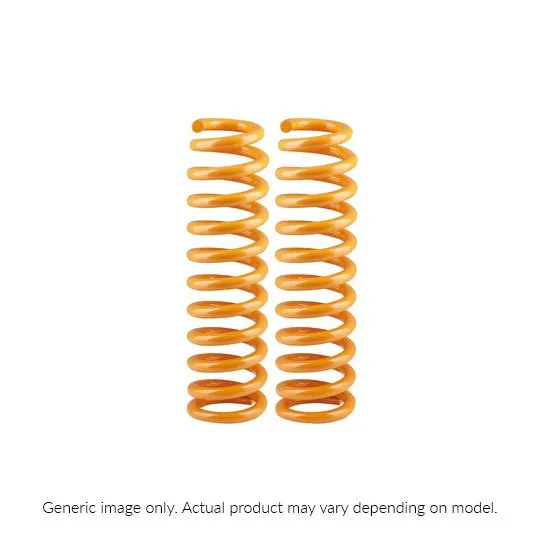

All Ironman coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance.

Ironman 4x4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag.

All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4x4 Shock Absorbers.

Specifications

  • Quantity Required: 1
  • Estimated Lift: 40mm
  • Additional Load: 50-100kg
  • Package Details: Pair
  • Monocoque Bodies: Vehicles with Monocoque body construction can be subject to increased NVH (Noise) with upgraded suspension installed.
  • Additional Notes: Ride heights may vary by up to 20mm due to Jeep design change.
  • Material Diameter: 16.5mm
  • Free Height: 382mm
  • End I/D: 82
  • Spring Rate (N/mm): 78
  • Spring Rate (Ibf/in): 446
  • Notes: Suits diesel or constant load over front

Compatibility

  • Front:Jeep Cherokee KJ 2001-2006
  • All Ironman coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance.

    Ironman 4x4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag.

    All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4x4 Shock Absorbers.

    • Quantity Required: 1
    • Estimated Lift: 40mm
    • Additional Load: 50-100kg
    • Package Details: Pair
    • Monocoque Bodies: Vehicles with Monocoque body construction can be subject to increased NVH (Noise) with upgraded suspension installed.
    • Additional Notes: Ride heights may vary by up to 20mm due to Jeep design change.
    • Material Diameter: 16.5mm
    • Free Height: 382mm
    • End I/D: 82
    • Spring Rate (N/mm): 78
    • Spring Rate (Ibf/in): 446
    • Notes: Suits diesel or constant load over front
  • Front:Jeep Cherokee KJ 2001-2006
