Description

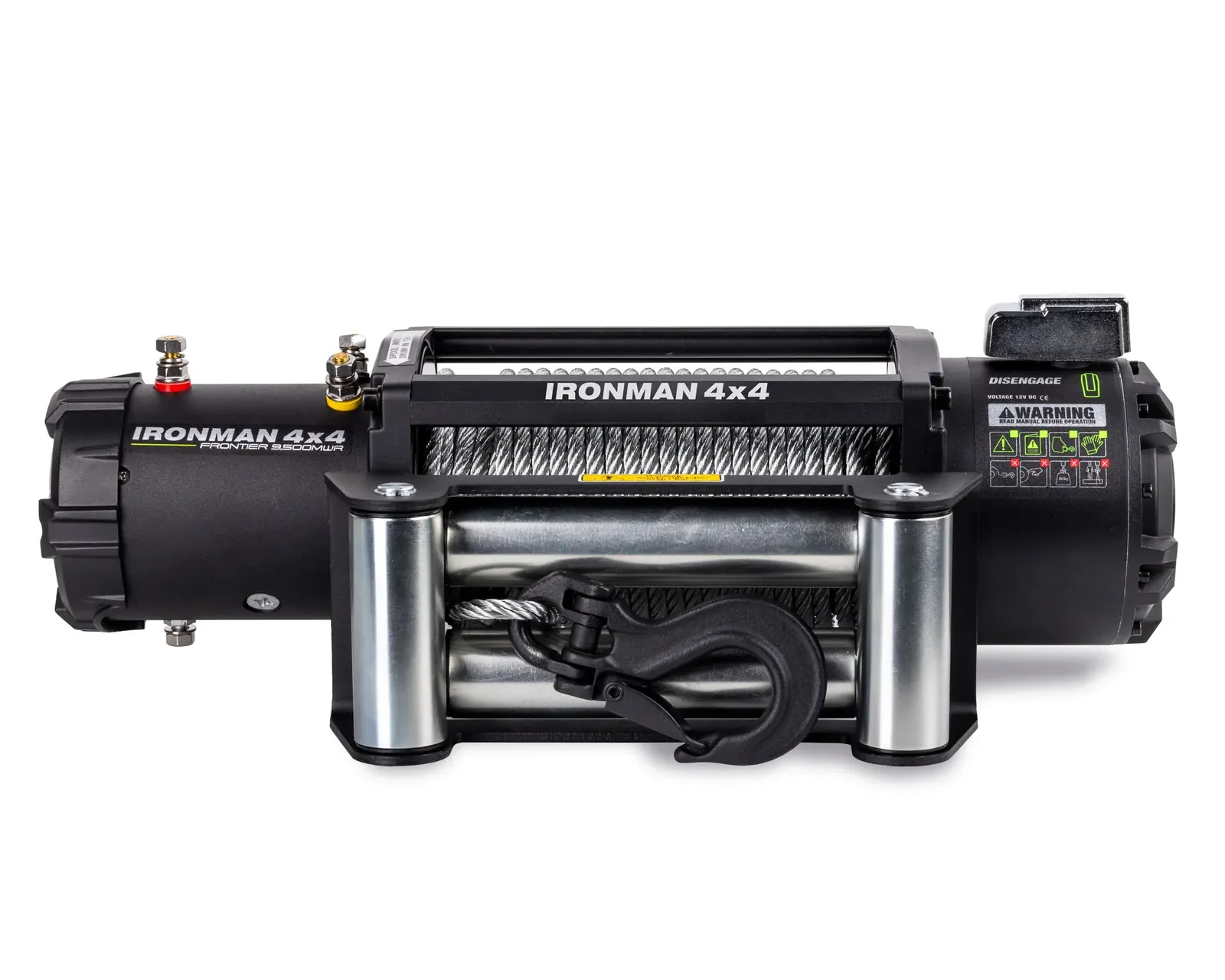

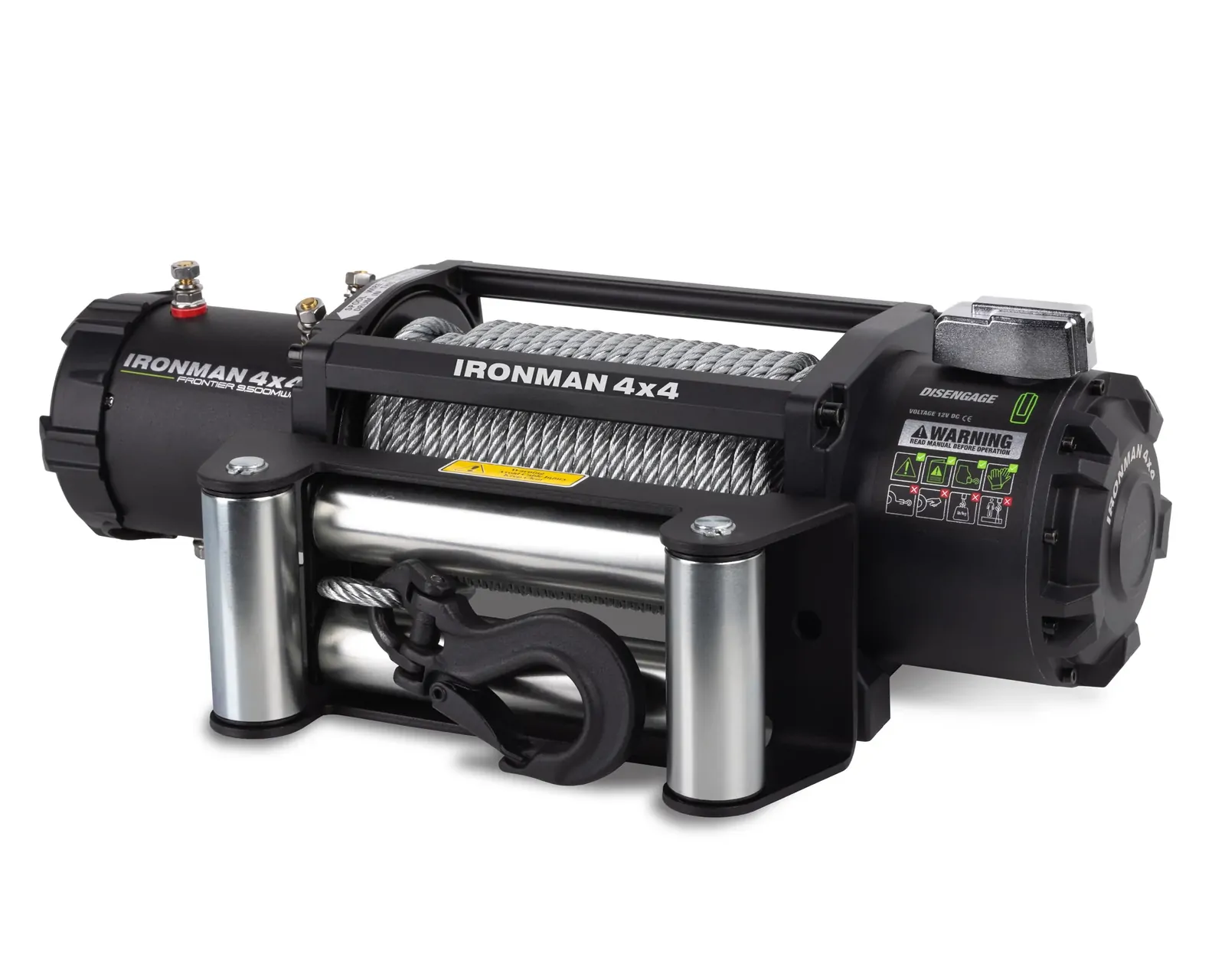

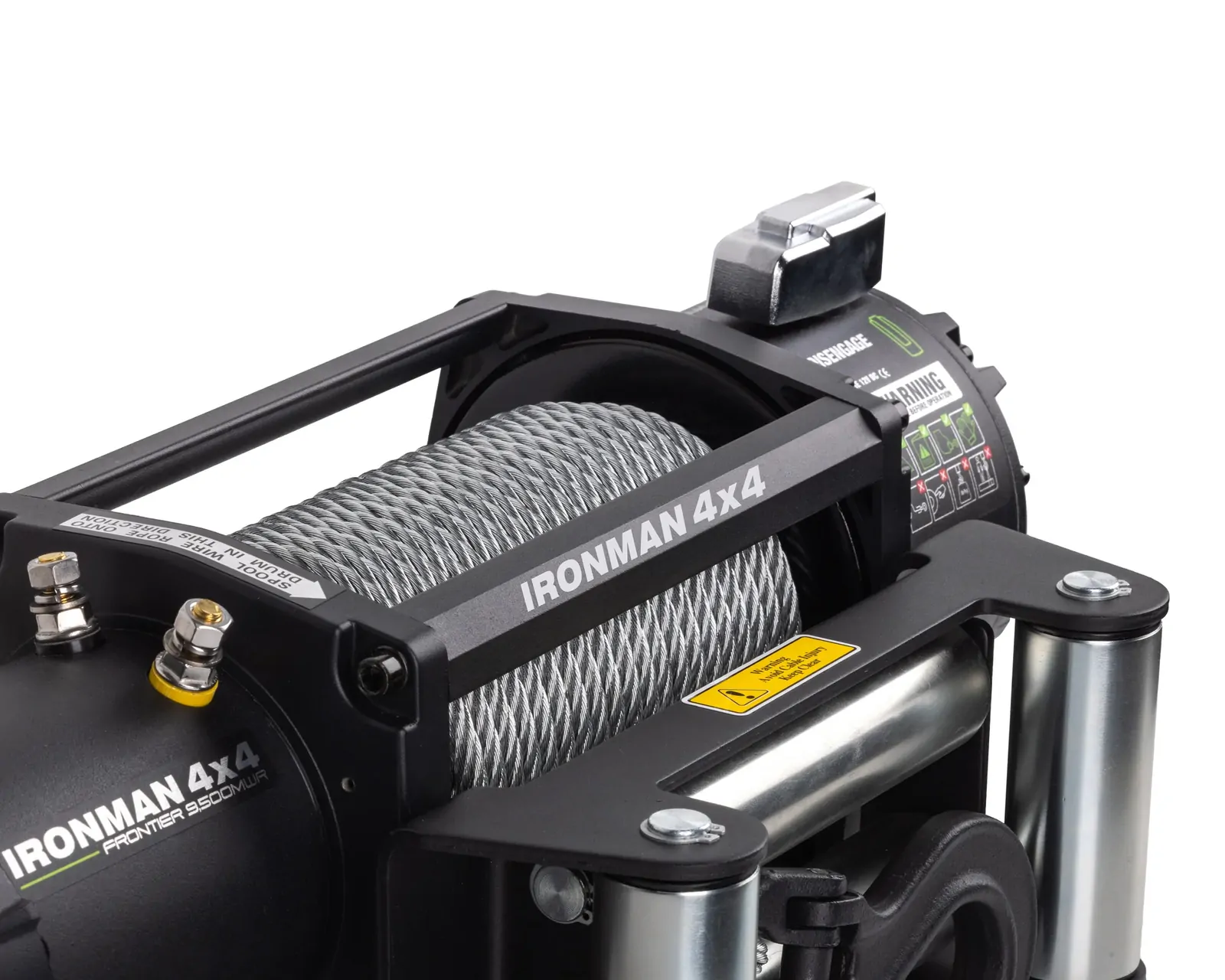

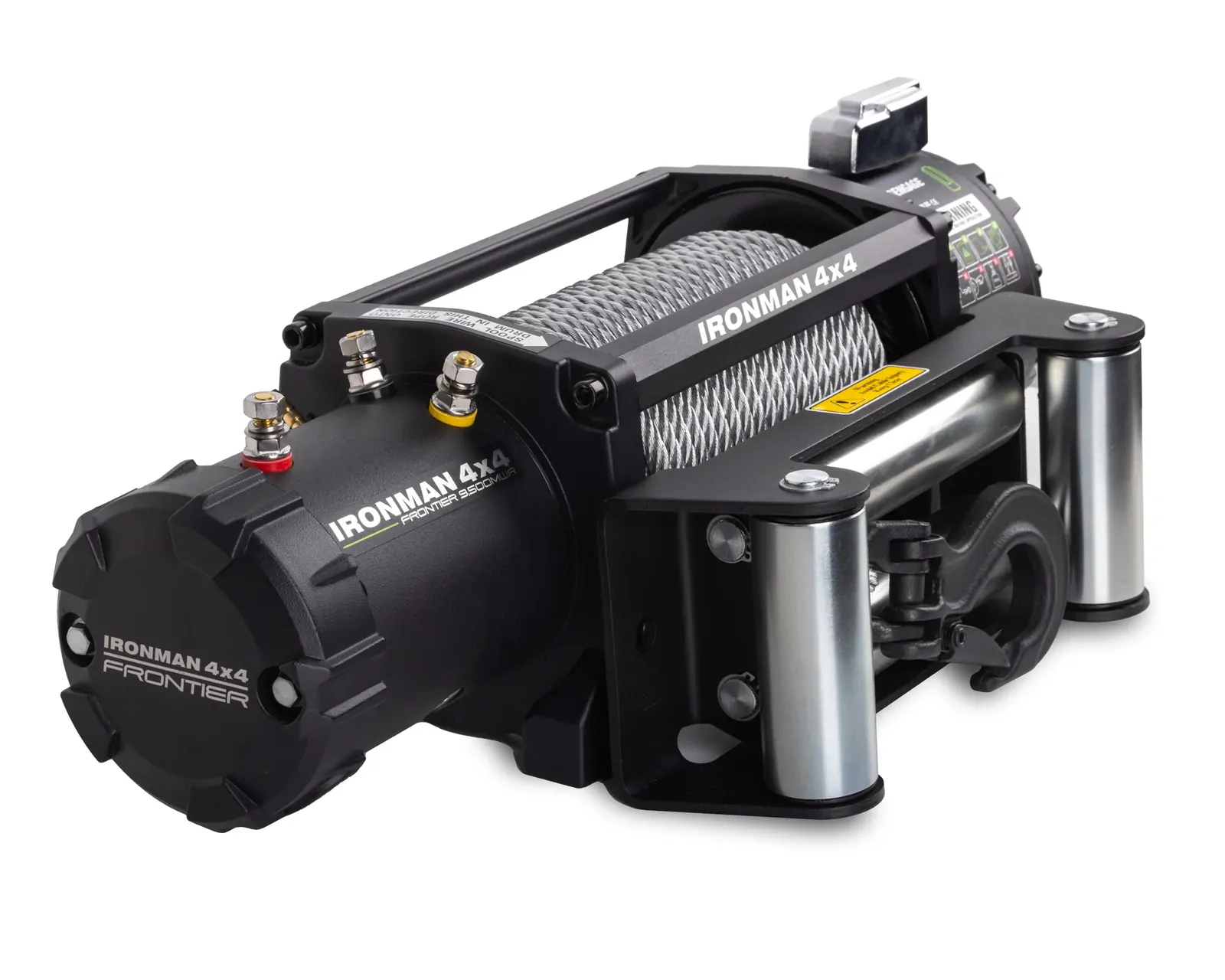

Get moving with the Frontier 9,500lb Synthetic, perfect for vehicles weighing between 2,100 and 2,900kg.

The Frontier winch range has been built on the back of over 10 years of development on the outgoing range of Monster winch family.

Key Features

  • Super-strong, low maintenance wire rope
  • IP68 Submersible to 1 metre for 30min
  • Built-in breather for durability
  • Decade-proven mechanical design
  • Wireless remote (you can plug in)
  • Strong 6HP engine
  • 5 Year mechanical warranty

Specifications

Winches Brake

AUTO CAM LOCK IN BRAKE

Winches Motor

4.5HP

Mounting Bolt Pattern

25.4cm x 11.43cm

Winches Cable Diameter

8.3 MM

Winches Cable Material

STEEL

Winches Gear Train / Reduction Ratio

218:1

Other

CLUTCH: CLOCKWISE-DISENGAGE/ ANTICLOCKWISE-ENGAGE

Dimensions (L x W x H)

53.5 cm x 18.2 cm x 16 cm

Power (V)

12

Winches Cable Length

28 M

Current Draw

CURRENT: 75A

MAX: 360A

Inclusions

MOTOR BREATHER

IP Rating

IP68

Max Rating (Ib)

9500

Performance Specifications

LINE SPEED:

FT/MIN @ (no load) : 34.56ft/m


FT/MIN @ (full load) : 7.38ft/m

Product Weight

37.5kg

Get moving with the Frontier 9,500lb Synthetic, perfect for vehicles weighing between 2,100 and 2,900kg.

The Frontier winch range has been built on the back of over 10 years of development on the outgoing range of Monster winch family.

Key Features

  • Super-strong, low maintenance wire rope
  • IP68 Submersible to 1 metre for 30min
  • Built-in breather for durability
  • Decade-proven mechanical design
  • Wireless remote (you can plug in)
  • Strong 6HP engine
  • 5 Year mechanical warranty
Winches Brake

AUTO CAM LOCK IN BRAKE

Winches Motor

4.5HP

Mounting Bolt Pattern

25.4cm x 11.43cm

Winches Cable Diameter

8.3 MM

Winches Cable Material

STEEL

Winches Gear Train / Reduction Ratio

218:1

Other

CLUTCH: CLOCKWISE-DISENGAGE/ ANTICLOCKWISE-ENGAGE

Dimensions (L x W x H)

53.5 cm x 18.2 cm x 16 cm

Power (V)

12

Winches Cable Length

28 M

Current Draw

CURRENT: 75A

MAX: 360A

Inclusions

MOTOR BREATHER

IP Rating

IP68

Max Rating (Ib)

9500

Performance Specifications

LINE SPEED:

FT/MIN @ (no load) : 34.56ft/m


FT/MIN @ (full load) : 7.38ft/m

Product Weight

37.5kg
