Description

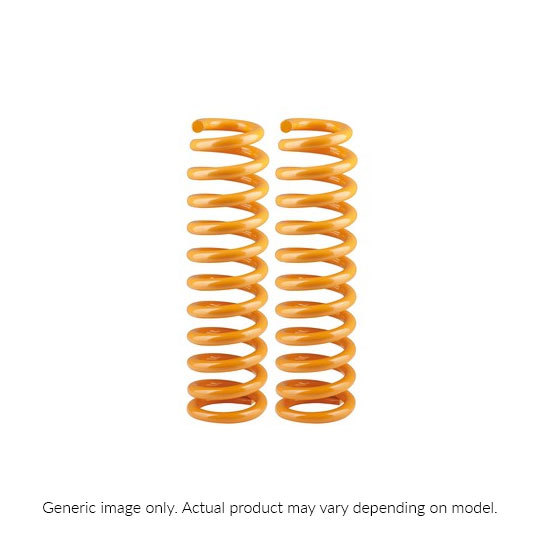

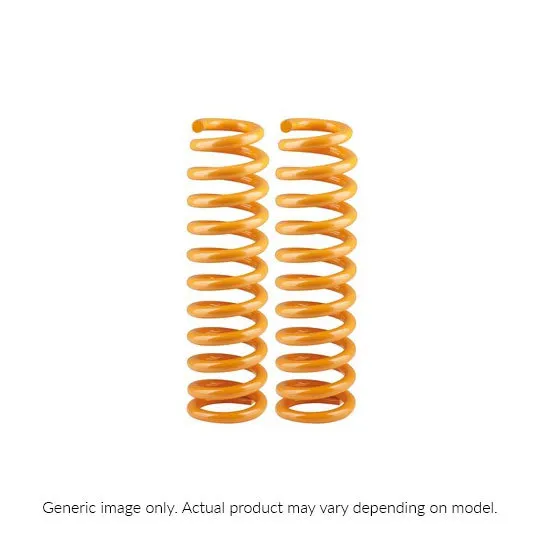

All Ironman coil springs are designed to provide a safe, comfortable ride while also providing additional ground clearance.

Ironman 4x4 coil springs are CNC cold wound and bar peeled for maximum reliability and consistency, every coil spring is ‘shot-blasted’ to ensure long life, preset to its solid height and load tested to avoid spring sag.

All springs are electro-static powder-coated for a gleaming appearance. Available in raised height and perfectly matched to Ironman 4x4 Shock Absorbers.

Specifications

  • Quantity Required: 1
  • Estimated Lift: 0mm
  • Additional Load: 0-50kg
  • Package Details: Pair
  • Additional Notes: Vehicles with independent suspension must maintain a minimum of 60mm downward suspension travel.
  • When Ordering: Select springs in accordance with your vehicles additional load.
  • Material Diameter: 17mm
  • Free Height: 362mm
  • End I/D: 66/76
  • Spring Rate (N/mm): 117
  • Spring Rate (Ibf/in): 669

Compatibility

  • Front:Holden Colorado/Isuzu D-Max RG 12-16
  • Holden Colorado 7 Trailblazer 2012+
  • Isuzu MU-X 2013+
