Description

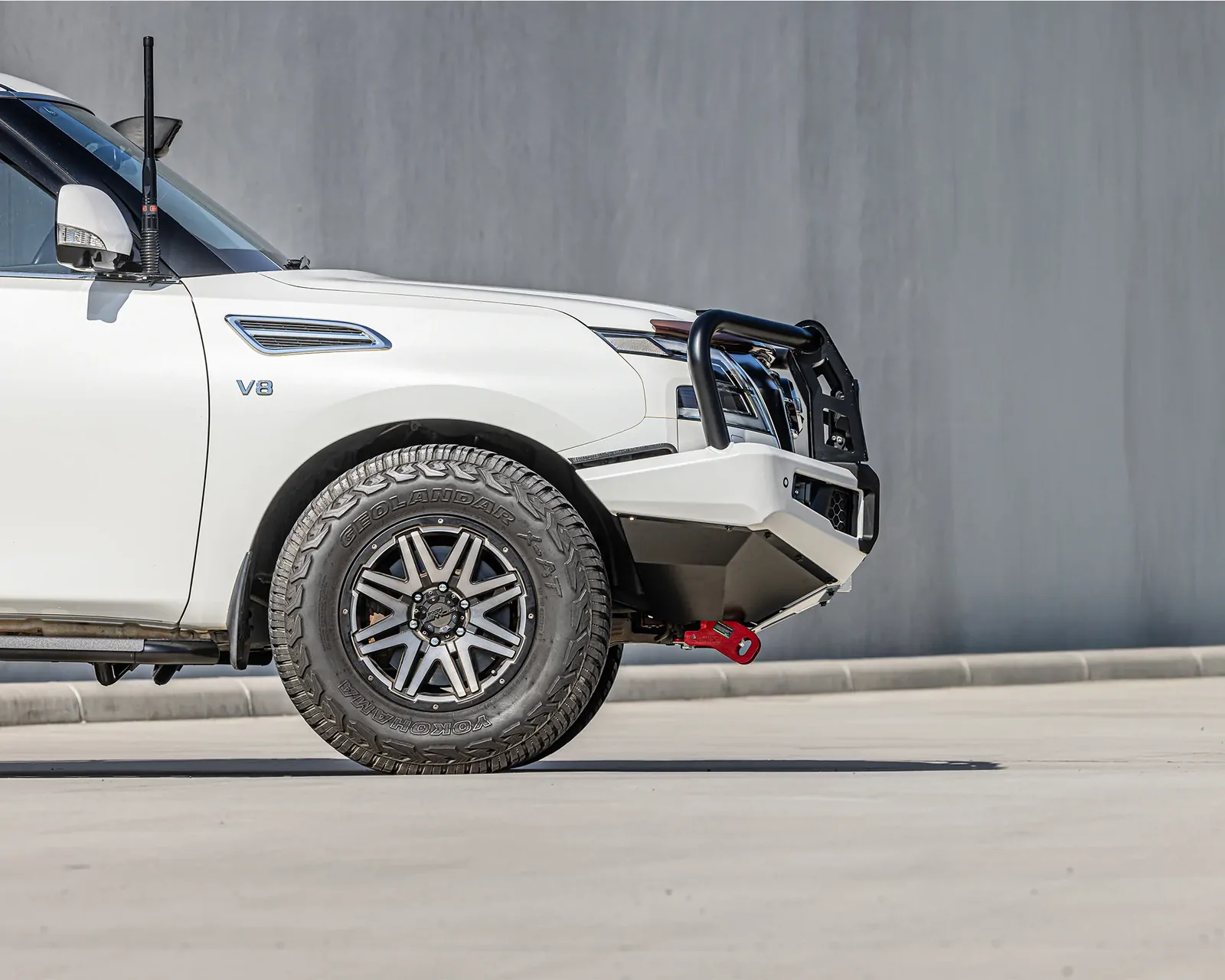

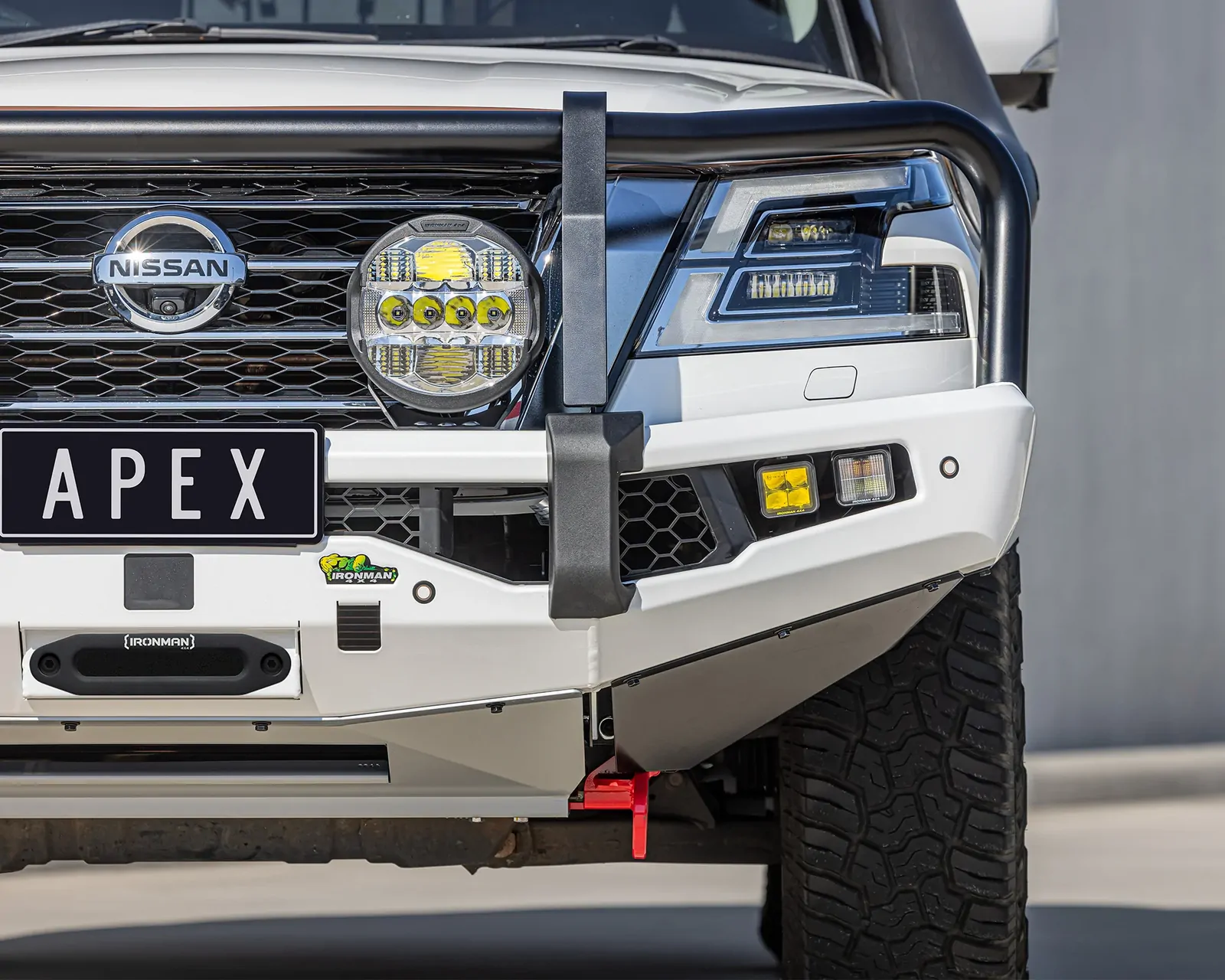

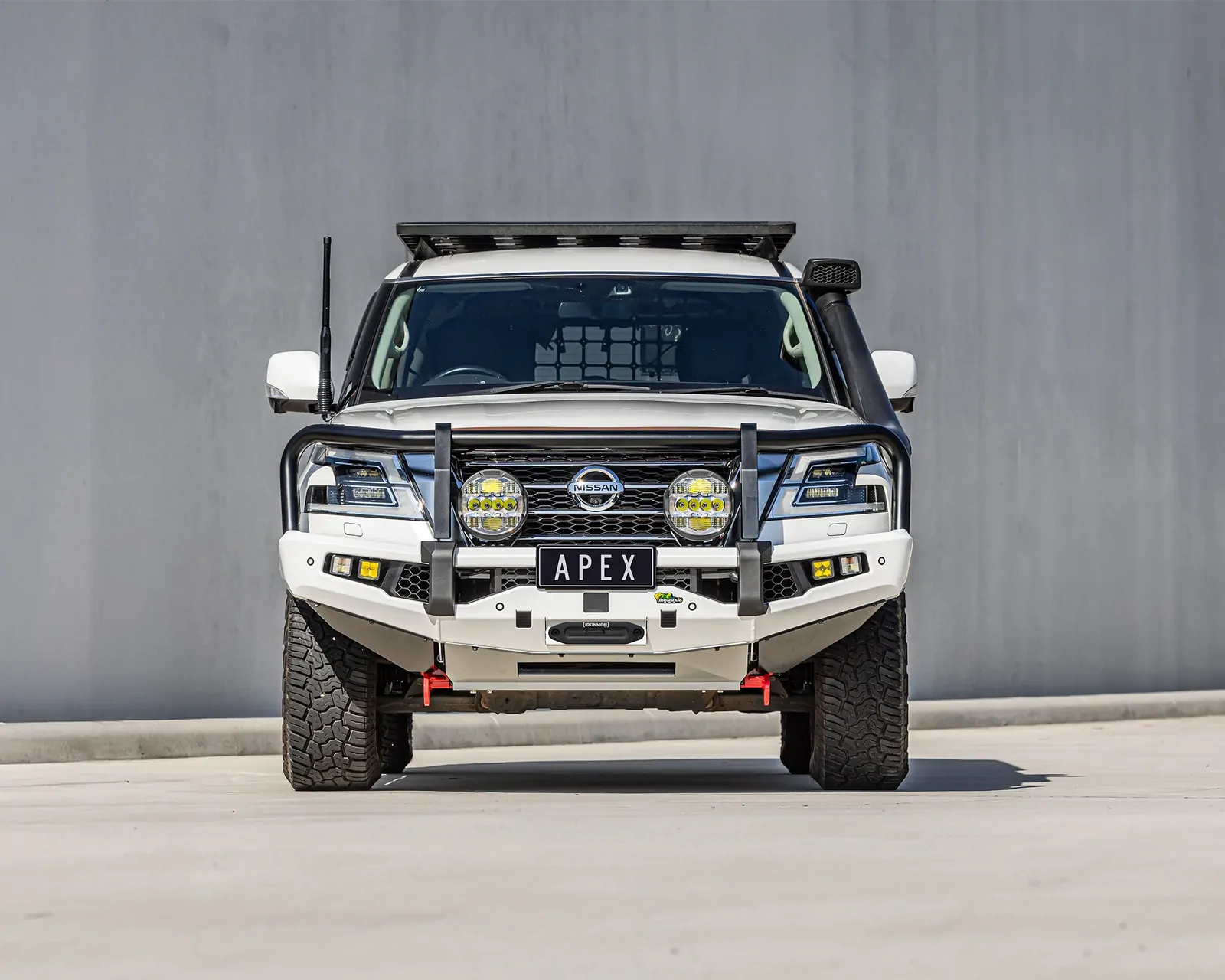

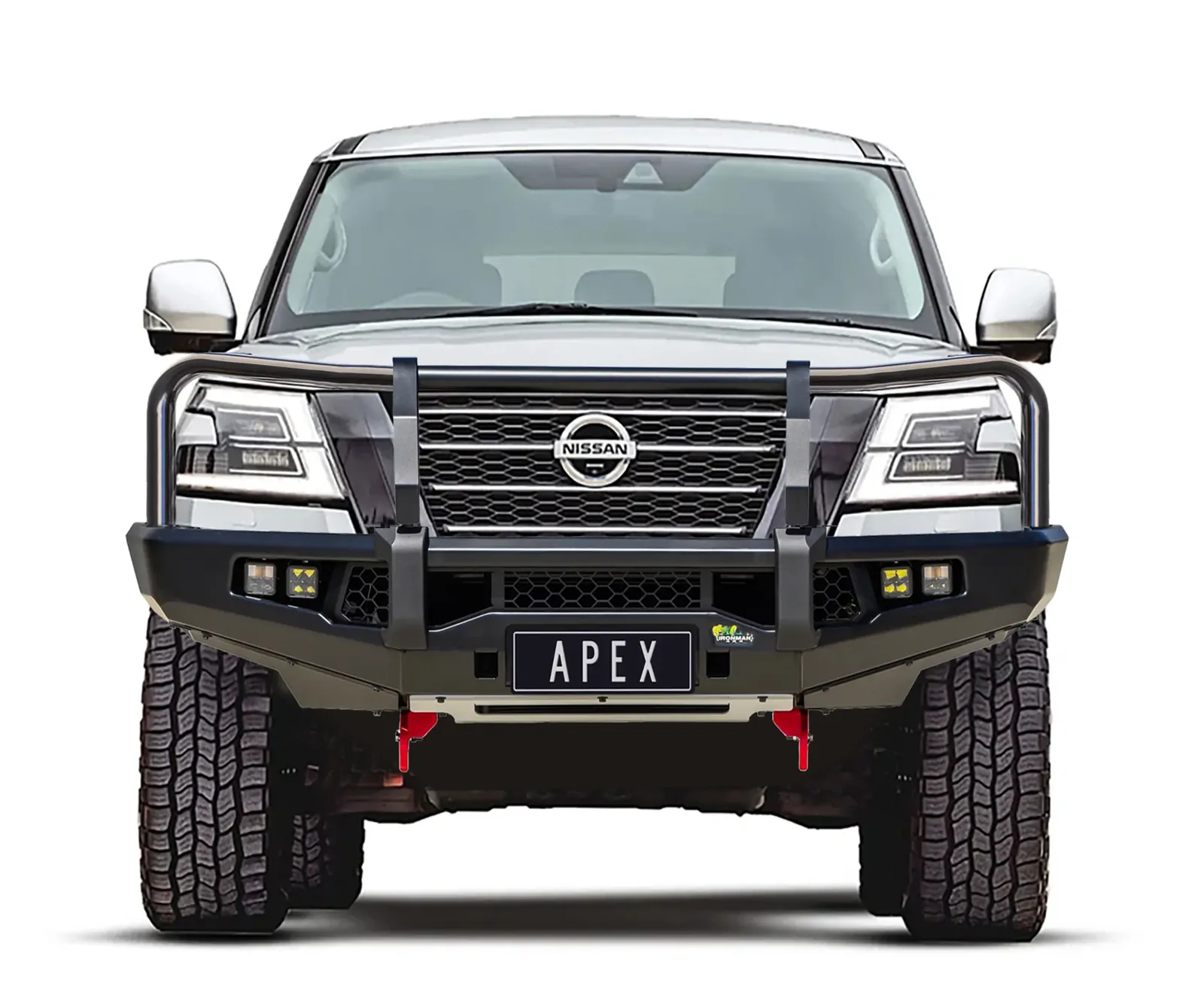

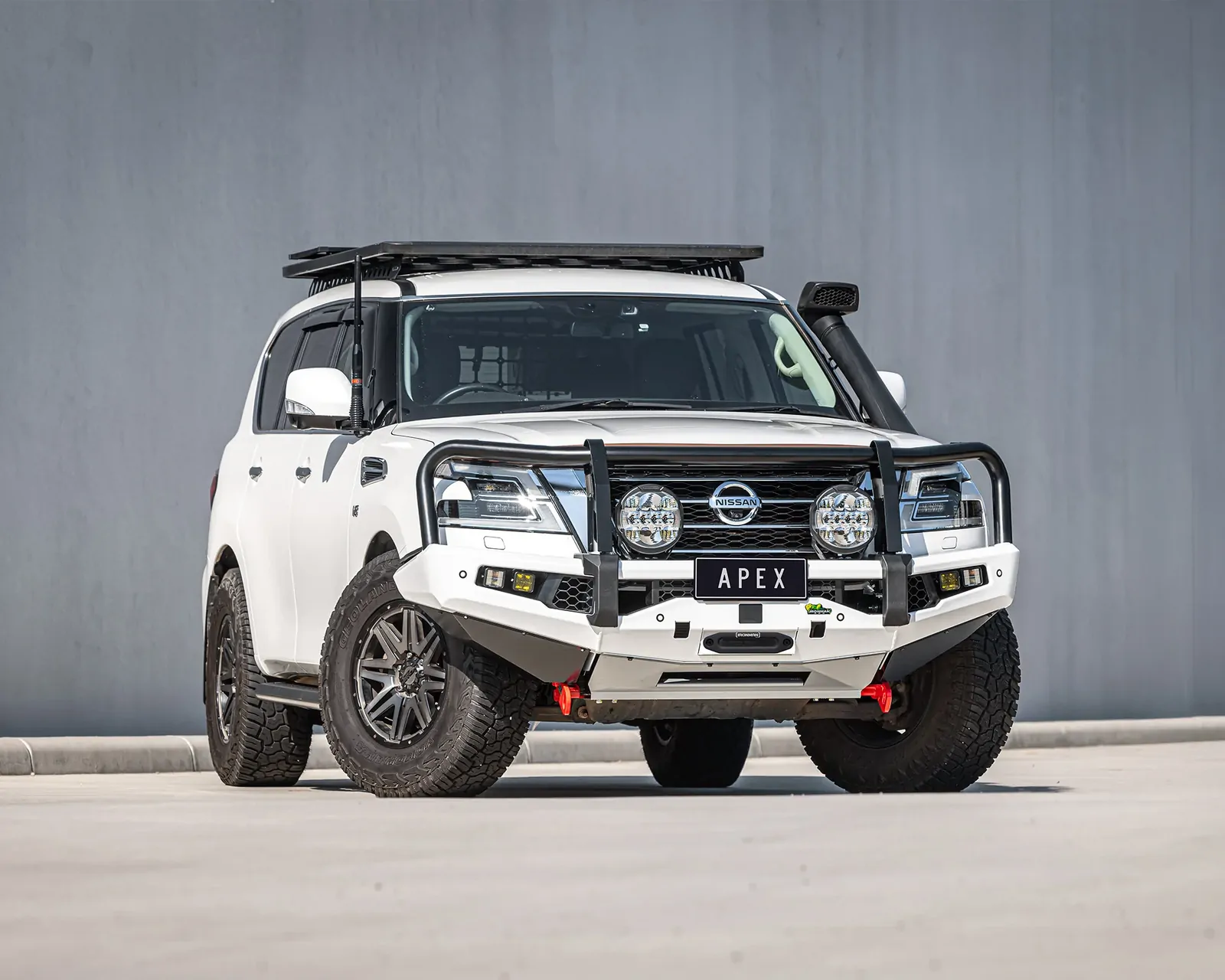

The APEX Bull Bar for the Nissan Patrol is a modern twist on a classic design.

The 'big bar' design features 60.3mm triple hoops and comes complete with integrated recovery points and a front 4mm bash plate.

The latest in bull bar designs includes a pod for optional cube fog, driving and turn park lights, to finish off the modern look.

Key Features

  • Flip up number plate bracket included
  • Led fog lights as standard
  • 360° Robotic welding for consistently precise welds resulting in peak quality and unequalled strength
  • Increased approach and departure angles provide maximum clearance for obstacles.
  • Rated 5000kg recovery points included
  • 4mm centre skid plate
  • 60.3mm tubular steel
  • High lift jack points
  • Colour code : satin black (900/97181) for main bar and all components.
  • Type of powder : AkzoNobel (polyester powder coating)

Specifications

Type

Item Group

LED Fog Lights

cube lilght (sold seperately)

Recovery Points

2x 5t

ADR Compliant

YES

Airbag Compatible

YES

Akzonobel Power Coating

Textured Matte Black

Bull Bar Body (MM)

3

Bumper Cut Required

YES

Colour Coding Compatible

YES

custrecord_pkfd_relveh_spectable_cubelig

4

Driving Lights

7-9in

DRL & Indicators

ILED2.5TURNPARK (sold separately)

E-Coated Rust Prevention

YES

Fairlead compatibility

HAWSE

Front Skid Plate (mm)

4

Light Bar

32in

Max Rating (Ib)

12000

Sensor & Radar Compatible

IDAS / ADAS Compatible

Synthetic & Steel Rope Compatible

YES

Winch Cradle (mm)

5

Compatibility

  • 2020-2025 Nissan Patrol, Y62, S5, All Variants

The APEX Bull Bar for the Nissan Patrol is a modern twist on a classic design.

The 'big bar' design features 60.3mm triple hoops and comes complete with integrated recovery points and a front 4mm bash plate.

The latest in bull bar designs includes a pod for optional cube fog, driving and turn park lights, to finish off the modern look.

Key Features

  • Flip up number plate bracket included
  • Led fog lights as standard
  • 360° Robotic welding for consistently precise welds resulting in peak quality and unequalled strength
  • Increased approach and departure angles provide maximum clearance for obstacles.
  • Rated 5000kg recovery points included
  • 4mm centre skid plate
  • 60.3mm tubular steel
  • High lift jack points
  • Colour code : satin black (900/97181) for main bar and all components.
  • Type of powder : AkzoNobel (polyester powder coating)
Type

Item Group

LED Fog Lights

cube lilght (sold seperately)

Recovery Points

2x 5t

ADR Compliant

YES

Airbag Compatible

YES

Akzonobel Power Coating

Textured Matte Black

Bull Bar Body (MM)

3

Bumper Cut Required

YES

Colour Coding Compatible

YES

custrecord_pkfd_relveh_spectable_cubelig

4

Driving Lights

7-9in

DRL & Indicators

ILED2.5TURNPARK (sold separately)

E-Coated Rust Prevention

YES

Fairlead compatibility

HAWSE

Front Skid Plate (mm)

4

Light Bar

32in

Max Rating (Ib)

12000

Sensor & Radar Compatible

IDAS / ADAS Compatible

Synthetic & Steel Rope Compatible

YES

Winch Cradle (mm)

5

  • 2020-2025 Nissan Patrol, Y62, S5, All Variants
