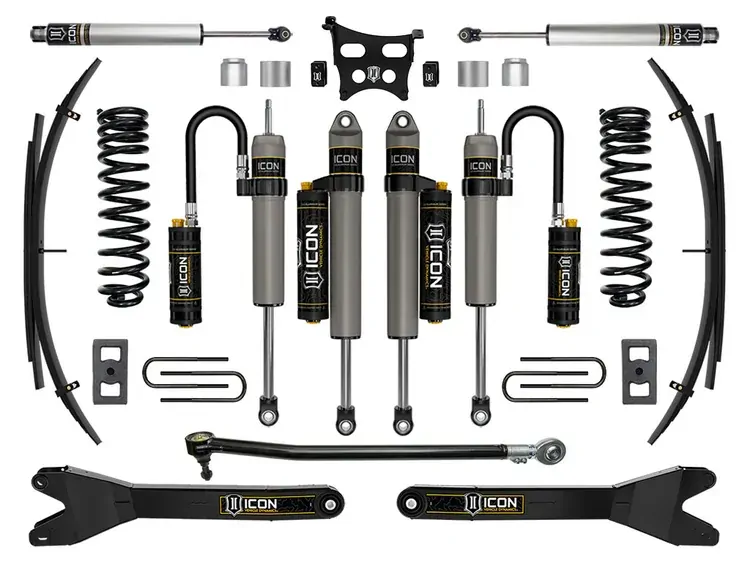

This ICON Vehicle Dynamics 2.5” suspension system is a great way to lift your 4WD 2023-2025 Ford F-250/F-350 Super Duty while drastically improving ride quality and performance. The Stage 5 system is perfect for on-road and off-road use including towing, job site duty and general off-road adventure. ICON's Stage 5 System is comprised of dual rate coil springs optimized for trucks equipped with diesel engines, dual steering stabilizer kit with ICON 2.0 Aluminum Series stabilizers, on-vehicle adjustable front track bar, fabricated radius arms, rear leaf spring expansion.

• ICON engineered dual rate coil springs provide 2.5” of front lift over stock
• Vehicle specific tuned piggyback reservoir 2.5 Aluminum Series shocks
• Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
• Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
• Dual steering stabilizer kit for smooth wheel control while driving
• Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
• Increased wheel travel and improved ride quality over stock with no change in towing capacity
• Adjustable track bar ensures proper axle placement and improves handling
• Less body-roll than stock
• Lifetime guarantee that springs won’t sag or break
• No drive shaft modifications required
• Shocks are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting or welding necessary for install

Technical Notes

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #1: Only fits 4WD models
• APPLICATION NOTE #3: Not compatible with F-350 Cab & Chassis models
• APPLICATION NOTE #6: Springs are rated for diesel engines only
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• APPLICATION NOTE #115: Lift heights based on 4WD Crew Cab diesel
• APPLICATION NOTE #151: Fits single rear wheel models only
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #161: If equipped with OnBoard Scales also requires sensor bracket part number 66203
• APPLICATION NOTE #166: If equipped with Dynamic Bending Headlamps and/or Onboard Scales part # 611081 is also required
• APPLICATION NOTE #209: Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
• TECH NOTE: Trucks equipped with Tremor package with have front lift height of 1.5" over stock
• TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
• TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
• TECH NOTE: Replaces OE rear blocks for .5" of rear lift over stock on F-250. Lowers F-350 rear ride height by .5" compared to stock.
