Description

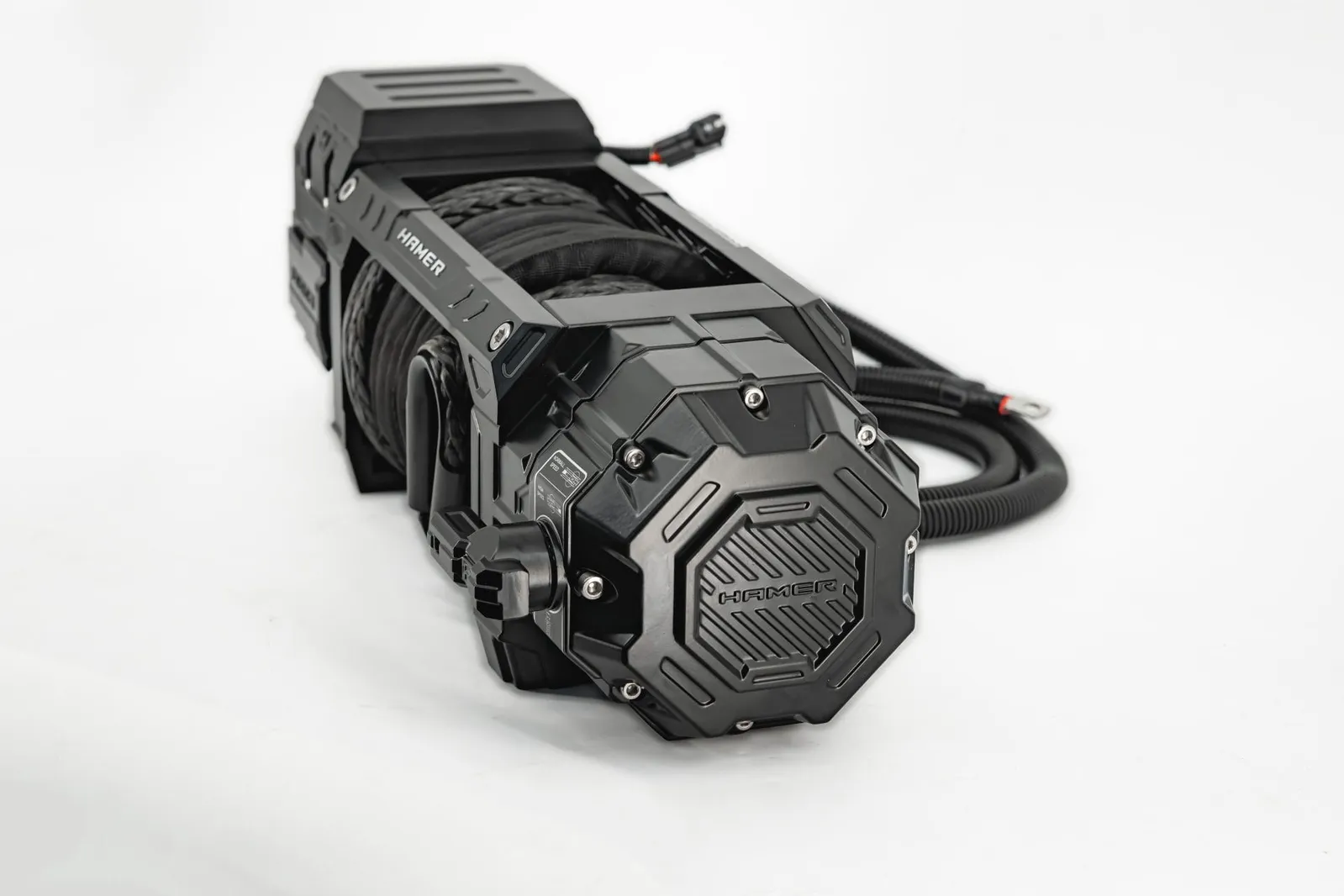

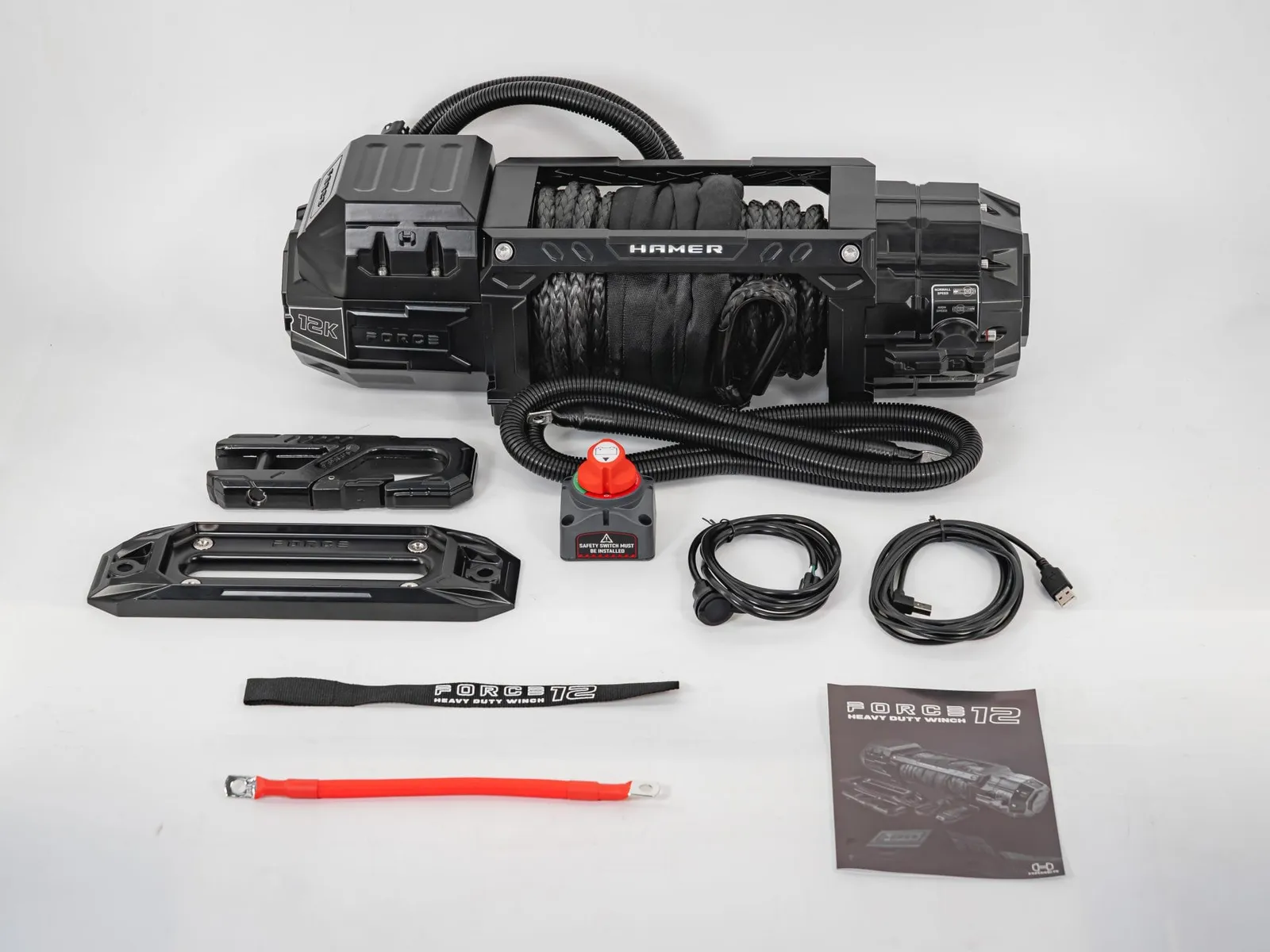

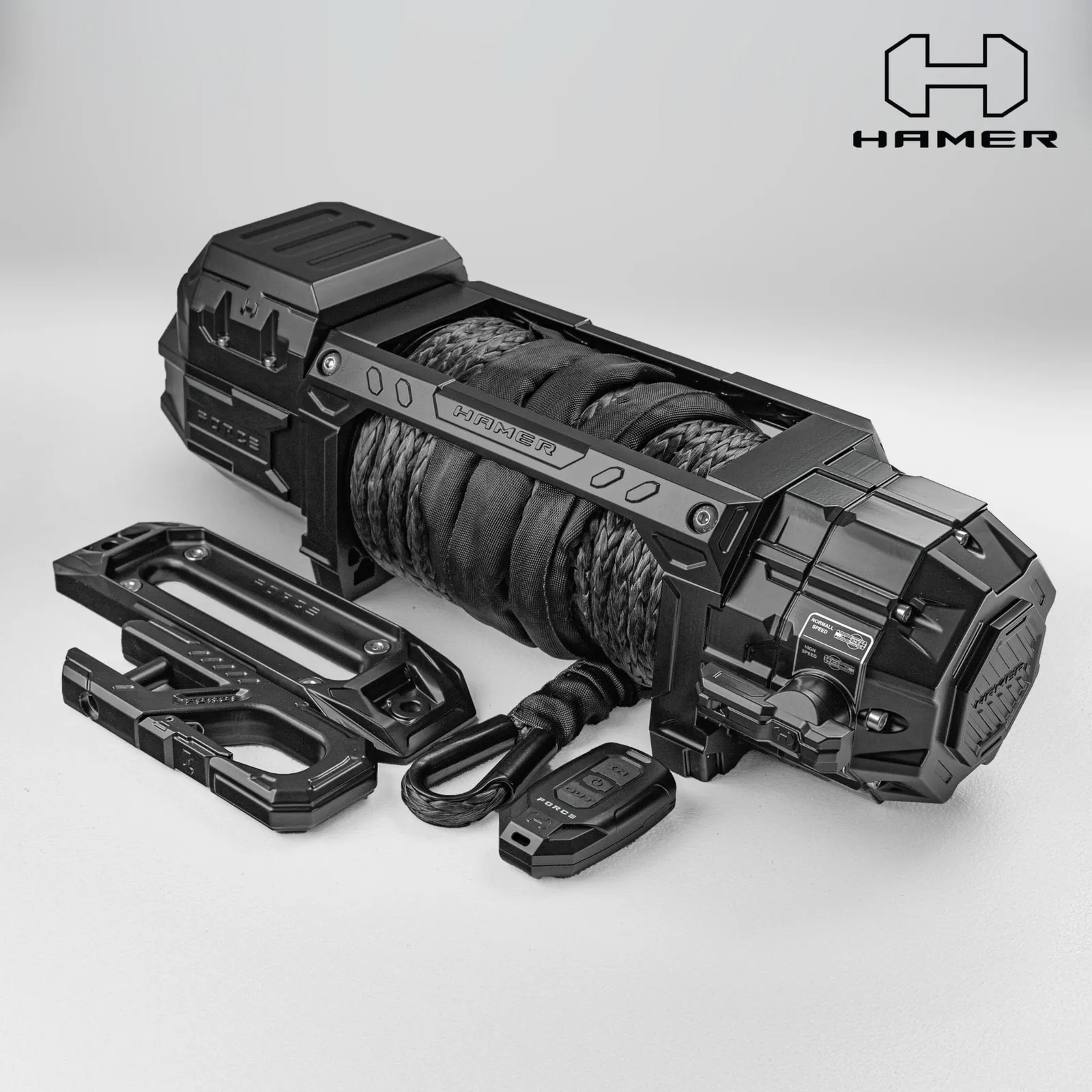

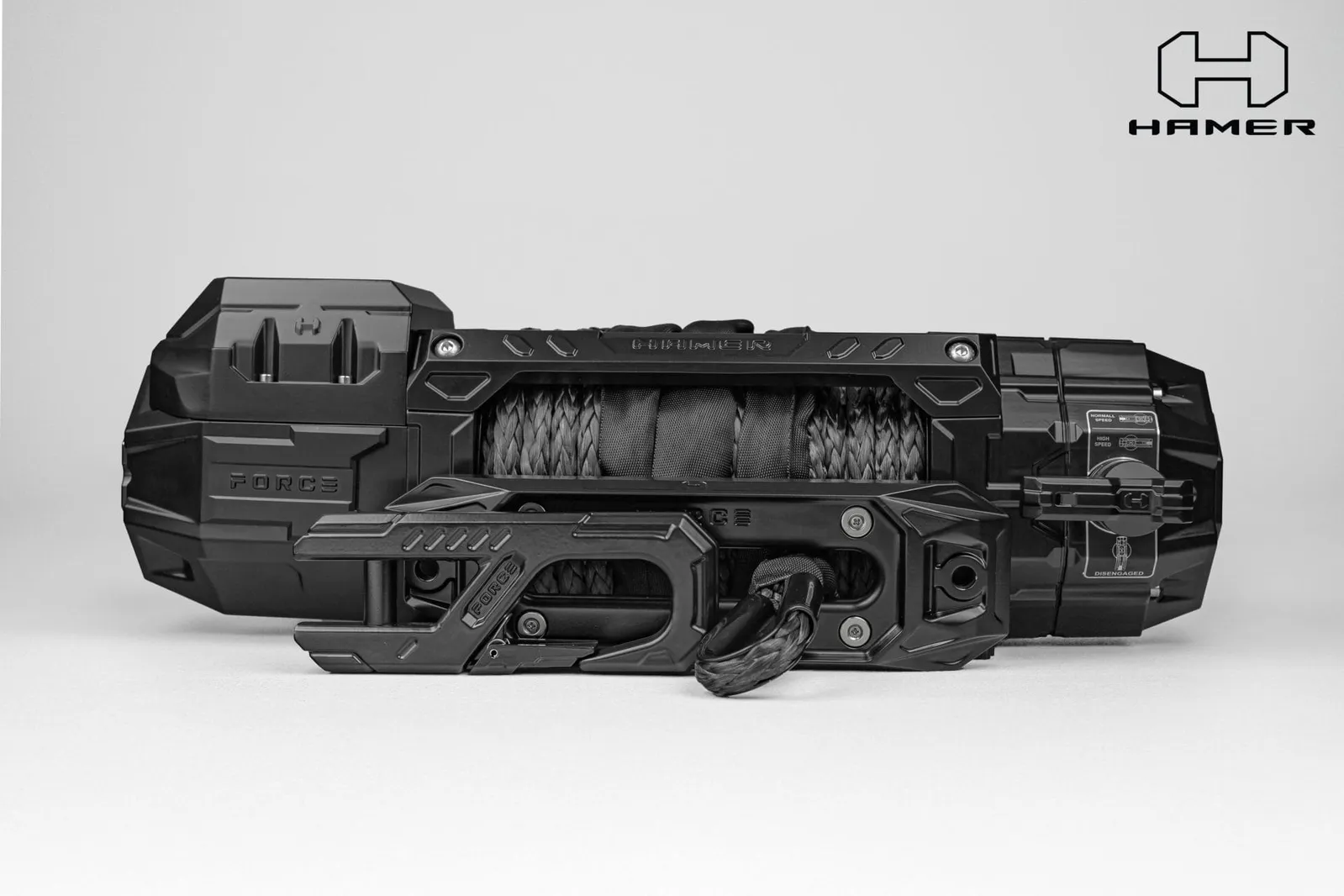

Model: Force Winch 12,000lbs / HA407-120

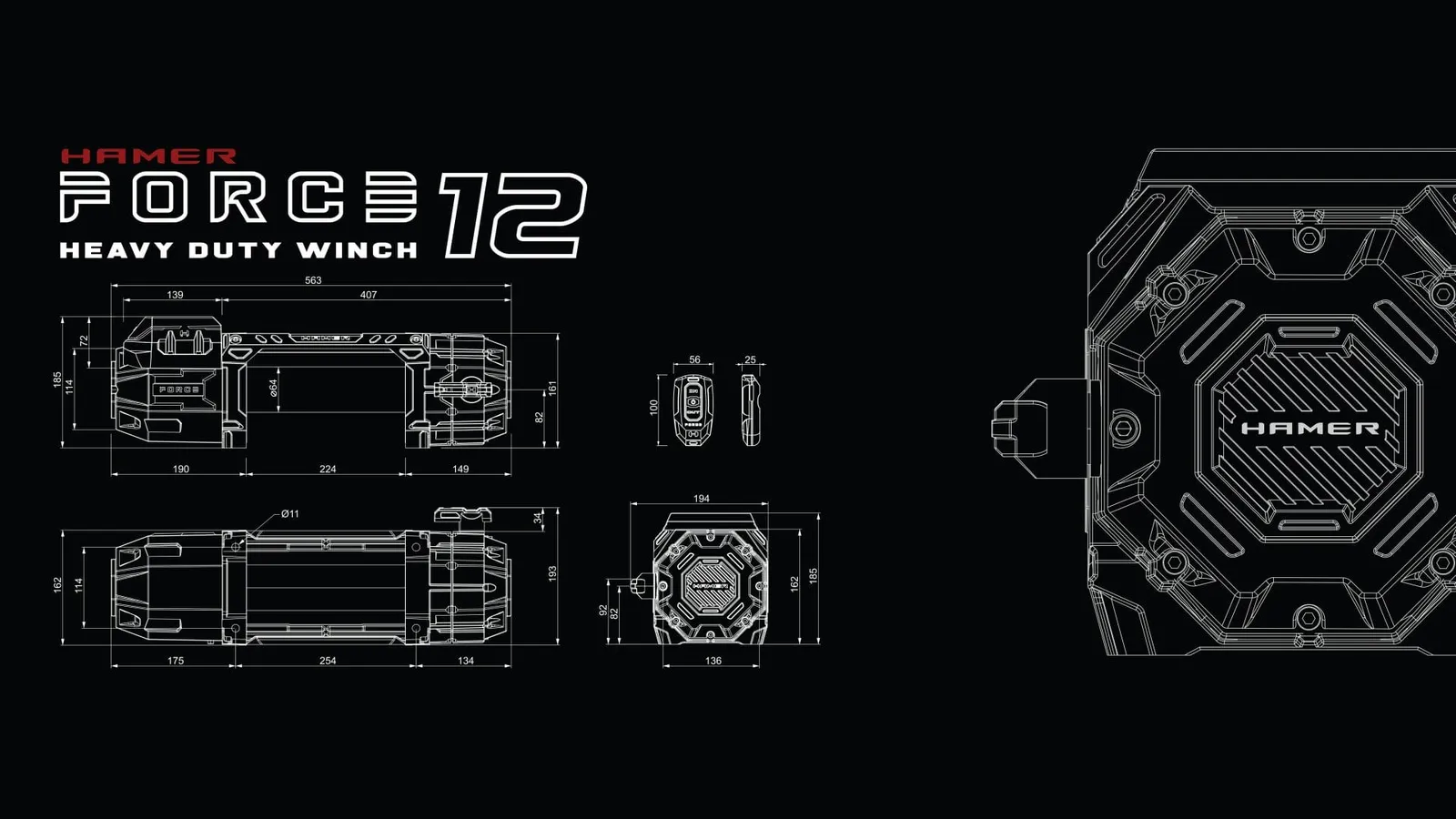

Dimensions: 563mm(L) x 194mm(W) x 185mm (H)

Winch Weight: 27kg

Rated Line Pull (1st Layer): 12,000lbs (5,443kg)

Motor: 4.5kw (6.0hp)

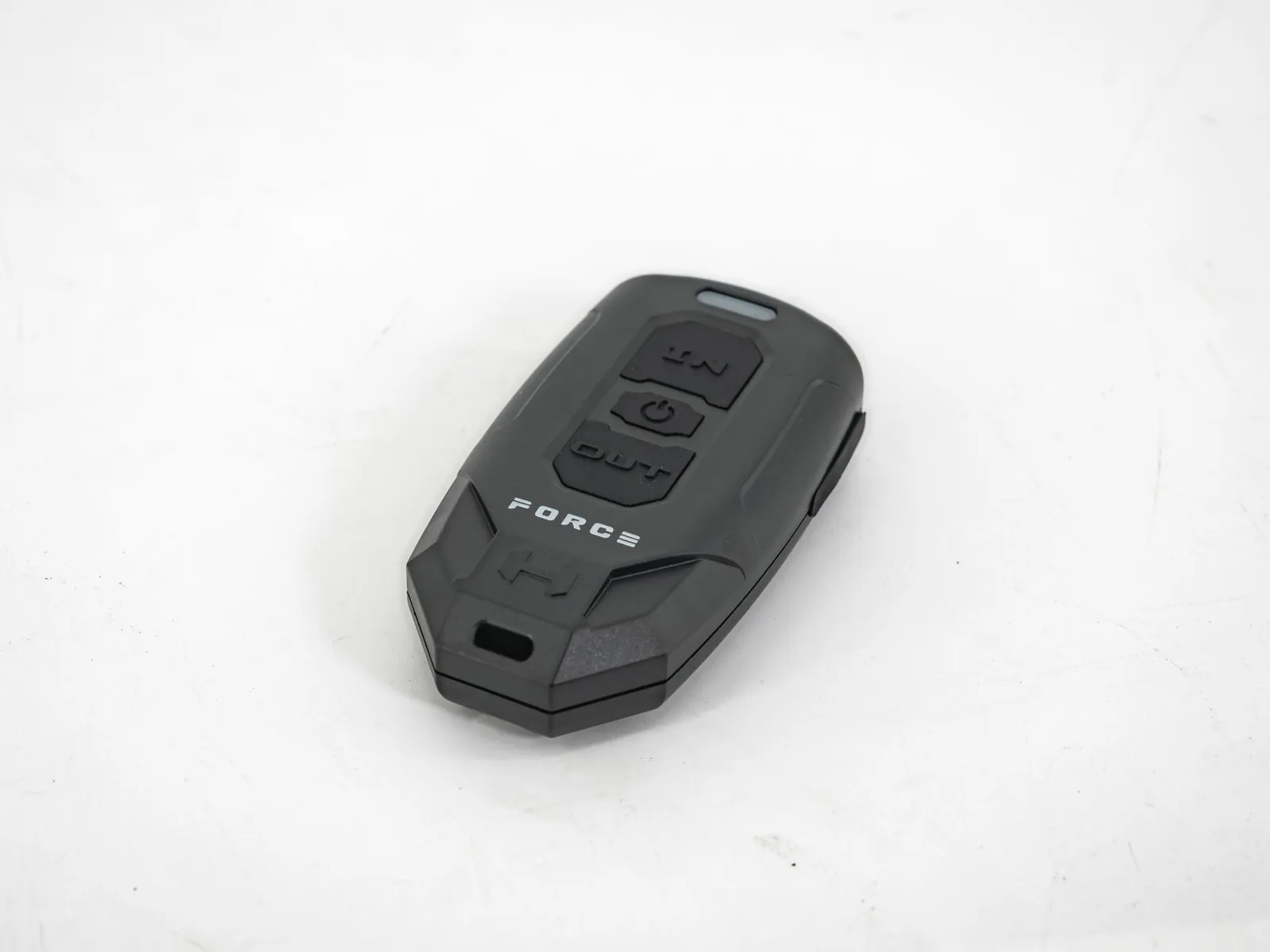

Remote Control: Dual Connection Remote – Wireless 25m Range / Wired 3m Lead

Electrical Contractor: DC Contactor – 500AMP

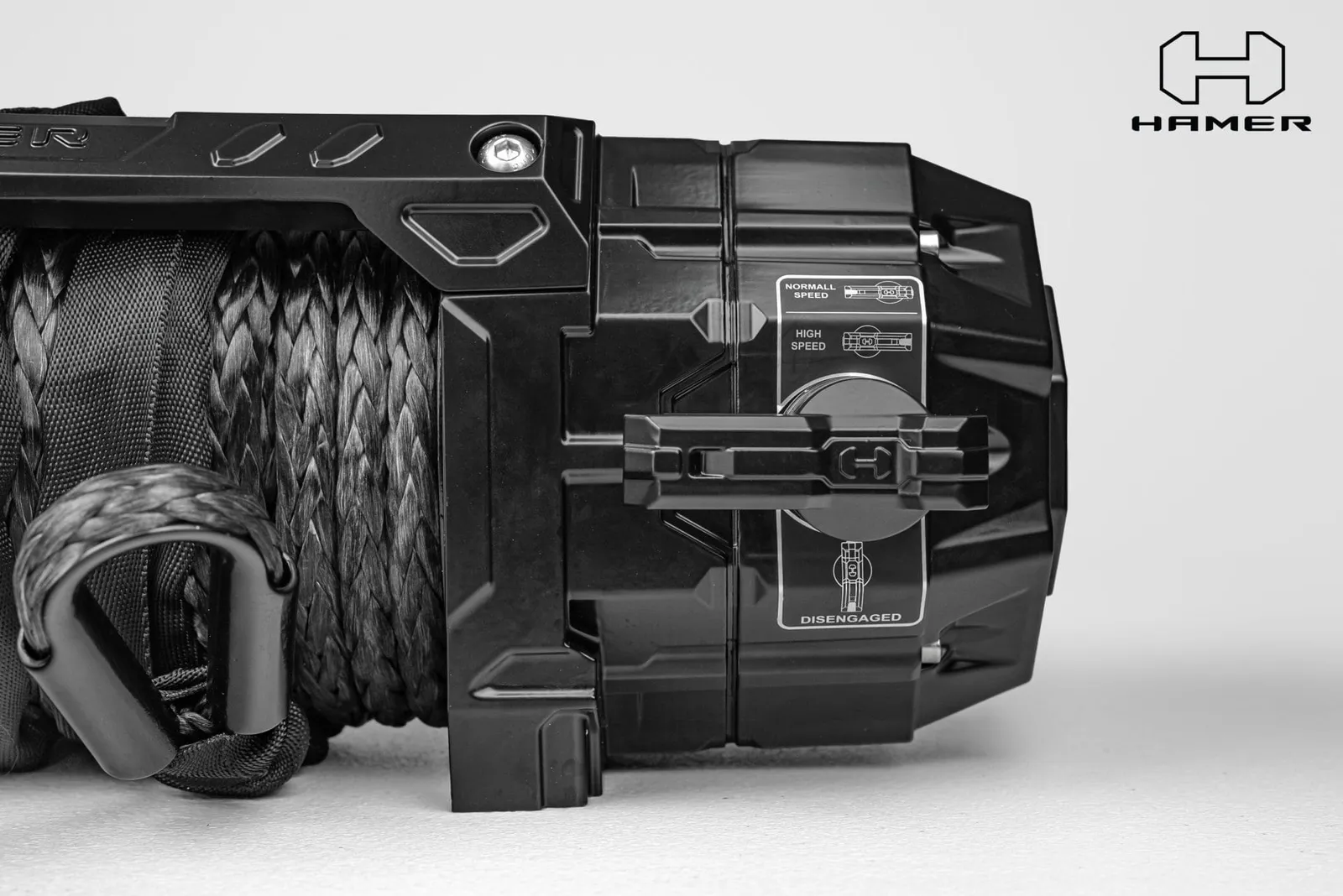

Gearbox: 2 Speed Gearbox & 4 Stage Planetary Gear (Can switch between high and low speed)

Brake System: Gearbox mounted 100% load holding proportional spring brake

Clutch: Rotating Ring Gear – Turn Handle

Rope: Black 11mm diameter x 24m Synthetic Rope with Protective Sleeve

Fairlead: Aircraft Grade Aluminum Hawse Fairlead with integrated Magnets

Finish: Electrophorus Pre Treated Black Satin Powder Coated Finish

Waterproof Ratings: IP68 Winch Motor and Gearbox

Warranty: Limited Lifetime Warranty (5 Year Warranty on Electrical Components)

Specifications

  • Model: Force Winch 12,000lbs / HA407-120 Dimensions: 563mm(L) x 194mm(W) x 185mm (H) Winch Weight: 27kg Rated Line Pull (1st Layer): 12,000lbs (5,443kg) Motor: 4.5kw (6.0hp) Remote Control: Dual Connection Remote – Wireless 25m Range / Wired 3m Lead Electrical Contractor: DC Contactor – 500AMP Gearbox: 2 Speed Gearbox & 4 Stage Planetary Gear (Can switch between high and low speed) Brake System: Gearbox mounted 100% load holding proportional spring brake Clutch: Rotating Ring Gear – Turn Handle Rope: Black 11mm diameter x 24m Synthetic Rope with Protective Sleeve Fairlead: Aircraft Grade Aluminum Hawse Fairlead with integrated Magnets Finish: Electrophorus Pre Treated Black Satin Powder Coated Finish Waterproof Ratings: IP68 Winch Motor and Gearbox Warranty: Limited Lifetime Warranty (5 Year Warranty on Electrical Components)

Compatibility

  • Universal Part



Model: Force Winch 12,000lbs / HA407-120

Dimensions: 563mm(L) x 194mm(W) x 185mm (H)

Winch Weight: 27kg

Rated Line Pull (1st Layer): 12,000lbs (5,443kg)

Motor: 4.5kw (6.0hp)

Remote Control: Dual Connection Remote – Wireless 25m Range / Wired 3m Lead

Electrical Contractor: DC Contactor – 500AMP

Gearbox: 2 Speed Gearbox & 4 Stage Planetary Gear (Can switch between high and low speed)

Brake System: Gearbox mounted 100% load holding proportional spring brake

Clutch: Rotating Ring Gear – Turn Handle

Rope: Black 11mm diameter x 24m Synthetic Rope with Protective Sleeve

Fairlead: Aircraft Grade Aluminum Hawse Fairlead with integrated Magnets

Finish: Electrophorus Pre Treated Black Satin Powder Coated Finish

Waterproof Ratings: IP68 Winch Motor and Gearbox

Warranty: Limited Lifetime Warranty (5 Year Warranty on Electrical Components)

  • Model: Force Winch 12,000lbs / HA407-120 Dimensions: 563mm(L) x 194mm(W) x 185mm (H) Winch Weight: 27kg Rated Line Pull (1st Layer): 12,000lbs (5,443kg) Motor: 4.5kw (6.0hp) Remote Control: Dual Connection Remote – Wireless 25m Range / Wired 3m Lead Electrical Contractor: DC Contactor – 500AMP Gearbox: 2 Speed Gearbox & 4 Stage Planetary Gear (Can switch between high and low speed) Brake System: Gearbox mounted 100% load holding proportional spring brake Clutch: Rotating Ring Gear – Turn Handle Rope: Black 11mm diameter x 24m Synthetic Rope with Protective Sleeve Fairlead: Aircraft Grade Aluminum Hawse Fairlead with integrated Magnets Finish: Electrophorus Pre Treated Black Satin Powder Coated Finish Waterproof Ratings: IP68 Winch Motor and Gearbox Warranty: Limited Lifetime Warranty (5 Year Warranty on Electrical Components)
  • Universal Part
