Description

The Nissan Patrol GQ/GU is absolutely the "King Of Offroad" with its live axle suspension design, robust diffs and chassis. And if you're lucky enough to have a TD4.2T you are living the absolute Patrol Dream!

But if you don't you can still take advantage of the Patrols suspension and offroad ability. Improve that offroad flex and and ride comfort and get a set of Carbon Remote Res. 2.5" body shocks to complete your offroad weapon build.

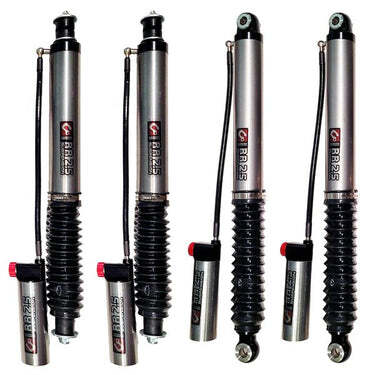

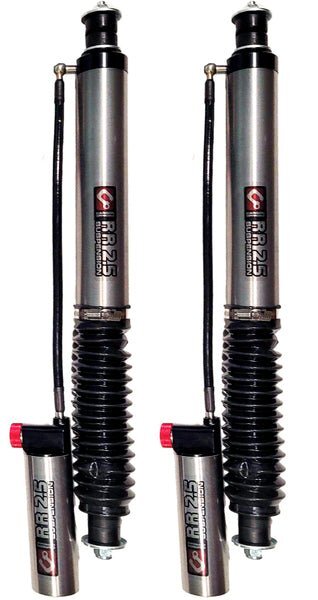

Carbon RR 2.5 Adjustable Shock Absorbers

Perfect the Ride you want - 20 Stage Adjustable Damping Control Valve

The new range of Remote Res Monotube Shocks from Carbon

is ready to take on anything you can throw at it.

Specifications

Carbon RR 2.5 Shock Specifications (Main Shock Body)
  • Monotube Design- Maximum fluid volume and control
  • 3.75mm Brushed Steel Nickle Plated Body - Maximum strength durability and protection
  • Front Shock Lengths - Open 552.5mm / Closed 342.5mm (measured from base of pin)
  • Rear Shock Lengths - Open 691mm / Closed 441mm (measured from centre of eye)
  • 2.5"/63.5mm Outer Body - Increased fluid volume to prevent fade and improve control
  • 18mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
  • Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
  • Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
  • Quality Bushes - Polyurethane or pure rubber dependant on application - Complete with CNC Alloy Billet Tubes
  • Billet CNC T6 Alloy Anodised Shock Body Caps and Mounts

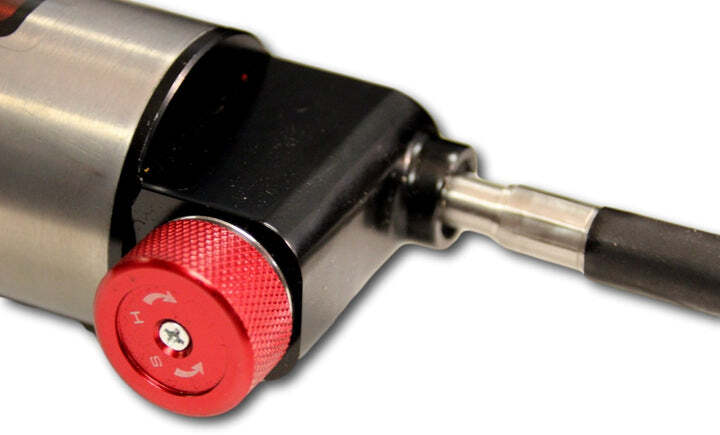

  • 20 Stage Valve Adjustment Control - Easily adjustable CNC Anodised knob for complete control enabling you to dial in the perfect ride
  • Seal - Active Shaft Seal - Provides a pressurised shaft sealing unit which has proven to have zero failure in all testing conditions.
  • Internal fluid - High quality Fuch shock absorber fluid able to withstand extreme temperatures
  • Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
  • Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
  • Nitrogen Gas Charged - to prevent fade and cavitation(foaming) of the fluid
  • Complete with concertina dust boots
Remote Res. Specifications
  • Monotube Design- Maximum fluid volume and control
  • 3.75mm Brushed Steel Nickle Plated Body - Maximum strength and durability
  • 20 Stage Valve Adjustment Control- - Easily adjustable CNC Anodised Knob for complete control enabling you to dial in the perfect ride
  • 2.5"/63.5mm Outer Body- - Increased fluid volume to prevent fade and improve control
  • 3.75mm H/D Steel Outer Wall Thickness- - Maximum strength and reliability
  • Remote Res Tube- - Stainless steel braided high pressure tubing with 360 Degree rotational ends for the perfect installation

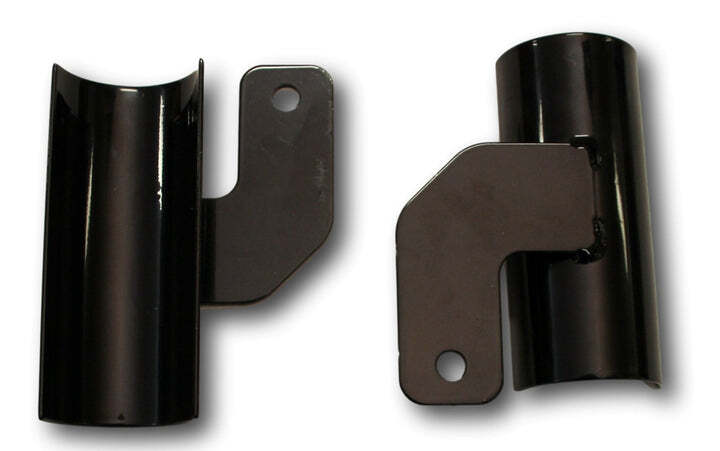

  • Mounting- - Complete with mounting hardware and brackets
  • Features- - Billet alloy end caps and anodised adjustment Knob stainless steel tube ends

Compatibility

  • Nissan Patrol GQ GU Y60 Y61 LWB
The Nissan Patrol GQ/GU is absolutely the "King Of Offroad" with its live axle suspension design, robust diffs and chassis. And if you're lucky enough to have a TD4.2T you are living the absolute Patrol Dream!

But if you don't you can still take advantage of the Patrols suspension and offroad ability. Improve that offroad flex and and ride comfort and get a set of Carbon Remote Res. 2.5" body shocks to complete your offroad weapon build.

Carbon RR 2.5 Adjustable Shock Absorbers

Perfect the Ride you want - 20 Stage Adjustable Damping Control Valve

The new range of Remote Res Monotube Shocks from Carbon

is ready to take on anything you can throw at it.
Carbon RR 2.5 Shock Specifications (Main Shock Body)
  • Monotube Design- Maximum fluid volume and control
  • 3.75mm Brushed Steel Nickle Plated Body - Maximum strength durability and protection
  • Front Shock Lengths - Open 552.5mm / Closed 342.5mm (measured from base of pin)
  • Rear Shock Lengths - Open 691mm / Closed 441mm (measured from centre of eye)
  • 2.5"/63.5mm Outer Body - Increased fluid volume to prevent fade and improve control
  • 18mm Hardened Chrome H/D Shaft - Tough Shaft for maximum durability
  • Piston Rings - Latest Piston Ring Technology - Full Teflon band seal
  • Piston Valve - Twin deflective disc for maximum control of fluid for both rebound and compression cycles
  • Quality Bushes - Polyurethane or pure rubber dependant on application - Complete with CNC Alloy Billet Tubes
  • Billet CNC T6 Alloy Anodised Shock Body Caps and Mounts
  • 20 Stage Valve Adjustment Control - Easily adjustable CNC Anodised knob for complete control enabling you to dial in the perfect ride
  • Seal - Active Shaft Seal - Provides a pressurised shaft sealing unit which has proven to have zero failure in all testing conditions.
  • Internal fluid - High quality Fuch shock absorber fluid able to withstand extreme temperatures
  • Internal Shock Specifications - Micro polished internal tube bore(mirror finish) to reduce drag and wear
  • Fully rebuildable - With a range of spare parts on the shelf for full Australian Support.
  • Nitrogen Gas Charged - to prevent fade and cavitation(foaming) of the fluid
  • Complete with concertina dust boots
Remote Res. Specifications
  • Monotube Design- Maximum fluid volume and control
  • 3.75mm Brushed Steel Nickle Plated Body - Maximum strength and durability
  • 20 Stage Valve Adjustment Control- - Easily adjustable CNC Anodised Knob for complete control enabling you to dial in the perfect ride
  • 2.5"/63.5mm Outer Body- - Increased fluid volume to prevent fade and improve control
  • 3.75mm H/D Steel Outer Wall Thickness- - Maximum strength and reliability
  • Remote Res Tube- - Stainless steel braided high pressure tubing with 360 Degree rotational ends for the perfect installation
  • Mounting- - Complete with mounting hardware and brackets
  • Features- - Billet alloy end caps and anodised adjustment Knob stainless steel tube ends
  • Nissan Patrol GQ GU Y60 Y61 LWB
