Description

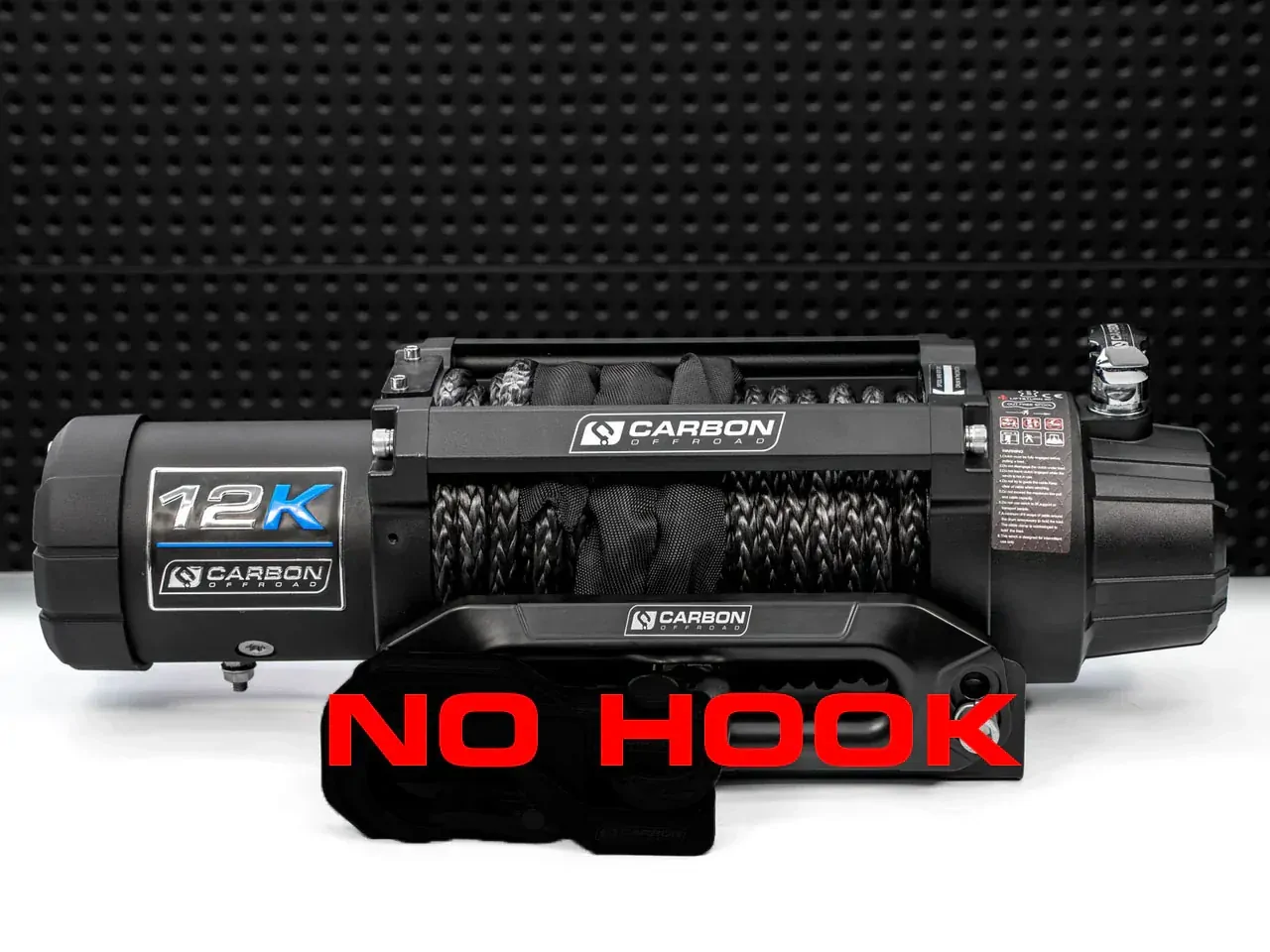

Carbon 12K Winch V3 - lightweight 19kg, IP68-rated recovery winch with wired and wireless remotes, isolator switch, and multi-fit control box mounting. Tough, reliable, and backed by a lifetime geartrain and 5-year electrical/water ingress warranty. (Hook/soft shackle not included.)

Line Pull lbs (kgs)	Line Speed ft/min (m/min)	Motor Current (Amps)	Rated Line Pull Position lbs (kgs)
0	43.3 (13.2)	70	1/12000 (5450)
2000 (910)	11.5 (3.5)	130	2/9800 (4450)
4000 (1810)	9.2 (2.8)	170	3/8300 (3770)
6000 (2720)	7.9 (2.4)	220	4/7200 (3270)
8000 (3630)	6.9 (2.1)	265	5/6400 (2900)
10000 (4540)	5.6 (1.7)	320	6/5800 (2650)
12000 (5450)	4.6 (1.4)	390	7/5300 (2420)

Specifications

Part number: CW-12k
Rated line pull: 12000 lbs, (5450 kg) single-line
Motor: 12V DC 6.2HP series wound motor (24V option available)
Remote Control: Remote Switch, 12ft (3.7m) lead.
Wireless Remote Control: Included
Geartrain: 3-Stage Planetary.
Gear Ratio: 216:1

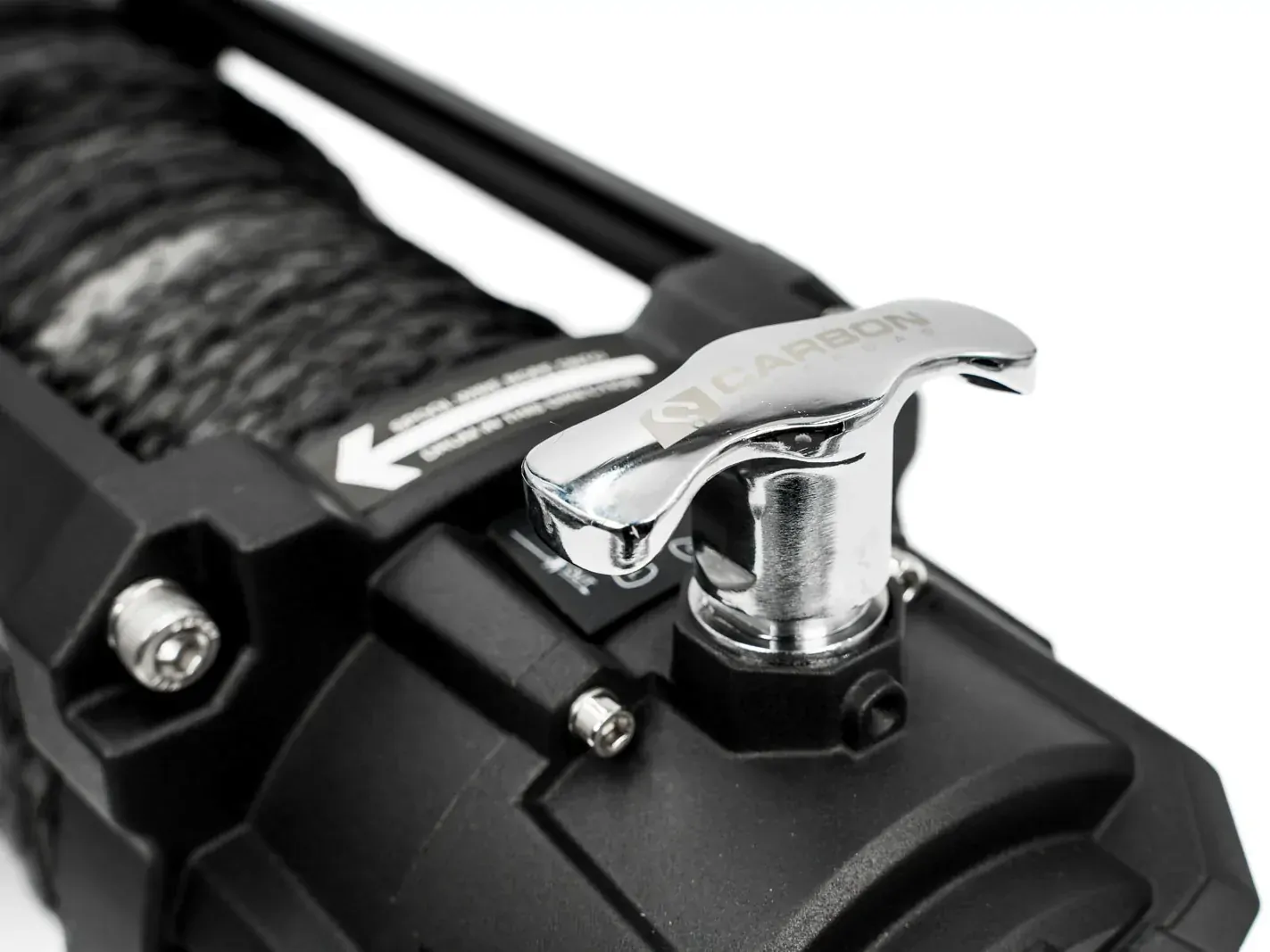

Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
Brake: Full load automatic brake installed in the motor housing end plate.
Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
Lifetime Mechanical Warranty
5 Year Electrical Warranty
5 Year Water Ingress Protection Warranty

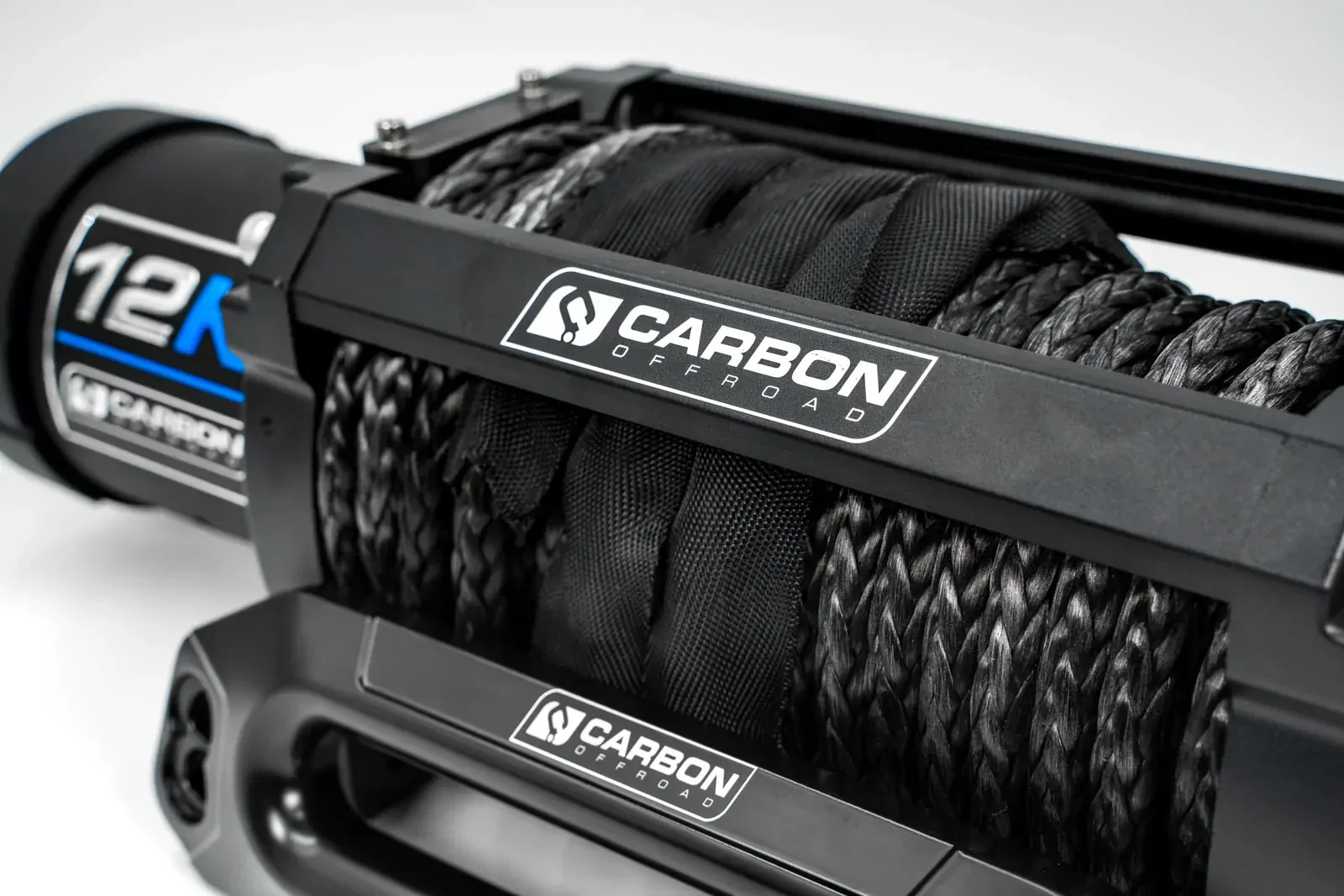

Synthetic Rope: 24m x 10mm diameter
Drum Diameter/Length: 64mm x 224mm
Mounting Bolt Pattern: 254mm x 114.3mm
Recommended Battery: 650 CCA minimum for winching
Winch Dimensions (L x W x H): 552 x 160 x 172mm (21.7'' x 6.3'' x 6.8'')
Packing Dimensions (L x W x H): 615 x 370 x 250mm (24.2" x 14.5" x 9.8")
Winch weight with synthetic rope attached: VERSION 3 - 19.0kg

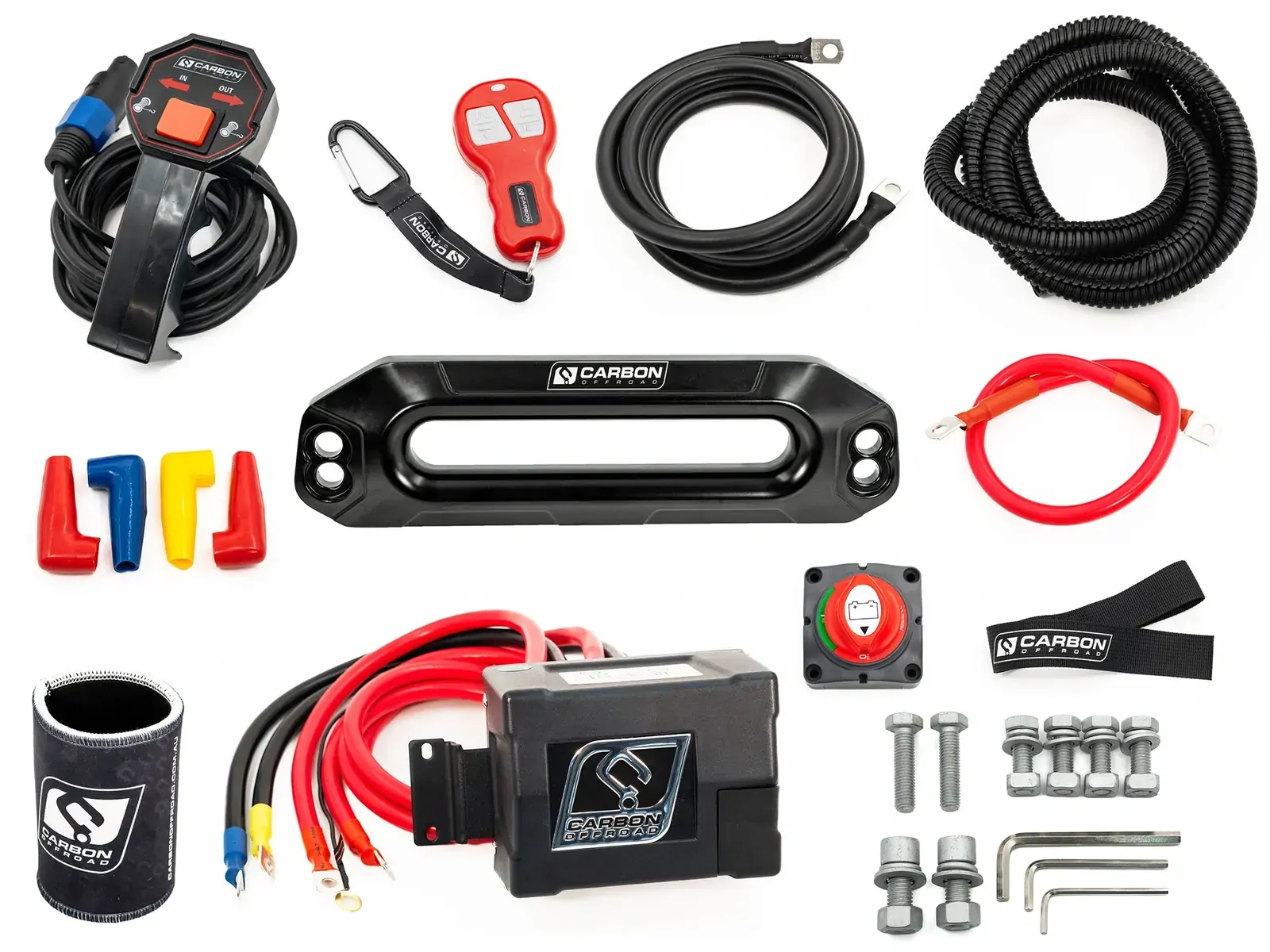

Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 25.95kg
