Description

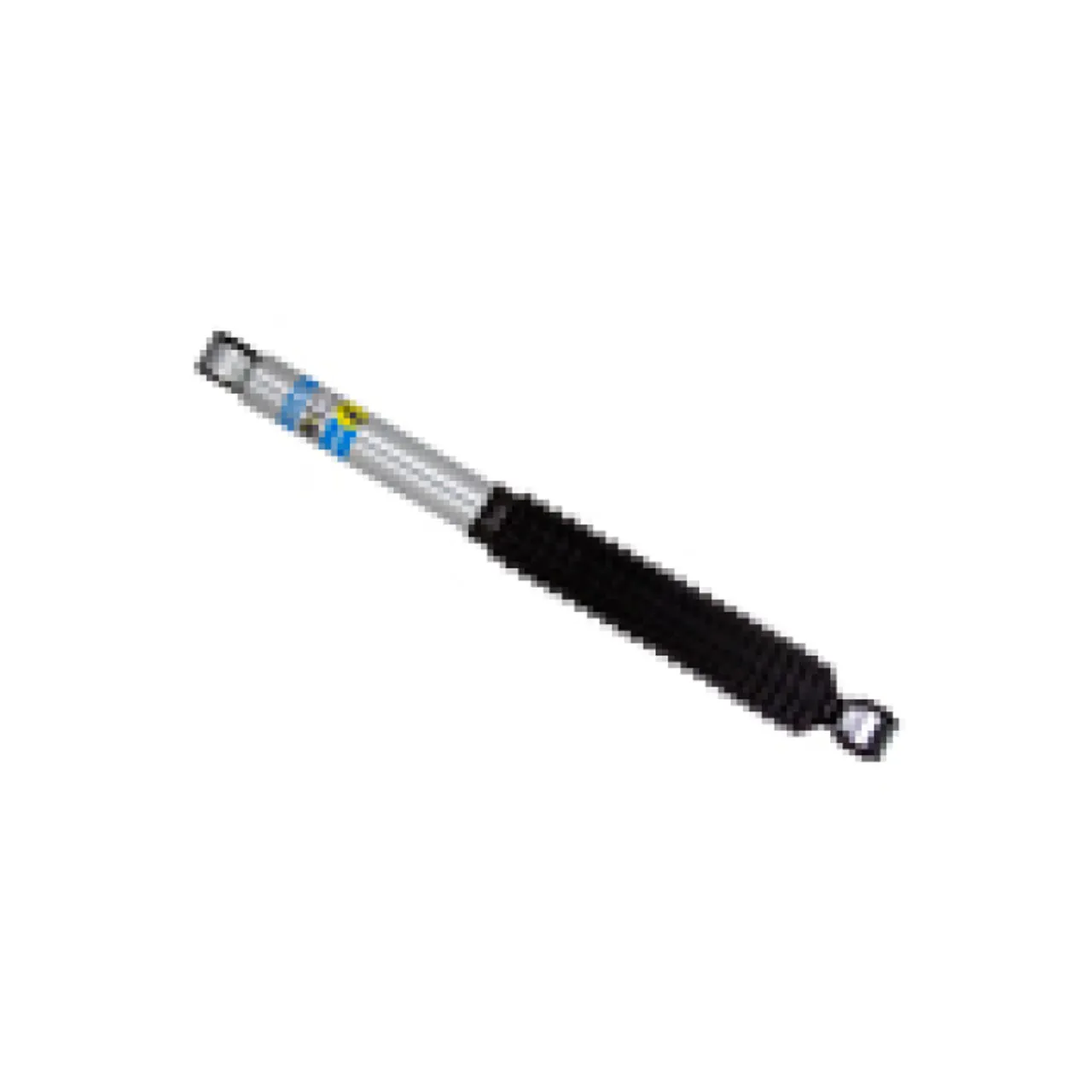

Bilstein - 33-268996

B8 5100 - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Adjustable Damping: Non-Adjustable
Body Design: Smooth Body (Non-Coilover)
Boot Included: Black Bellows
Spring Seat Included: No
Extended Length (IN): 25.81
Internal Design: Monotube
Lower Mount Type: Eye 14mm
Body Diameter (ID): 46mm
Collapsed Length (IN): 16.20
Series: B8 5100
Upper Mount Type: Eye 14mm
Collapsed Length (MM): 411.5
Finish: Zinc Plated
Extended Length (MM): 655.7
Reservoir: No

Compatibility

  • 2016-2019 Nissan Titan XD Platinum Reserve V8.-cc
  • 2016-2024 Nissan Titan XD Platinum Reserve V8.5552cc
  • 2020 Nissan Titan XD PRO-4X
  • 2016-2019 Nissan Titan XD PRO-4X V8.-cc
  • 2016-2024 Nissan Titan XD PRO-4X V8.5552cc
  • 2016-2019 Nissan Titan XD S V8.-cc
  • 2016-2023 Nissan Titan XD S V8.5552cc
  • 2016-2019 Nissan Titan XD SL V8.-cc
  • 2016-2022 Nissan Titan XD SL V8.5552cc
  • 2016-2019 Nissan Titan XD SV V8.-cc
  • 2016-2024 Nissan Titan XD SV V8.5552cc
