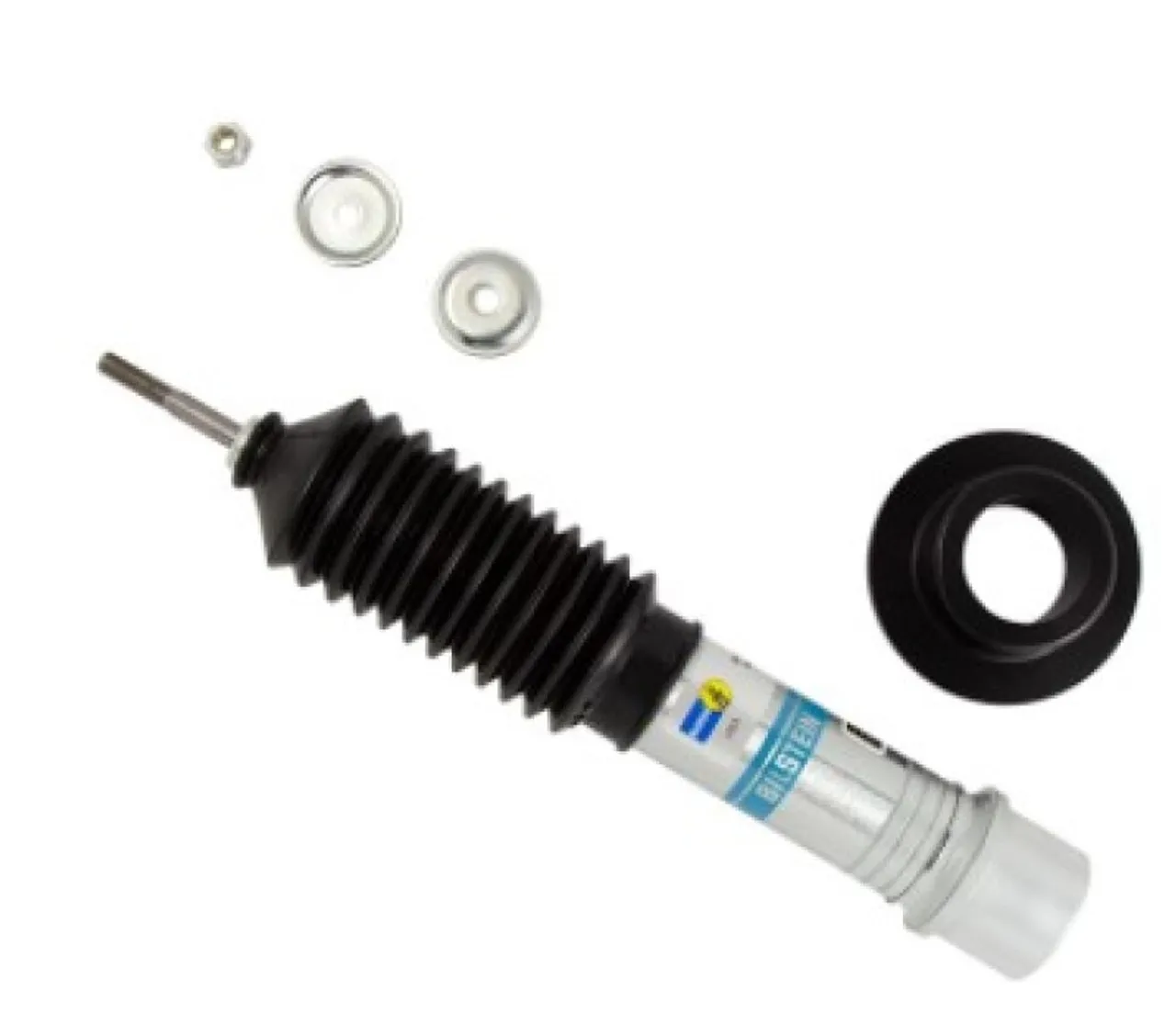

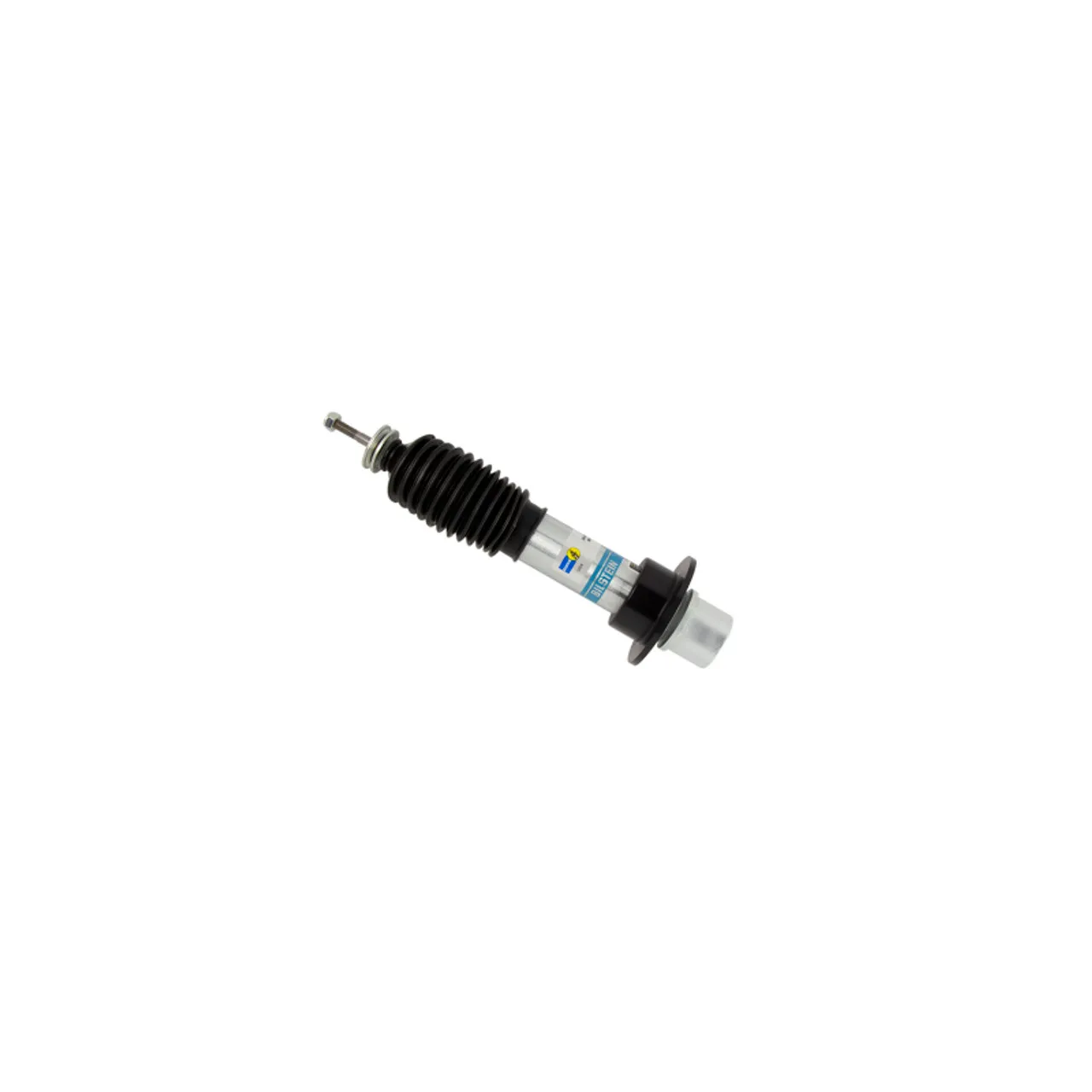

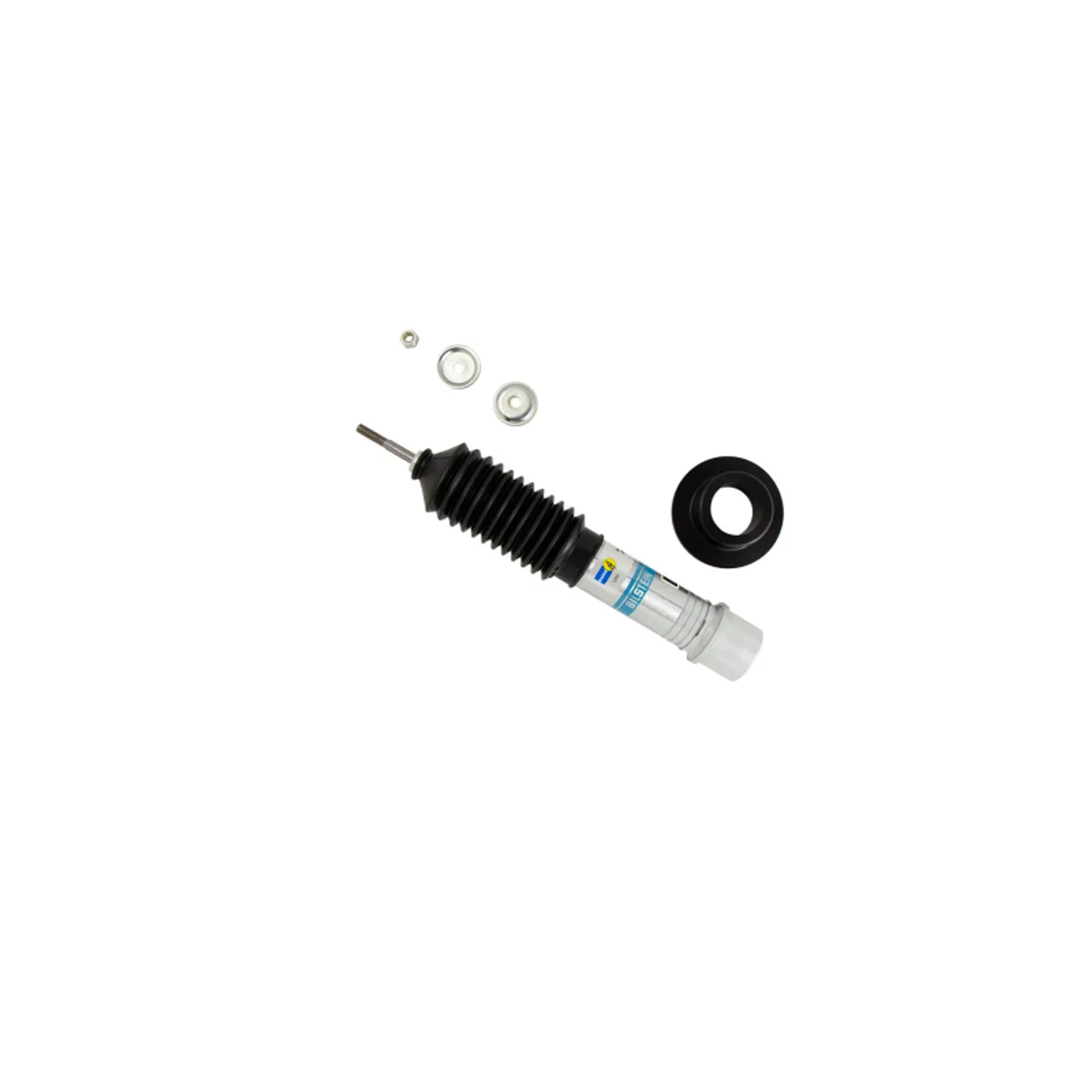

Bilstein - 24-282642

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Internal Design: Monotube
Reservoir: No
Boot Included: Black Bellows
Extended Length (MM): 355.3
Finish: Zinc Plated
Lower Mount Type: Base Cup
Upper Mount Type: Stem
Body Diameter (ID): 46mm
Collapsed Length (IN): 10.11
Extended Length (IN): 13.99
Adjustable Damping: Non-Adjustable
Series: B8 5100 (Ride Height Adjustable)
Collapsed Length (MM): 256.8
Body Design: Snap Ring Grooved Body (Coilover)
Spring Seat Included: Yes

Compatibility

  • 2006 Jeep Liberty 65th Anniversary Edition V6.-cc
  • 2012 Jeep Liberty Jet V6.-cc
  • 2005-2006 Jeep Liberty Limited L4.2768cc
  • 2002-2012 Jeep Liberty Limited V6.-cc
  • 2002-2006 Jeep Liberty Renegade V6.-cc
  • 2010-2011 Jeep Liberty Renegade V6.-cc
  • 2005 Jeep Liberty Rocky Mountain Edition V6.-cc
  • 2002-2005 Jeep Liberty Sport L4.-cc
  • 2005-2006 Jeep Liberty Sport L4.2768cc
  • 2002-2012 Jeep Liberty Sport V6.-cc

Bilstein - 24-282642

B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

46mm Monotube Shock Absorber

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Internal Design: Monotube
Reservoir: No
Boot Included: Black Bellows
Extended Length (MM): 355.3
Finish: Zinc Plated
Lower Mount Type: Base Cup
Upper Mount Type: Stem
Body Diameter (ID): 46mm
Collapsed Length (IN): 10.11
Extended Length (IN): 13.99
Adjustable Damping: Non-Adjustable
Series: B8 5100 (Ride Height Adjustable)
Collapsed Length (MM): 256.8
Body Design: Snap Ring Grooved Body (Coilover)
Spring Seat Included: Yes

  • 2006 Jeep Liberty 65th Anniversary Edition V6.-cc
  • 2012 Jeep Liberty Jet V6.-cc
  • 2005-2006 Jeep Liberty Limited L4.2768cc
  • 2002-2012 Jeep Liberty Limited V6.-cc
  • 2002-2006 Jeep Liberty Renegade V6.-cc
  • 2010-2011 Jeep Liberty Renegade V6.-cc
  • 2005 Jeep Liberty Rocky Mountain Edition V6.-cc
  • 2002-2005 Jeep Liberty Sport L4.-cc
  • 2005-2006 Jeep Liberty Sport L4.2768cc
  • 2002-2012 Jeep Liberty Sport V6.-cc
