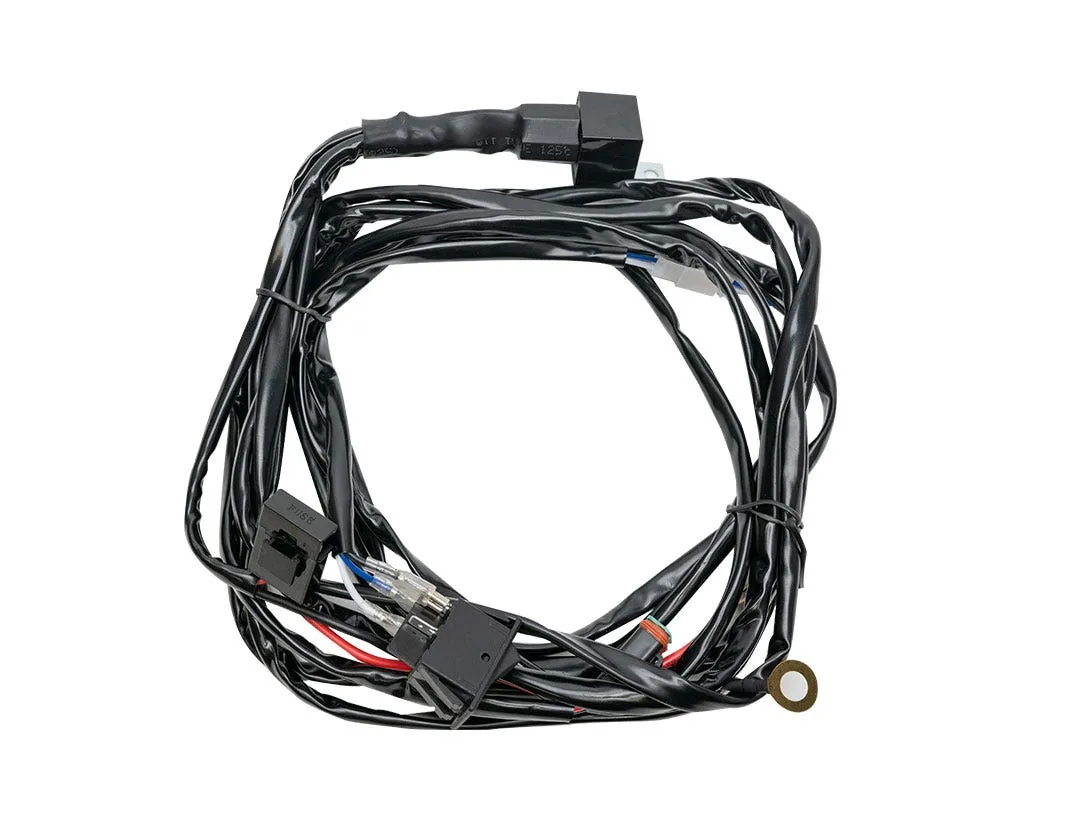

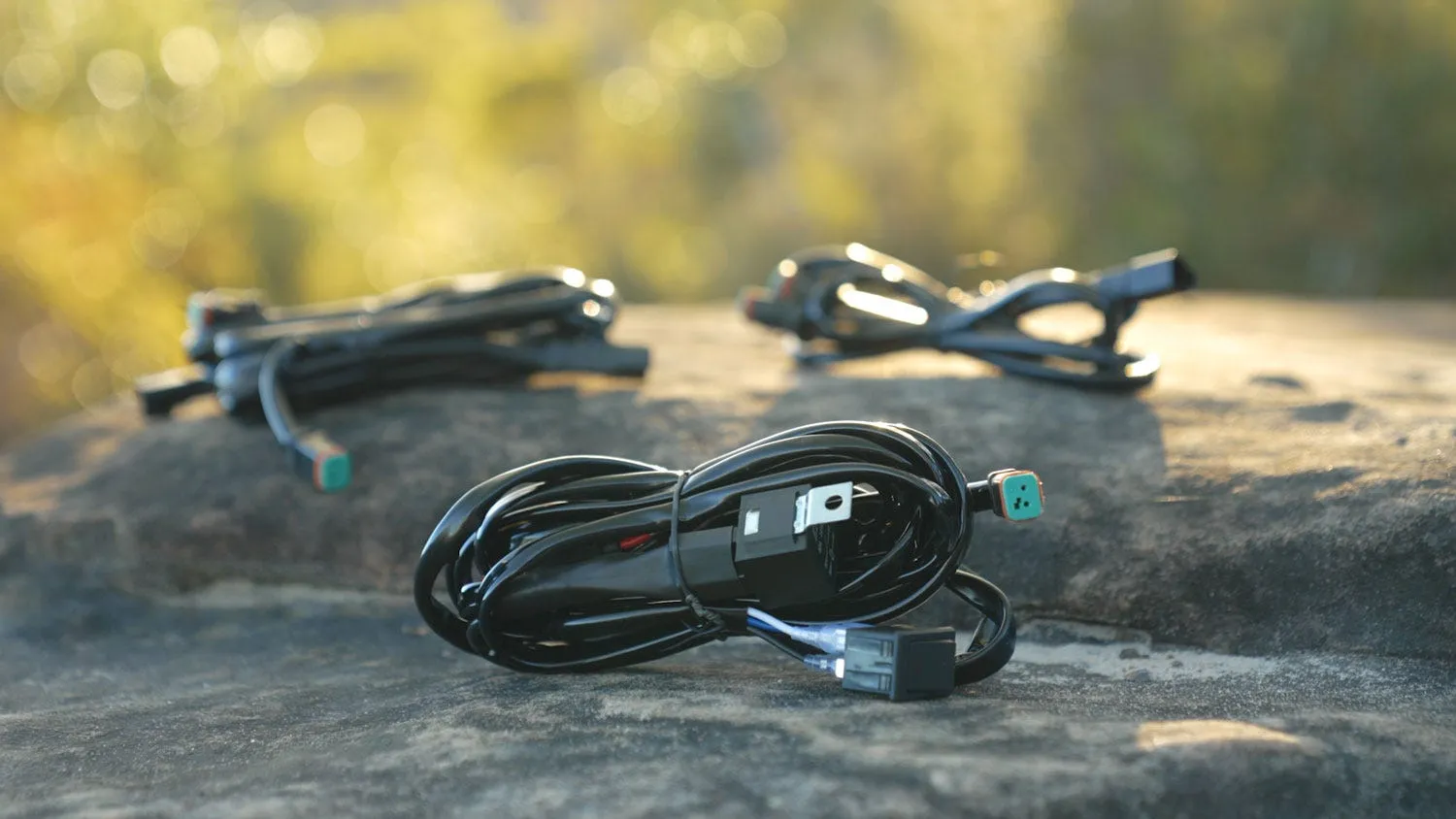

Adventure Kings Rear Lighting Wiring Harness

For Rear-Mounted Camping & Work Lights | Plug n Play Harness


THE EASIEST WAY TO POWER REAR OR SIDE-MOUNTED LED LIGHTS!

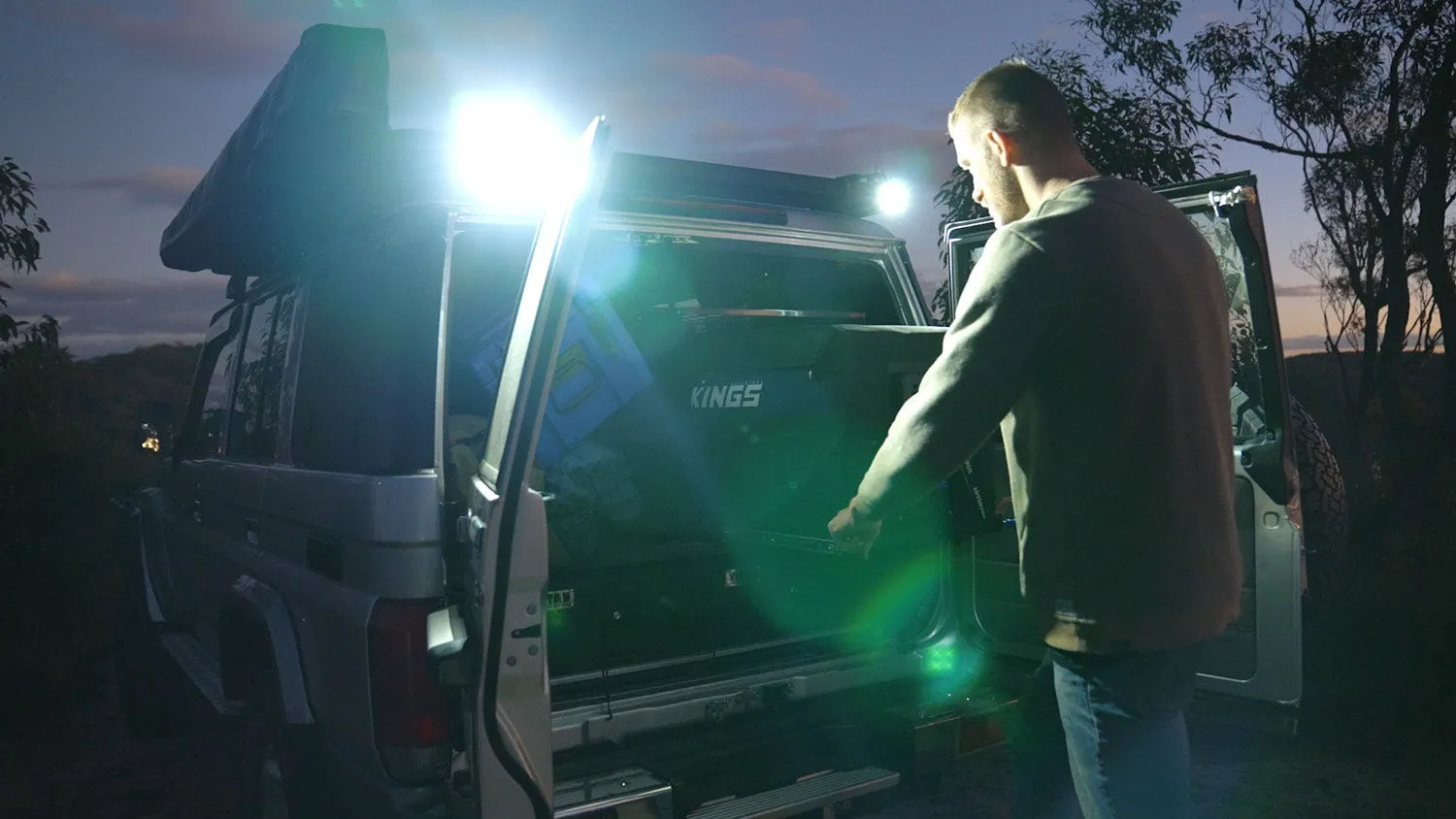

If you’re setting up rear or side-mounted LED lights to use for camping, dark jobsites or anywhere you need bright light at the flick of a switch, the Kings Rear Lighting Wiring Harness is the perfect solution! .


POWER AT THE FLICK OF A SWITCH

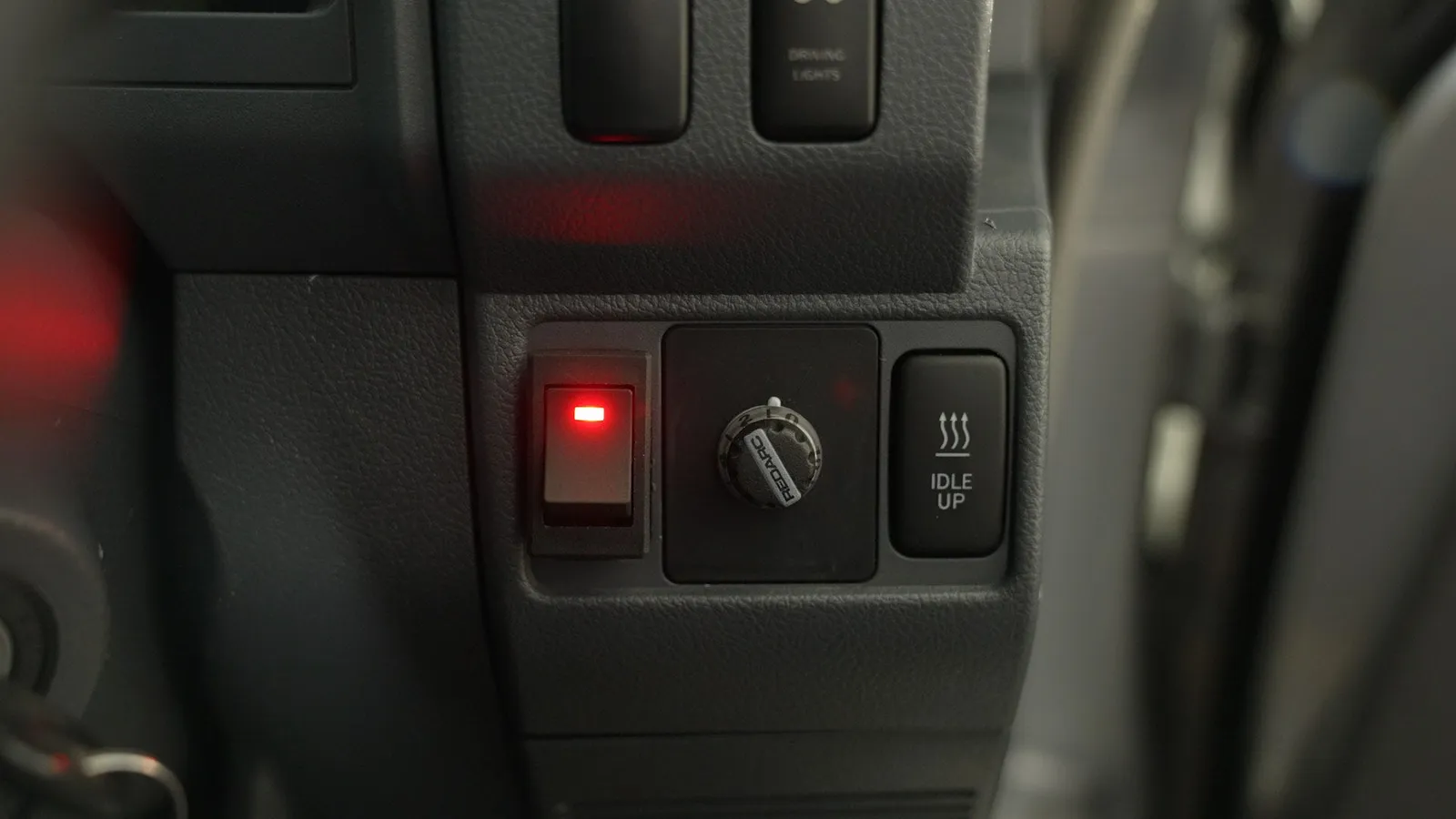

Similar to our driving light and lightbar harnesses, the key difference is the relay does not rely on a highbeam headlight trigger. Instead, you control your lights by turning the included flush-mount rocker switch on or off - it’s that easy.


DESIGNED FOR ULTIMATE EASE OF INSTALLATION

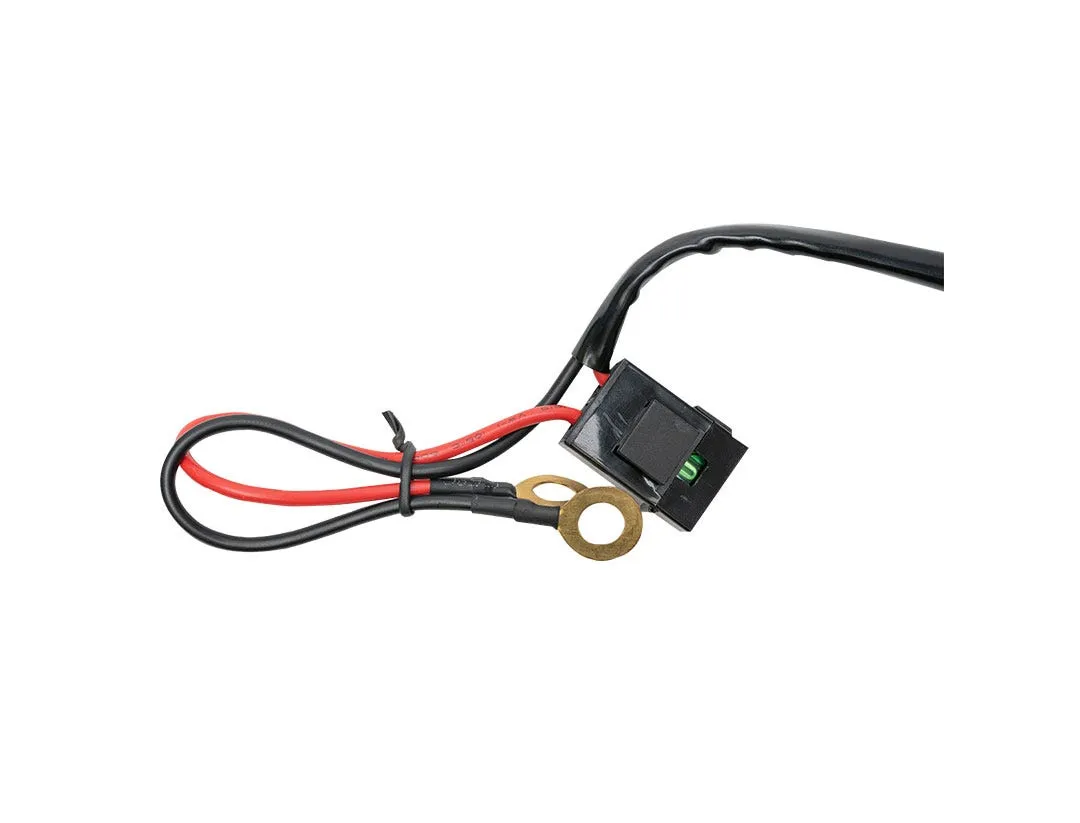

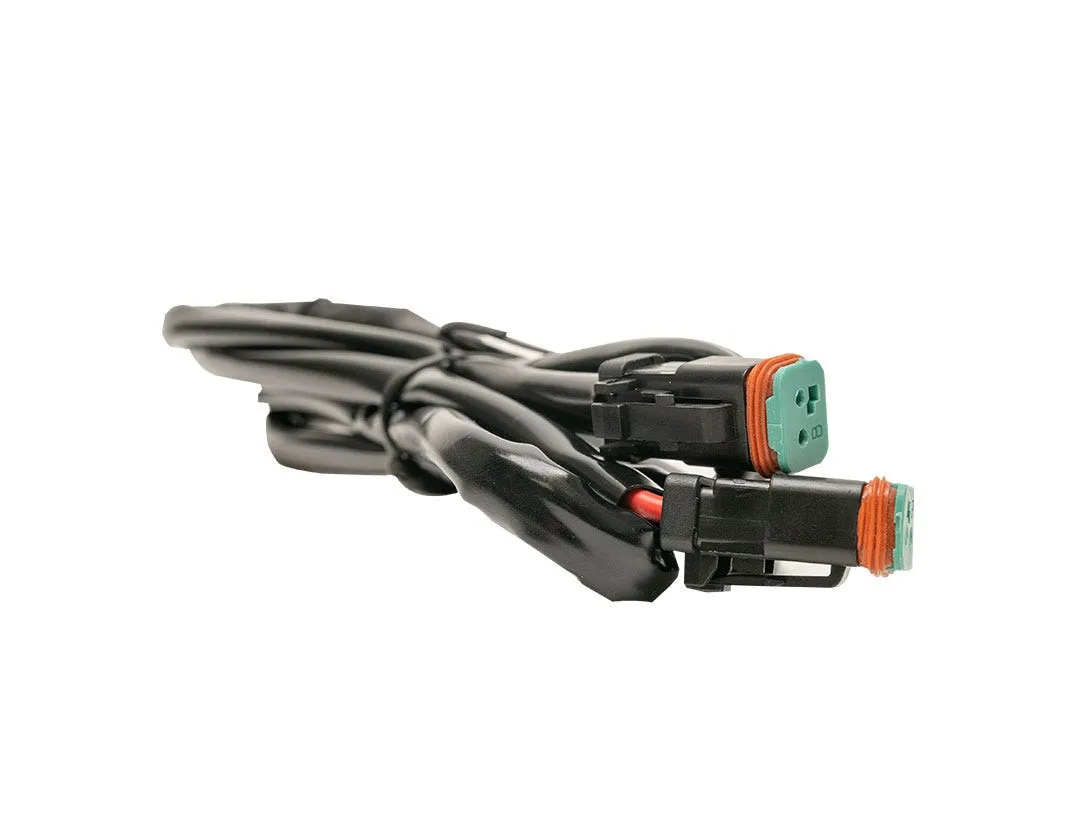

There’s no cutting, joining or soldering required with the Kings Rear Lighting Wiring Harness - all you need is spanners to connect it to your battery, and the rest of the connections are handled with Plug n Play Deutsch DT-style connectors that are compatible with all Kings LED lightbars and worklights.


ENOUGH LENGTH - BECAUSE SIZE MATTERS

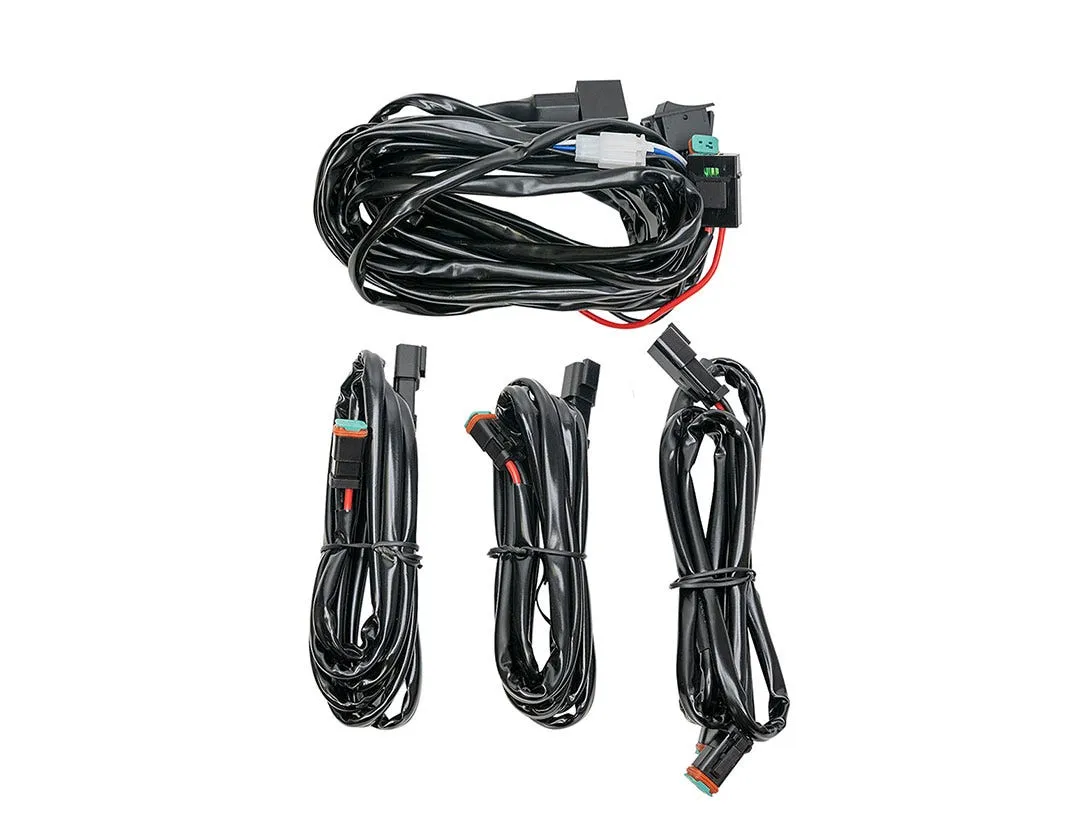

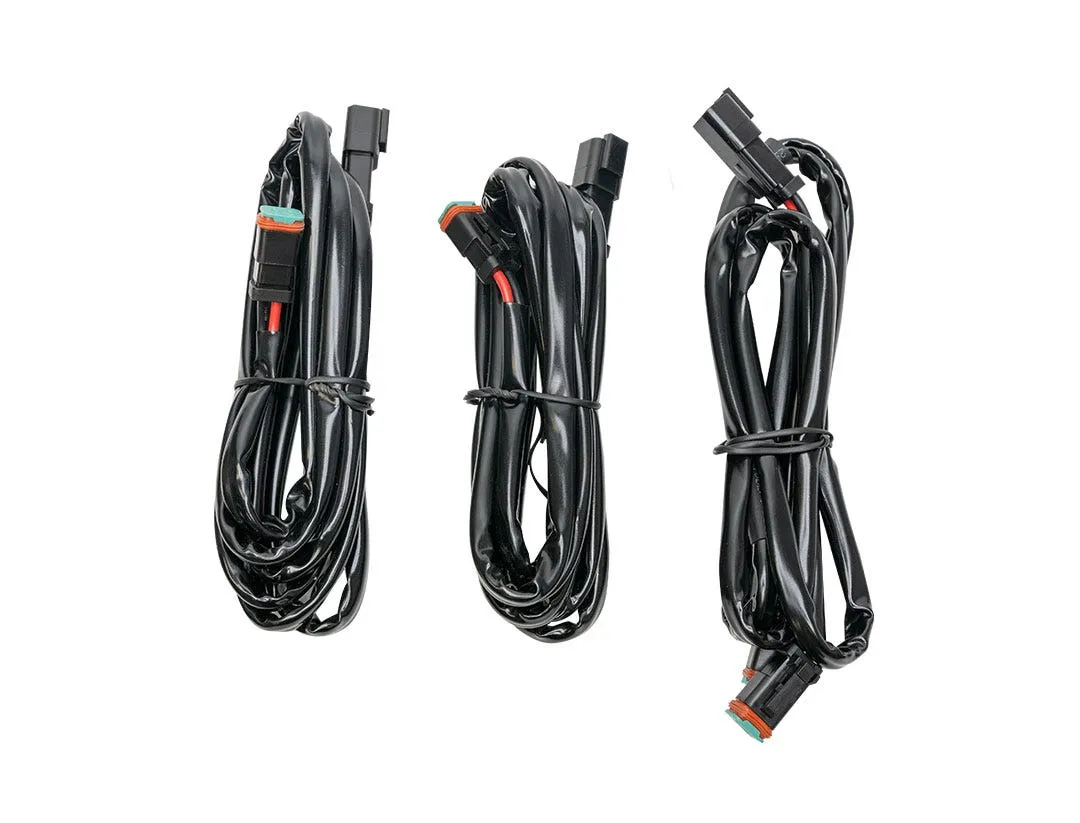

There’s enough room with this incredible light harness to set it up exactly how YOU want to. Mount the relay wherever you want, and from there you get a 1.3m long Y-splitter cable, and a pair of 2.0m long extension cables. There’s even a 2.7m long cable up to the switch, meaning you could easily mount the relay in the back of your vehicle near your second battery, connect to a separate LED work light on either side of your roofrack, AND have it controlled with a switch mounted in your dash!


QUALITY COMPONENTRY FOR SERIOUS LONGEVITY

There’s no cutting corners here - this amazing harness is built from the right stuff. Quality 12AWG cabling carries power properly along the full length of the harness, a 40A relay handles the job of directing power as needed, and a 25A inline blade fuse keeps the entire circuit protected. Too good!

Specifications

  • Cable Length (Relay to Switch): 2.7m
  • Cable Length (Y-splitter): 1.3m
  • Cable Length (Extension Cables x 2): 2.0m
  • Wire Gauge: 12AWG
  • Relay: 12v, 40A
  • Fuse: 25A
  • Battery Connectors: M8

Adventure Kings Rear Lighting Wiring Harness

For Rear-Mounted Camping & Work Lights | Plug n Play Harness


THE EASIEST WAY TO POWER REAR OR SIDE-MOUNTED LED LIGHTS!

If you’re setting up rear or side-mounted LED lights to use for camping, dark jobsites or anywhere you need bright light at the flick of a switch, the Kings Rear Lighting Wiring Harness is the perfect solution! .


POWER AT THE FLICK OF A SWITCH

Similar to our driving light and lightbar harnesses, the key difference is the relay does not rely on a highbeam headlight trigger. Instead, you control your lights by turning the included flush-mount rocker switch on or off - it’s that easy.


DESIGNED FOR ULTIMATE EASE OF INSTALLATION

There’s no cutting, joining or soldering required with the Kings Rear Lighting Wiring Harness - all you need is spanners to connect it to your battery, and the rest of the connections are handled with Plug n Play Deutsch DT-style connectors that are compatible with all Kings LED lightbars and worklights.


ENOUGH LENGTH - BECAUSE SIZE MATTERS

There’s enough room with this incredible light harness to set it up exactly how YOU want to. Mount the relay wherever you want, and from there you get a 1.3m long Y-splitter cable, and a pair of 2.0m long extension cables. There’s even a 2.7m long cable up to the switch, meaning you could easily mount the relay in the back of your vehicle near your second battery, connect to a separate LED work light on either side of your roofrack, AND have it controlled with a switch mounted in your dash!


QUALITY COMPONENTRY FOR SERIOUS LONGEVITY

There’s no cutting corners here - this amazing harness is built from the right stuff. Quality 12AWG cabling carries power properly along the full length of the harness, a 40A relay handles the job of directing power as needed, and a 25A inline blade fuse keeps the entire circuit protected. Too good!

  • Cable Length (Relay to Switch): 2.7m
  • Cable Length (Y-splitter): 1.3m
  • Cable Length (Extension Cables x 2): 2.0m
  • Wire Gauge: 12AWG
  • Relay: 12v, 40A
  • Fuse: 25A
  • Battery Connectors: M8
