Description

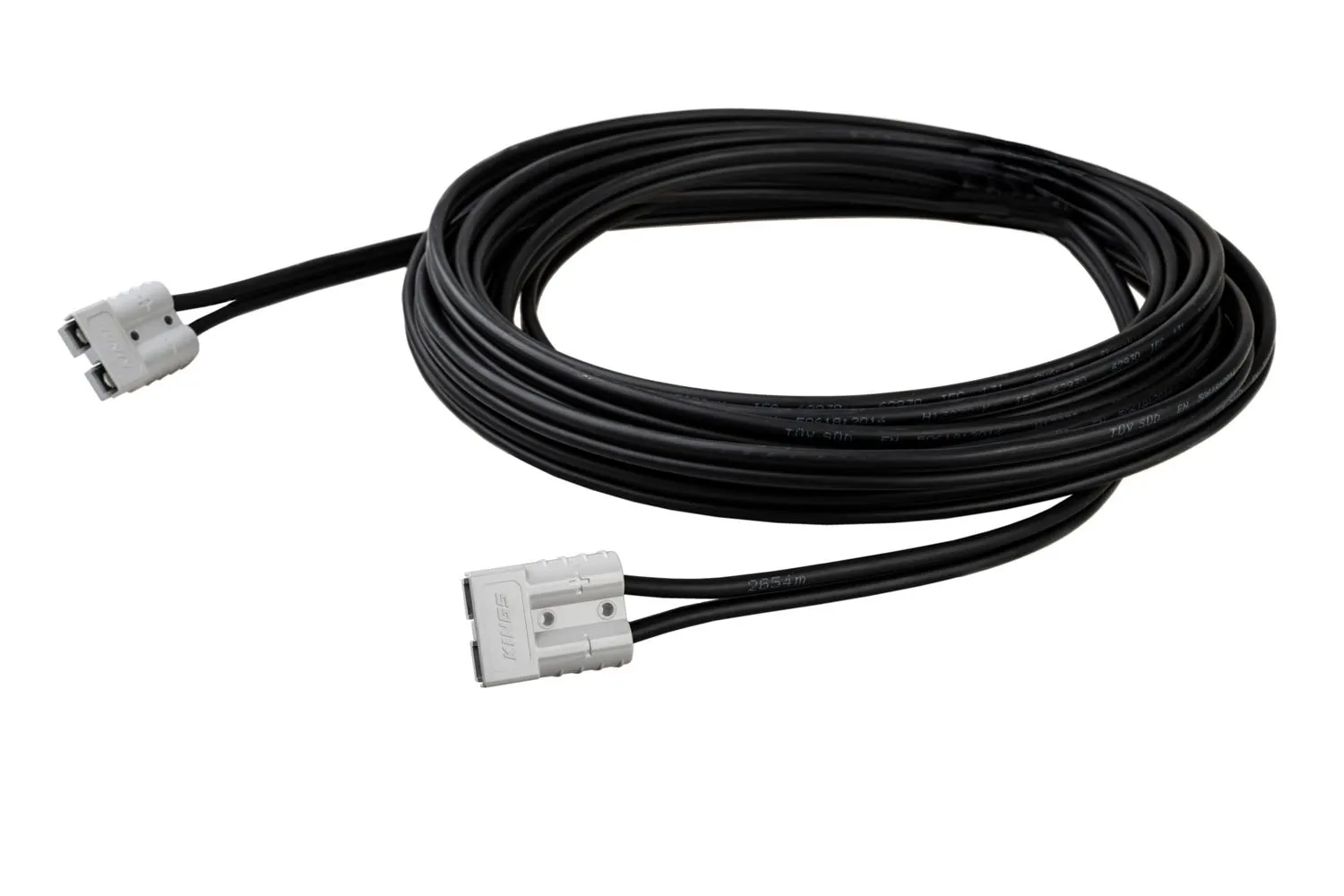

Kings 12m Extension Lead

6mm2 High Quality Copper | Heavy Duty


12 METRE LENGTH

EXTENDS YOUR REACH

The 12m Solar Extension Lead is the perfect partner for your portable solar blankets and panels. The 12-metre length and Kings quick-connect plugs make it easy to make the most of your solar – allowing you to camp in the cool shade and still set up your solar in full sun.


QUALITY H1Z2Z2-K WIRING

BUILT TOUGH FOR SOLAR

Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they’re up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there’s an extra 0.9mm thick XLPE protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!


KINGS QUICK CONNECT PLUGS

EASY, HIGH POWER CONNECTION

The Anderson-compatible Kings quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy. Plus they ensure a weatherproof and solid electrical connection into your solar blanket, solar panel, Battery Box or 12V Control Box.

Specifications

  • Length: 12m
  • Conductor Material: Twin Core Multi-Strand Copper (84x0.3)
  • Conductor Cross Sectional Area (each wire): 6mm2
  • Insulation Material: 0.8mm Halogen-Free XLPO
  • Outer Sheath material: 0.9mm Halogen-Free XLPO
  • External Dimensions: 13.5mm x 5mm
  • Recommended Maximum Current: 20A
  • Operating Temperature Range: -40°C~+90°
  • Plug Type: Kings Quick Connect Plugs (Anderson Compatible)
  • Plug Rating: 50A
  • Plug Material: UL94-V0 Flame Resistant Thermoplastic
  • Connector Material: Copper
  • Maximum Rated Voltage: DC 1500V

Kings 12m Extension Lead

6mm2 High Quality Copper | Heavy Duty


12 METRE LENGTH

EXTENDS YOUR REACH

The 12m Solar Extension Lead is the perfect partner for your portable solar blankets and panels. The 12-metre length and Kings quick-connect plugs make it easy to make the most of your solar – allowing you to camp in the cool shade and still set up your solar in full sun.


QUALITY H1Z2Z2-K WIRING

BUILT TOUGH FOR SOLAR

Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they’re up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there’s an extra 0.9mm thick XLPE protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too – perfect for your next trip away or your next DIY project!


KINGS QUICK CONNECT PLUGS

EASY, HIGH POWER CONNECTION

The Anderson-compatible Kings quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy. Plus they ensure a weatherproof and solid electrical connection into your solar blanket, solar panel, Battery Box or 12V Control Box.

  • Length: 12m
  • Conductor Material: Twin Core Multi-Strand Copper (84x0.3)
  • Conductor Cross Sectional Area (each wire): 6mm2
  • Insulation Material: 0.8mm Halogen-Free XLPO
  • Outer Sheath material: 0.9mm Halogen-Free XLPO
  • External Dimensions: 13.5mm x 5mm
  • Recommended Maximum Current: 20A
  • Operating Temperature Range: -40°C~+90°
  • Plug Type: Kings Quick Connect Plugs (Anderson Compatible)
  • Plug Rating: 50A
  • Plug Material: UL94-V0 Flame Resistant Thermoplastic
  • Connector Material: Copper
  • Maximum Rated Voltage: DC 1500V
