12V Control Box

Control 12V Equipment | 16A pre-wired switches | Cig Sockets | 2x USB ports

Ultra-premium quality for 12V DIY Fans!

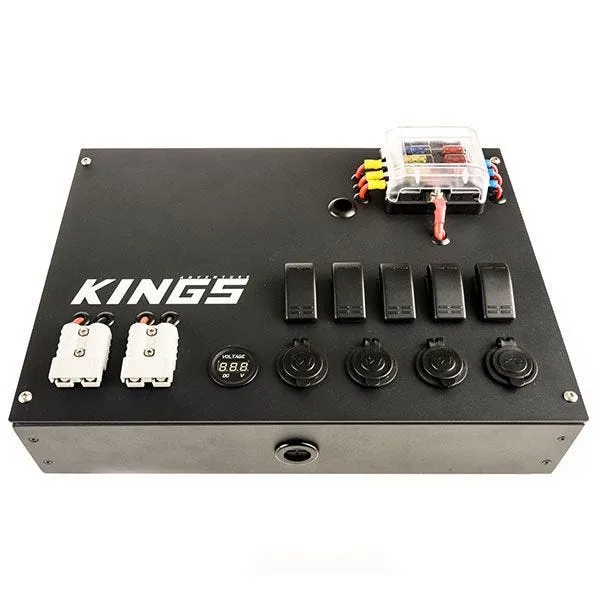

This is the Adventure Kings 12V Control Box – a feature packed bit of gear that will make anyone’s 12V setup better! If you’ve been dreaming of an epic camping 12v system, then this is the bit of gear you’ve been waiting for. An ultra-premium quality product, without the premium price tag!

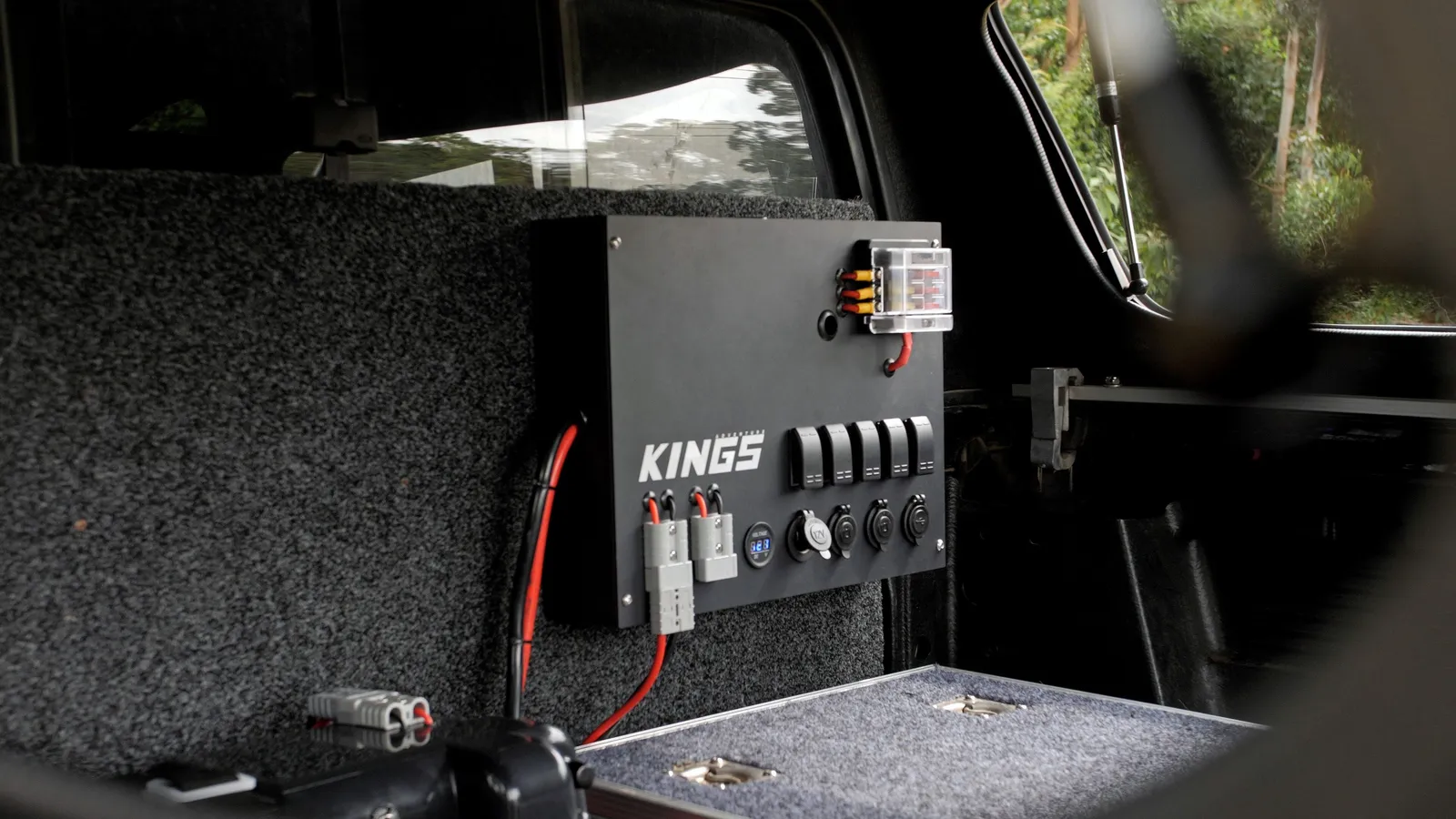

Compact enough to fit just about anywhere

First, the box itself is built with laser cut 1.5mm powder coated aluminium and the lid is 2mm thick for strength. Coming in at 400mm by 305mm and 80mm deep, it’s compact enough to fit just about anywhere while still providing plenty of room for all the switches, wiring and 12v gear.

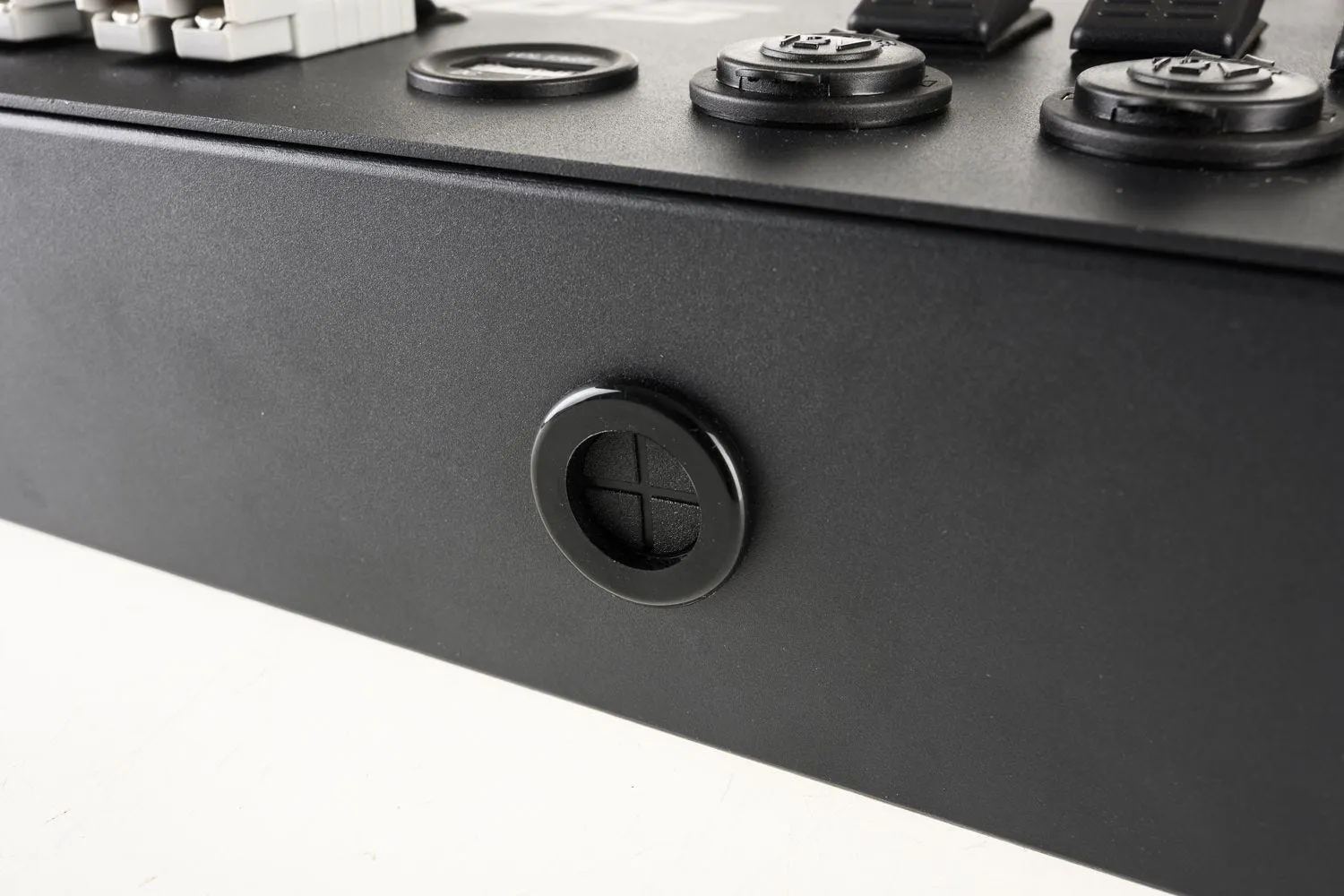

Easy to position

Going from the outside in, there’s a grommet on each side which makes it easy to position and wire this up, no matter where you want to mount it.

DESIGNED TO FIT A KINGS DC-DC CHARGER PERFECTLY!

On the front you’ll notice the space at the top left, along with the extra grommet – this space is designed so you can mount a DCDC charger directly onto the box – feed the wiring through the grommet and you can wire up to the internal posts for an all-in-one install.

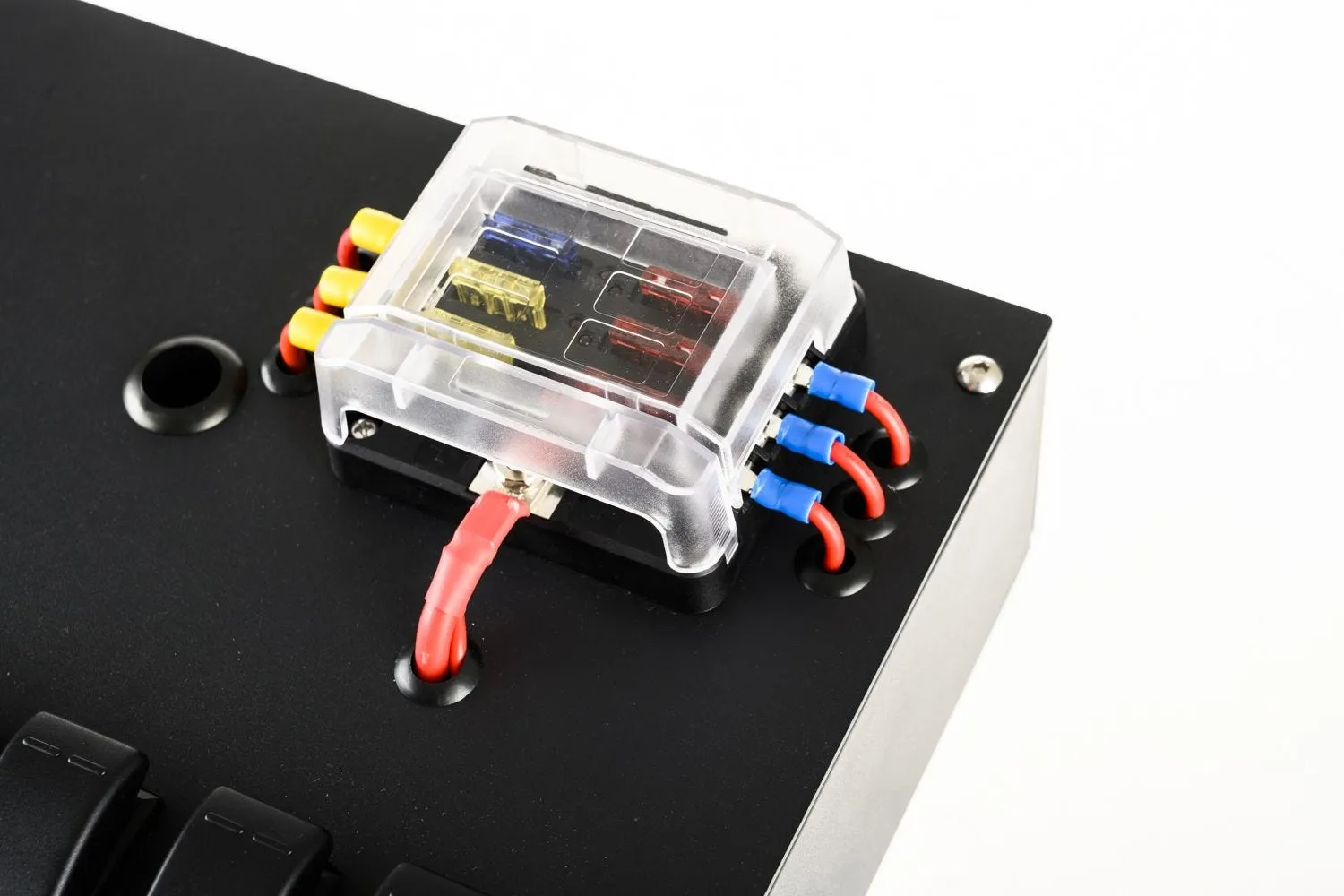

Easy to access fuse holder

Next up there’s an easy to access fuse holder – these fuses run the switches, plugs and sockets that run along the bottom of the control box.

3x Cig Sockets and 2x USB ports

From left to right you’ve got 2 quick connect plugs – the first can be easily configured as a solar input for your DCDC charger. Then there’s a voltmeter, three 20A-rated cig sockets and a double USB socket with 1amp and 2.1amp USB connections.

5 x 16Amp rated rocker switches

Above that you’ll see 5 x 16Amp rated rocker switches – these are pre wired with fused power so you can easily switch any added accessories and circuits on and off. You even get a sheet of pre-labelled stickers to customise your setup for your own needs!

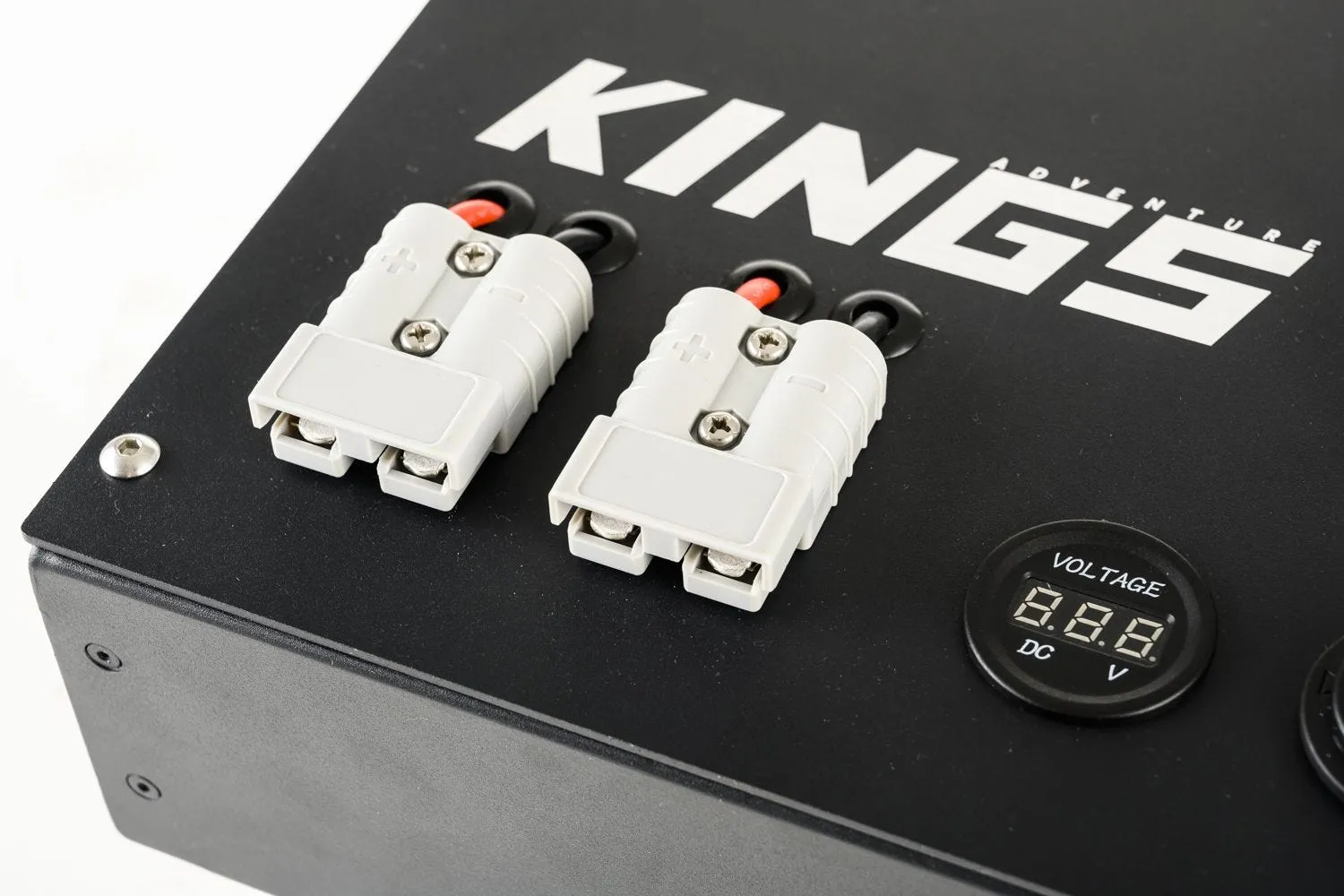

Dual 20A quick-connect fittings

Plug your Adventure Kings solar panel & regulator straight in for instant solar charging!

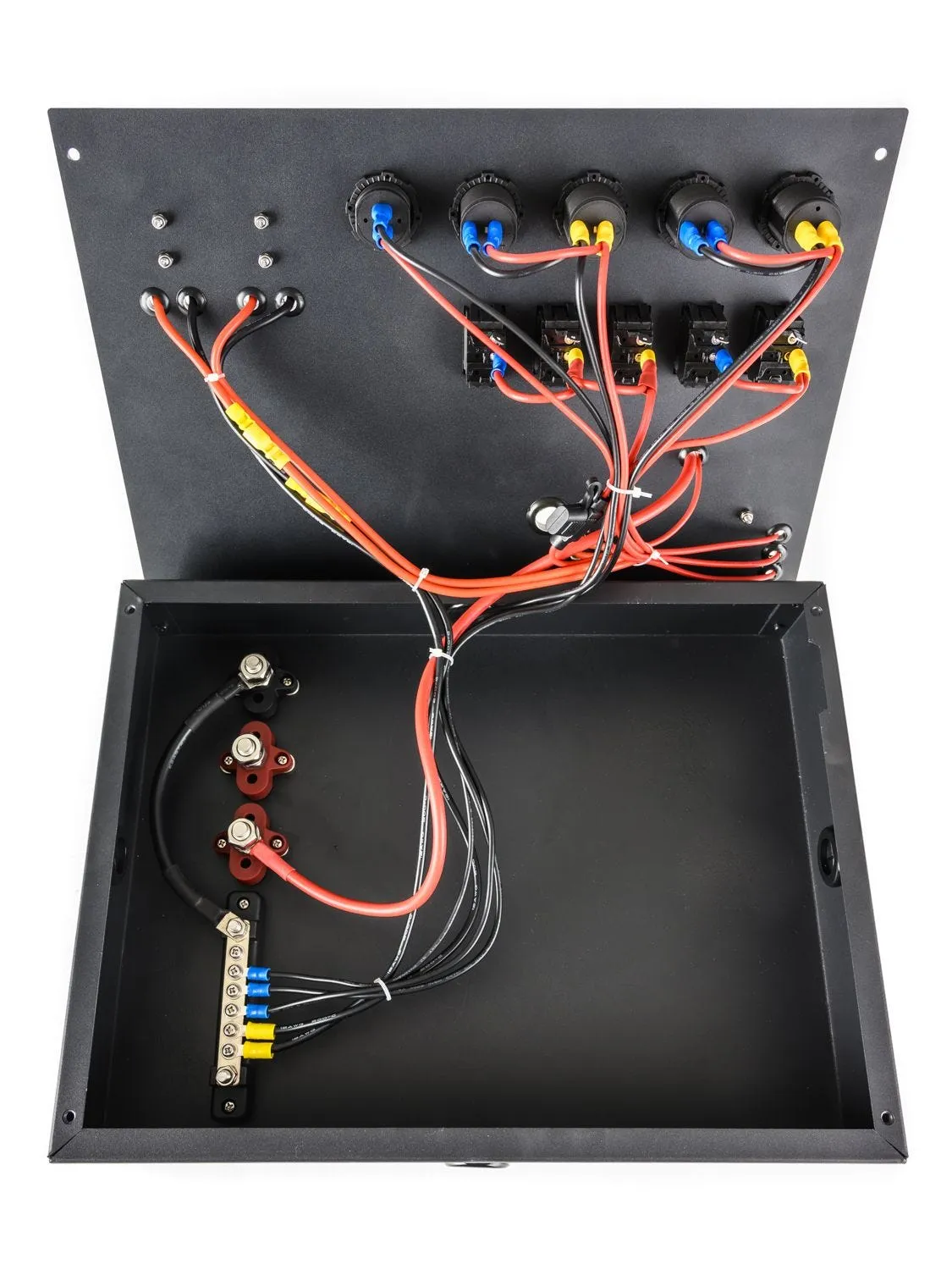

Incredible quality wiring throughout!

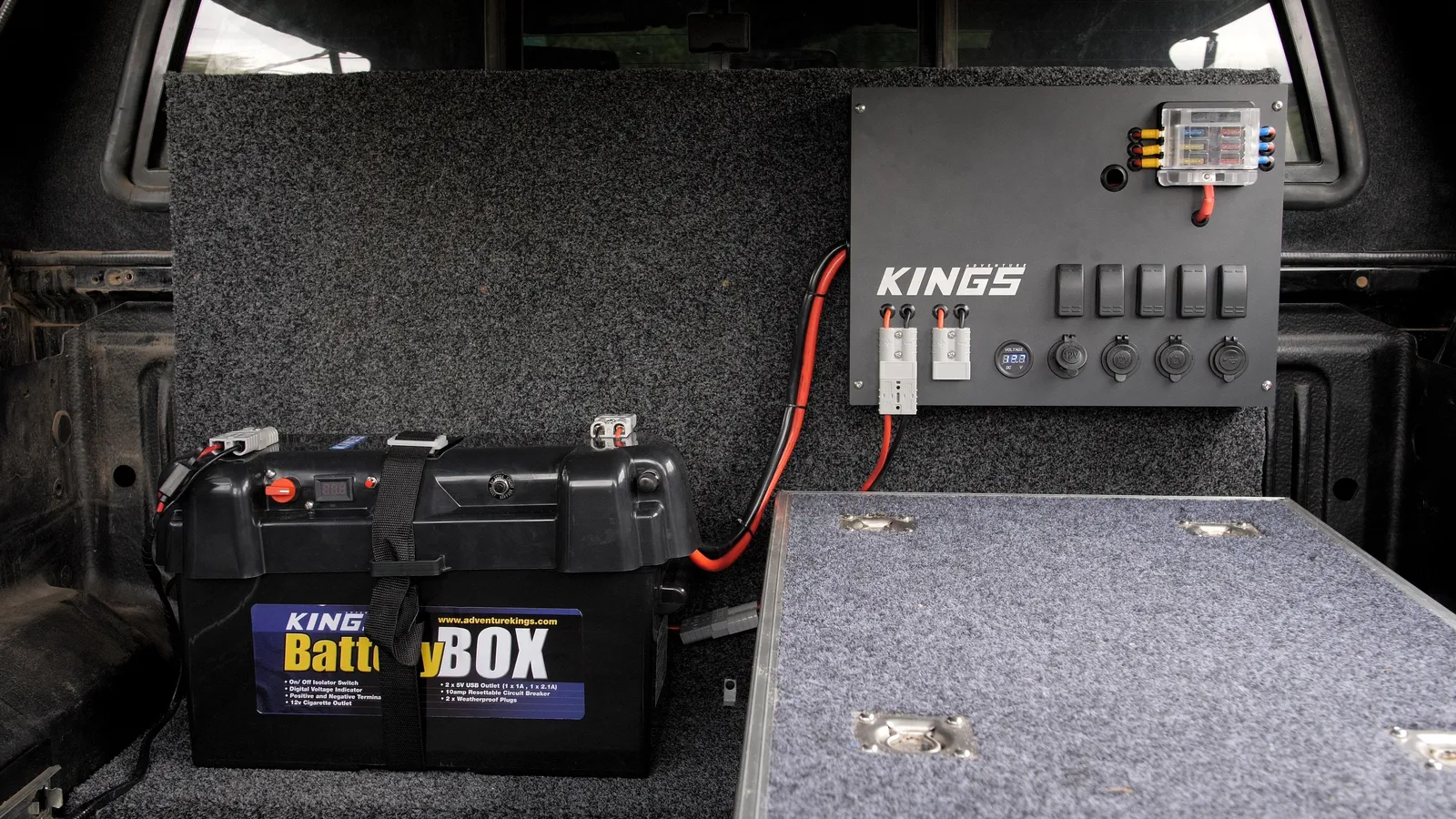

The face screws off and inside you’ve got a negative bus bar and negative M10 binding post as well as two positive binding posts for your starter and auxiliary batteries. That means wiring up both batteries for a dual battery system is easy!

Digital Voltage Indicator

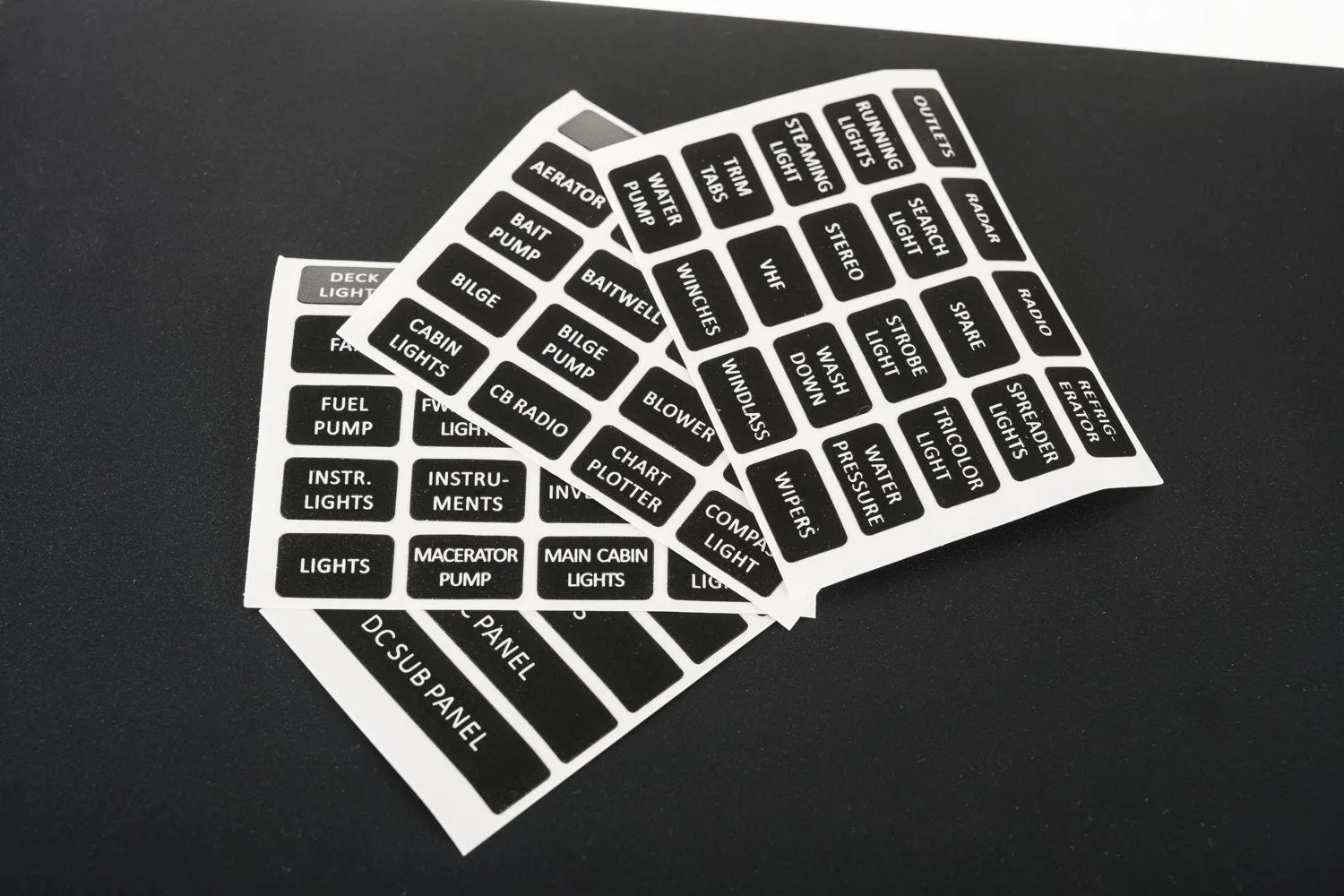

Included sticker sheet for switches

Dimensions

Specifications

  • Box Material:: Black powder coated laser cut aluminium
  • Box Size:: 400 x 305 x 80mm
  • Weight:: 2.74kg
  • Lid Thickness:: 2mm
  • Box Thickness: : 1.5mm
  • DCDC Charger:: Provisions for CTEK D250SA or Kings DCDC Charger
  • Coating:: Black Powder Coating
  • Recommended Fuse Size for Batteries: : 40A (Input cable from vehicle’s battery needs to be fused as close as possible to the battery using a 40A inline fuse or circuit breaker)
  • Recommended Cable Size for Batteries Depending on Length:: 0-1m = 8 Gauge Battery Cable 1-3m = 6 Gauge Battery Cable
